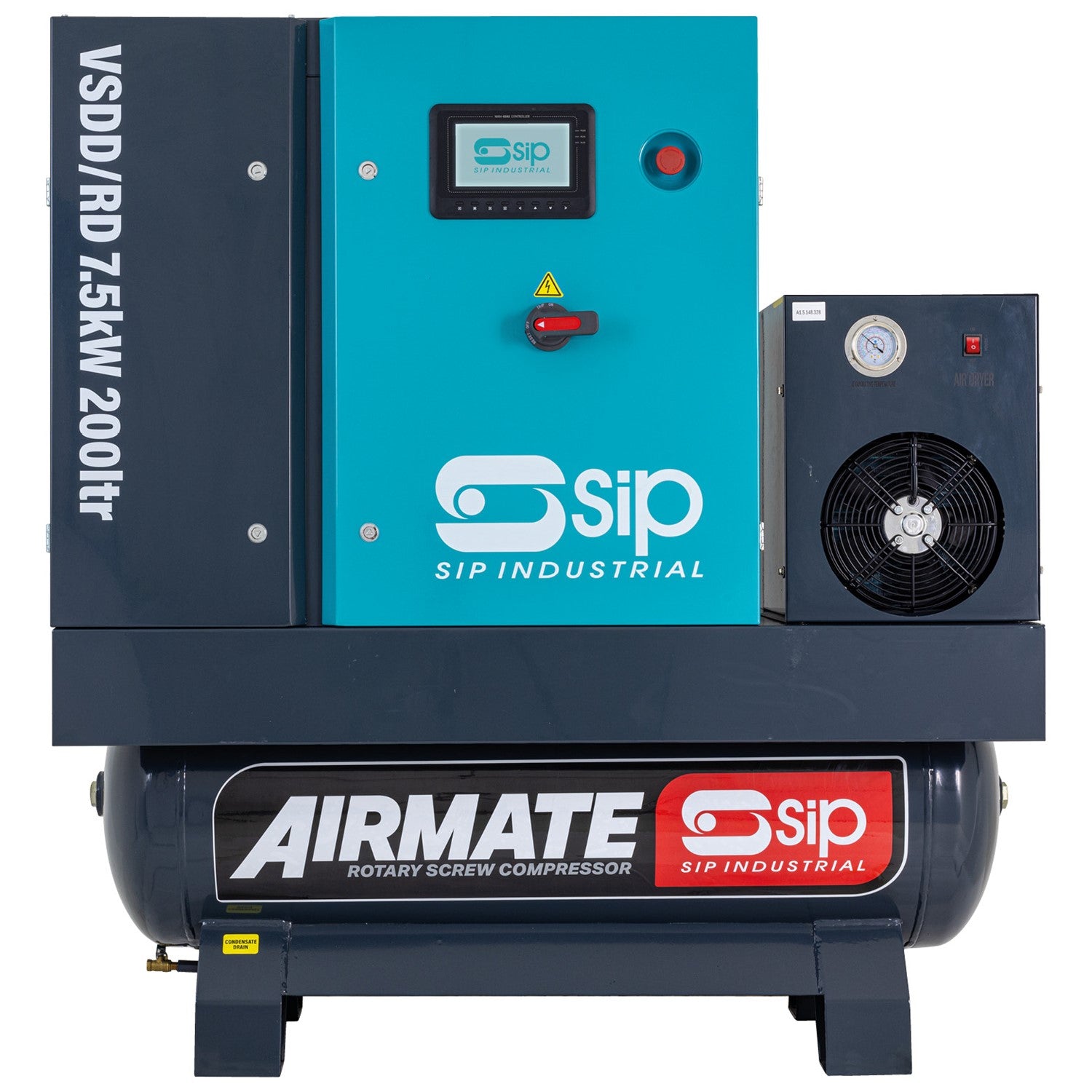

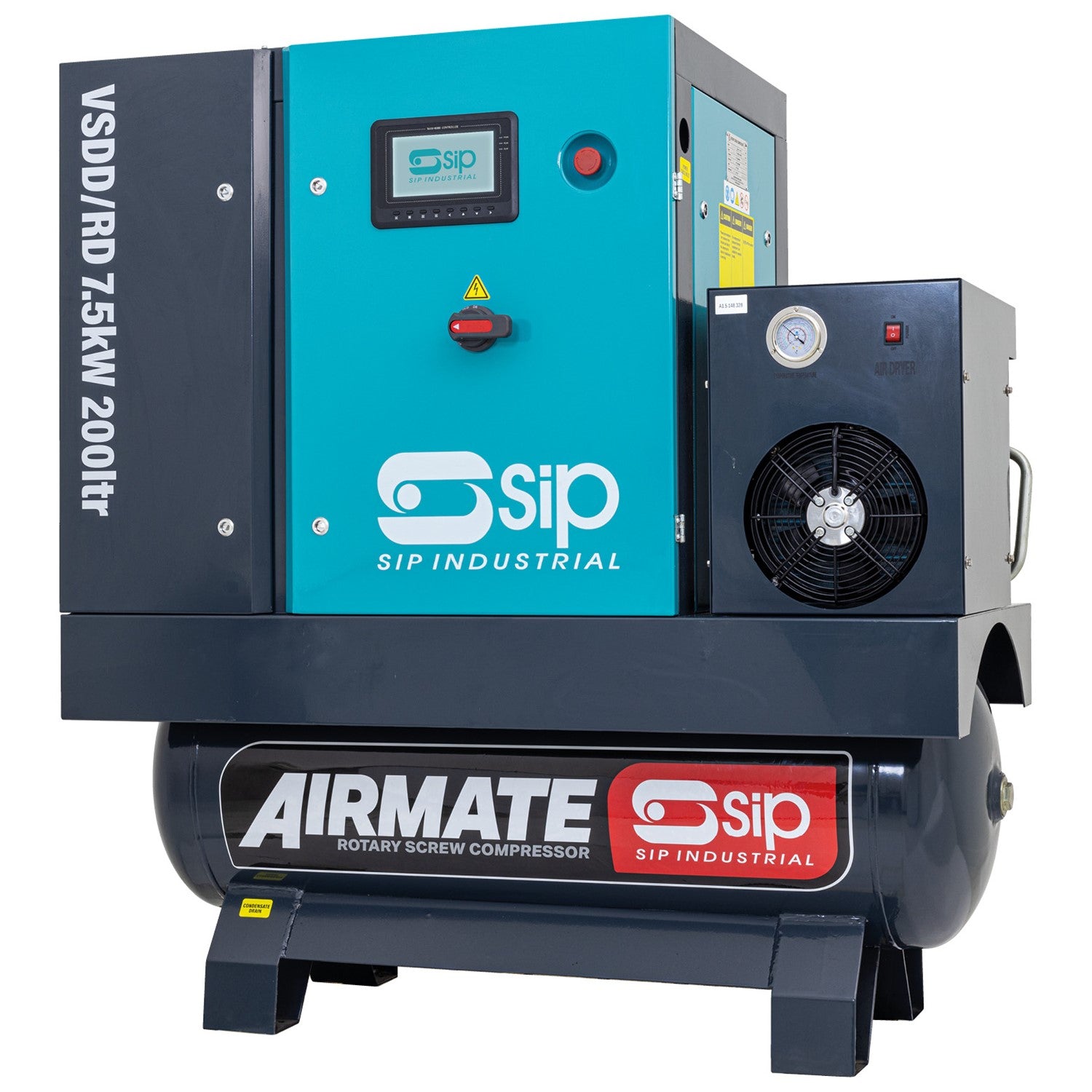

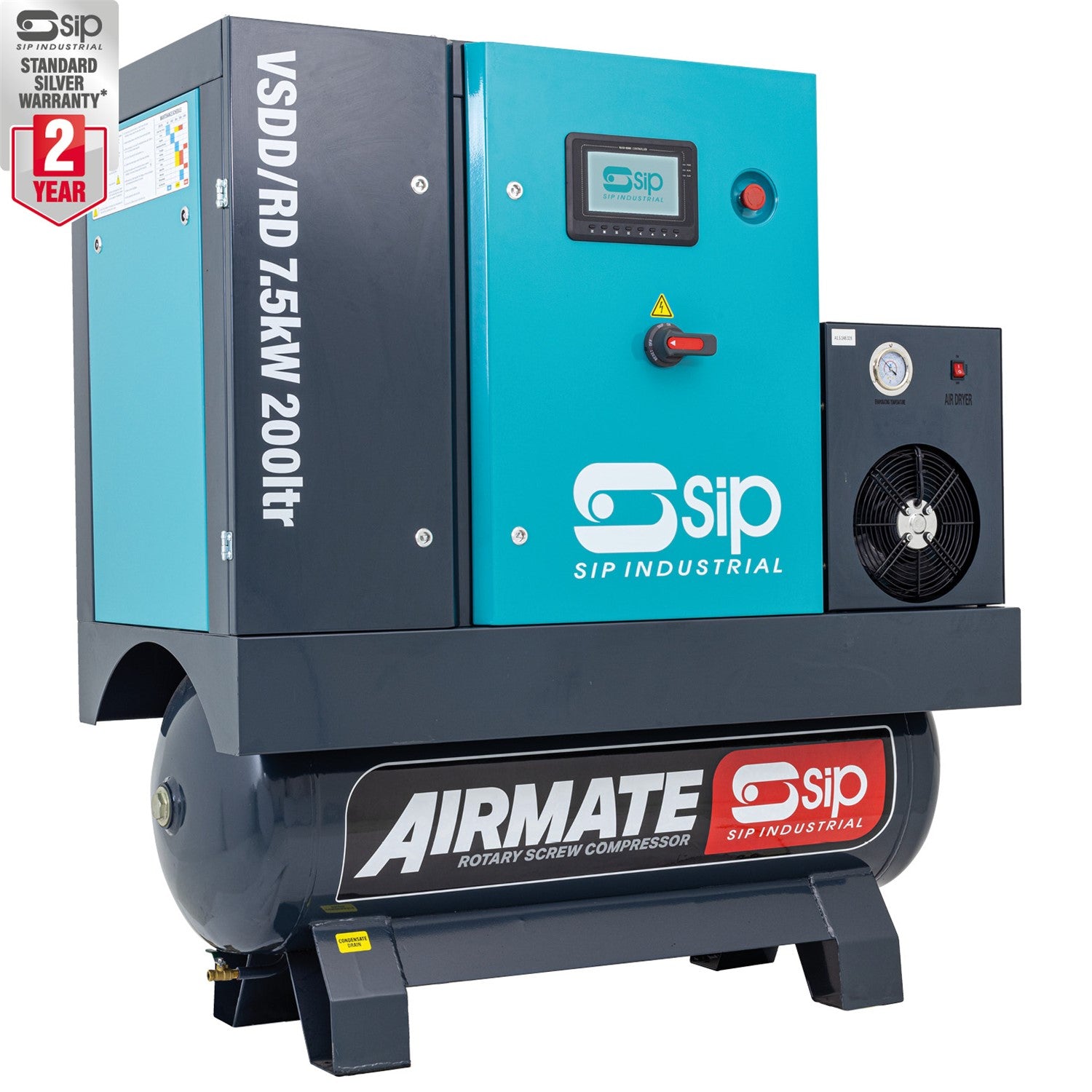

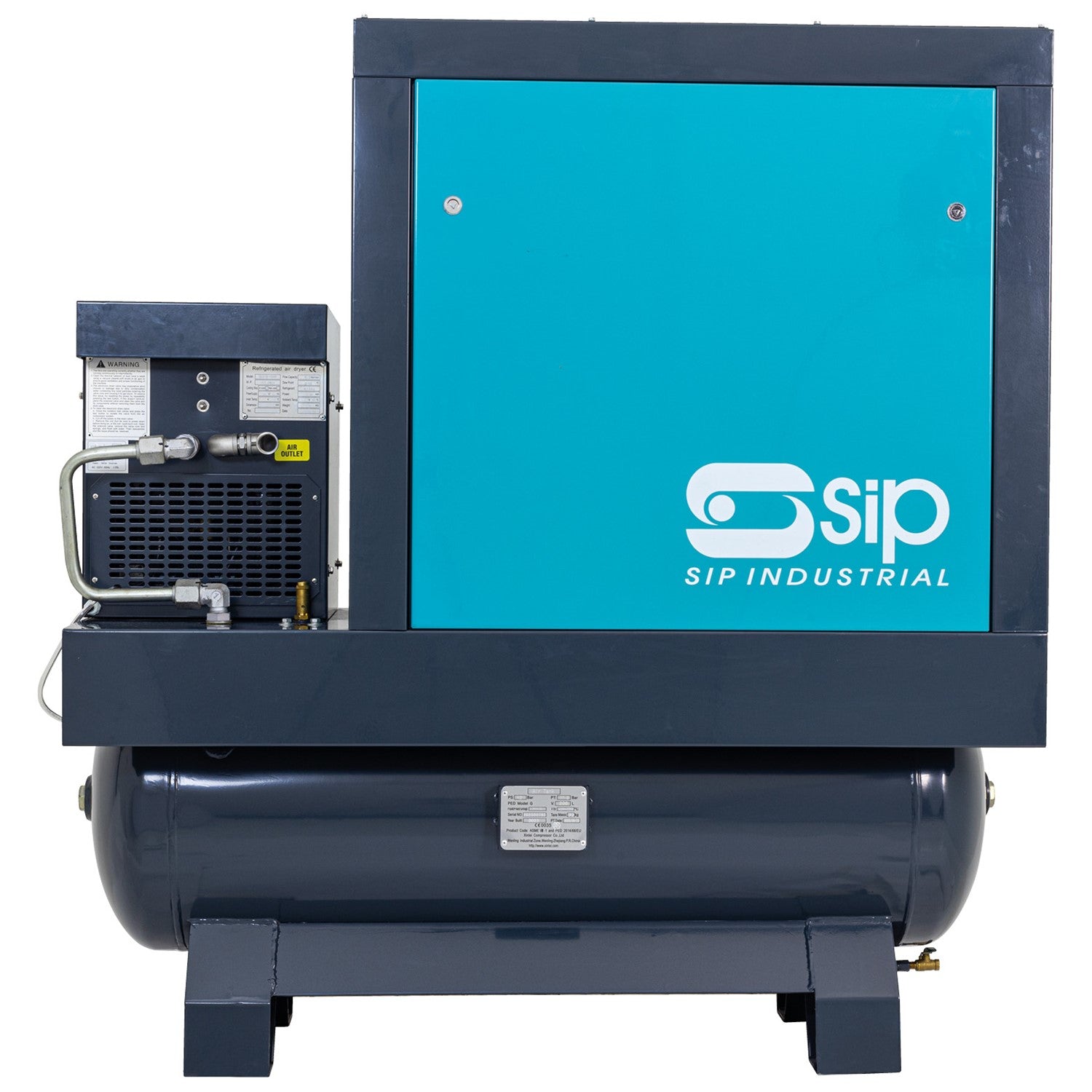

SIP VSDD/RDF 400V 7.5kW 8bar 200L Variable Speed Screw Compressor & Dryer - 08269
The SIP VSDD/RDF 7.5kW Variable Speed Drive (VSD) Rotary Screw Compressor with Integrated Dryer – a smart, fourth-generation all-in-one solution crafted for reliable, moisture-free compressed air in busy industrial settings. Model 08269 provides up to 32 CFM (920 L/min) of free air delivery at a steady 8 bar (116 psi) maximum pressure, driven by an energy-efficient 7.5kW (10hp) IE4 motor on a 400V supply. Featuring advanced variable speed technology, it dynamically matches output to your air needs, cutting energy use by up to 35% over fixed-speed units, while the built-in refrigerated dryer ensures dry, high-quality air to protect tools and extend system life. Plus, enjoy ultra-quiet performance at only 62 dB(A).
Key Features:
- Variable Speed Drive (VSD) Inverter Control: Smartly adjusts motor speed for optimal efficiency, soft starts to minimize wear, and consistent delivery across fluctuating demands – ideal for multi-tool or continuous operations.
- Integrated Refrigerated Dryer & Filter: Removes moisture for cleaner air output, meeting ISO 8573-1 (2-4-2) purity standards, preventing corrosion and boosting tool reliability.
- Direct Drive Transmission: No belts or pulleys means zero maintenance, superior efficiency, and extended durability with minimal components.
- Compact 200L Air Receiver Tank: Offers sufficient storage for stable pressure in smaller setups, handling surges without downtime.
- Heavy-Duty Silenced Cabinet: Dampens vibrations and noise for a serene workspace, perfect for indoor environments.
- Fan-Cooled System: Maintains peak performance during long shifts, with accessible filters for simple upkeep.
- Intuitive Color Touchscreen Interface: Displays real-time data on pressure, temperature, and hours for easy monitoring and troubleshooting.
- 3/4" BSPP Outlet: Seamless connection to standard pneumatic equipment.
Technical Information
| ITEM NO. | 08269 |
| Input Supply | 400v (32A) |
| Rated Input: | 9.5kW |
| Motor Power: | 7.5kW (10hp) |
| IE4 Motor: | Yes |
| Max. Pressure: | 116psi (8bar) |
| Free Air Delivery (FAD): | 37CFM (1050ltr/min) |
| Receiver Size: | 200ltr |
| Cooling Type: | Fan Cooled |
| Transmission Type: | Direct Drive |
| Start-Up Mode: | Inverter Soft Start |
| Refrigerated Dryer: | Yes |
| Outlet Connector: | 3/4" BSPP |
| Noise Level: | 62dB(A) |
| Net Weight: | 290.00kg |
| Product Dimensions: | 1470(H) x 670(W) x 1440mm(D) |
