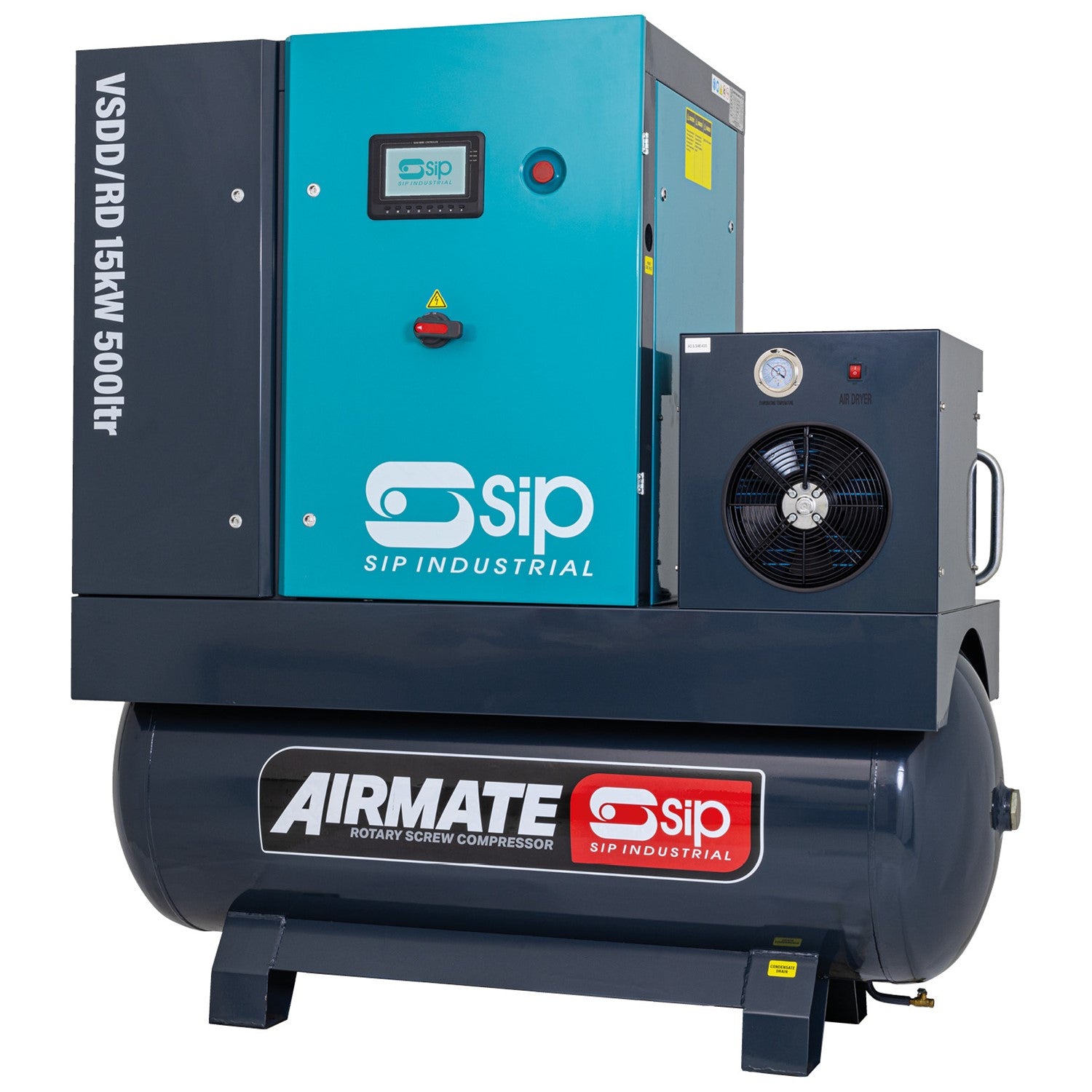

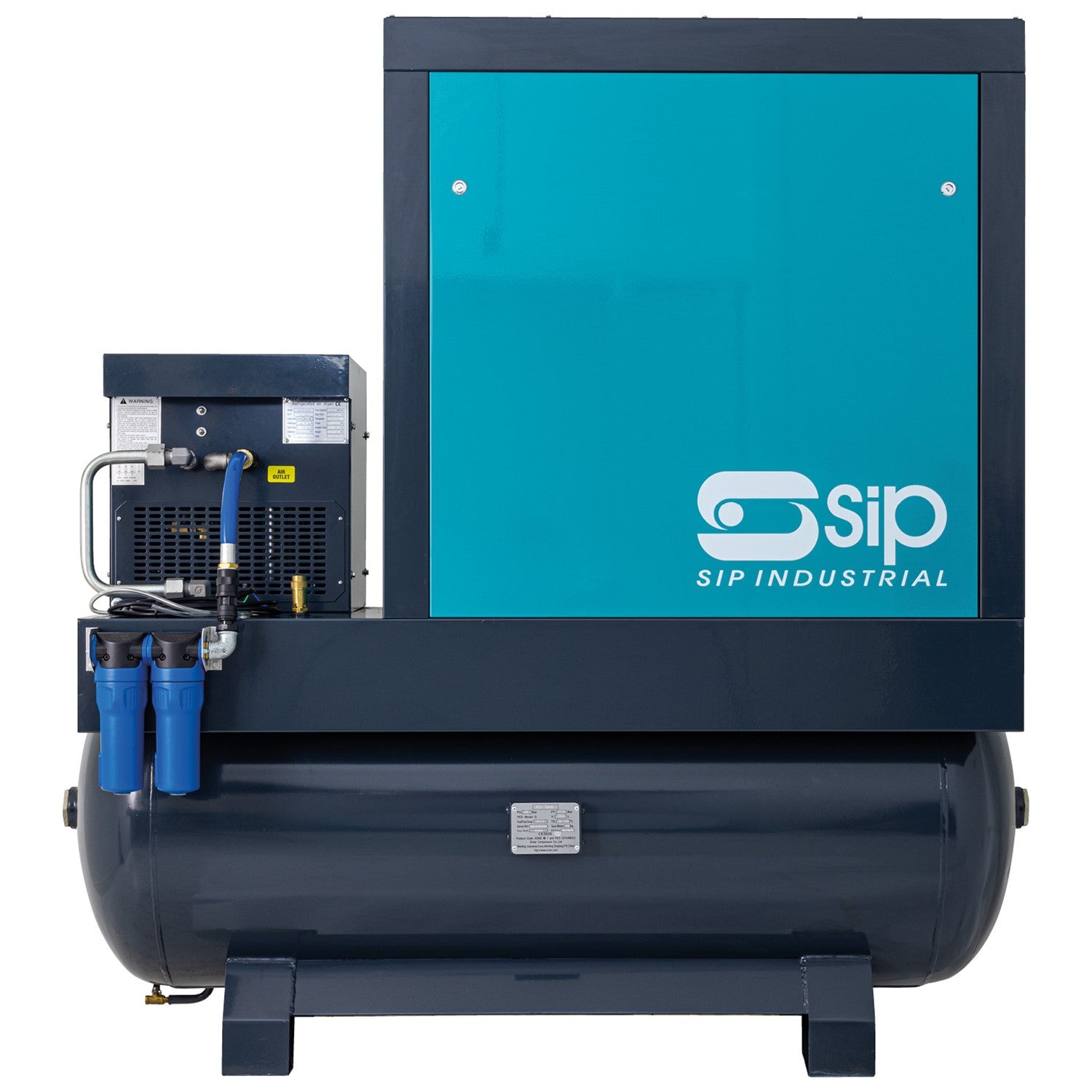

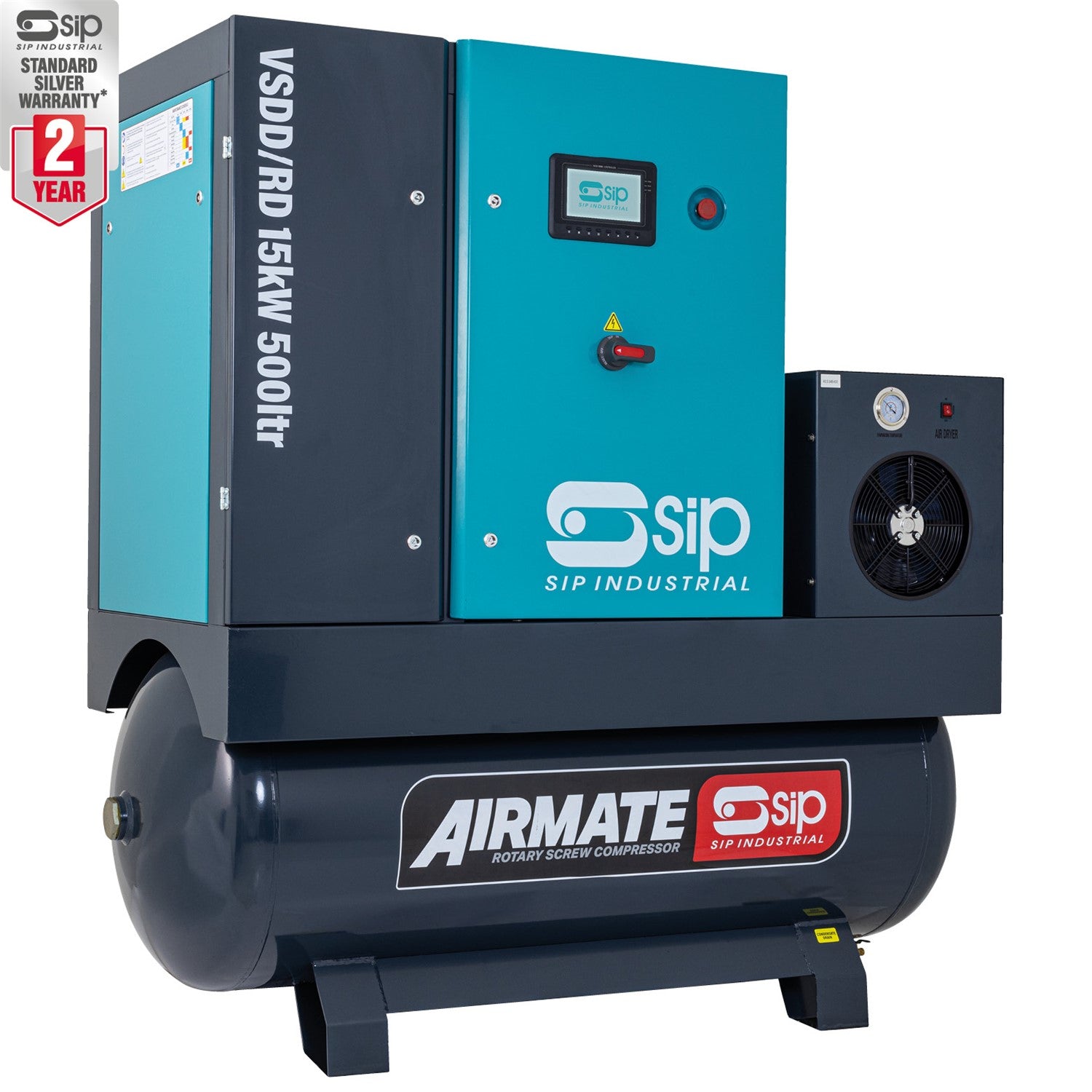

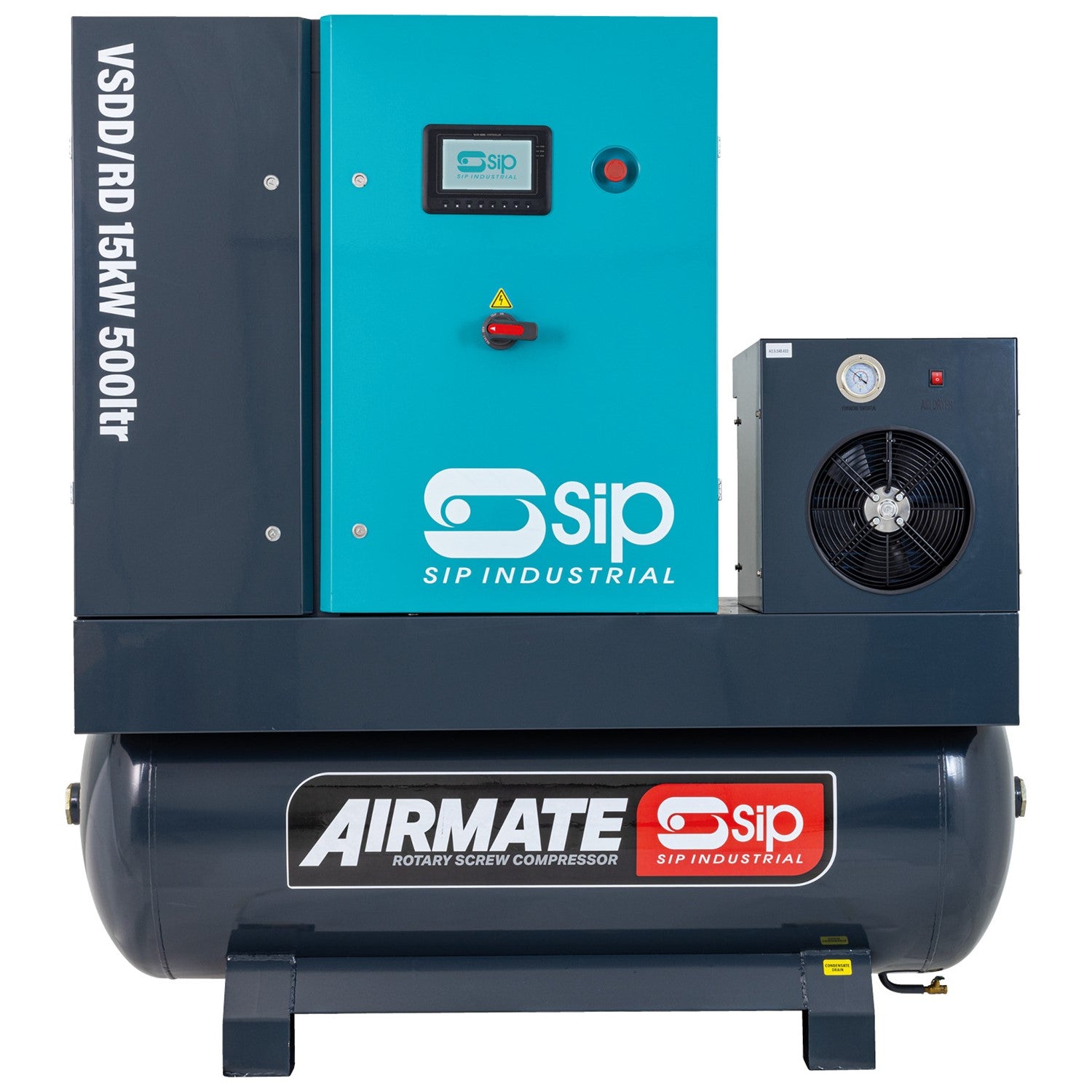

SIP VSDD/RDF 400V 15kW 8bar 500L Variable Speed Screw Compressor & Dry

CALL FREE ON 0800 7555 808

SIP VSDD/RDF 400V 15kW 8bar 500L Variable Speed Screw Compressor & Dryer - 08274
SIP VSDD/RDF 400V 15kW 8bar 500L Variable Speed Screw Compressor & Dryer - 08274
SIP VSDD/RDF 400V 15kW 8bar 500L Variable Speed Screw Compressor & Dryer - 08274
SIP VSDD/RDF 400V 15kW 8bar 500L Variable Speed Screw Compressor & Dryer - 08274

SIP VSDD/RDF 400V 15kW 8bar 500L Variable Speed Screw Compressor & Dryer - 08274

Regular price
£8,227.00
£7,024.38

The SIP VSDD/RDF 400V 15kW 8bar 500L Variable Speed Screw Compressor & Dryer - 08274 is an energy-efficient and reliable solution for your commercial or industrial air compression needs.

This compressor features an 8 bar pressure and 15 kilowatt power output, with a 500 litre capacity for maximum efficiency. Enjoy the benefits of variable speed drive technology to ensure a consistent power supply with no interruptions.


KEY FEATURES

  • Direct drive transmission for improved power transfer
  • Variable speed 15kW motor delivers even power distribution
  • Integrated refrig
  • erated dryer reduces moisture from the air
  • Heavy-duty silenced cabinet ensures reduced noise operation
  • Colour touchscreen for real-time diagnostic information
  • All-in-one design minimises lost work area space

    Direct drive transmission for improved power transfer
    Precision-engineered twin parallel rotary screws deliver an efficient positive drive transmission. This negates slippage for greater power transfer and machine reliability compared to belt-driven compressors. It also reduces machine maintenance, component stress and lowers power consumption and energy costs.

    Variable speed 15kW motor delivers even power distribution
    The inverter motor control enables automated soft-start and slope-down functionality.

    This ensures even torque distribution when powering up and controlled load descent once the receiver has reached the required air volume. The on-demand air production created adjusts to vary the amount of air delivered for greater versatility.

    These automated functions help to reduce machine wear and support long life use.

    Fitted with an IE4 motor for greater efficiency and lower energy costs.

    Integrated refrigerated dryer reduces air moisture
    Reduces moisture from the air delivered to the compressor. This improves the quality of air delivered to the tools and machinery the compressor is connected to.

    Silenced cabinet ensures reduced noise operation
    Heavy-duty silenced cabinet minimises vibration and operates at reduced noise levels.

    500ltr air receiver supports high air consumption
    Designed to safely store high volume compressed air, helping to ensure a stable flow and meet pressure peaks when in operation.

    Real-time diagnostic colour display
    An intuitive colour touchscreen display provides real-time diagnostic information on the status of the compressor. Includes operation and load status, receiver pressure, motor voltage and internal temperature.

    Easy access cabinet for maintenance and service
    All critical machine components are fully accessible through a single access cabinet panel, helping to reduce air production downtime.
    A service should be performed annually or after every 2000 loading hours.

    The compressor should perform a minimum of 1000 loading hours annually.

    All-in-one machine design minimises lost work area space
    The compact all-in-one design ensures a smaller overall footprint which helps to minimise lost work area space once the compressor is installed.

    Technical Information

    ITEM NO. 08274
    Input Supply 400v (32A)
    Rated Input: 18kW
    Motor Power: 15kW (20hp)
    IE4 Motor: Yes
    Max. Pressure: 116psi (8bar)
    Free Air Delivery (FAD): 75CFM (2123ltr/min)
    Receiver Size: 500ltr
    Cooling Type: Fan Cooled
    Transmission Type: Direct Drive
    Start-Up Mode: Inverter Soft Start
    Refrigerated Dryer: Yes
    Outlet Connector: 3/4" BSPP
    Noise Level: 62dB(A)
    Net Weight: 510.00kg
    Product Dimensions: 1850(H) x 820(W) x 1880mm(D)
