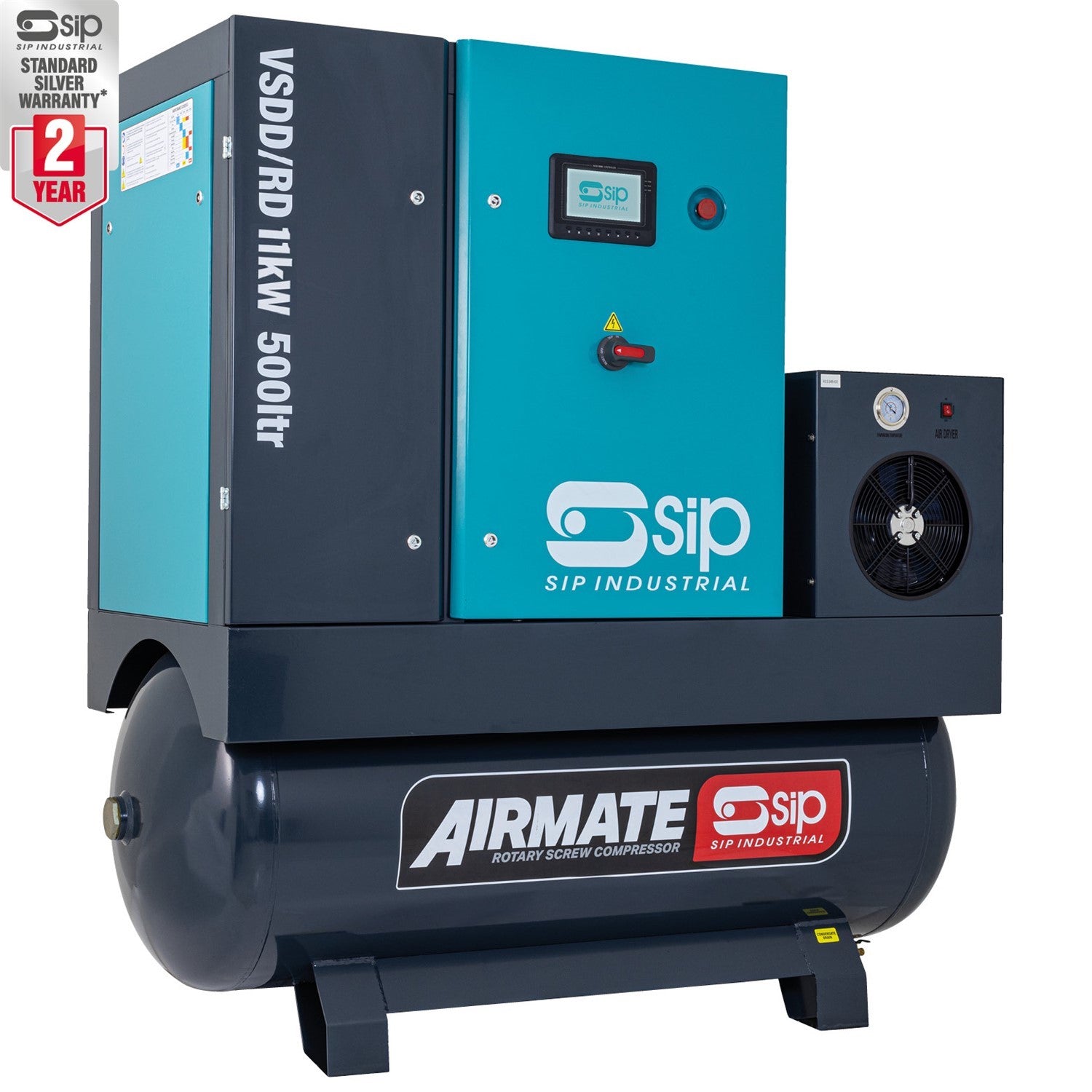

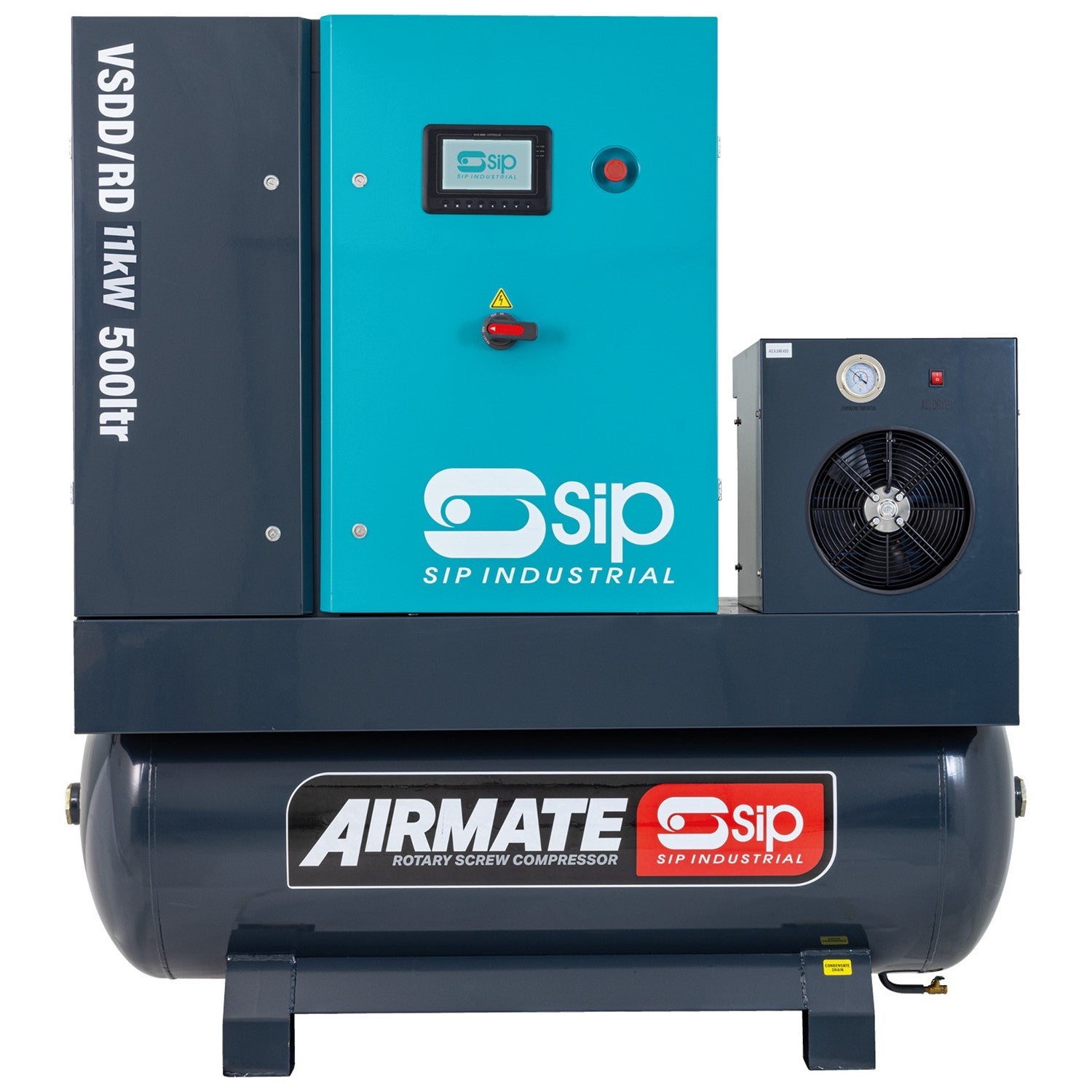

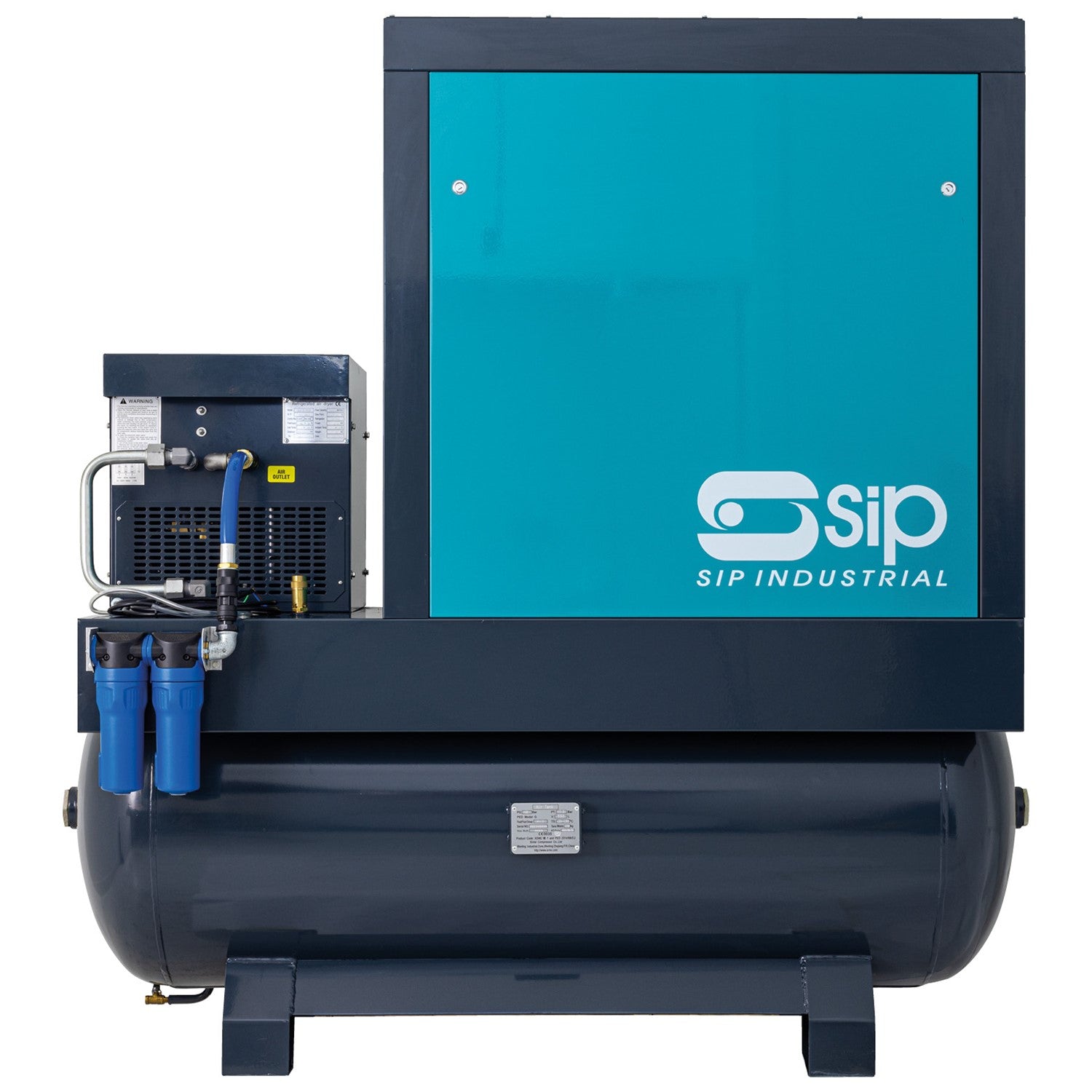

SIP VSDD/RDF 400V 11kW 10bar 500L Variable Speed Screw Compressor & Dryer - 08276
The SIP VSDD/RDF 11kW Variable Speed Drive (VSD) Rotary Screw Compressor with Integrated Dryer & Filter – a cutting-edge, fourth-generation full-package solution built for non-stop, ultra-clean compressed air in high-traffic industrial or multi-operator environments. Model 08276 delivers up to 50 CFM (1,415 L/min) of free air delivery at a formidable 10 bar (145 psi) maximum pressure, powered by a state-of-the-art 11kW (15hp) IE4 motor on a 400V supply. Harnessing intelligent variable speed control, it syncs output to real-time needs, potentially saving up to 35% on energy versus fixed-speed models, while the integrated refrigerated dryer and pre-filter produce dry, particle-free air to ISO 8573-1 (2-4-2) standards, warding off corrosion and contamination. Experience it all at a subdued 62 dB(A) for a focused, low-vibration workspace.
Key Features:
- Variable Speed Drive (VSD) Inverter Control: Seamlessly varies motor speed for elite efficiency, cushioned starts to lessen wear, and rock-solid performance through demand fluctuations – perfect for 24/7 shifts or collaborative air systems.
- Integrated Refrigerated Dryer & Pre-Filter: Extracts moisture and filters impurities for top-tier air quality, reducing risks of damage in precision tools and downstream setups.
- Direct Drive Transmission: Eliminates belts for maintenance-free operation, impeccable energy transfer, and prolonged service life with fewer components.
- Substantial 500L Air Receiver Tank: Holds robust air reserves for unwavering pressure in intensive applications, smoothing out peaks without pause.
- Heavy-Duty Silenced Cabinet: Tames noise and shakes for a composed atmosphere, ideal for enclosed or urban sites.
- Fan-Cooled System: Ensures reliable cooling over marathon runs, with convenient filter access for quick maintenance.
- Vivid Color Touchscreen Interface: Delivers real-time views of pressure, temperature, and usage for effortless control and alerts.
- 3/4" BSPP Outlet: Plug-and-play with standard pneumatic tools and infrastructure.
Technical Information
| ITEM NO. | 08276 |
| Input Supply | 400v (32A) |
| Rated Input: | 14kW |
| Motor Power: | 11kW (15hp) |
| IE4 Motor: | Yes |
| Max. Pressure: | 145psi (10bar) |
| Free Air Delivery (FAD): | 50CFM (1415ltr/min) |
| Receiver Size: | 500ltr |
| Cooling Type: | Fan Cooled |
| Transmission Type: | Direct Drive |
| Start-Up Mode: | Inverter Soft Start |
| Refrigerated Dryer: | Yes |
| Outlet Connector: | 3/4" BSPP |
| Noise Level: | 62dB(A) |
| Net Weight: | 510.00kg |
| Product Dimensions: | 1850(H) x 820(W) x 1880mm(D) |
