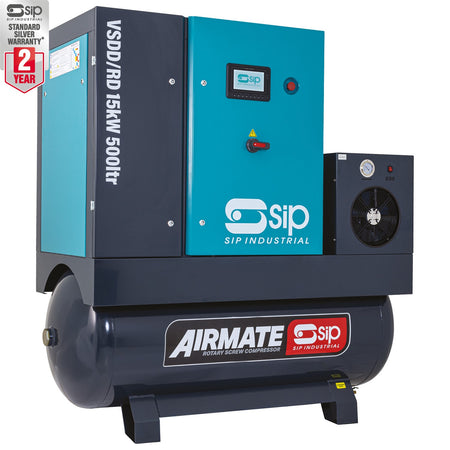

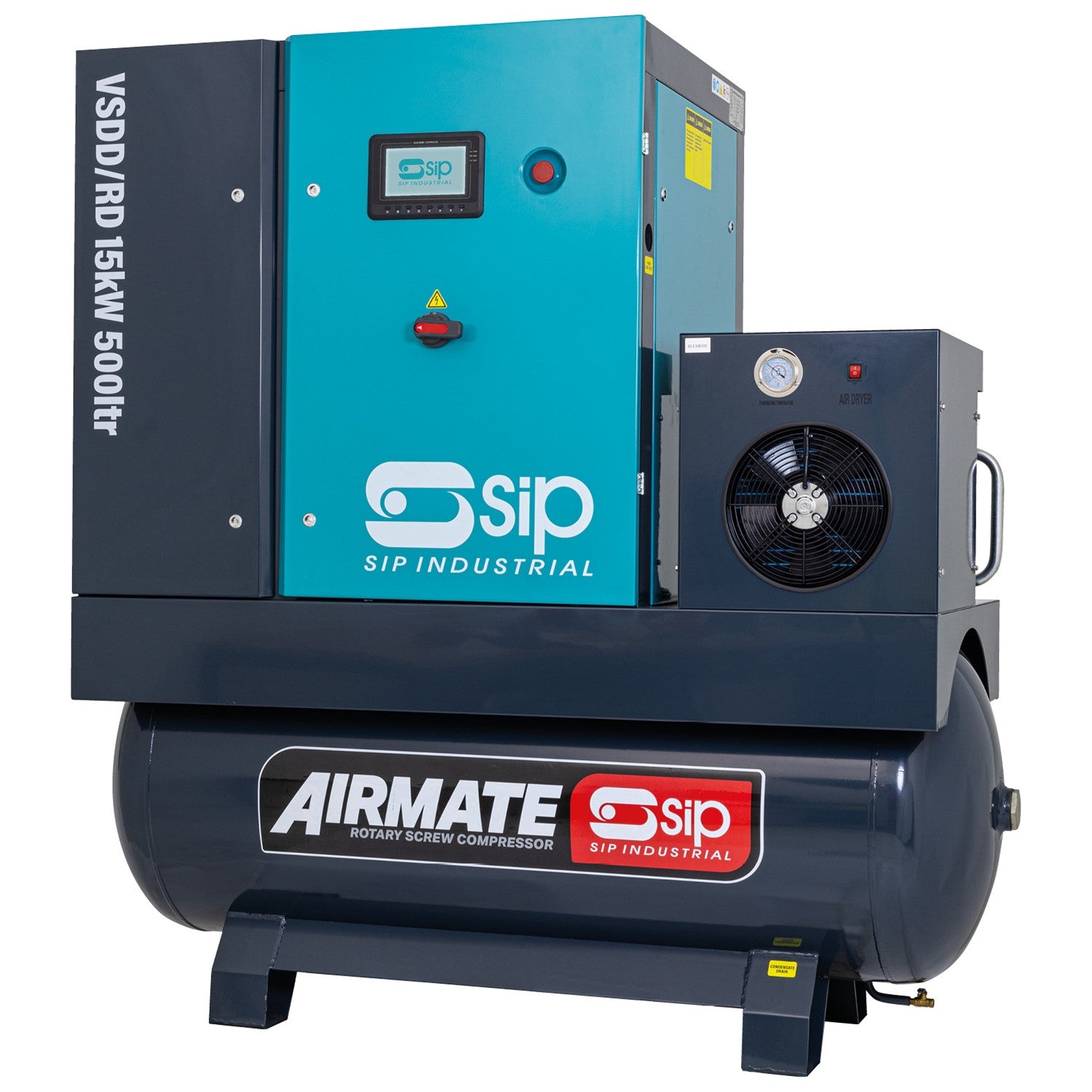

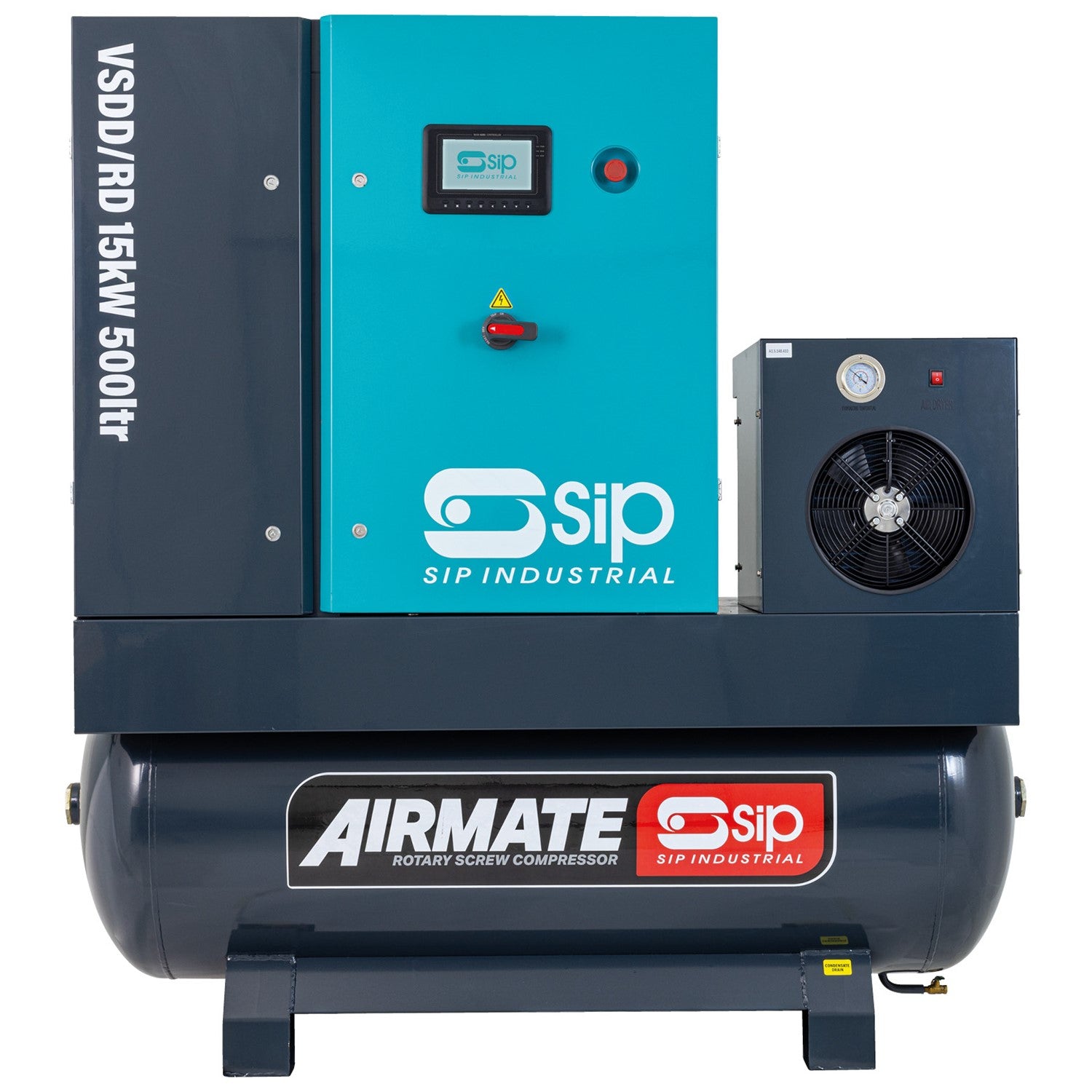

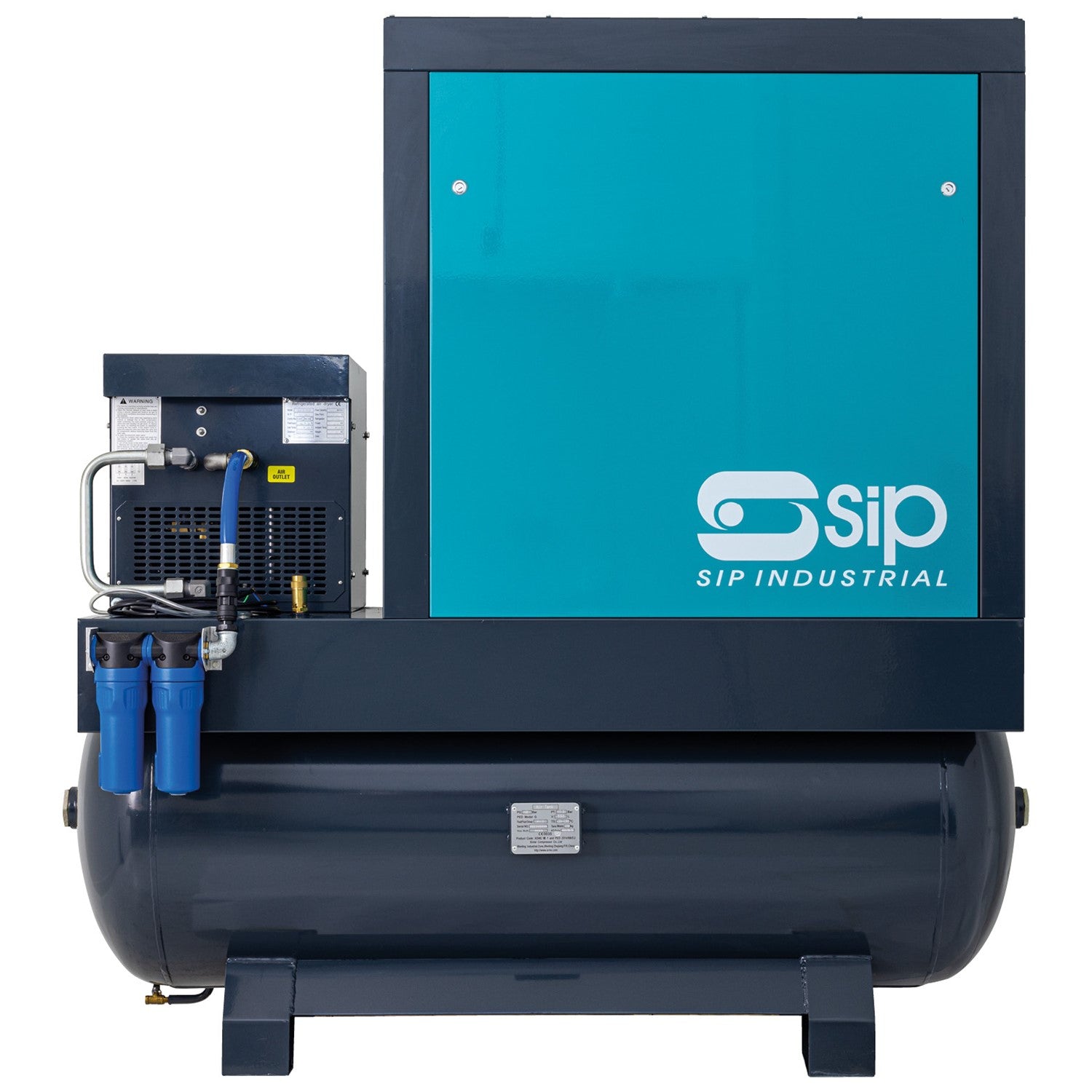

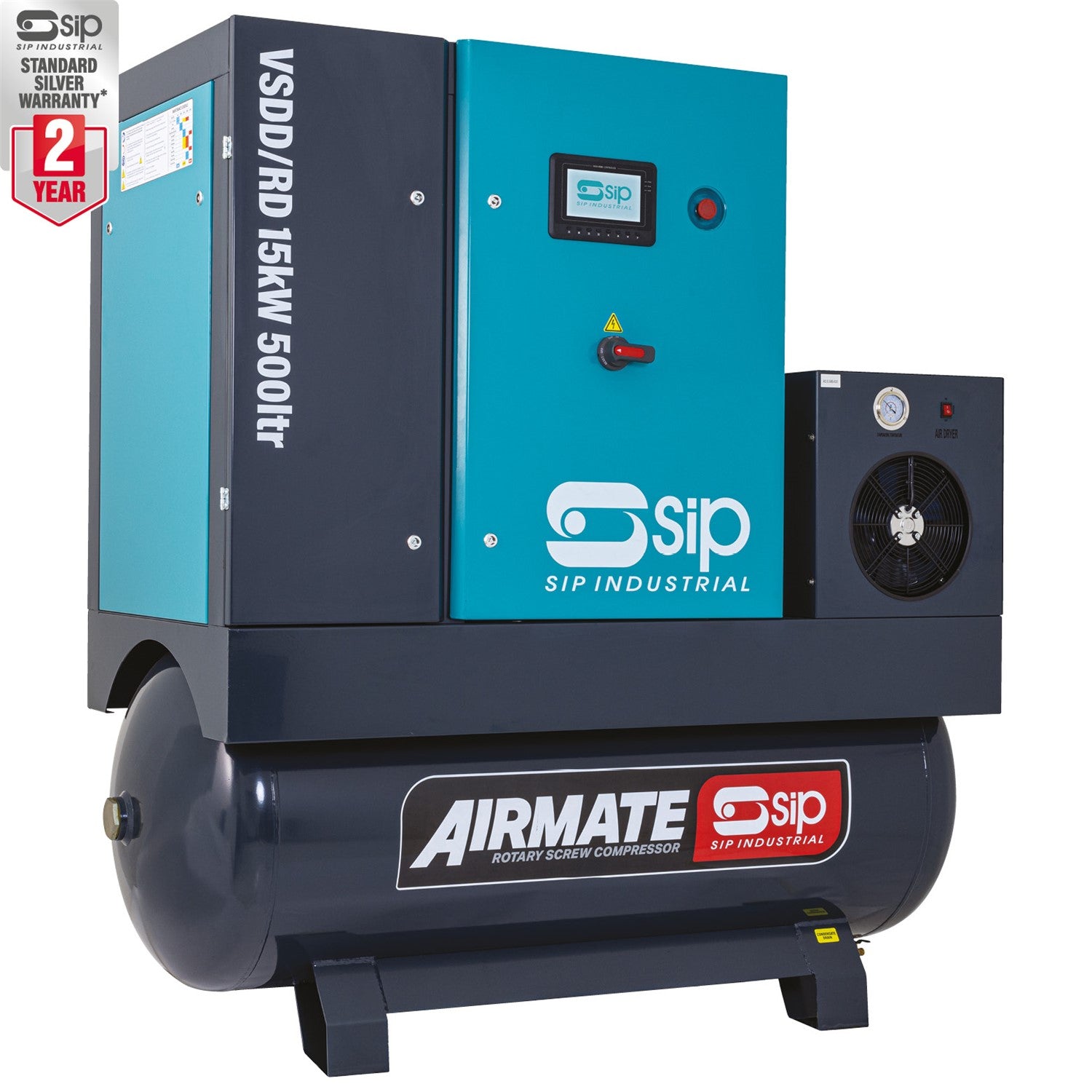

SIP VSDD/RD 400V 15kW 10bar 500L Variable Speed Screw Compressor & Dryer - 08273

The SIP VSDD/RD 15kW Variable Speed Drive (VSD) Rotary Screw Compressor with Integrated Dryer – a formidable, fourth-generation all-in-one system engineered for uninterrupted, high-volume dry compressed air in demanding multi-operator setups. Model 08273 pumps out up to 66 CFM (1,868 L/min) of free air delivery at a commanding 10 bar (145 psi) maximum pressure, propelled by a top-tier 15kW (20hp) IE4 motor on a 400V supply. Its sophisticated variable speed mechanism precisely aligns with your air demands, slashing energy expenses by up to 35% compared to fixed-speed counterparts, while the onboard refrigerated dryer guarantees contaminant-free air to shield machinery and prolong service intervals. Remarkably, it hums at a mere 62 dB(A) for a noise-minimal environment.

Key Features:

  • Variable Speed Drive (VSD) Inverter Control: Effortlessly modulates motor speed for superior efficiency, reduced startup strain, and unwavering output during load variations – prime for 24/7 duty or shared pneumatic networks.
  • Integrated Refrigerated Dryer: Captures and expels moisture to attain ISO 8573-1 (2-4-2) air quality, curbing corrosion and optimizing tool efficacy.
  • Direct Drive Transmission: Gearless design for no-fuss upkeep, peak energy transmission, and amplified durability via simplified internals.
  • Spacious 500L Air Receiver Tank: Reserves substantial air volume for unflinching pressure stability, conquering surges effortlessly.
  • Heavy-Duty Silenced Cabinet: Mutes vibrations and acoustics for a tranquil zone, tailored for confined or sensitive sites.
  • Fan-Cooled Architecture: Upholds optimal temperatures across extended cycles, with hassle-free filter servicing.
  • Dynamic Color Touchscreen Interface: Reveals on-the-fly stats for pressure, thermal levels, and operational logs for proactive management.
  • 3/4" BSPP Outlet: Instant integration with routine air apparatus and pipelines.

Technical Information

ITEM NO. 08273
Input Supply 400v (64A)
Rated Input: 18kW
Motor Power: 15kW (20hp)
IE4 Motor: Yes
Max. Pressure: 145psi (10bar)
Free Air Delivery (FAD): 66CFM (1868ltr/min)
Receiver Size: 500ltr
Cooling Type: Fan Cooled
Transmission Type: Direct Drive
Start-Up Mode: Inverter Soft Start
Refrigerated Dryer: Yes
Outlet Connector: 3/4" BSPP
Noise Level: 62dB(A)
Net Weight: 510.00kg
Product Dimensions: 1850(H) x 820(W) x 1880mm(D)
