SIP VSDD 400V 5.5kW 10bar 200L Variable Speed Screw Compressor - 08260

In stock
89215491612
Regular price £3,463.00 GBP Inc vat & delivery

Accepted Payments

  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • iDEAL
  • Klarna
  • Maestro
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa

Please send us any further information you require and we will be in touch!

Ask The Experts!

Carbon-neutral shipping on all orders
510kg
shipping emissions removed
That's like...
1305
miles driven by an average gasoline-powered car
We fund innovations in...
Direct Air Capture
Bio Oil
Mineralization

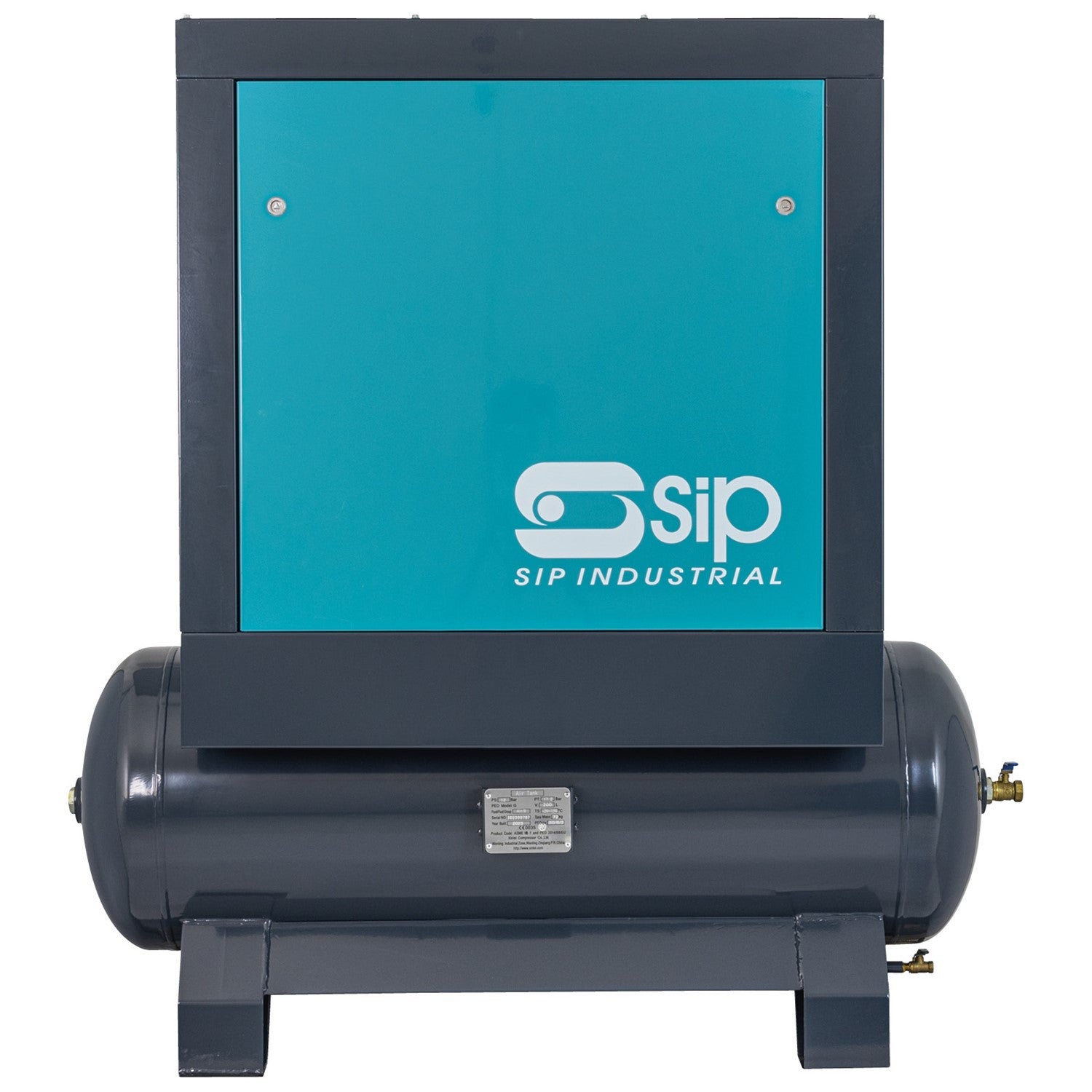

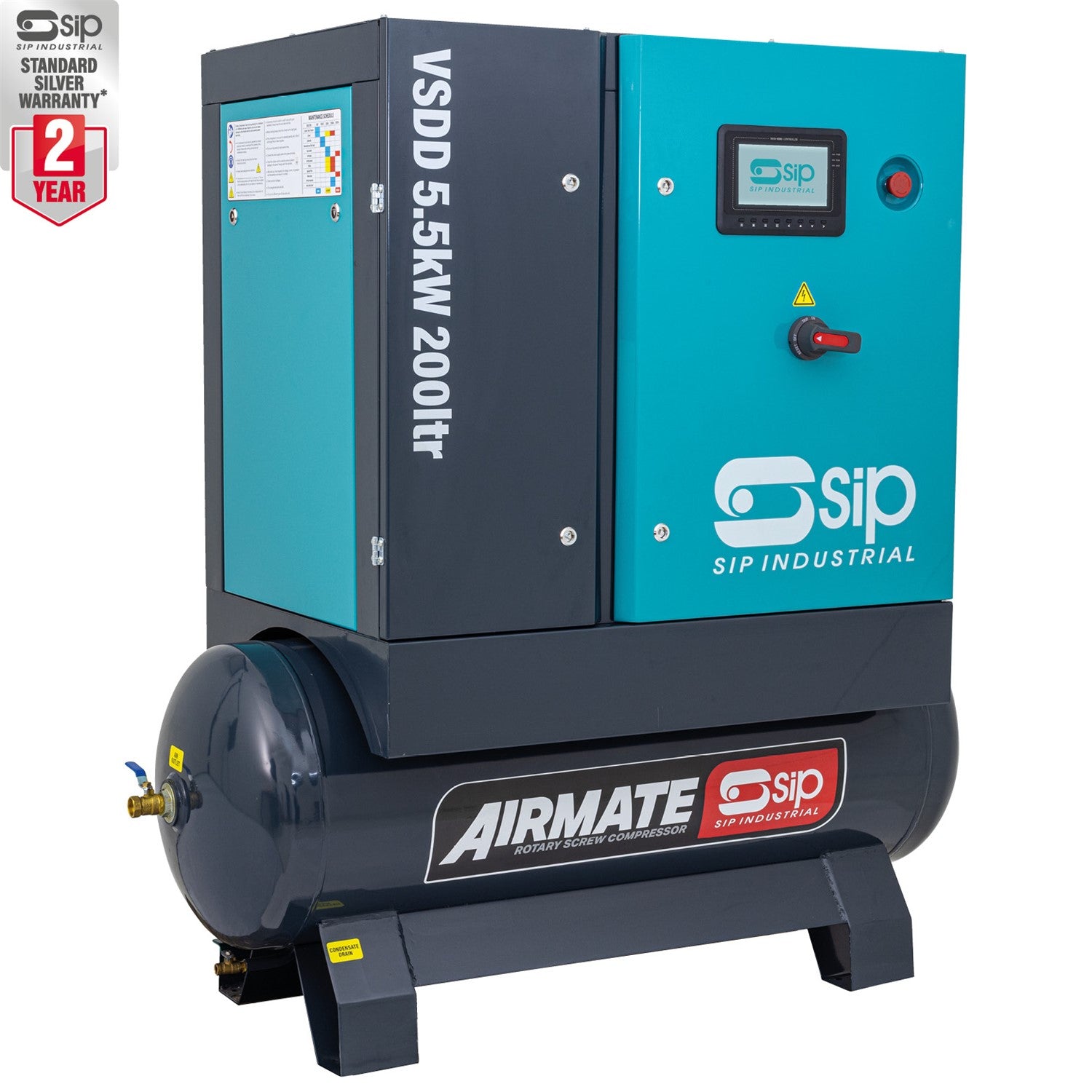

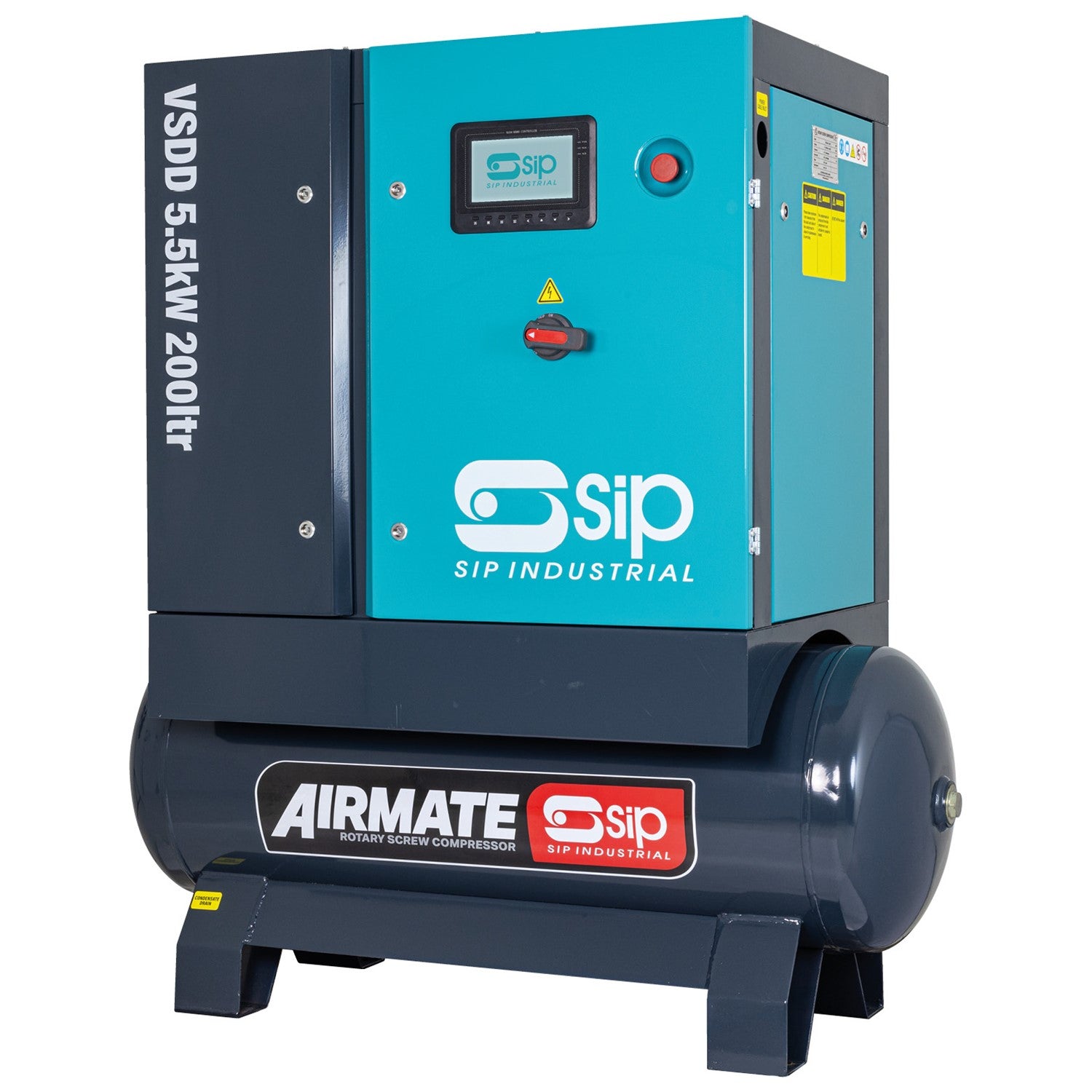

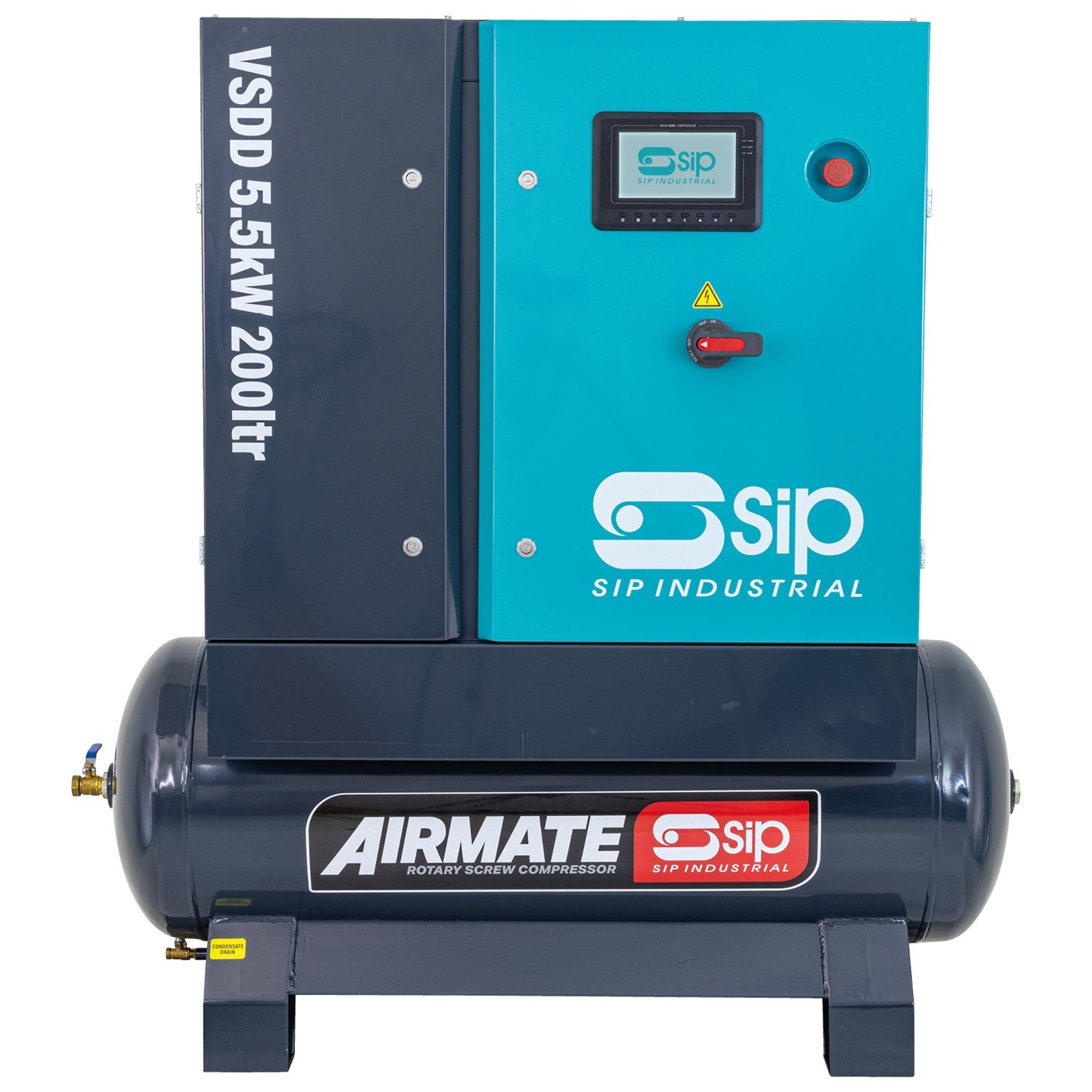

The SIP VSDD 400V 5.5kW 10bar 200L Variable Speed Screw Compressor - 08260 is a direct drive rotary screw compressor. This 4th generation compressor is designed for continuous use applications or where multiple operators require compressed air at one time.

With a motor output of 5.5kW, this compressor can meet high-demand air requirements and optimise energy usage. Fitted with a 200ltr receiver tank.

KEY FEATURES

  • Direct drive transmission for improved power transfer
  • Variable speed 5.5kW motor delivers even power distribution
  • Heavy-duty silenced cabinet ensures reduced noise operation
  • Colour touchscreen for real-time diagnostic information
  • Easy access cabinet panel for maintenance and service
  • All-in-one design minimises lost work area space

Direct drive transmission for improved power transfer
Precision-engineered twin parallel rotary screws deliver an efficient positive drive transmission. This negates slippage for greater power transfer and machine reliability compared to belt-driven compressors. It also reduces machine maintenance, component stress and lowers power consumption and energy costs.

Variable speed 5.5kW motor delivers even power distribution
The inverter motor control enables automated soft-start and slope-down functionality.

This ensures even torque distribution when powering up and controlled load descent once the receiver has reached the required air volume. The on-demand air production created adjusts to vary the amount of air delivered for greater versatility.

These automated functions help to reduce machine wear and support long life use.

Fitted with an IE4 motor for greater efficiency and lower energy costs.

Silenced cabinet ensures reduced noise operation
Heavy-duty silenced cabinet minimises vibration and operates at reduced noise levels.

200ltr air receiver supports high air consumption
Designed to safely store high volume compressed air, helping to ensure a stable flow and meet pressure peaks when in operation.

Real-time diagnostic colour display
An intuitive colour touchscreen display provides real-time diagnostic information on the status of the compressor. Includes operation and load status, receiver pressure, motor voltage and internal temperature.

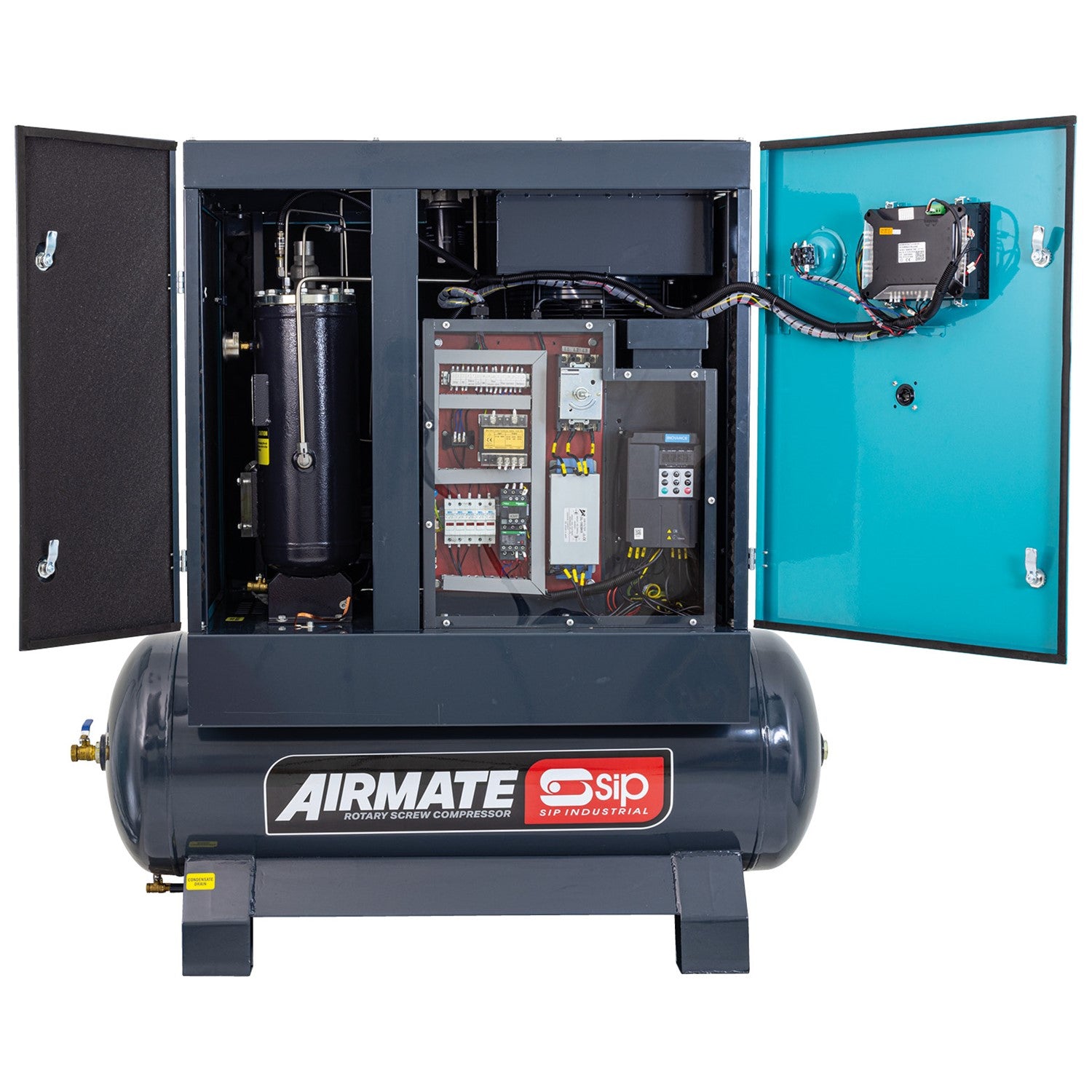

Easy access cabinet for maintenance and service
All critical machine components are fully accessible through a single access cabinet panel, helping to reduce air production downtime.
A service should be performed annually or after every 2000 loading hours.

The compressor should perform a minimum of 1000 loading hours annually.

All-in-one machine design minimises lost work area space
The compact all-in-one design ensures a smaller overall footprint which helps to minimise lost work area space once the compressor is installed.

Technical Information

ITEM NO. 08260
Input Supply 400v (32A)
Rated Input: 7kW
Motor Power: 5.5kW (7hp)
IE4 Motor: Yes
Max. Pressure: 145psi (10bar)
Free Air Delivery (FAD): 22CFM (630ltr/min)
Receiver Size: 200ltr
Cooling Type: Fan Cooled
Transmission Type: Direct Drive
Start-Up Mode: Inverter Soft Start
Refrigerated Dryer: N/A
Outlet Connector: 3/4" BSPP
Noise Level: 62dB(A)
Net Weight: 254.00kg
Product Dimensions: 1470(H) x 670(W) x 1440mm(D)

Yes, airlinkcompressors.com offer an installation & commissioning service, please contact support for further information on technical@airlinkcompressors.com

If you purchase any equipment from airlinkcompressors.com you are entitled to free full technical support from experts in the trade, supporting with installation, repairs & servicing. We also offer onging maintenance packages inhouse, please contact technical@airlinkcompressors.com for further information.

Yes, airlinkcompressors.com deliveries can be sent to different adresses across the UK.

Yes, we do deliver to NI (Northern Ireland) for larger items please ask for a carrige costing - sales@airlinkcompressors.com

Yes, a VAT invoice is sent automatically once the order has been dispatched to the email address supplied when originally ordered.

Yes, airlinkcompressors.com offer an installment option through Klarna, Please click here for further information.
