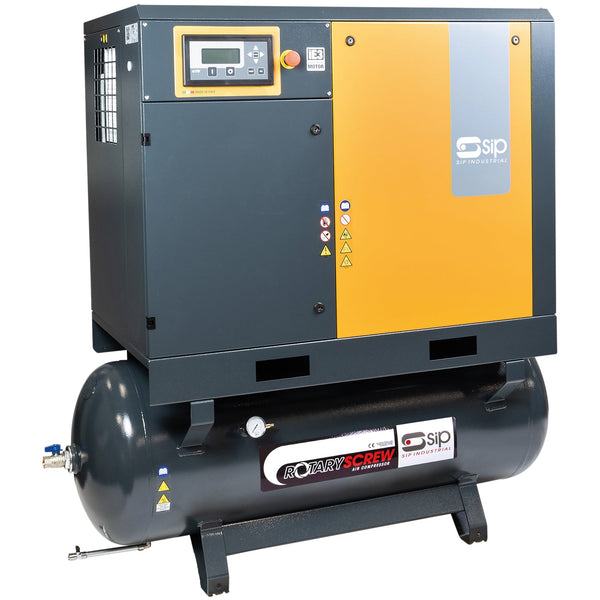

SIP RS7.5-10-270BD/FF 270ltr Rotary Screw Compressor - 06533
Couldn't load pickup availability
Accepted Payments
Ask The Experts!
The SIP RS7.5-10-270BD/FF 270ltr Rotary Screw Compressor is a fully integrated workstation complete with air treatment module that includes a generously-sized refrigeration dryer with a 3°C dew point, 10µm inlet filtration and 1µm outlet filtration.
Acting as an all-in-one system, this compressor has a compact and modern design that houses the air end, dryer, filters, controller and receiver in a single modular unit, providing high-quality compressed air production in a space-saving solution.
Unlike other screw compressors on the market, the integrated air system provides dry and clean air to a quality standard classification 2-4-2 in accordance with ISO 8573-1.
This compressor is designed for continuous use in demanding applications.
Each RS7.5-10-270BD/FF is built to the highest standard in Italy, and then tested by experienced SIP technicians in the UK prior to dispatch for added peace-of-mind.
- Fully automatic, integrated, and self-monitoring
- All-in-one system with compact and modern design for easy servicing access
- Easy-to-use and reliable electronic ETIV controller with digital display
- Italian-manufactured FS26 TF air end delivers high-quality constant airflow
- Integrated air system provides both dry and clean air to quality standard classification 2-4-2, in accordance with ISO 8573-1
- Air end, dryer, filters, controller, and receiver are in a single modular unit, providing a comprehensive space-saving solution
- Dry tank technology for constant airflow and reduced corrosion
- Automatic condensate discharge and status via electronic panel
- 10µm inlet filtration and 1µm outlet filtration
- 100% UK tested by SIP before dispatch
- SIP 2-Year Standard Silver Warranty
- Manufactured in Italy
Technical Information
| ITEM NO. | 06533 |
| Input Supply: | 400v (32A) 3-PHASE |
| Motor Power: | 7.5kW (10hp) |
| Receiver Size: | 270ltr |
| Free Air Delivery (FAD): | 35.30CFM (999ltr/min) |
| Max. Air Pressure: | 145psi (10bar) |
| Filtration Level: | 10µm particulate 1µm oil filter |
| Refrigeration Dryer: | 3°C Dew Point |
| Air Quality Level: | 2-4-2 (ISO 8573-1*) |
| Noise Level: | 62dB(A) |
| Net Weight: | 350.00kg |
| Gross Weight: | 362.00kg |
| Product Dimensions: | 1560(H) x 700(W) x 1580mm(D) |
| Packaged Dimensions: | 1600(H) x 700(W) x 1650mm(D) |
