SIP RS22-10-500BD/FF 500ltr Rotary Screw Compressor - 06537

SIP RS22-10-500BD/FF 500ltr Rotary Screw Compressor - 06537

Regular price
£10,003.19
£10,003.19

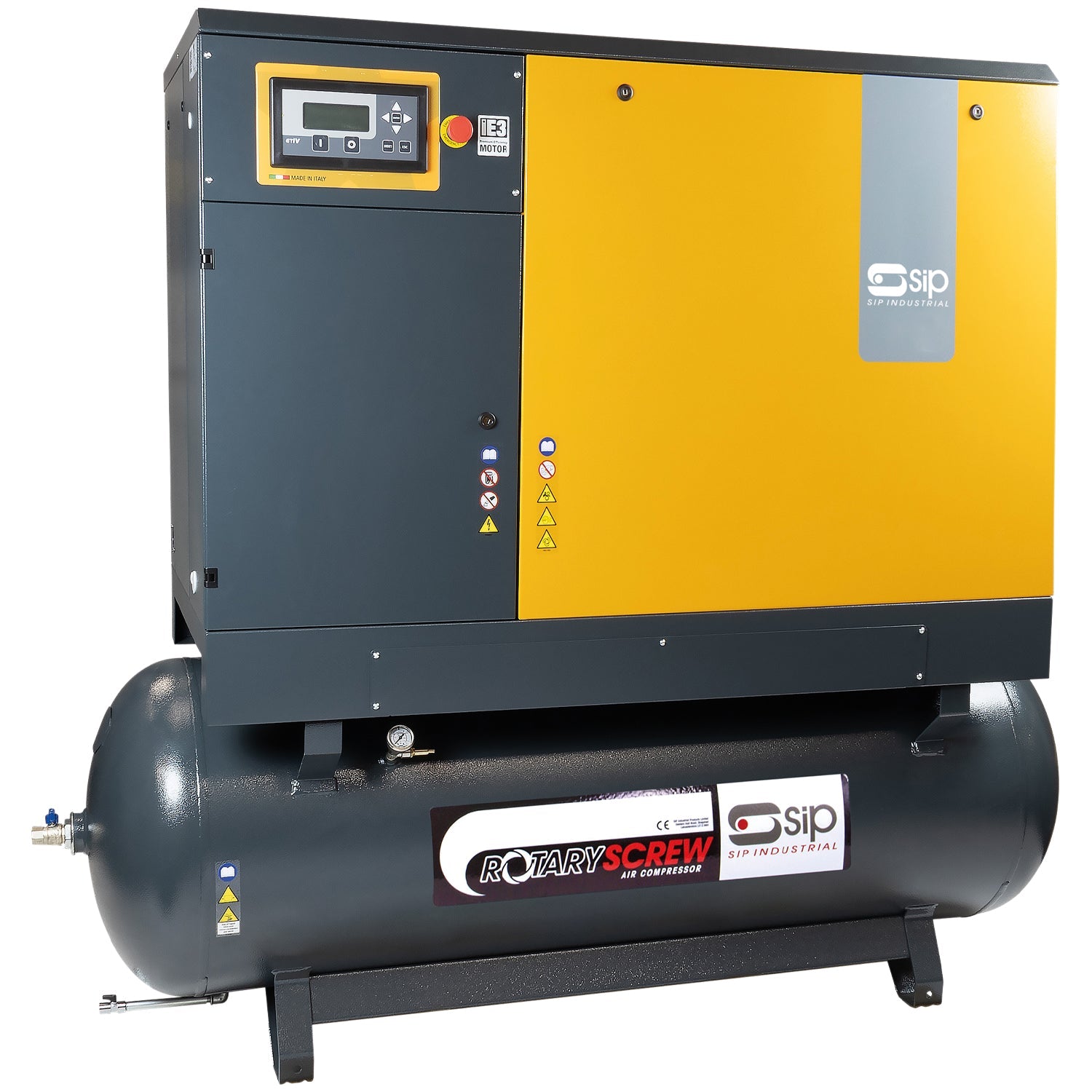

The SIP RS22-10-500BD/FF 500ltr Rotary Screw Compressor is a fully integrated workstation complete with air treatment module that includes a generously-sized refrigeration dryer with a 3°C dew point, 10µm inlet filtration and 1µm outlet filtration.

Acting as an all-in-one system, this compressor has a compact and modern design that houses the air end, filters, controller and receiver in a single modular unit, providing high-quality compressed air production in a space-saving solution.

Unlike other screw compressors on the market, the integrated air system provides dry and clean air to a quality standard classification 2-4-2 in accordance with ISO 8573-1.

This compressor is designed for continuous use in demanding applications.

Each RS22-10-500BD/FF is built to the highest standard in Italy, and then tested by experienced SIP technicians in the UK prior to dispatch for added peace-of-mind.

  • Fully automatic, integrated, and self-monitoring
  • All-in-one system; compact and modern design for easy servicing access
  • Electronic ETIV controller with digital display; easy-to-use and reliable
  • Italian-manufactured FS50 TF air end delivers high-quality constant airflow
  • Integrated air system provides both dry and clean air to quality standard classification 2-4-2, in accordance with ISO 8573-1
  • Air end, dryer, filters, controller, and receiver are in a single modular unit, providing a comprehensive space-saving solution
  • Dry tank technology for constant airflow and reduced corrosion
  • Automatic condensate discharge and status via electronic panel
  • 10µm inlet filtration and 1µm outlet filtration
  • 100% UK tested by SIP before dispatch
  • SIP 2-Year Standard Silver Warranty
  • Manufactured in Italy

Technical Information

ITEM NO. 06537
Input Supply: 400v (50A) 3-PHASE
Motor Power: 22kW (29.50hp)
Receiver Size: 500ltr
Free Air Delivery (FAD): 106.00CFM (3002ltr/min)
Max. Air Pressure: 145psi (10bar)
Filtration Level: 10µm particulate
1µm oil filter
Refrigeration Dryer: 3°C Dew Point
Air Quality Level: 2-4-2 (ISO 8573-1*)
Noise Level: 71dB(A)
Net Weight: 599.00kg
Gross Weight: 614.00kg
Product Dimensions: 1980(H) x 700(W) x 1670mm(D)
Packaged Dimensions: 2000(H) x 775(W) x 1800mm(D)
