SIP QT DD 4.5hp 150ltr Ultra Low Noise Oil Free Air Compressor & Hose Reel - 05497AHR15
Couldn't load pickup availability
Accepted Payments
Ask The Experts!
PLEASE NOTE: For availability - please check for PRE-ORDER or ADD TO CART above.

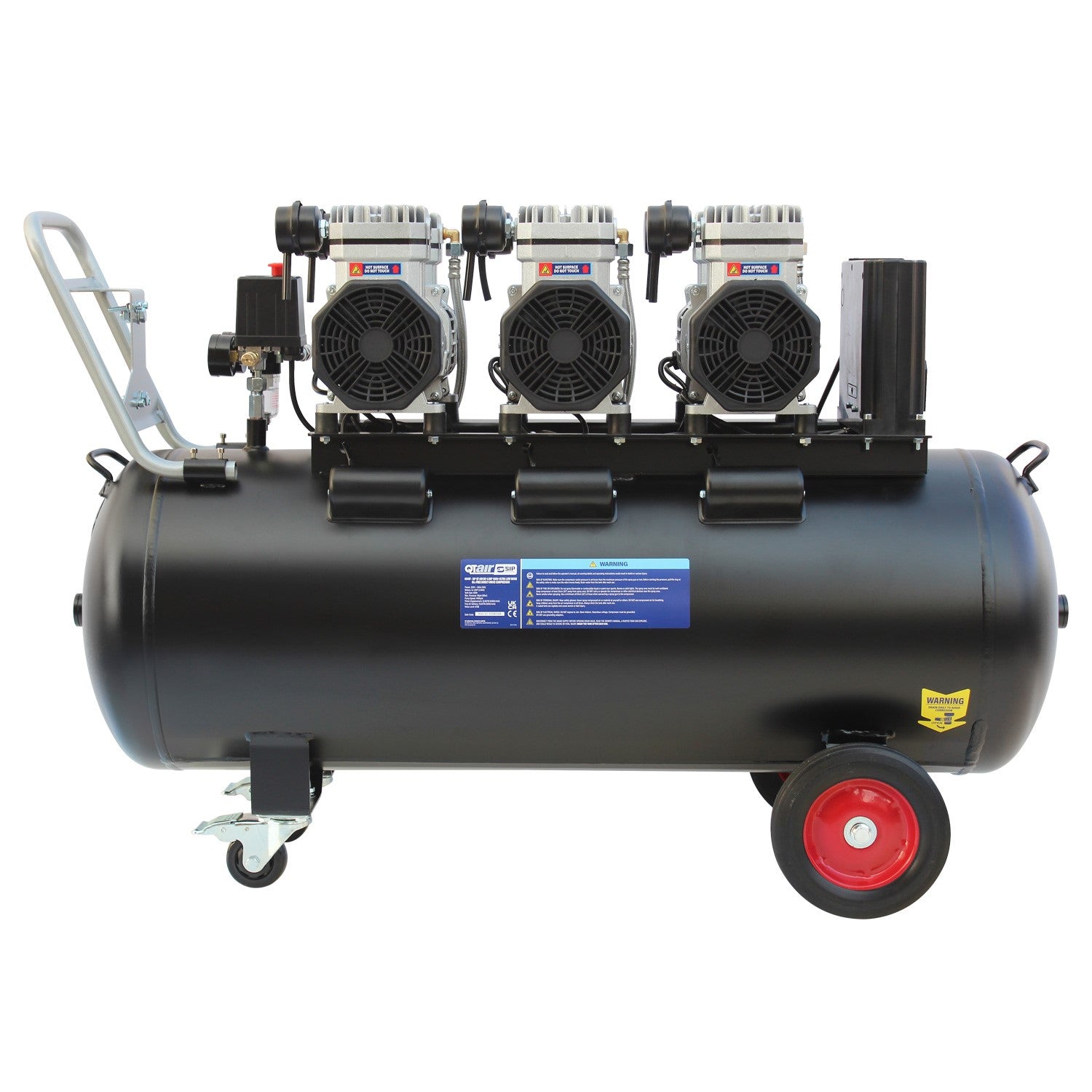

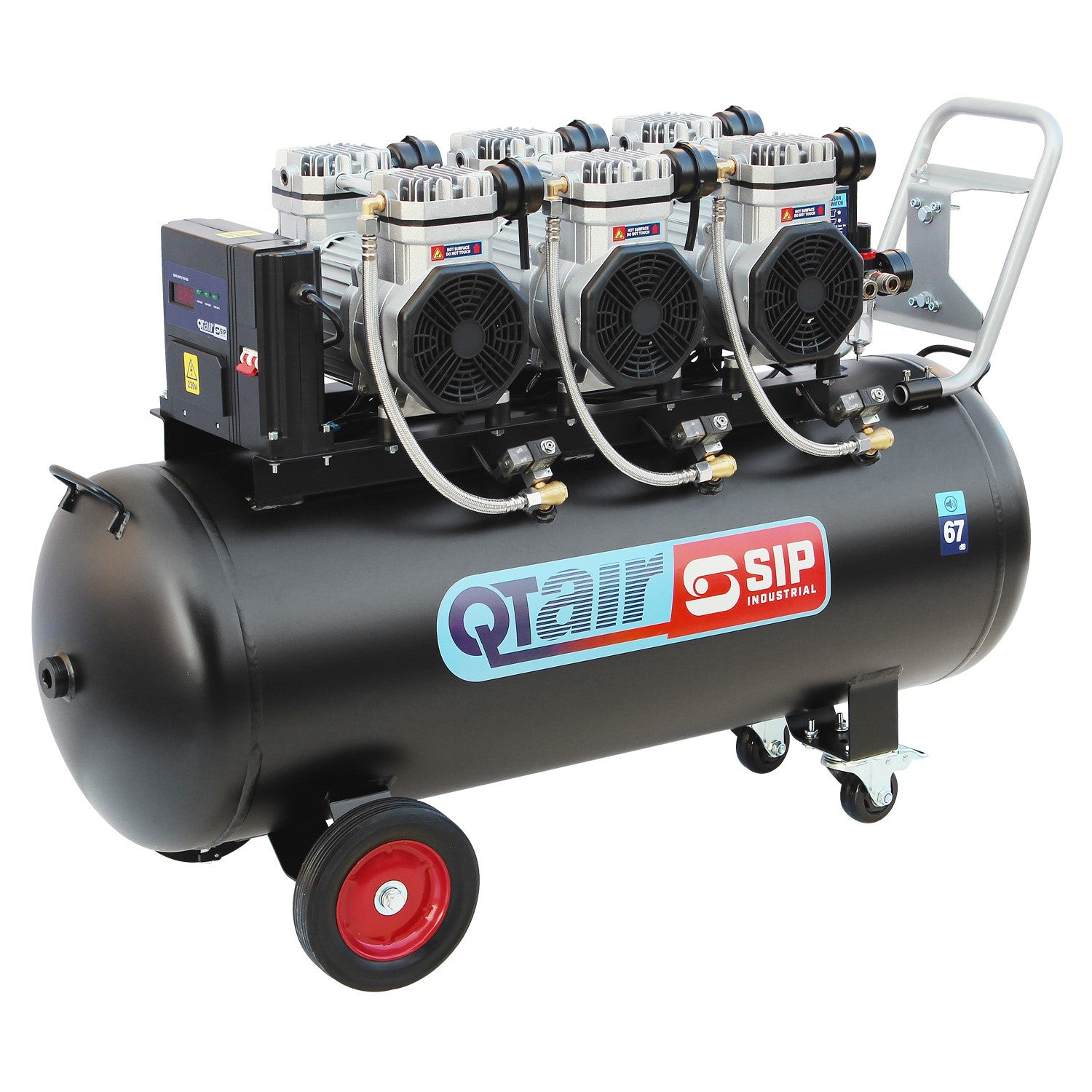

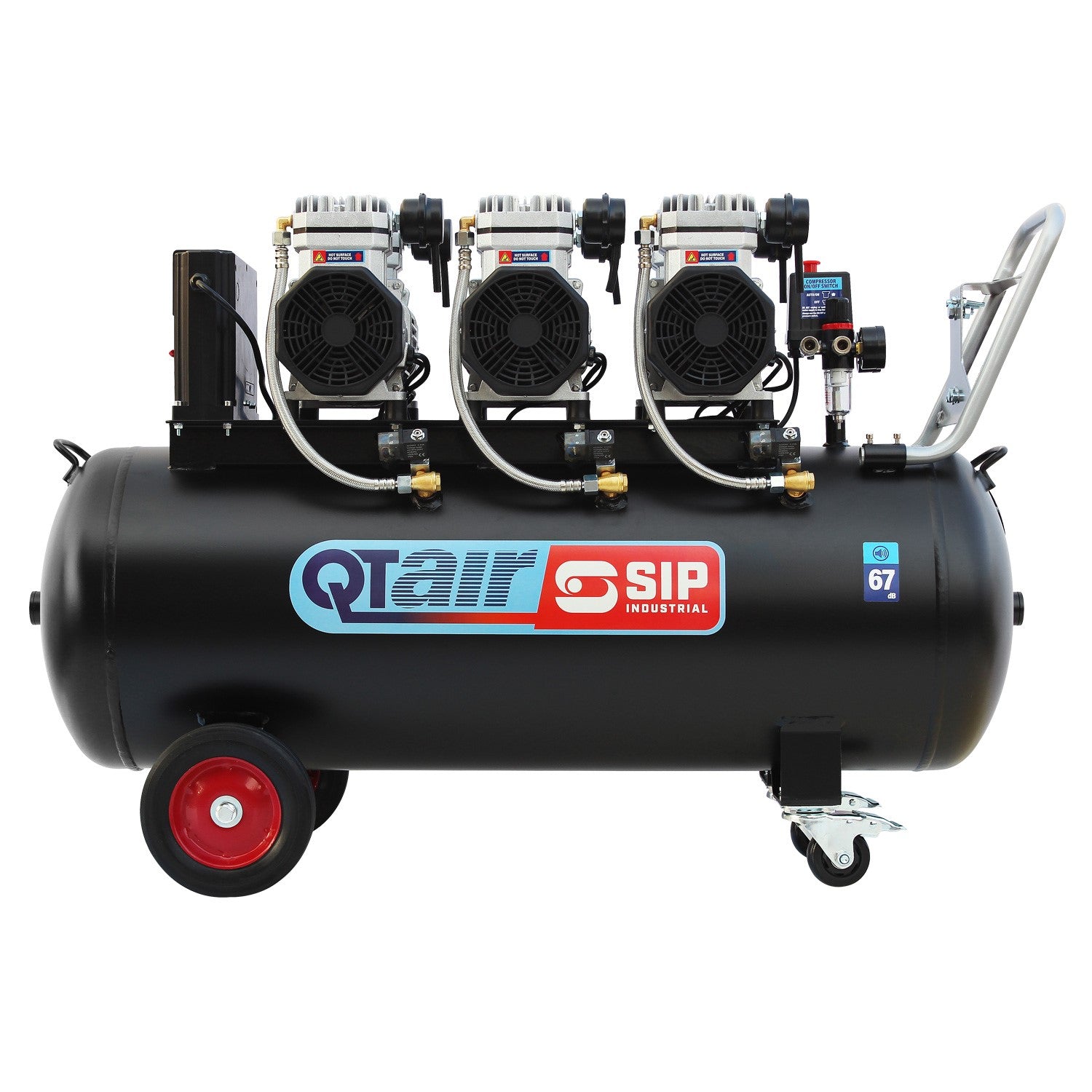

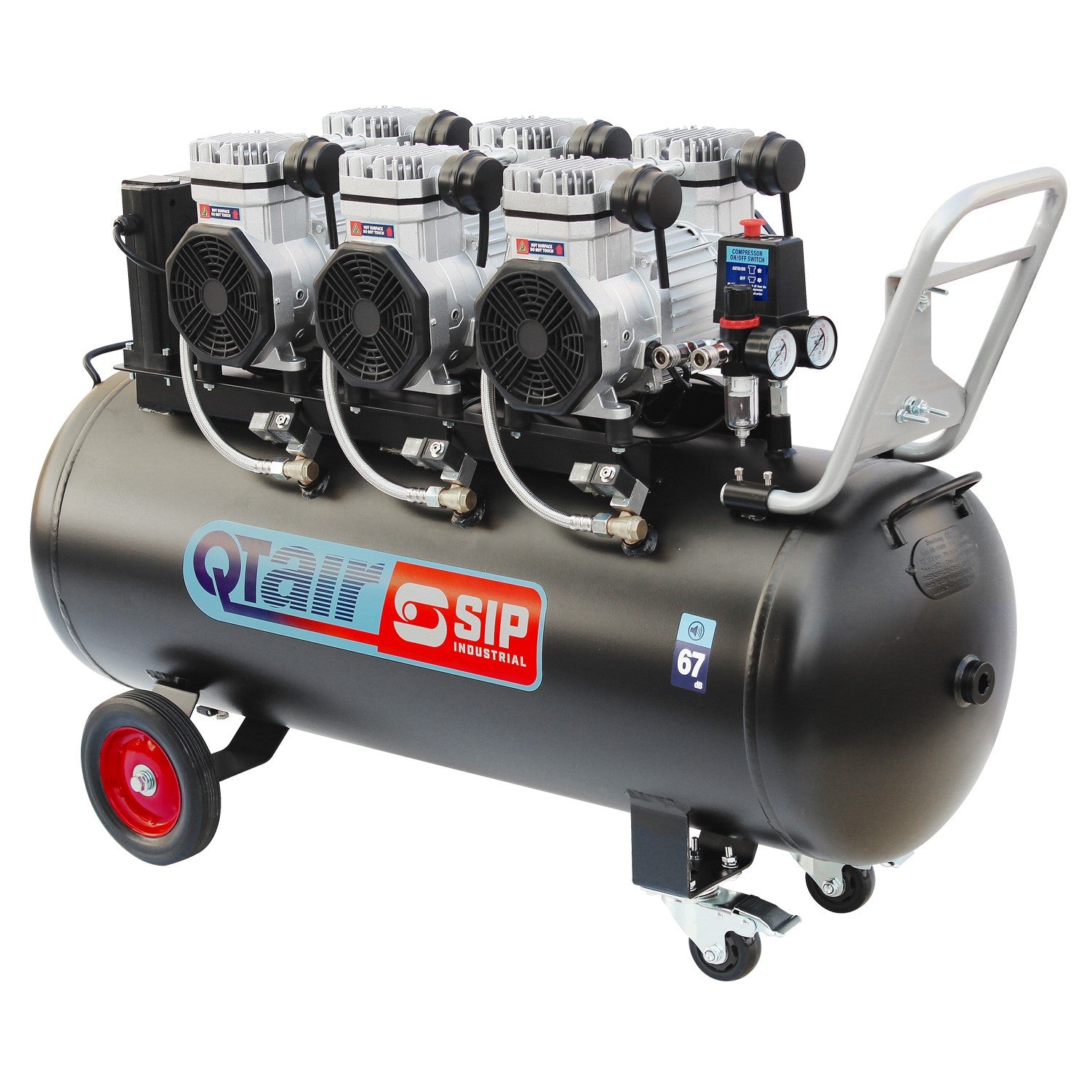

The SIP QT DD 4.5hp 150ltr Ultra Low Noise Oil Free Air Compressor - 05497 is a powerful and quiet solution for your pneumatic needs. With a 4.5hp motor and a large 150ltr tank, this compressor is perfect for heavy duty use. Its oil-free design reduces maintenance and improves air quality.
Built to support demanding higher air volume in automotive environments and large workshops, this oil-free and low maintenance compressor delivers 22.8CFM piston displacement resulting in 18.2CFM Free Air Delivery (FAD) from a single phase supply.

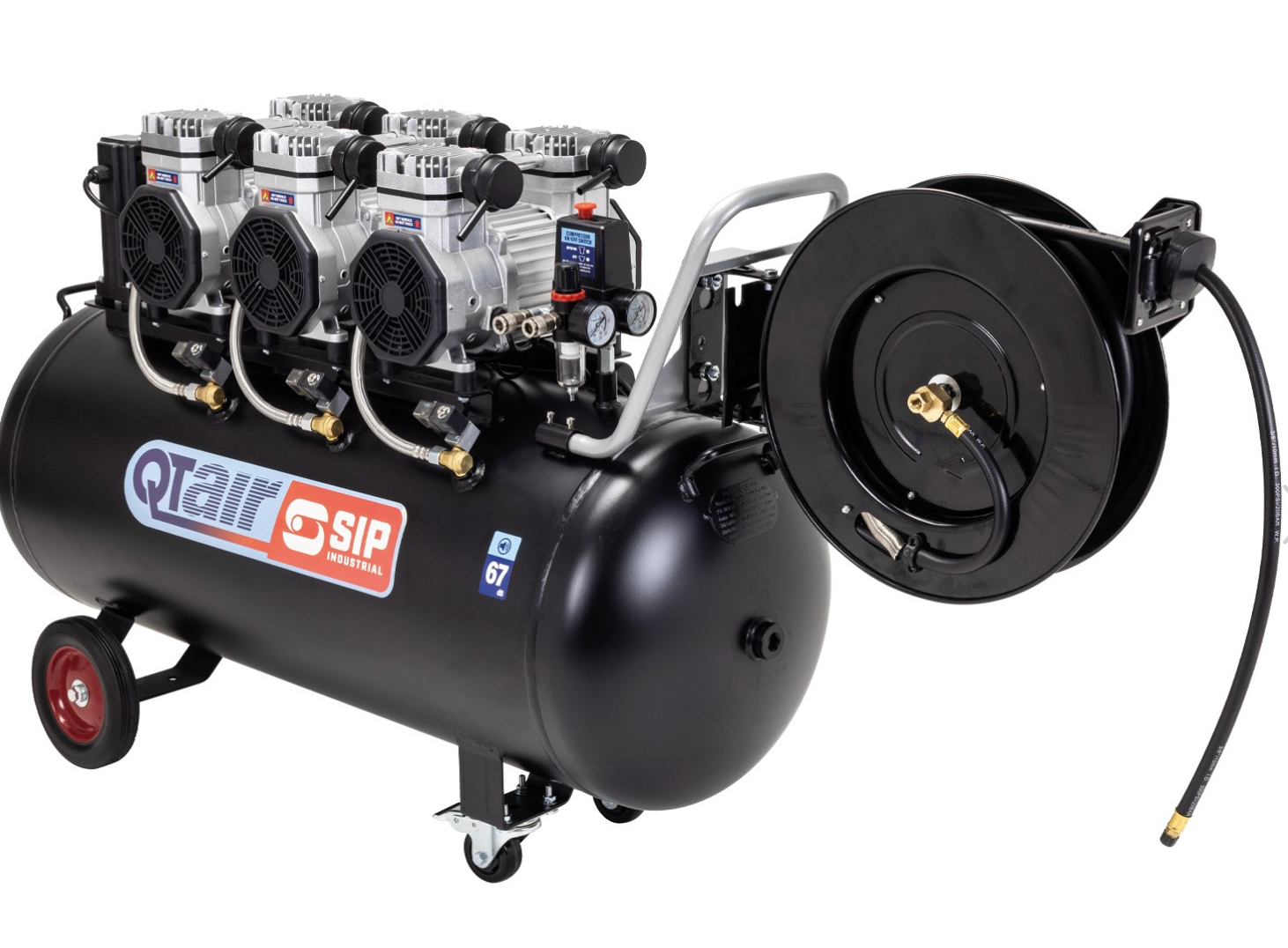

Supplied with a separate SIP Air Hose Reel R15 (07977) for mounting onto the compressor handle using the supplied bracket and fixings.
- 22.8CFM piston displacement resulting in 18.2CFM Free Air Delivery (FAD)

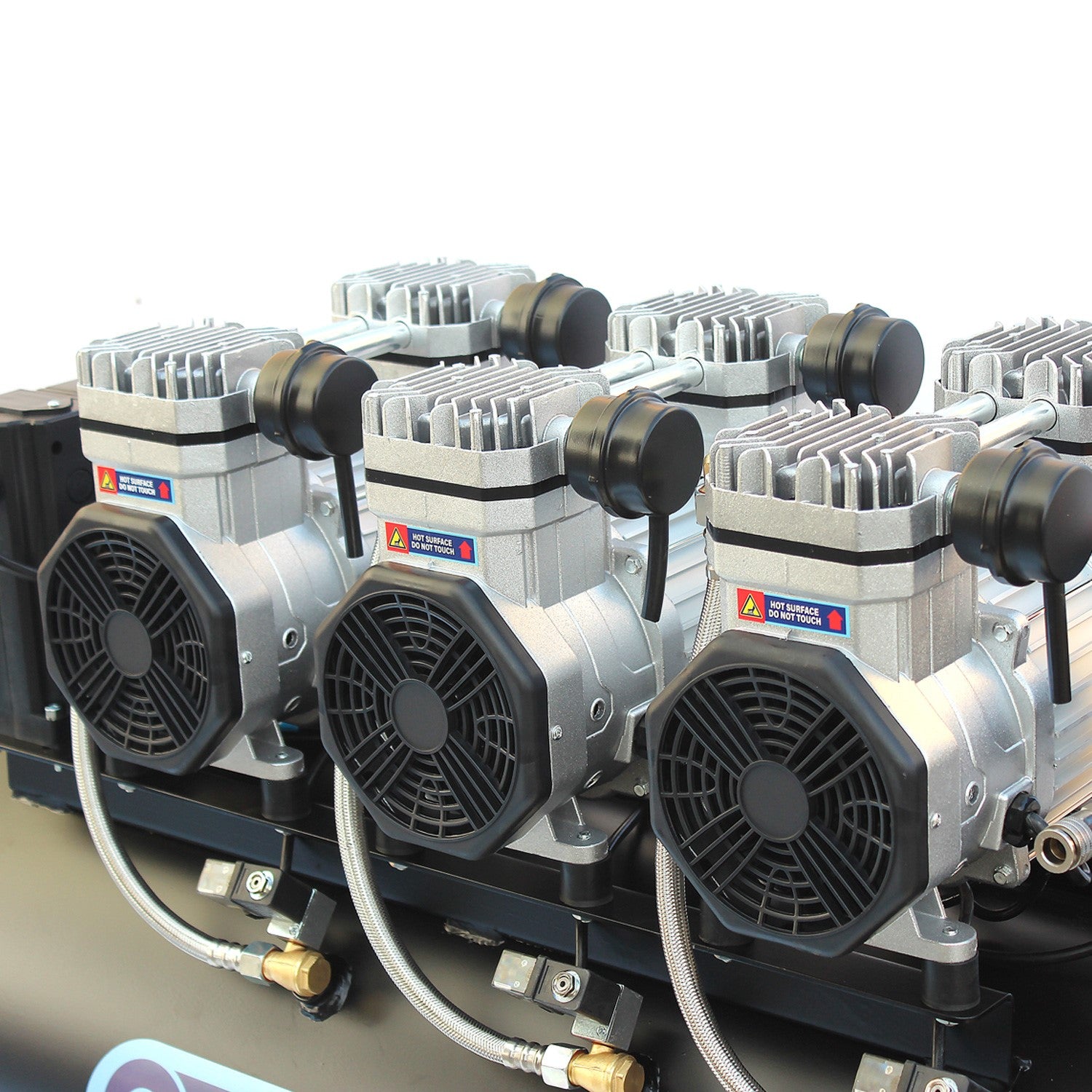

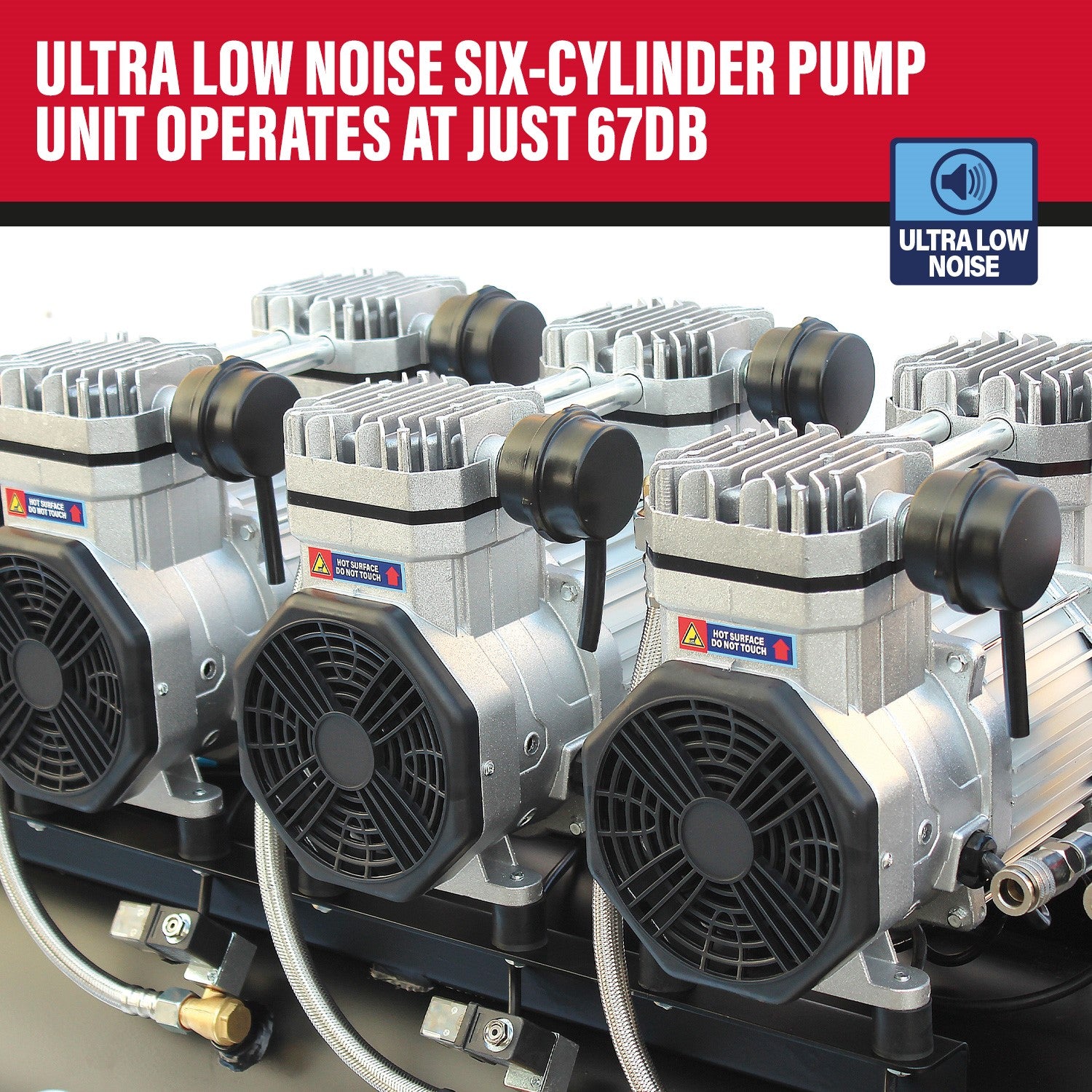

- Ultra low noise six-cylinder motor pump unit operates at just 67dB
- Slow-running oil-free 4-pole motors for longer life performance (4.5hp/3.3kW)

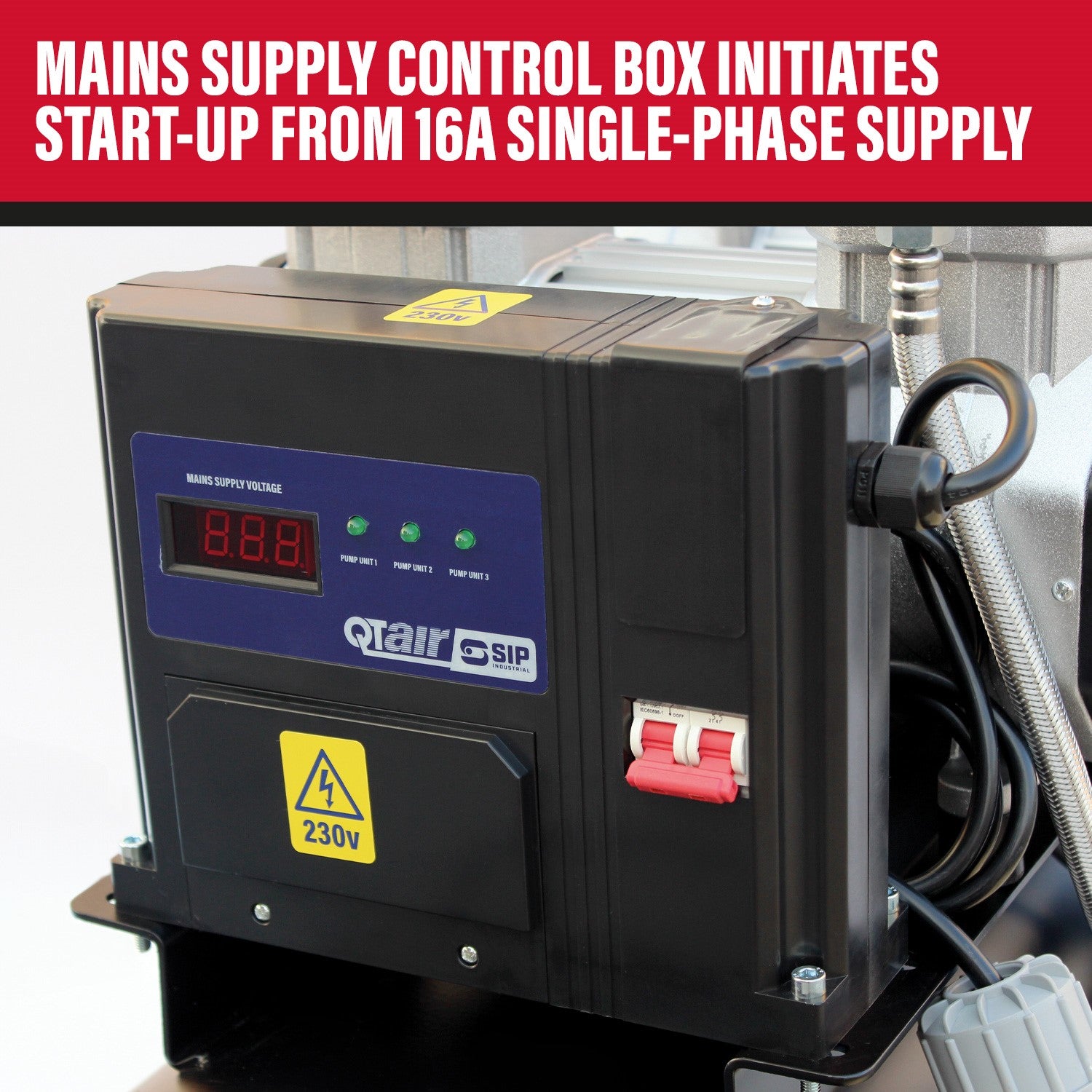

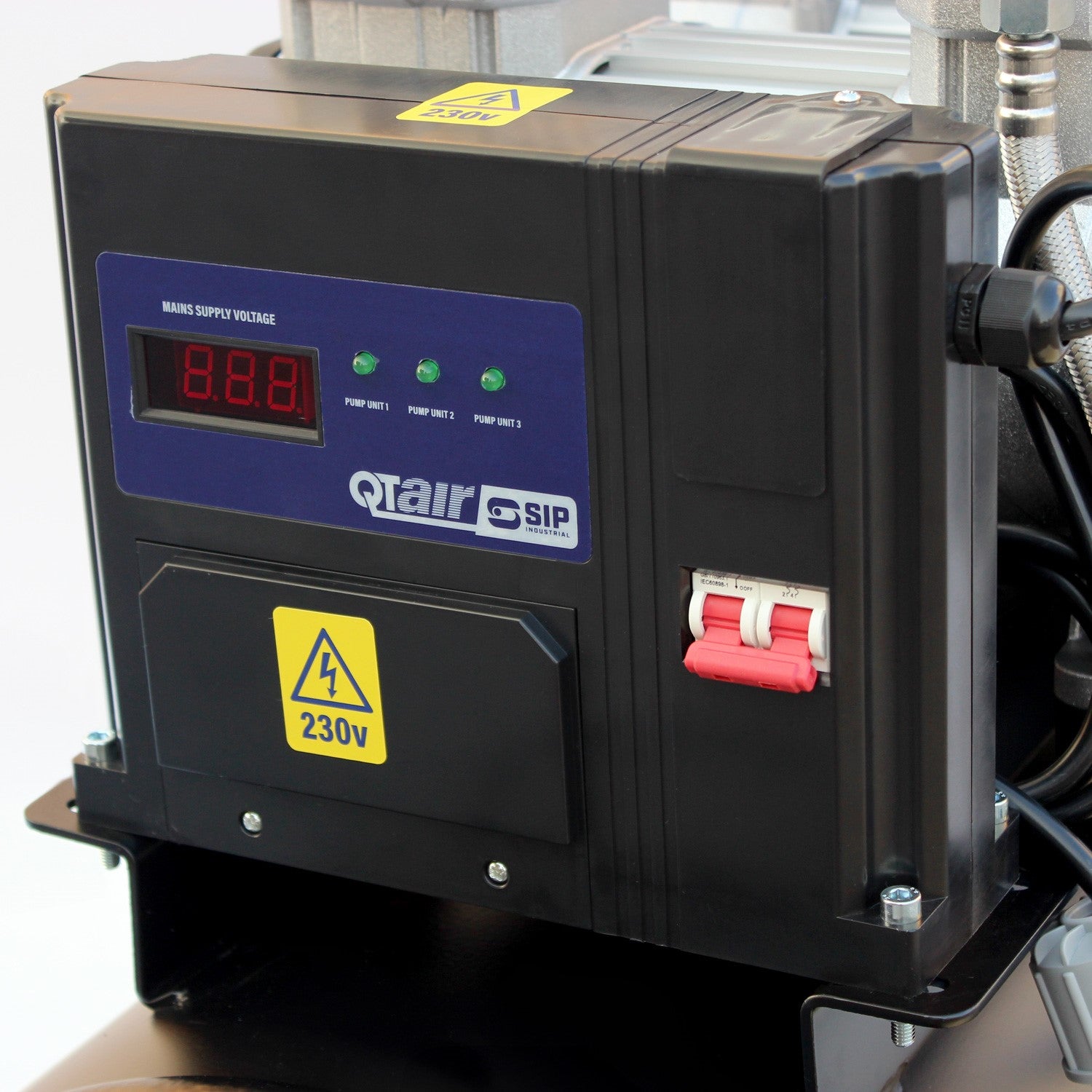

- Mains supply control box initiates start-up from a 16A single-phase supply

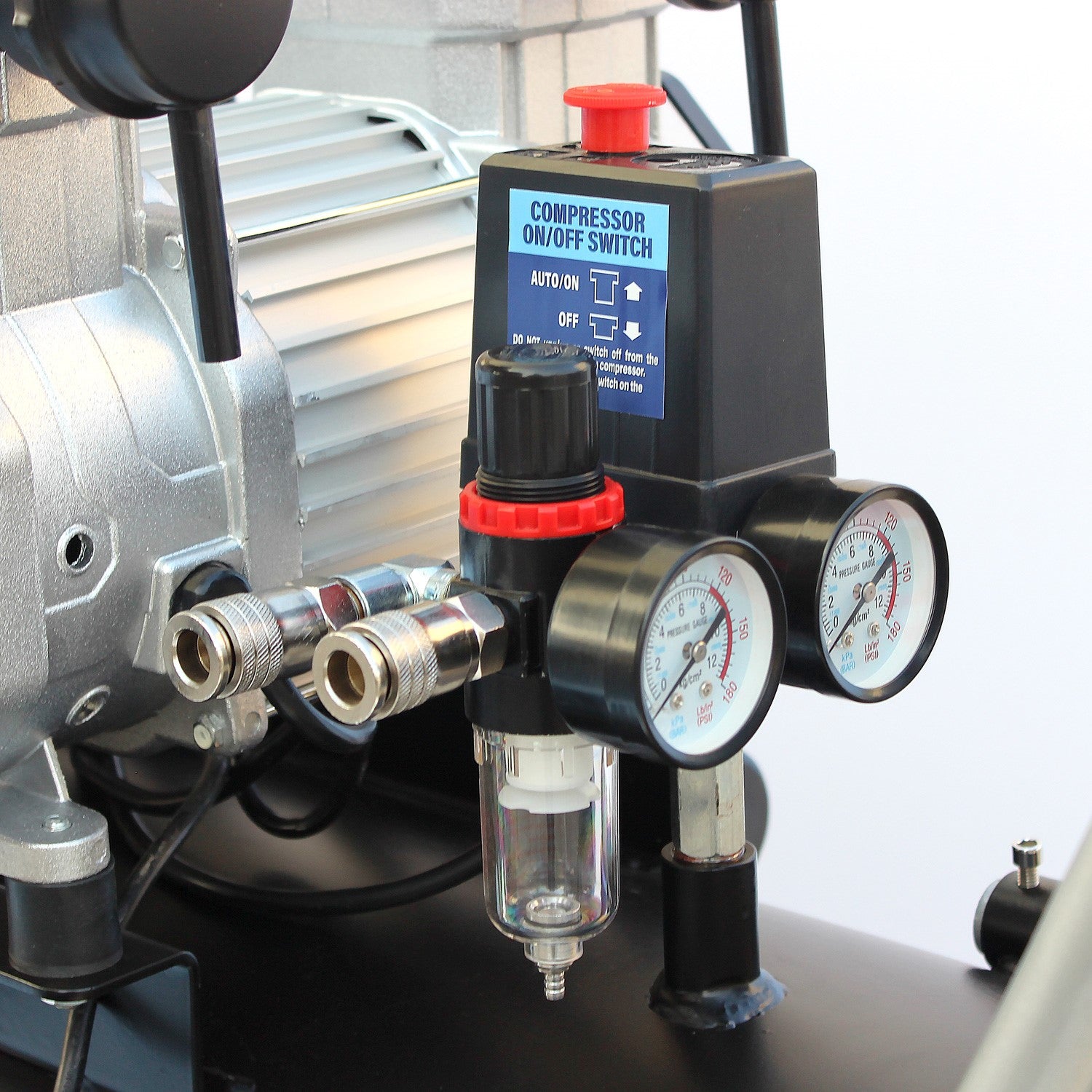

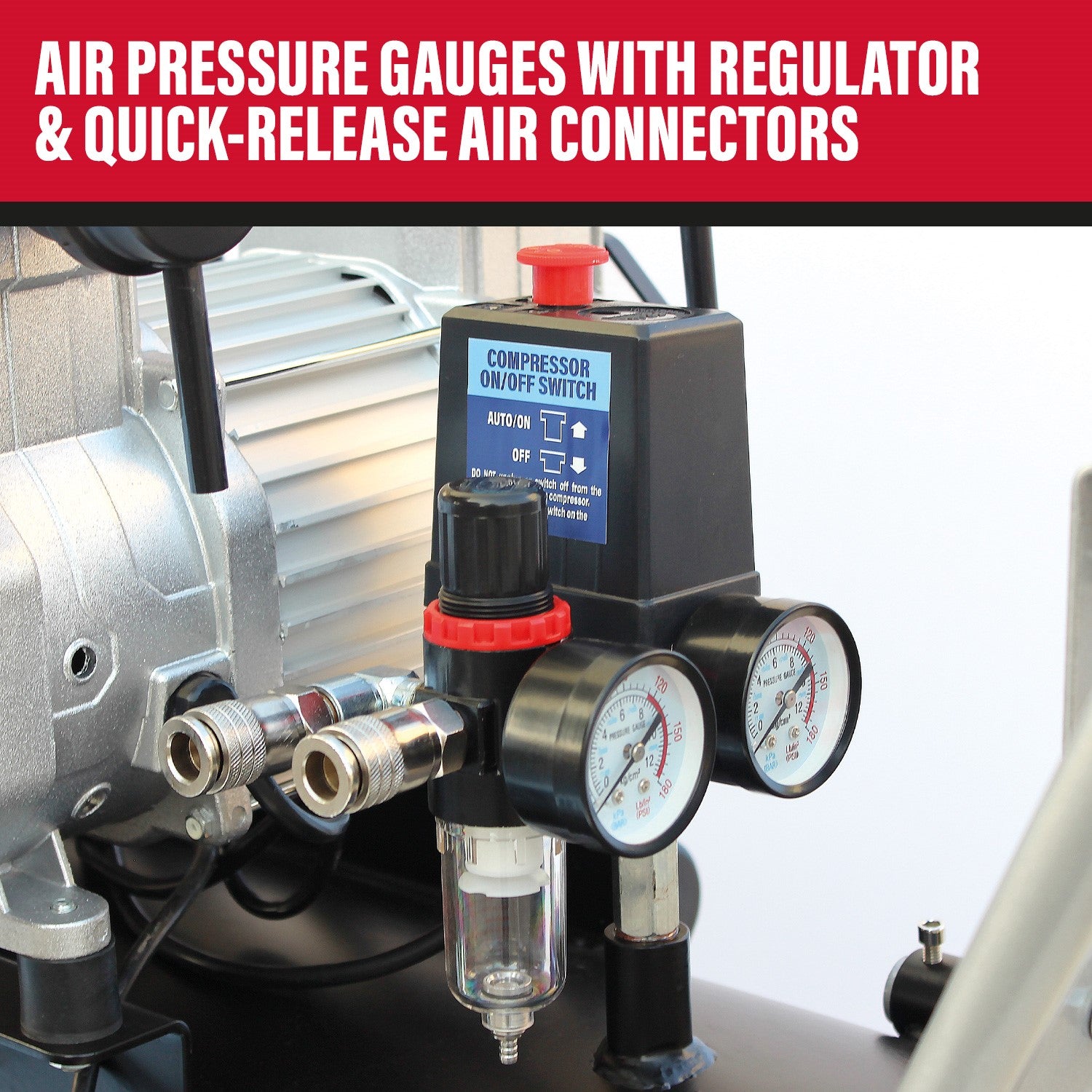

- 150ltr receiver with tank and working pressure gauges and quick-release connectors

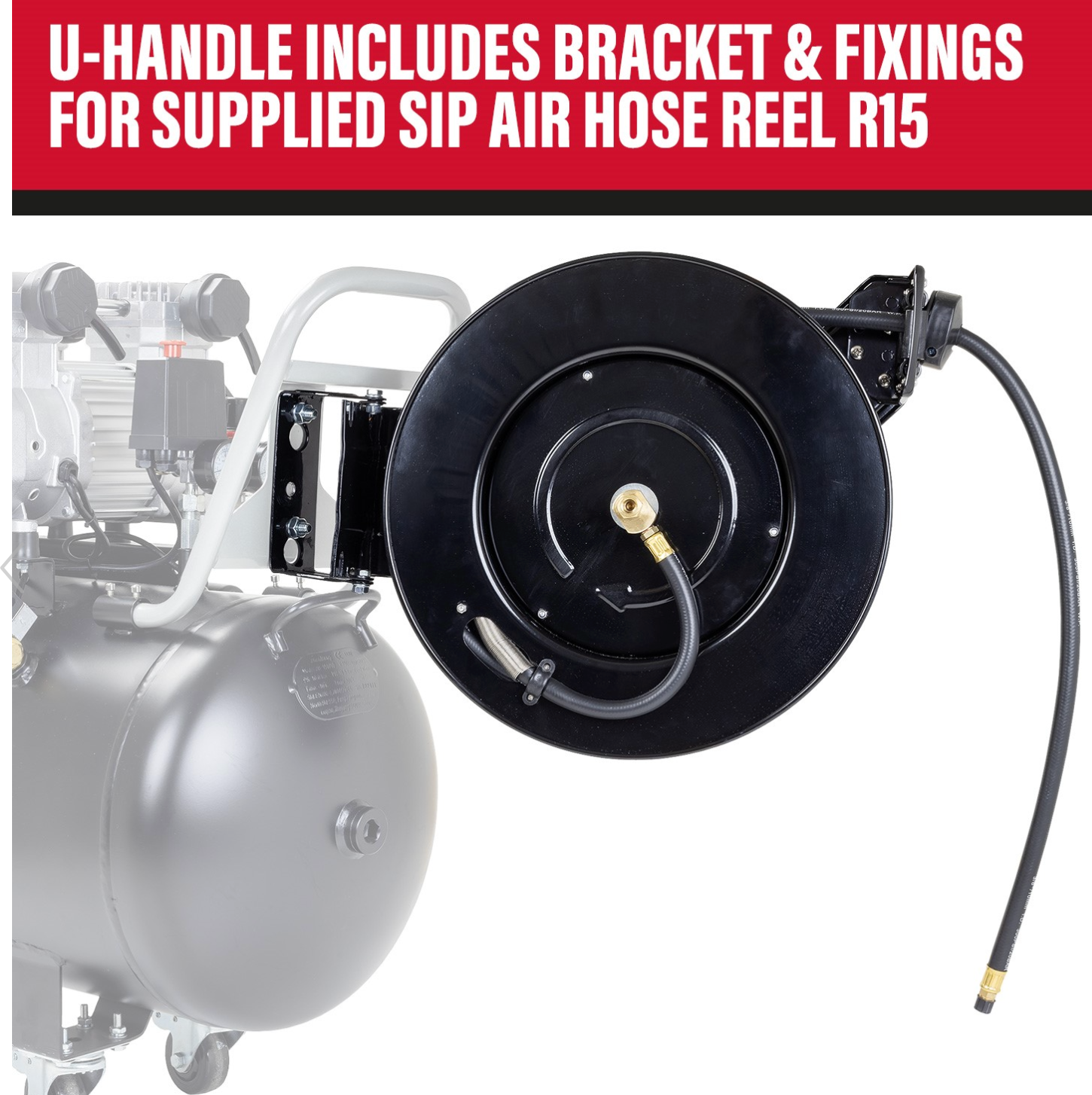

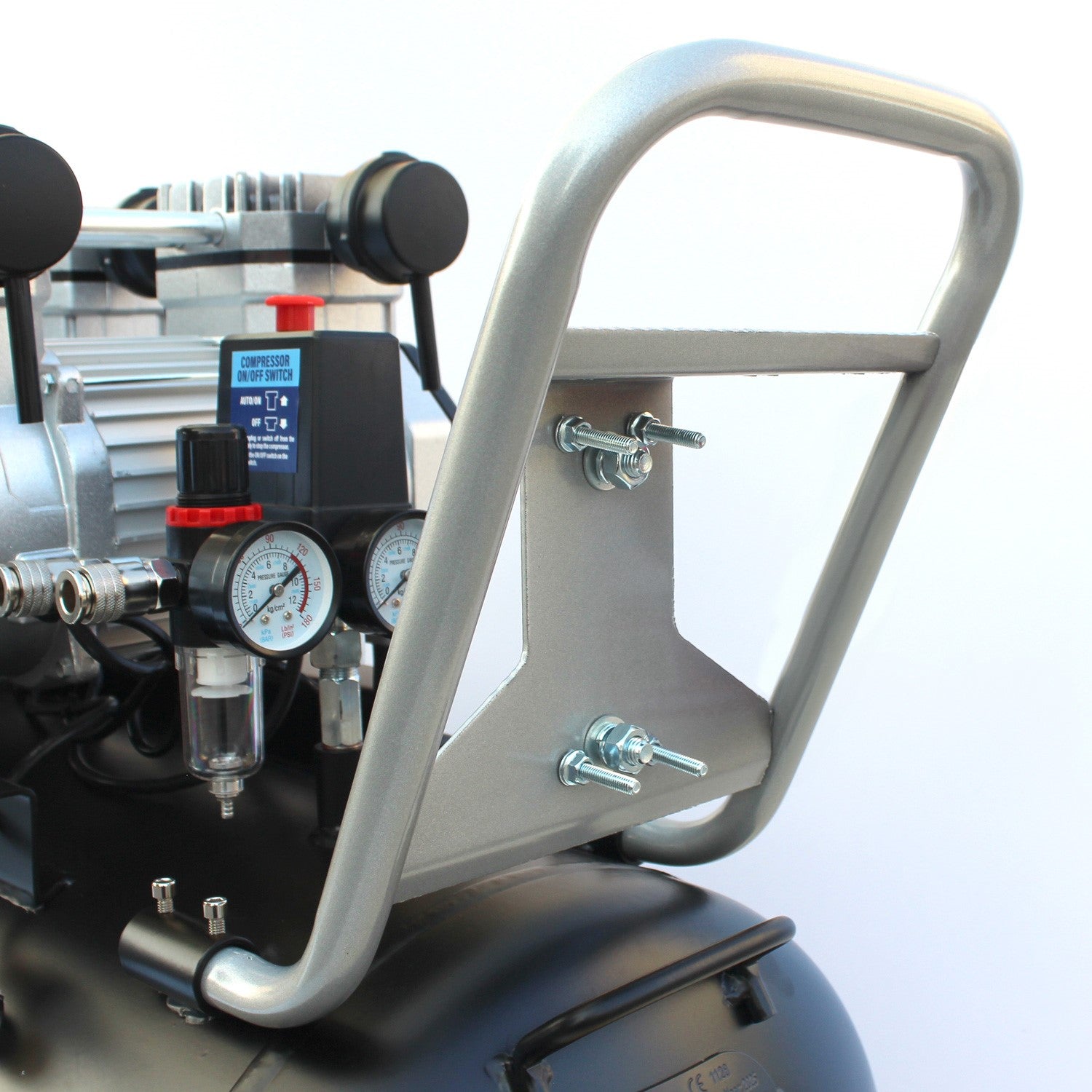

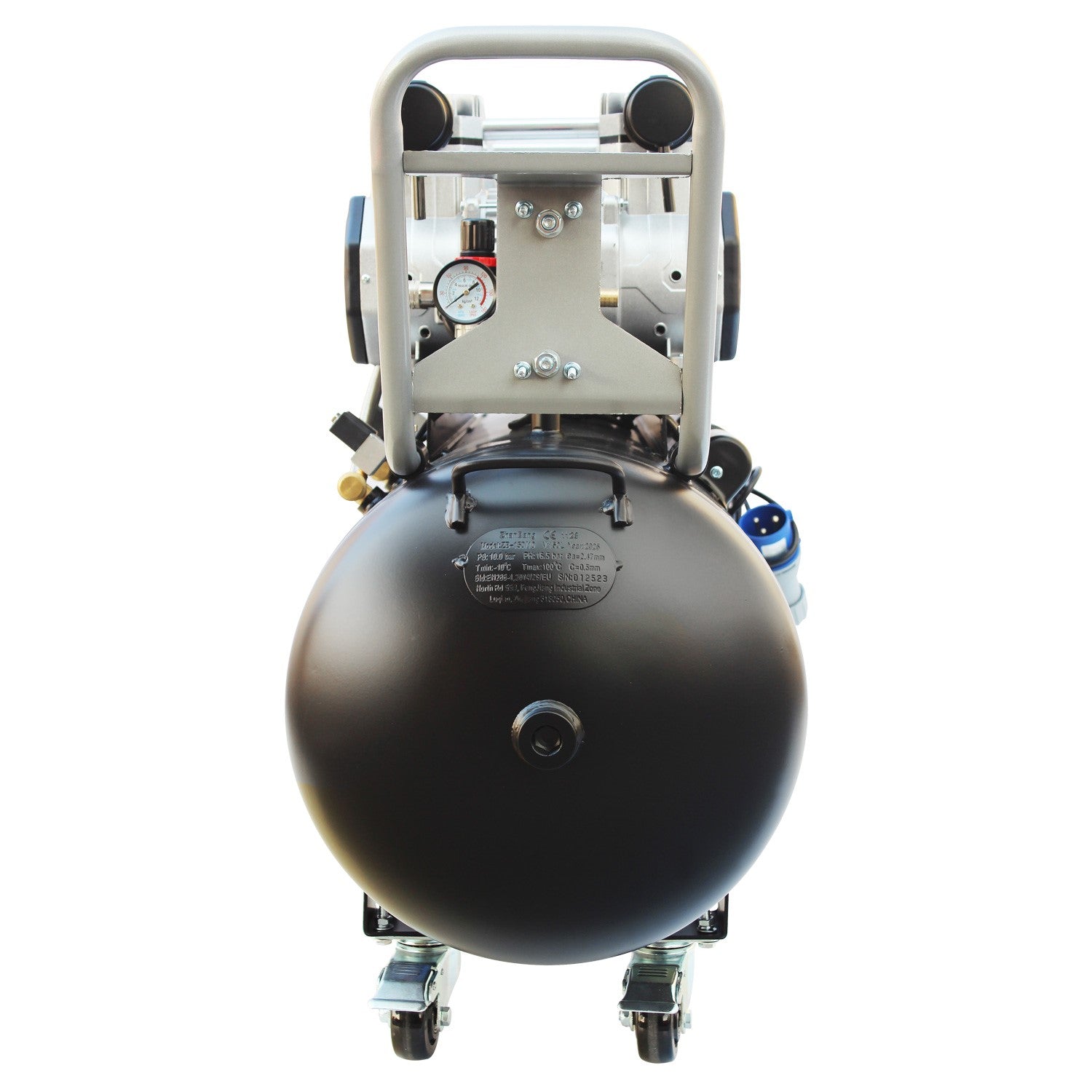

- U-handle includes bracket and fixings for the supplied 15M SIP Air Hose Reel R15 (07977)
| ITEM NO. | 05497AHR15 |
| Input Supply: | 230v (16A) |
| Motor Power: | 4.5hp (3.3kW) |
| Receiver Size: | 150ltr |
| Piston Displacement: | 22.8CFM (646ltr/min) |
| Free Air Delivery (FAD): | 18.2CFM (515ltr/min) |
| Max. Air Pressure: | 116psi (8bar) |
| Noise Level: | 67dB |
| Net Weight: | 95kg |
| Gross Weight: | 115kg |
| Product Dimensions: | 815(H) x 450(W) x 1200mm(D) |
| Packaged Dimensions: | 860(H) x 450(W) x 1270mm(D) |
Operators Manual
Parts Manual
