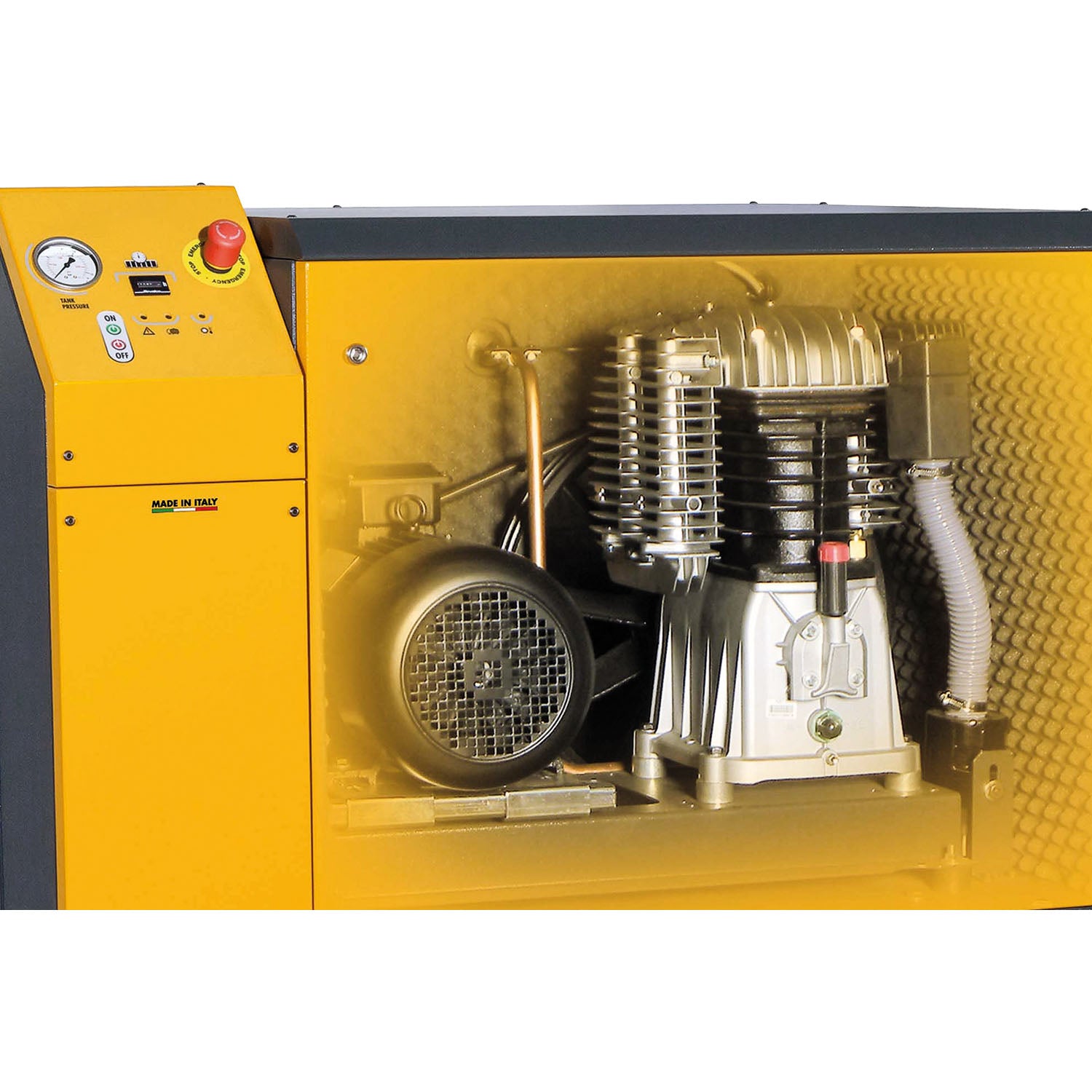

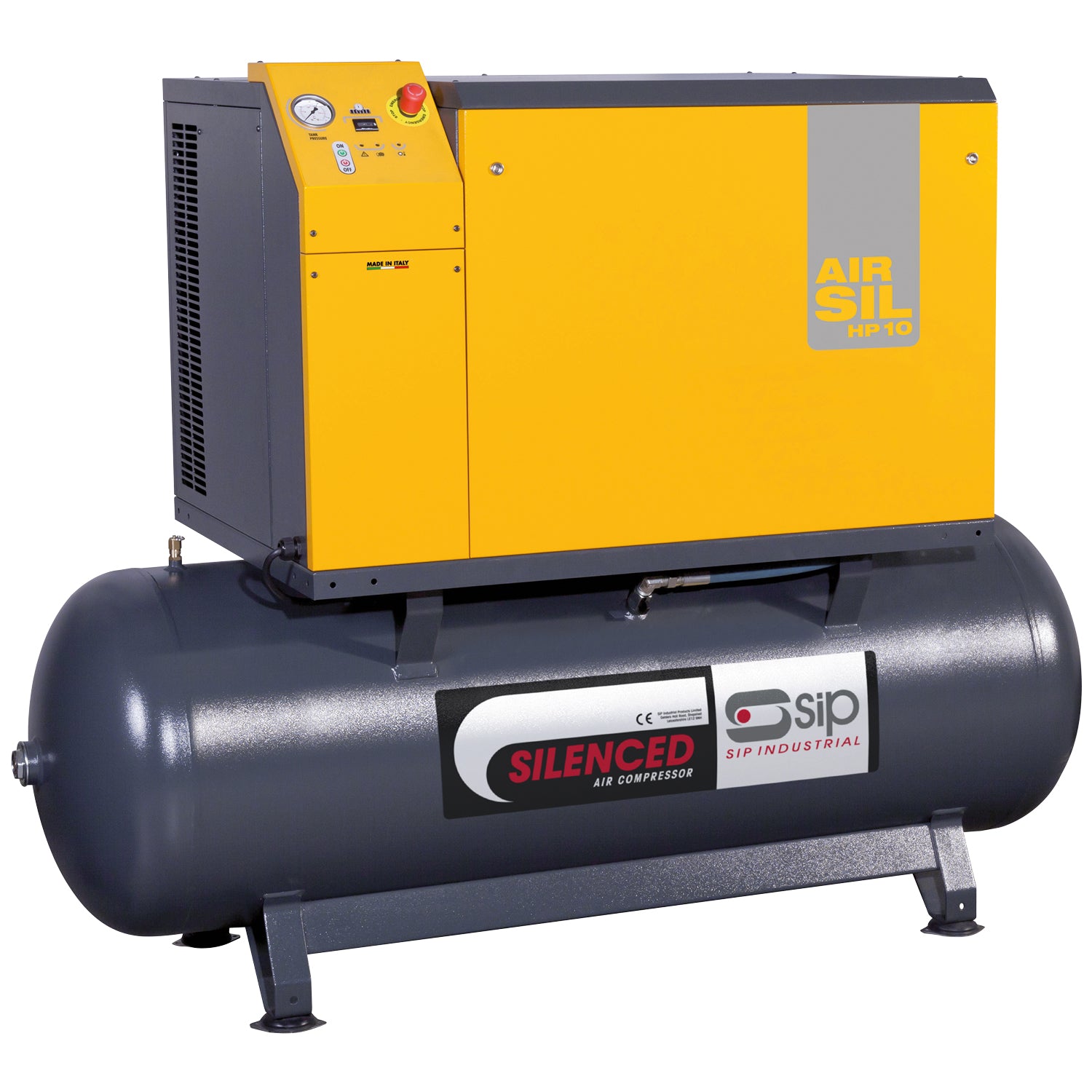

The SIP NB10/500 Silenced Piston Compressor - 06224 is a powerful silenced piston compressor designed to provide reliable performance and long-lasting durability at a fraction of the operating noise offered by other compressor types. This is achieved via low-noise belt-driven operation, an acoustic chamber and soundproof cabinet.
This means the SIP NB10/500 Silenced Piston Compressor - 06224 is an excellent addition to any workshop with demanding compressed air requirements that must have installation close to the workspace.
An integrated quick access panel ensures that servicing and maintenance is easy.
- Belt-driven performance with low noise levels perfect for close installation
- Soundproof cabinet enclosure with built-in air intake silencer
- Added acoustic chamber further decreased operating noise levels
- Quick access panel for easy servicing and maintenance requirements
- Heavy-duty 2-stage pump for high efficiency and performance
- Heavy-duty rubber-mounted saddle
- Static placement for permanent siting near workspaces
- SIP 2-Year Standard Silver Warranty
- Manufactured in Italy
| ITEM NO. | 06224 |
| Input Supply: | 400v (20A) |
| Motor Power: | 10hp (7.5kW) |
| Receiver Size: | 500 ltr |
| Piston Displacement: | 44.00CFM (1246 ltr/min) |
| Free Air Delivery (FAD): | 30.00CFM (849 ltr/min) |
| Max. Air Pressure: | 145 psi (10bar) |
| No. of Cylinders: | 2 cylinders |
| No. of Stages: | 2 stages |
| Noise Level: | 64dB(A) |
| Net Weight: | 368.00kg |
| Gross Weight: | 375.00kg |

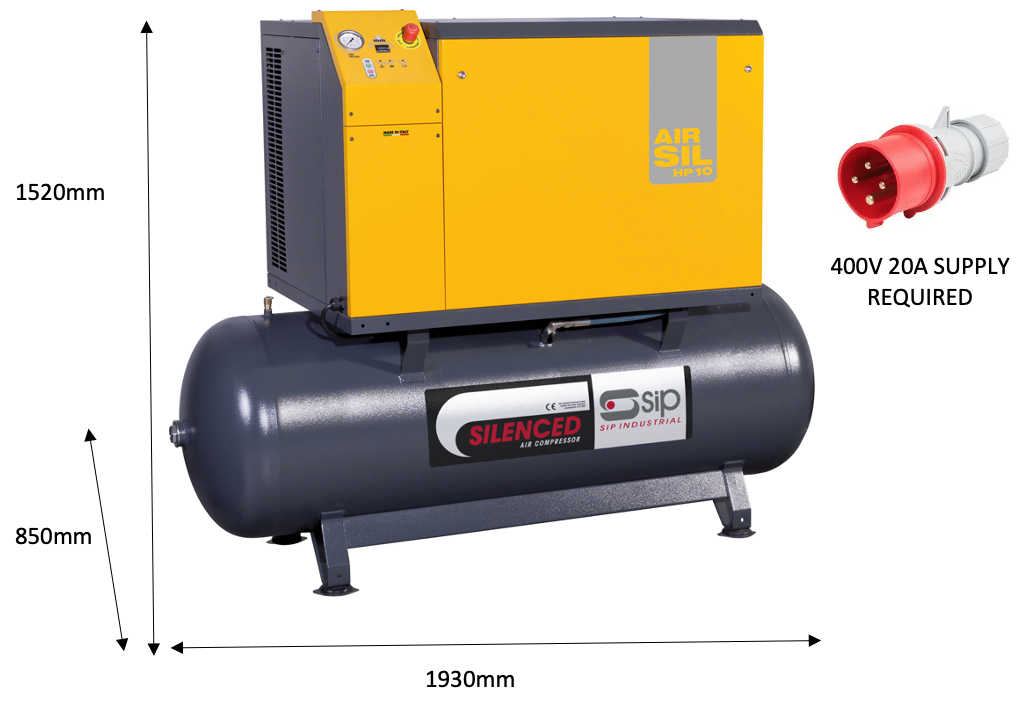

| Product Dimensions: | 1520 (H) x 1930 (W) x 850mm (D) |
| Packaged Dimensions: | 1650(H) x 2005(W) x 970mm(D) |
