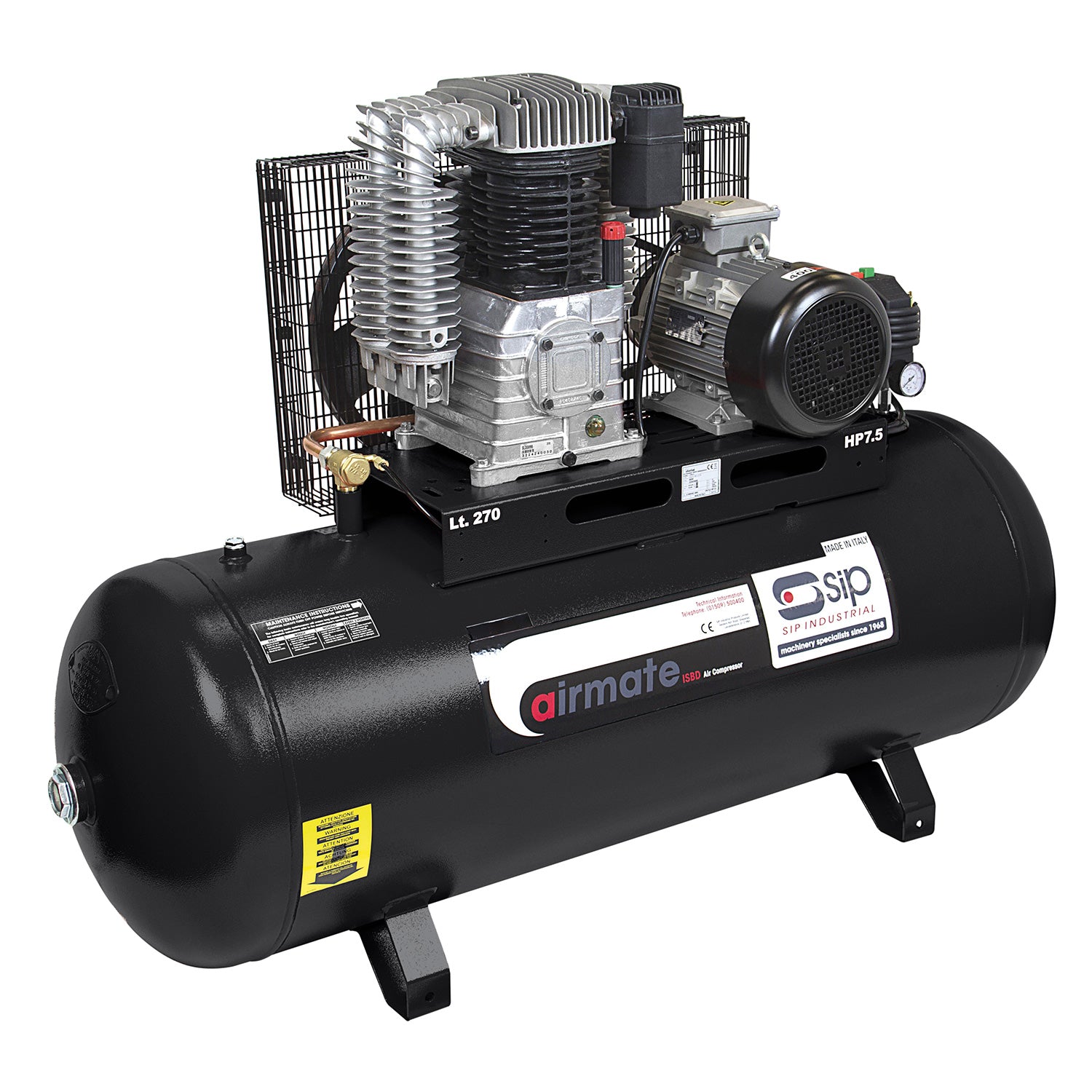

The SIP ISBD5.5/270 Industrial Electric Compressor - 06289 is a powerful belt-driven workhorse compressor built for hard-wearing durability and designed for consistently high performance, plus superior compressed air production perfect for a range of demanding industrial applications.
Large interstage coolers provide high-quality, cooler air with reduced moisture and better pump temperature control, industrial-grade 3-phase motor ensures heavy-duty operation at all times, as do the long-stroke cast iron cylinders.
Each SIP ISBD5.5/270 Industrial Electric Compressor - 06289 comes with an SIP 10-Year Anti-Corrosion Receiver Warranty as standard for added peace-of-mind.
- Oil-lubricated belt-driven compressor with 400v 3-PHASE motor
- Heavy-duty pump ideal for prolonged and demanding industrial applications
- Large interstage coolers for high-quality, cooler air, reduced moisture and pump temperature control
- Long-stroke cast iron cylinders for slower running and increased pump life
- Robust valve plate with individual valves for efficient performance
- Supplied with heavy-duty anti-vibration mounts
- SIP 10-Year Anti-Corrosion Receiver Warranty
- SIP 2-Year Standard Silver Warranty
- Manufactured in Italy
| ITEM NO. | 06289 |
| Input Supply: | 400v (20A) 3-PHASE |
| Motor Power: | 5.5hp (4.1kW) |
| Receiver Size: | 270ltr |
| Piston Displacement: | 23.50CFM (666ltr/min) |
| Free Air Delivery (FAD): | 15.50CFM (439ltr/min) |
| Max. Air Pressure: | 160psi (11bar) |
| Working Speed: | 1290rpm |
| No. of Cylinders: | 2 cylinders |
| No. of Stages: | 2 stages |
| Net Weight: | 130.00kg |
| Gross Weight: | 145.00kg |
| Packaged Dimensions: | 1340(H) x 1640(W) x 560mm(D) |
