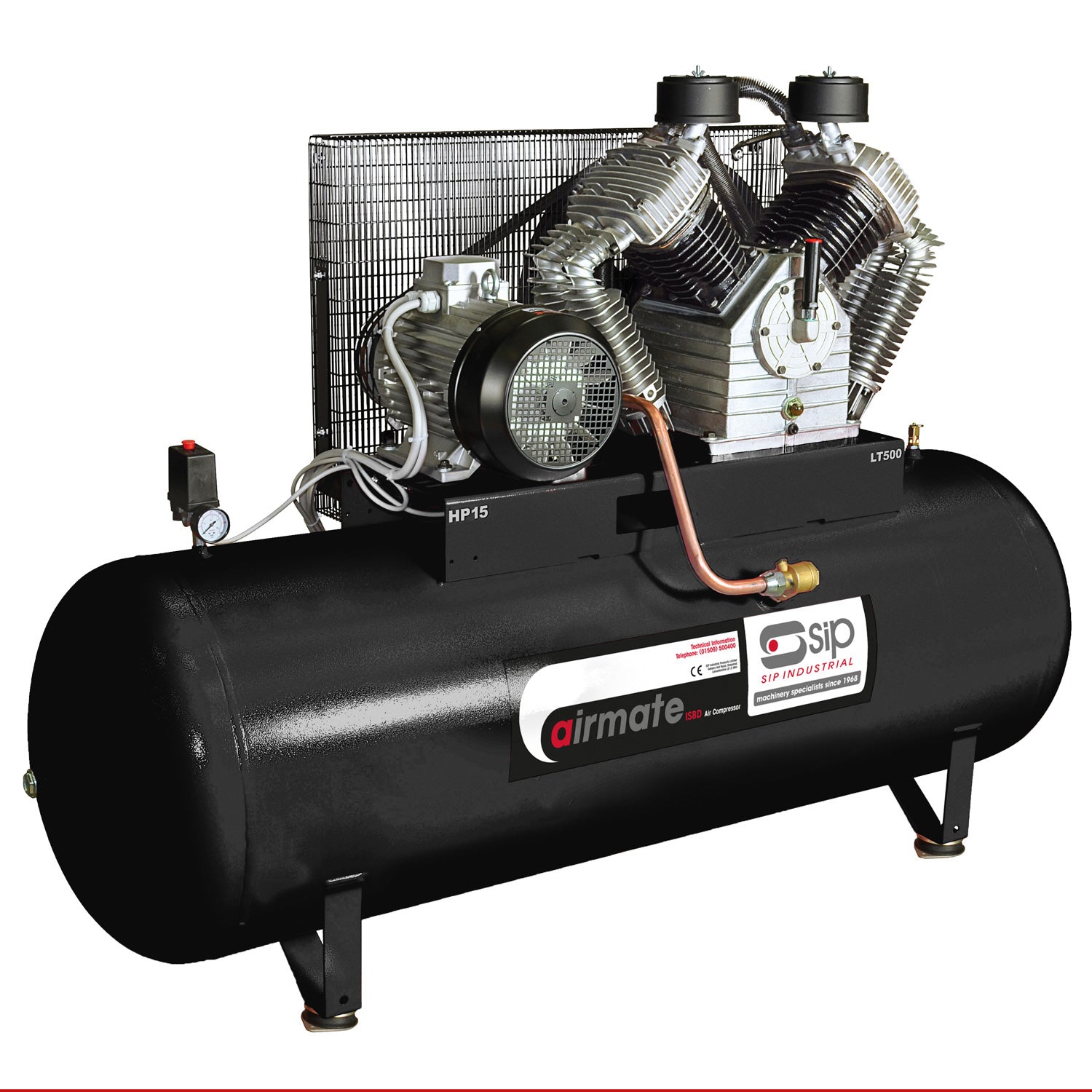

The SIP ISBD15/500 Industrial Electric Compressor - 06297 is a powerful belt-driven workhorse compressor built for hard-wearing durability and designed for consistently high performance, plus superior compressed air production perfect for a range of demanding industrial applications.
Large interstage coolers provide high-quality, cooler air with reduced moisture and better pump temperature control, industrial-grade 3-phase motor ensures heavy-duty operation at all times, as do the long-stroke cast iron cylinders.
Each SIP ISBD15/500 Industrial Electric Compressor - 06297 comes with an SIP 10-Year Anti-Corrosion Receiver Warranty as standard for added peace-of-mind.
- Oil-lubricated belt-driven compressor with 400v 3-PHASE motor
- Heavy-duty pump ideal for prolonged and demanding industrial applications
- Large interstage coolers for high-quality, cooler air, reduced moisture and pump temperature control
- Long-stroke cast iron cylinders for slower running and increased pump life
- Robust valve plate with individual valves for efficient performance
- Supplied with heavy-duty anti-vibration mounts
- SIP 10-Year Anti-Corrosion Receiver Warranty
- SIP 2-Year Standard Silver Warranty
- Manufactured in Italy
|Input Supply:||400v (32A) 3-PHASE|
|Motor Power:||15hp (11.2kW)|
|Piston Displacement:||61.50CFM (1744ltr/min)|
|Free Air Delivery (FAD):||40.70CFM (1153ltr/min)|
|Max. Air Pressure:||160psi (11bar)|
|No. of Cylinders:||4 cylinders|
|No. of Stages:||2 stages|
|Packaged Dimensions:||1680(H) x 2270(W) x 860mm(D)|
