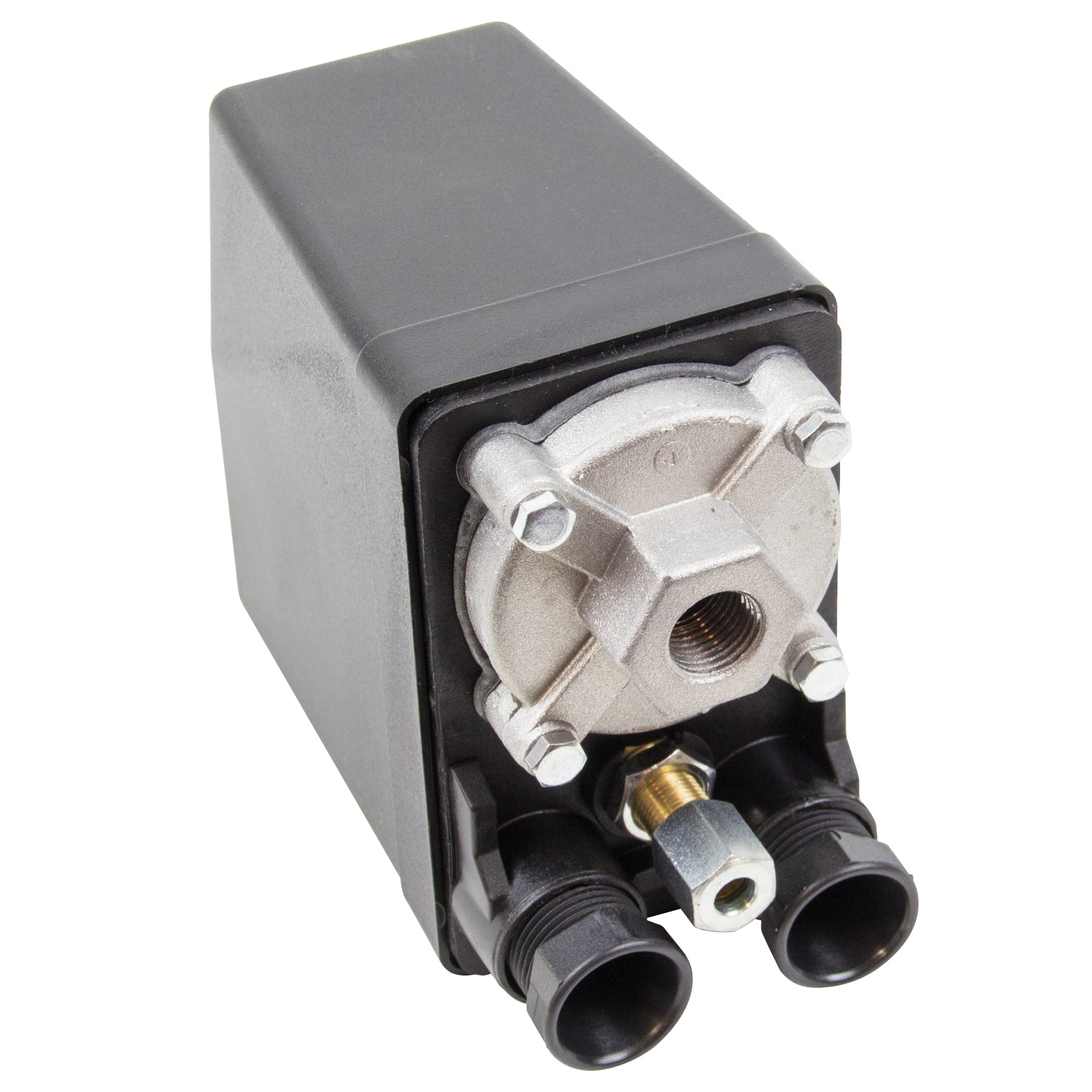

The SIP 1/4" 1-Way 3-PHASE Pressure Switch is an important component for any air compressor, helping to maintain the proper pressure level demanded by the operator and air-powered equipment. This is achieved by starting the compressor motor when the pressure is lower, and stopping it when the required pressure is reached.
This pressure switch is easy-to-install and offers dependable and long-lasting use.
- 1/4" 1-way 3-phase pressure switch is easy-to-install
- Easily adjustable cut-off pressure via built-in switch
- Designed to start and stop electric compressor motors
- Manufactured for long-lasting and reliable use
- Integrated bleed facility with 6mm pipe entry
Technical Specification
- ITEM NO. 02315
- Switch Type: PS20
- Voltage / Current: 400v / 20A
- Overload: N/A
- Inlet Connection Size: 1/4" BSP
- Inlet Connection Type Bottom Entry
- Side Port Size: None
- Switch Type: Pull
- Phase Type: 3-phase
- No. of Poles: 3 poles
