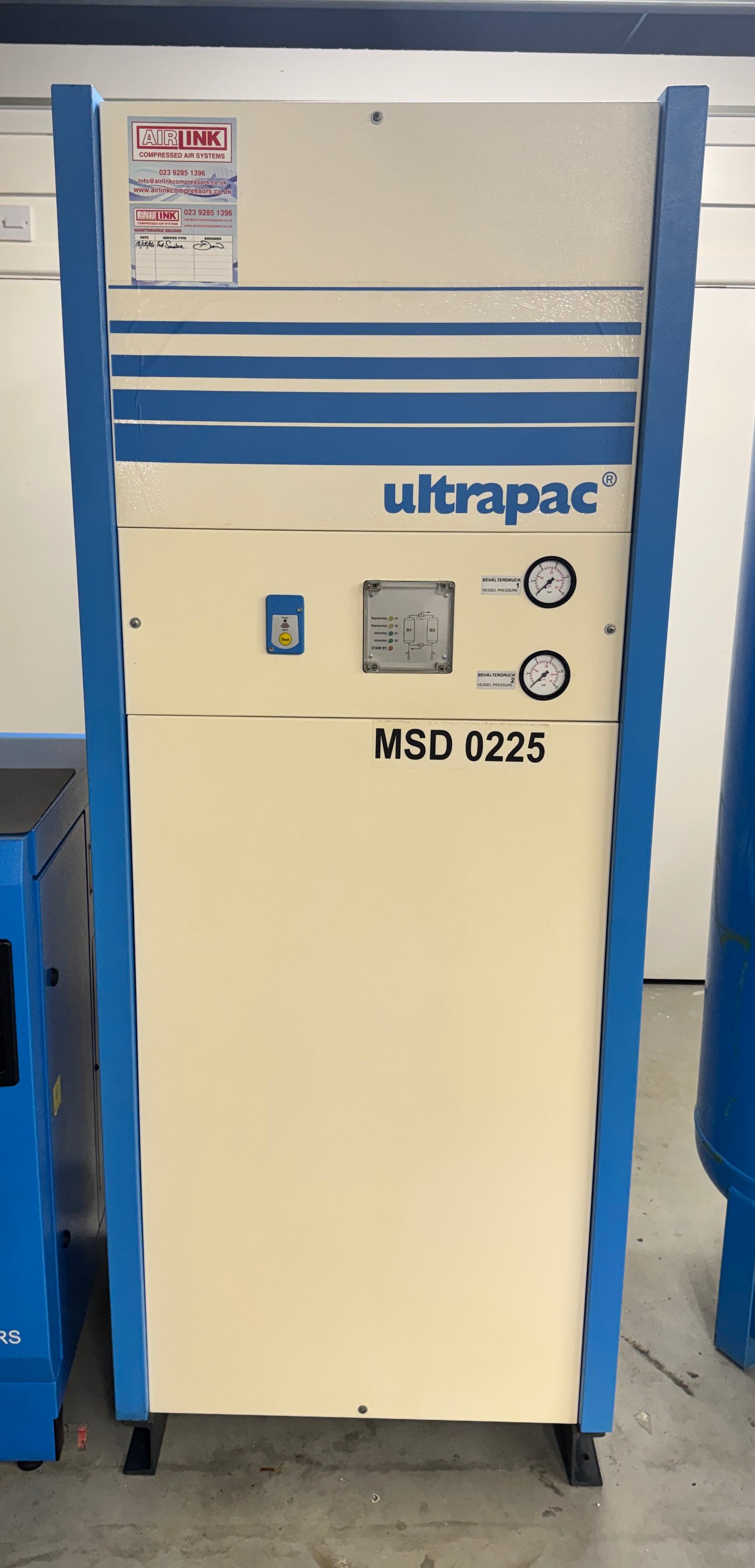

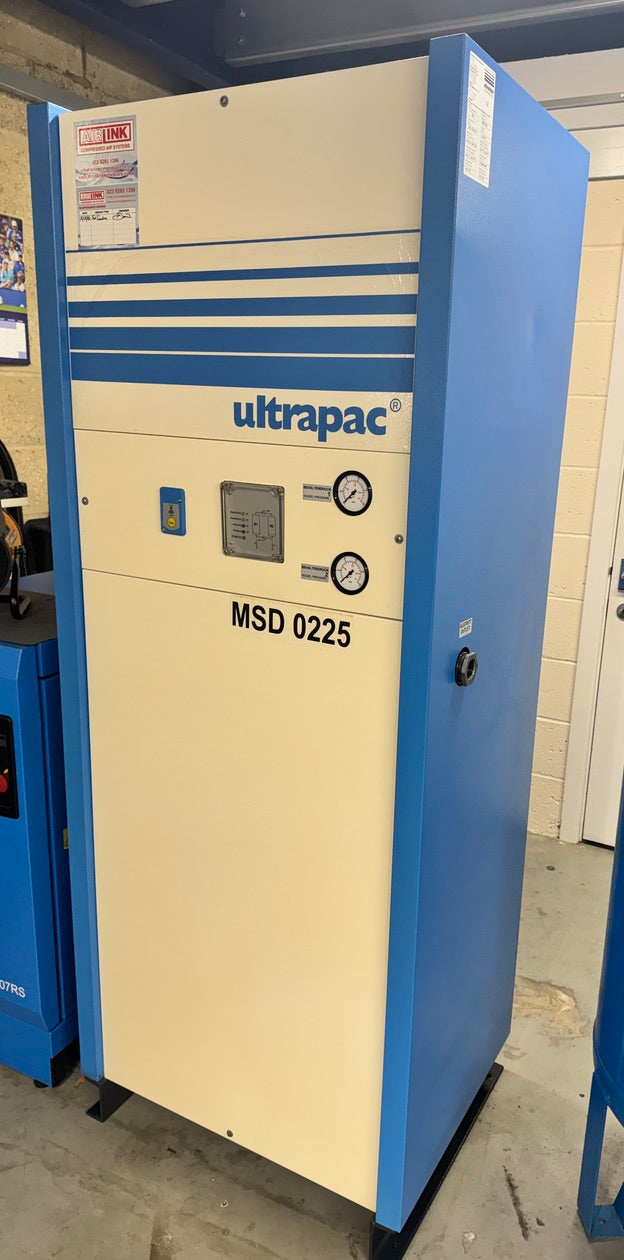

Refurbished Donaldson Ultrapac MSD 0225 Heatless Adsorption Desiccant Dryer – 225 m³/h (132 CFM), -70°C PDP, Complete Package with Filters & Drain
Couldn't load pickup availability
Accepted Payments
Ask The Experts!
High-purity compressed air solution for critical applications: the Donaldson Ultrapac MSD 0225 (formerly Ultrafilter/Ultra-Filter series) is a heatless regenerated adsorption dryer achieving ultra-low pressure dew points of -70°C (-94°F) or better – ideal for pharmaceutical, food & beverage, electronics, laboratories, or any process requiring technically oil-free and super-dry air (ISO 8573-1 Class 1-1-1 capable with proper pre-filtration).

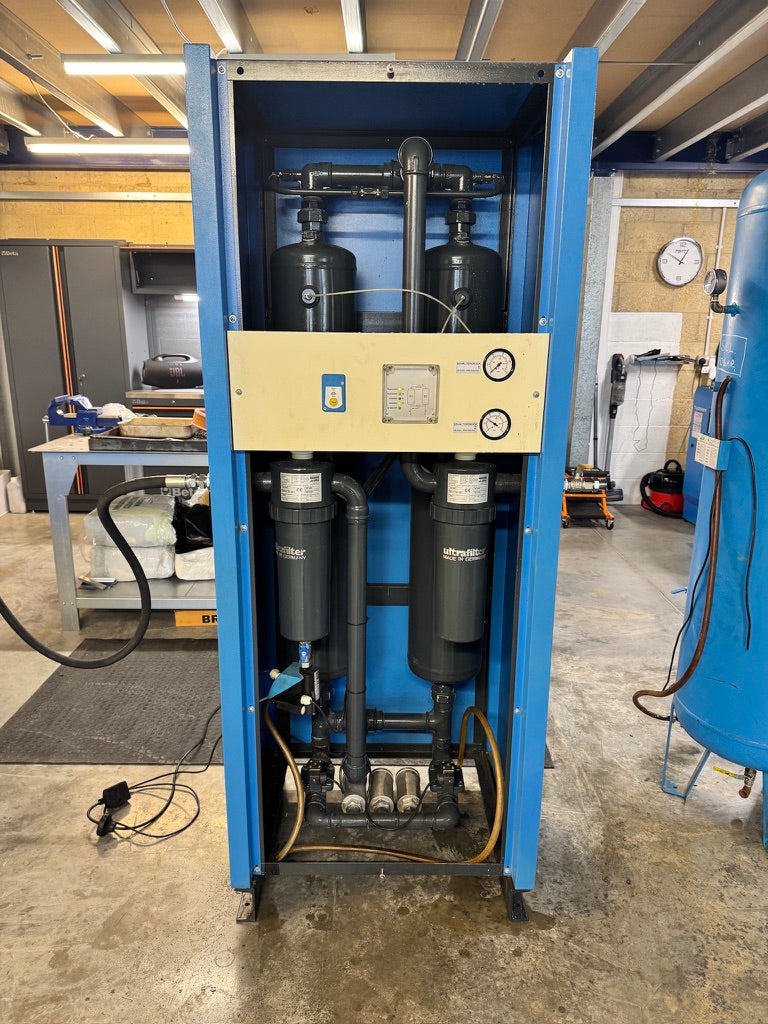

Fully refurbished in February 2026 by Airlink Compressors engineers (airlinkcompressors.com) using only genuine Donaldson/Ultrafilter spares throughout. This complete purification package includes heatless twin-tower desiccant dryer, high-efficiency pre- and after-filters (UltraPleat® S or equivalent), level-controlled electronic condensate drain, and robust welded steel vessels for long-term reliability and low operating costs.
Key features and benefits:
- Nominal flow: 225 m³/h (132 CFM) at 7 bar(g) / 100 psig, 20°C inlet, 35°C ambient
- Pressure dew point: -70°C (MSD version) – residual moisture ≤ 0.0027 g/m³
- Heatless regeneration – no external heat, simple and reliable
- Pre-filter (coalescing) + after-filter (particulate) included for full protection
- Electronic level-controlled condensate drain with alarm/function control
- Low pressure drop for energy efficiency
- Service-friendly shuttle/solenoid valves for quick maintenance
- Robust design: galvanized pipelines, aerodynamic fittings, welded adsorber vessels
- Operating pressure: 4–16 bar(g) (max 15 bar for larger models)
- Quiet, compact cabinet/enclosed version available in some configs
Full February 2026 refurbishment using genuine spares includes:
- Desiccant bed inspection/replacement or regeneration check
- New genuine pre- and after-filter elements (UltraPleat® S or equivalent)
- New desiccant if required, seals, valves, and gaskets
- Electronic drain serviced/replaced, solenoid valves tested
- Full vessel inspection, pressure test, and leak check
- Controller/alarm system verified and firmware updated
- 10-hour performance test simulating load with printed dew point/flow report
- 6-month parts & labour warranty (extendable to 12 months)
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Donaldson (Ultrafilter/Ultrapac series) |
| Model | MSD 0225 |
| Type | Heatless Adsorption Desiccant Dryer (Twin Tower) |
| Pressure Dew Point (PDP) | -70°C / -94°F (MSD version) |
| Nominal Flow | 225 m³/h (132 CFM) at 7 bar(g), 20°C inlet, 35°C ambient |
| Inlet Temperature Range | +4°C to +50°C (correction factors apply) |
| Operating Pressure | 4–16 bar(g) |
| Regeneration Air Loss | Approx. 20% of rated flow (average) |
| Pre-/After-Filter | Included (high-efficiency coalescing + particulate) |
| Condensate Drain | Electronic level-controlled with alarm |
| Noise Level | Low (enclosed design) |
| Power Supply | 230V / 1 Phase / 50 Hz (standard) |
| Dimensions (approx.) | 770 × 680 × 1980 mm (A × B × C) |
| Weight (approx.) | 277 kg |
| Connections | G 1½" inlet/outlet |
| Refurbishment Date | February 2026 |
