Reconditioned / Low Hours HPC SK 19 Rotary Screw Compressor with HPC DC 26 Desiccant Dryer & 500L Tank - Complete Compressed Air Package

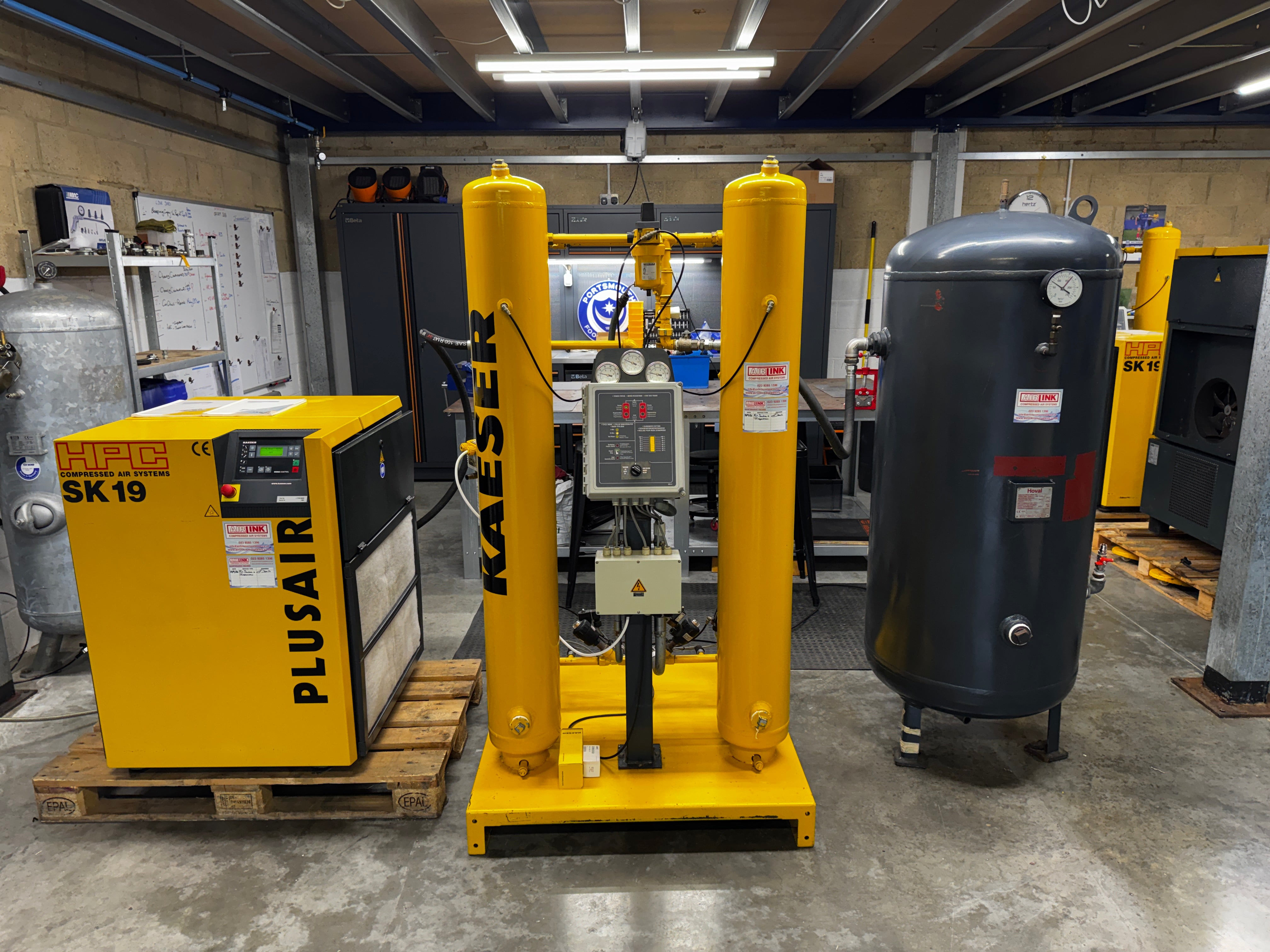

This package pairs an HPC SK 19 Pulsair oil-injected rotary screw compressor (7.5 bar working pressure) with an HPC DC 26 heatless regenerative desiccant dryer and a Hoval 500 litre air receiver. It is intended as a ready-to-specify plant for workshops, fabrication, CNC, packaging and process users who need more than refrigerated-dryer air quality.
What’s included
-

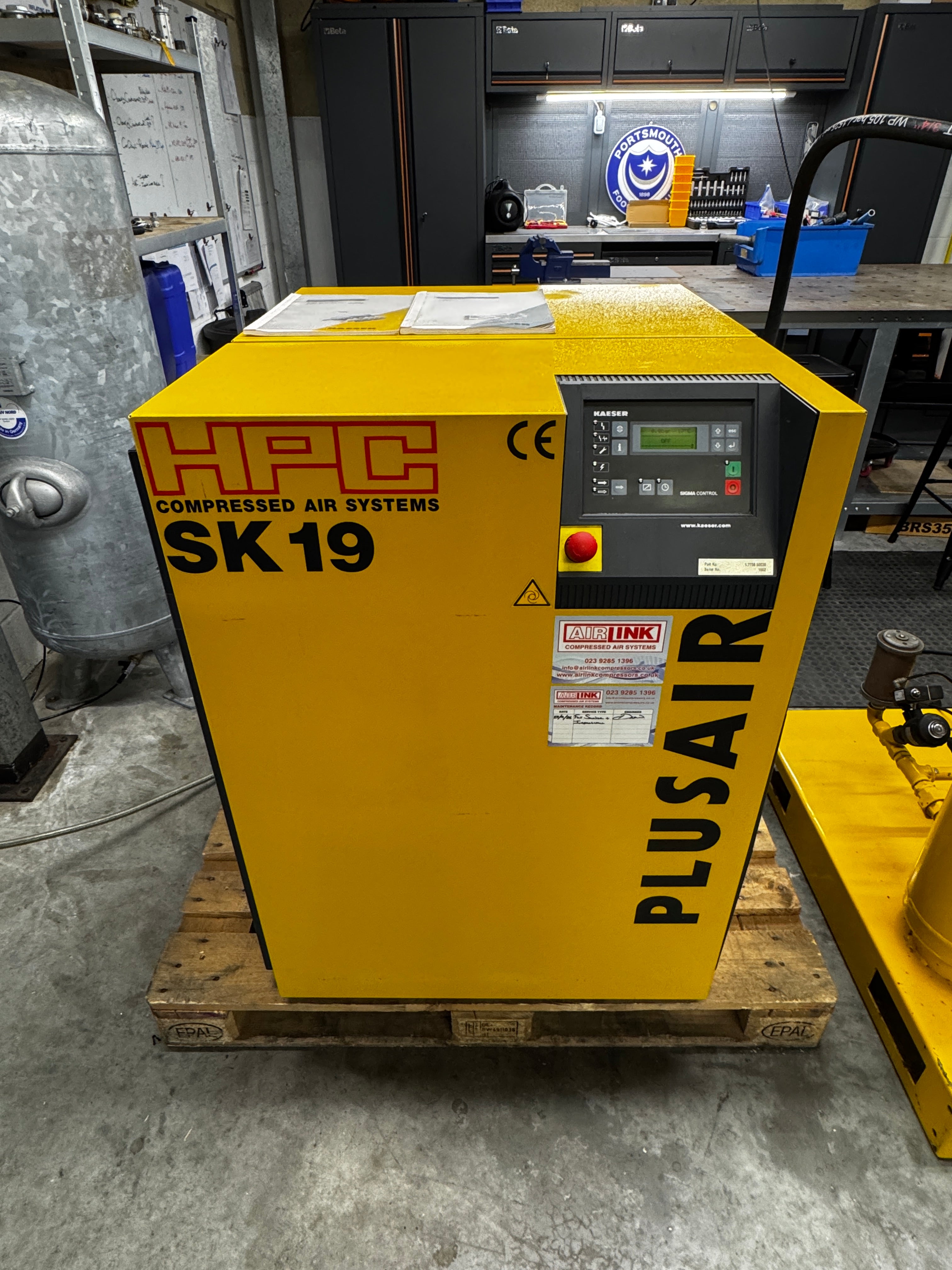

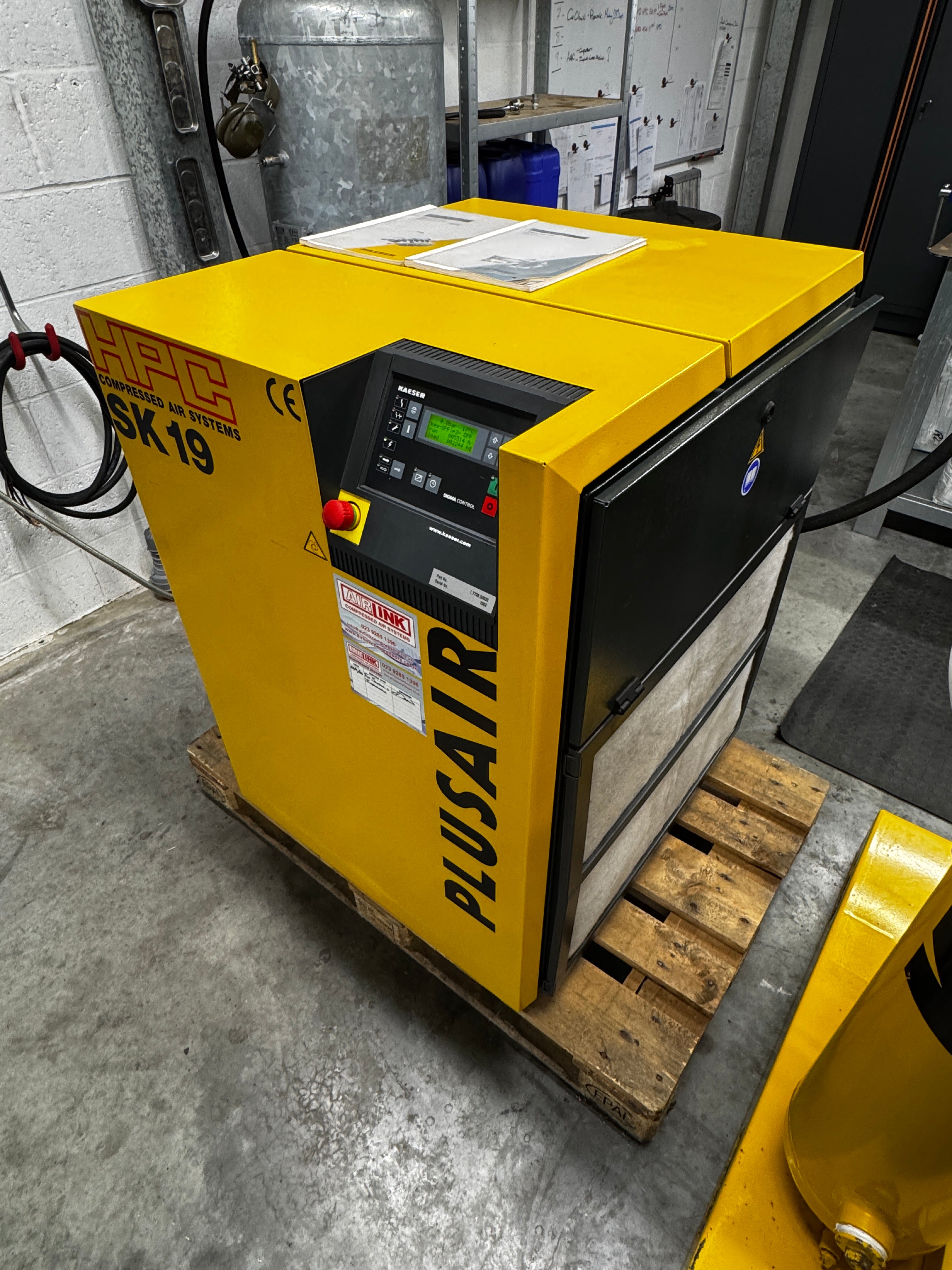

HPC SK 19 Pulsair rotary screw compressor — 7.5 bar
Compact SK-series belt-drive package HPC Pulsair. Single-stage SIGMA PROFILE airend with fluid injection, automatic belt tensioning, high-efficiency motor and integrated oil separation. -

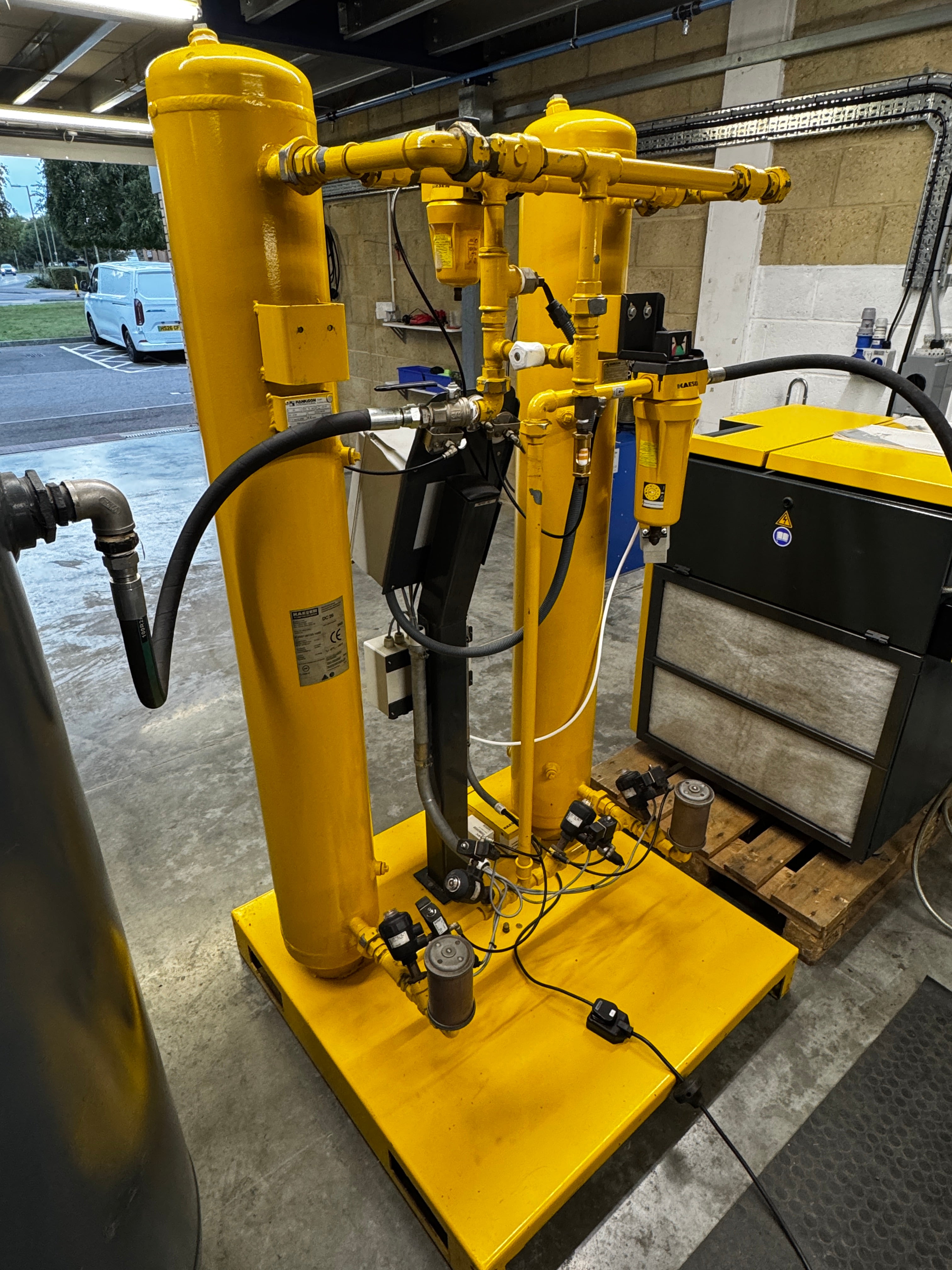

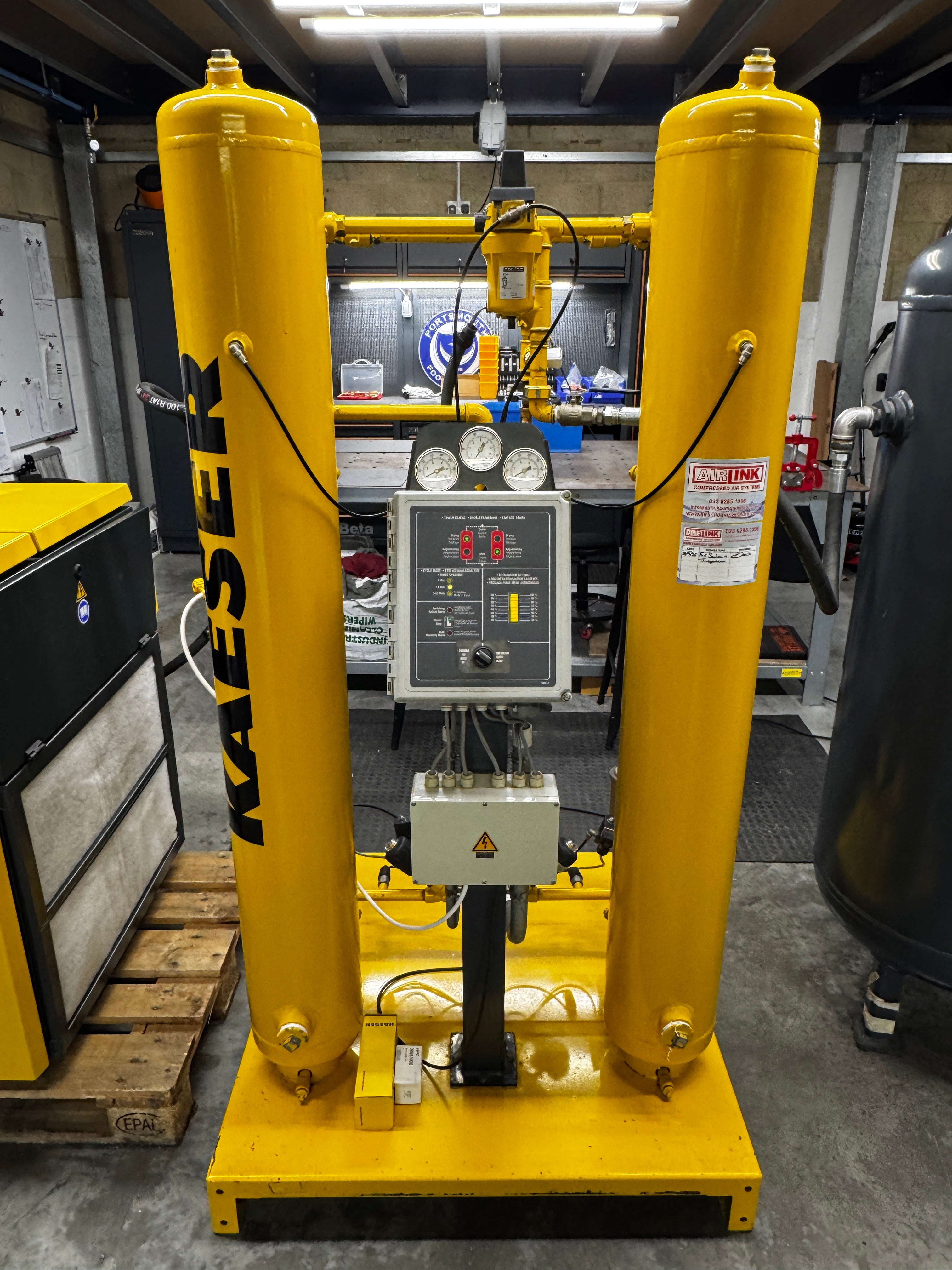

HPC DC 26 heatless desiccant dryer
Twin-tower heatless regenerative dryer for pressure dew points down to −40 °C (class 2) or optionally −70 °C (class 1), depending on configuration. Designed to sit after the compressor and protect tools, valves and process from moisture and frost. -

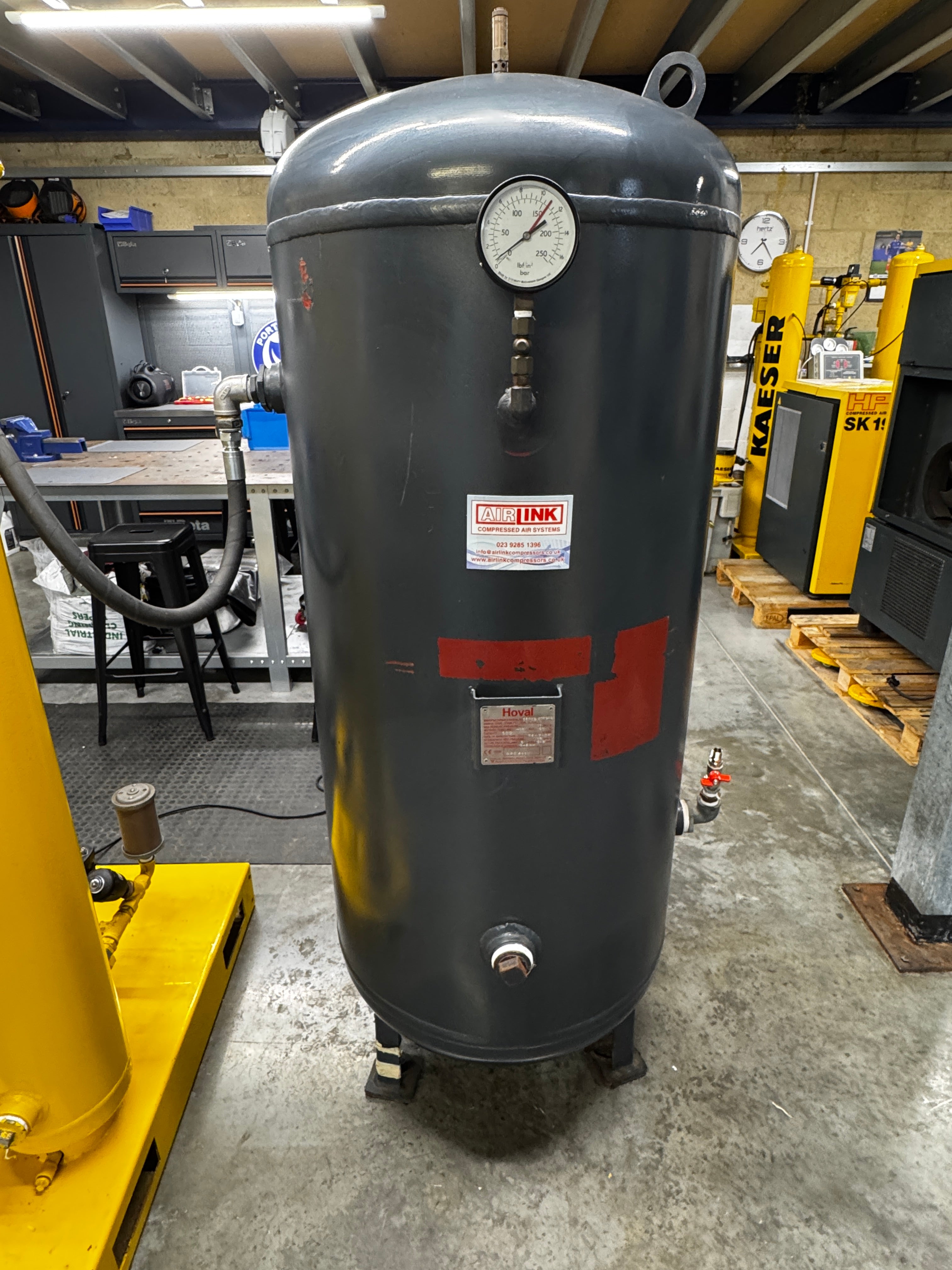

Hoval 500 litre air receiver
500 L storage vessel to buffer demand peaks, reduce compressor cycling and allow condensate drop-out before the dryer.
Please Note: This package does NOT include any connecting hoses as seen in the photos and video - these are used purely for testing purposes and not included in the sale.
HPC SK 19 Pulsair Specifications
| Item | Value |
|---|---|
| Type | Oil-injected rotary screw, belt drive |
| Working pressure | 7.5 bar |
| Max. gauge pressure (typical SK 19 7.5 bar build) | 8 bar |
| Free air delivery (complete package, ISO 1217) | approx. 1.85 m³/min (65 cfm / 1,855 l/min) |
| Motor | 11 kW (15 hp), 400 V 3-ph 50 Hz |
| Sound pressure | approx. 67 dB(A) at 1 m |
| Dimensions (typical SK 19) | approx. 784 × 820 × 1,017 mm |
| Weight (typical) | approx. 270–334 kg depending on build |
| Drive | V-belt with automatic tensioner |
| Oil carry-over | typically 1–3 ppm after separator |
| Duty | 100% continuous |

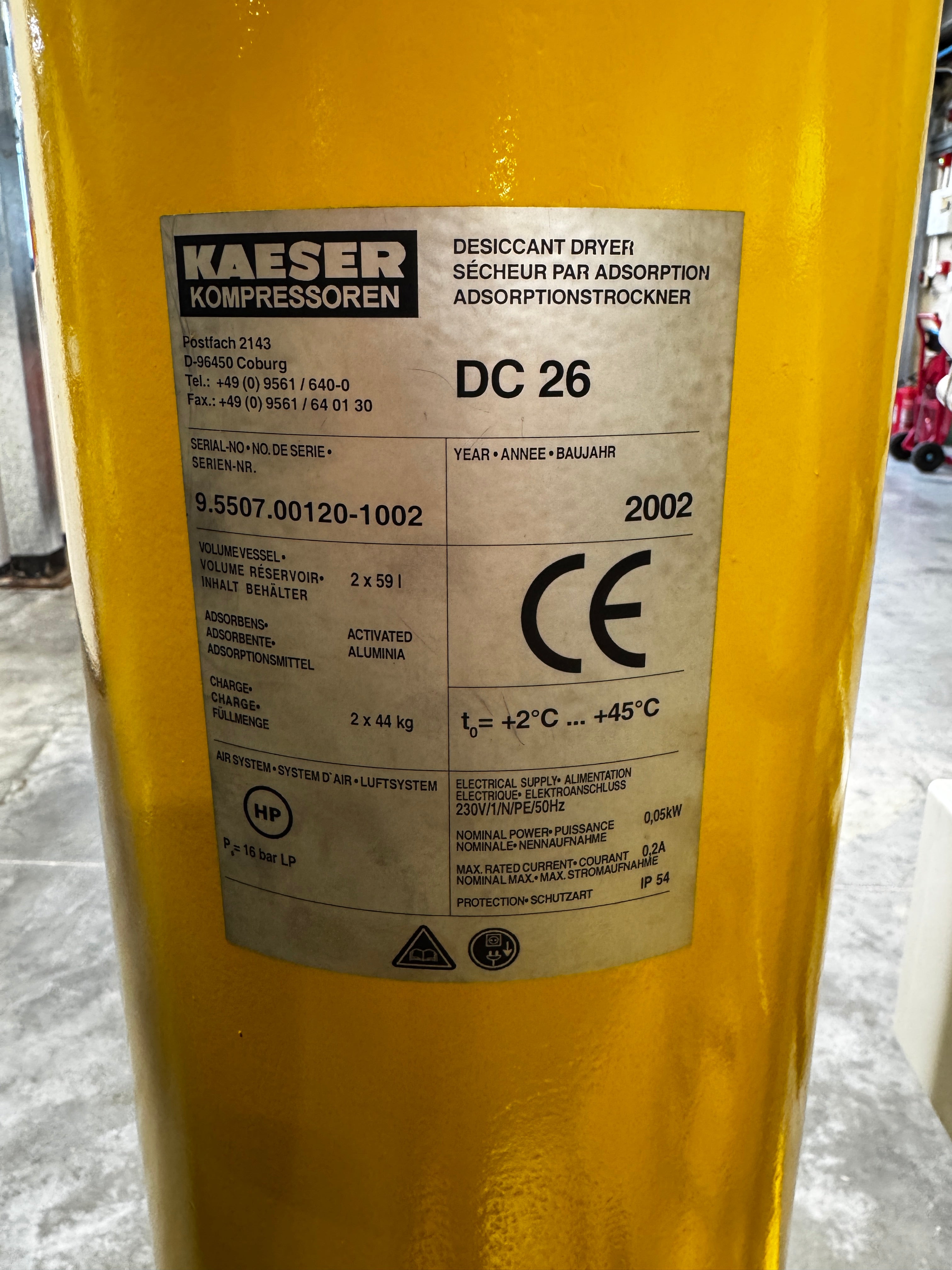

HPC DC 26 Desiccant Dryer Specifications
| Item | Typical DC-series value at this size |
|---|---|
| Technology | Heatless regenerative (pressure-swing) desiccant |
| Nominal flow (7 bar, +35 °C inlet, PDP −40 °C) | sized around 2.0–2.7 m³/min |
| Working pressure | typically 5–16 bar |
| Pressure dew point | −40 °C standard; −70 °C on selected settings |
| Pressure drop | ≤ 0.2 bar at rated flow (with filters) |
| Desiccant | Activated alumina (water-stable) |
| Purge air | typically ~13–15% of throughput on timed cycle |

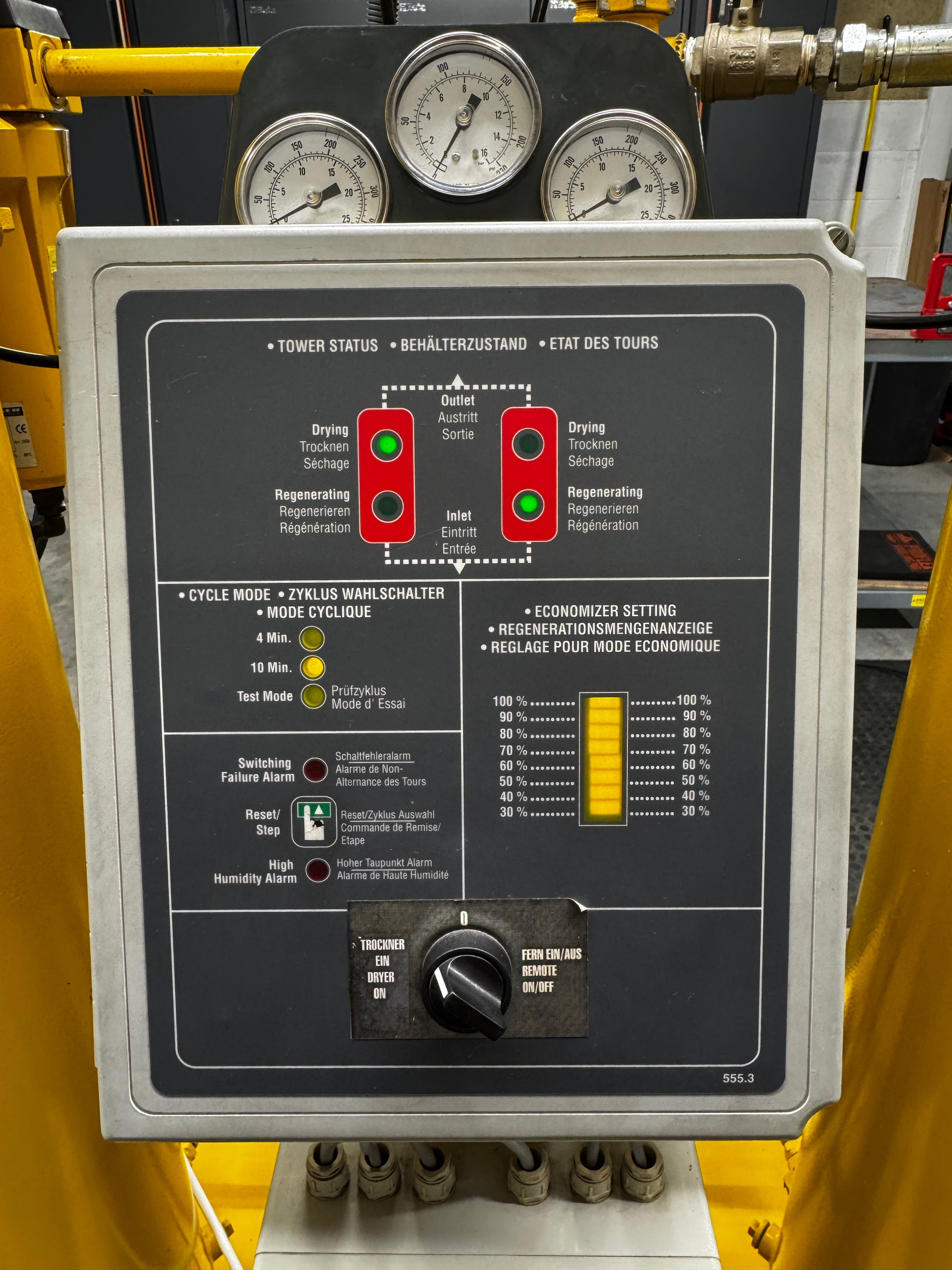

| Controller | ECO CONTROL / dew-point control on E-Pack versions |
| Electrics | 230 V 1-ph 50 Hz control |
| Pre / after filters | coalescing prefilter and particulate afterfilter |

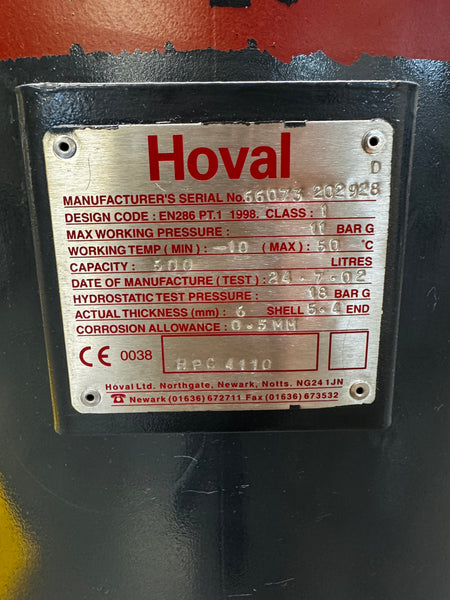

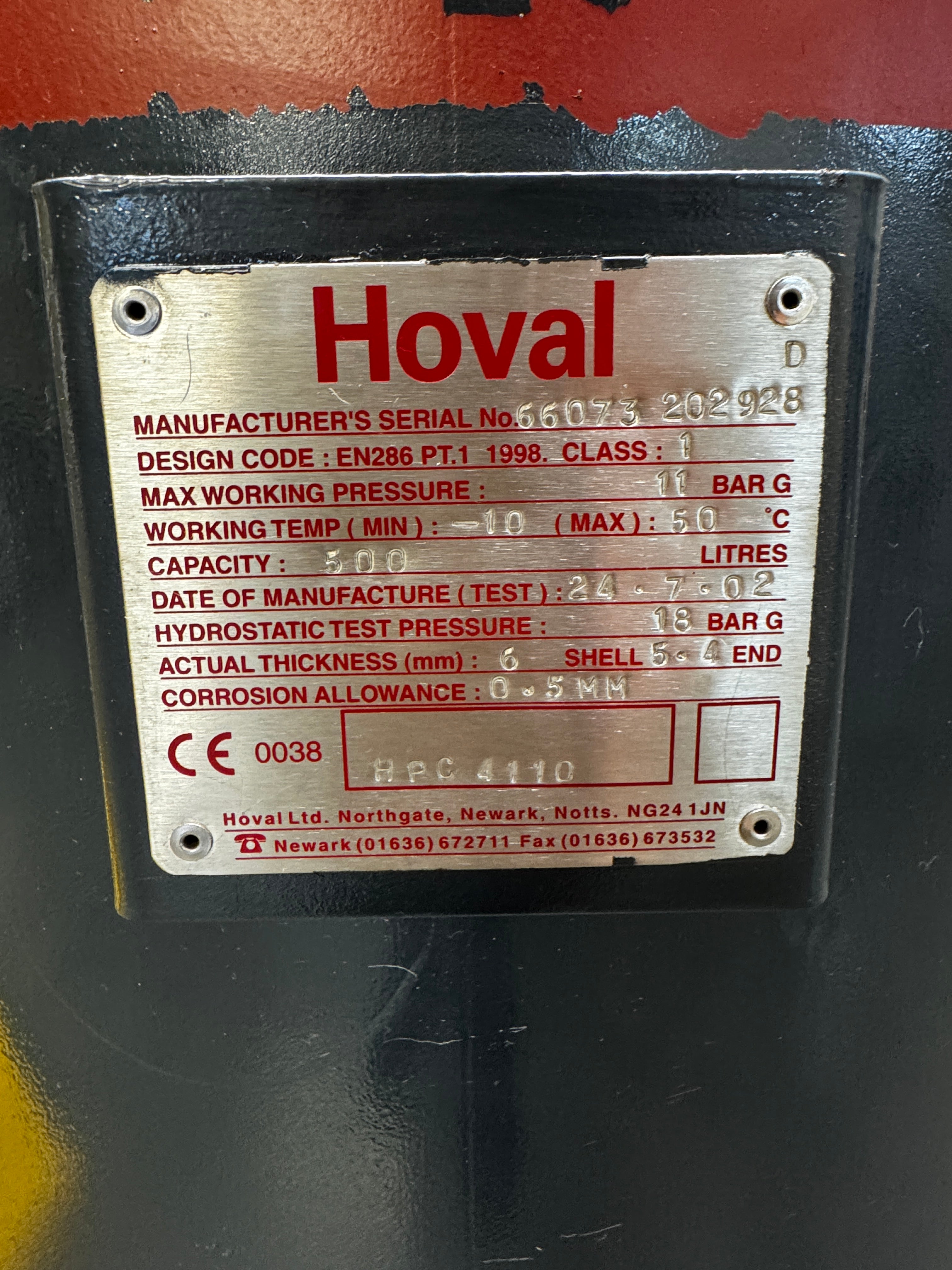

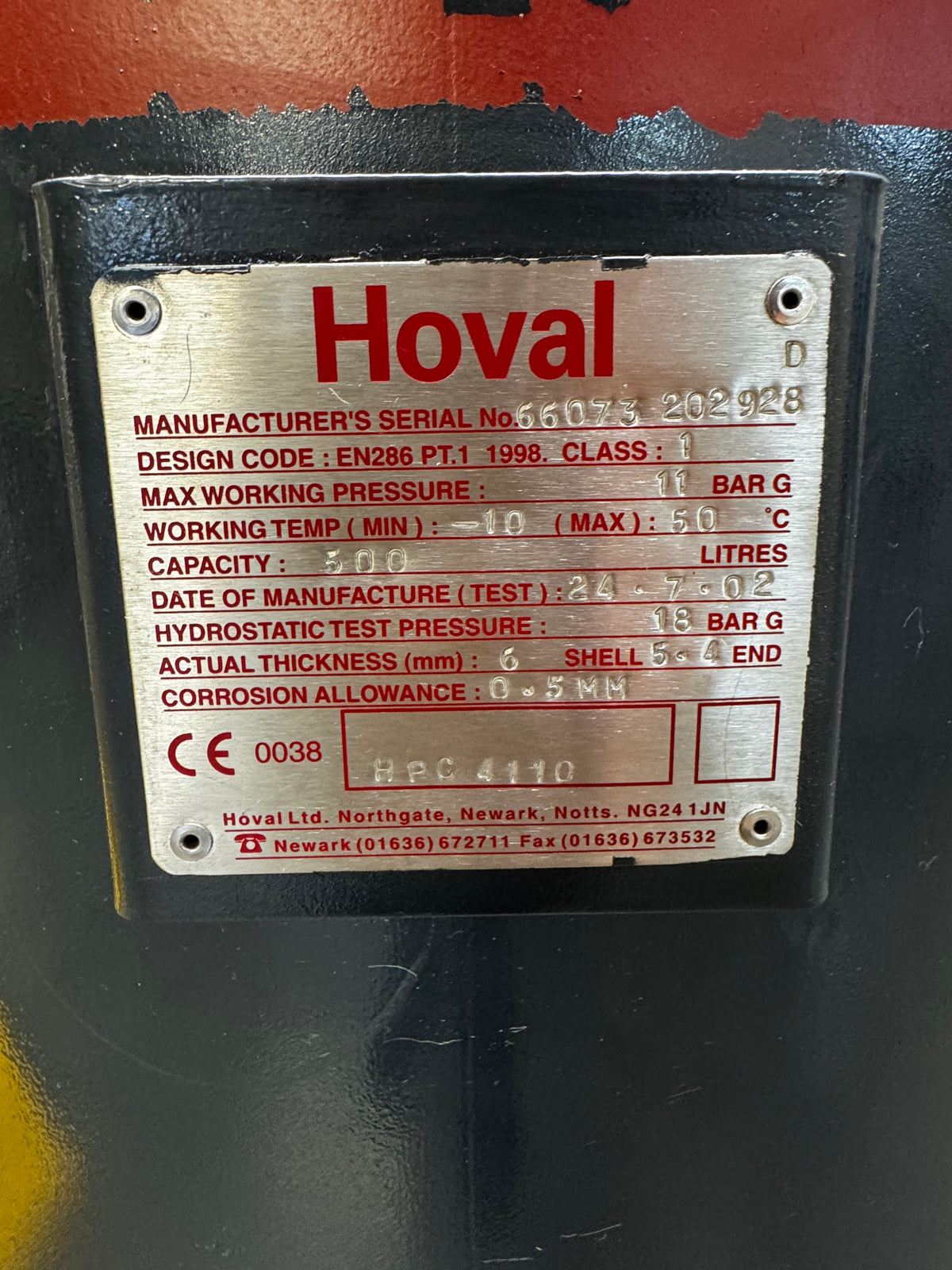

Hoval 500L Receiver Specifications
| Item | Typical 500 L air receiver |
|---|---|
| Capacity | 500 litres |
| Orientation | Vertical floor-standing |
| Working pressure | 11 bar class common |
| Design / test | PED 2014/68/EU (or 2014/29/EU simple pressure vessels) |
| Connections | typically 2" main ports + gauge / SV / drain tappings |
| Diameter × height (vertical, typical) | approx. 600 mm × 2,050–2,110 mm |
| Empty weight | approx. 119–140 kg |
| Finish | painted |

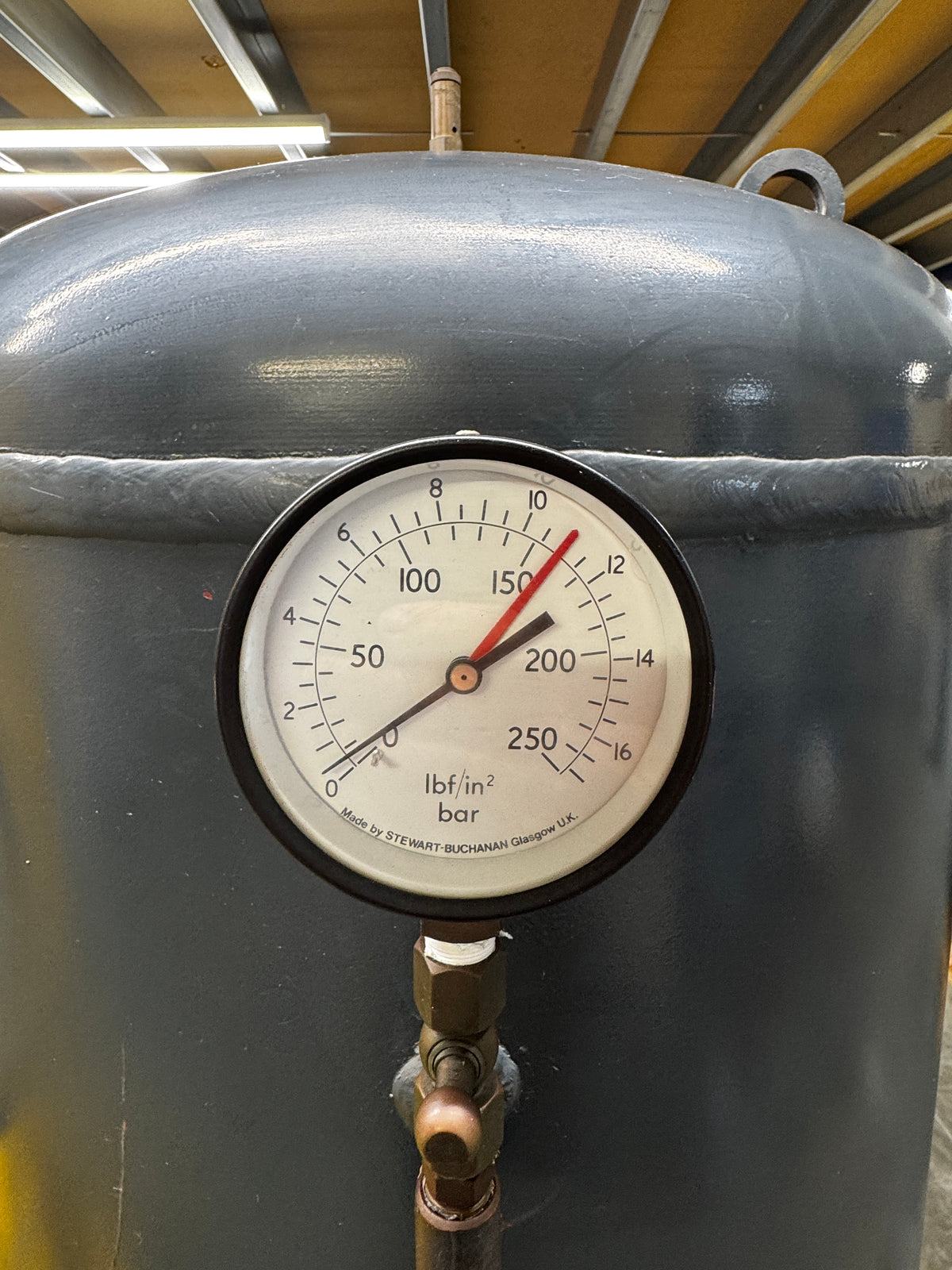

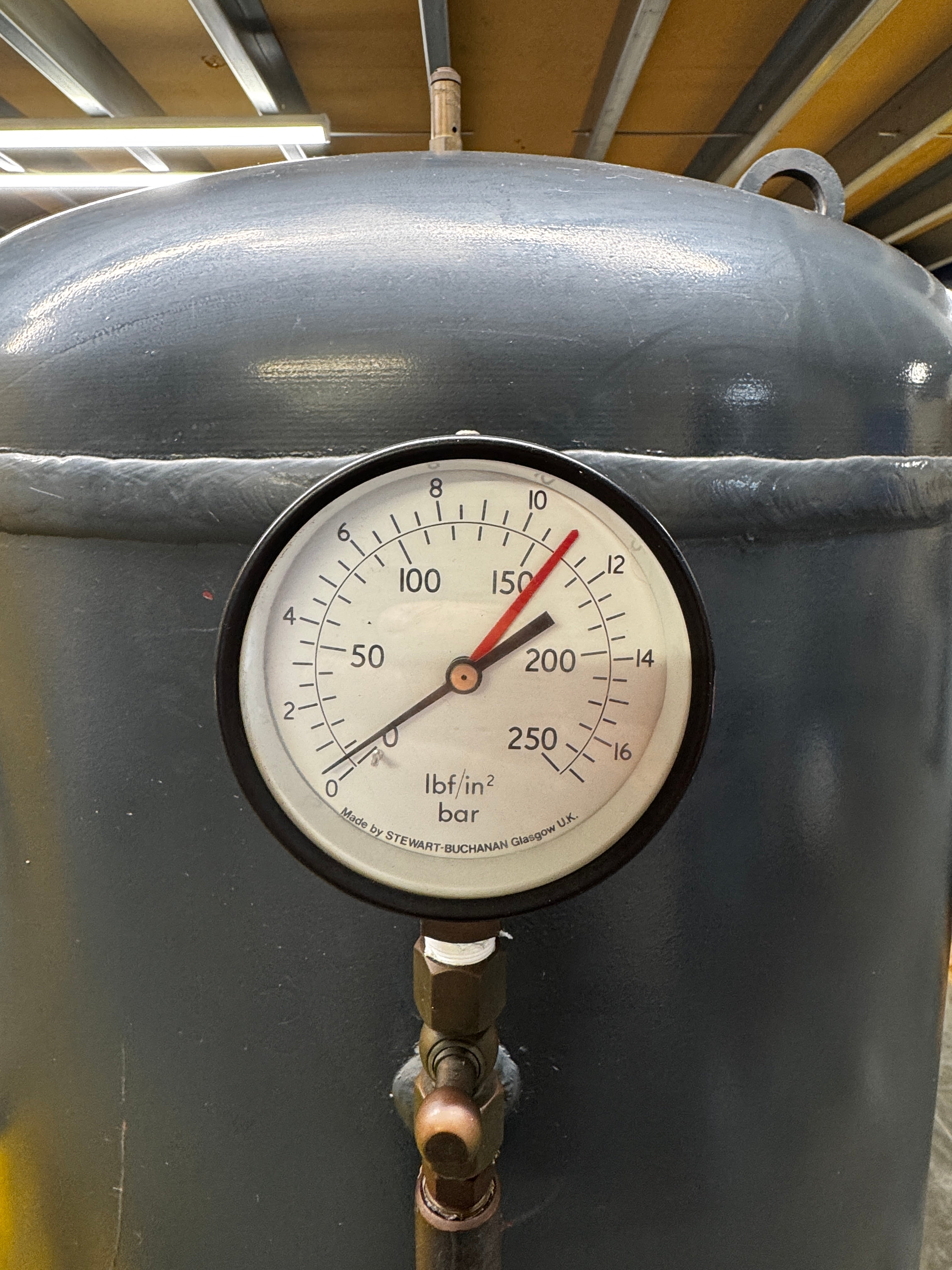

| Fittings | safety valve, pressure gauge, manual or auto drain |
