Reconditioned Boge C20F 10 Bar 15kW Variable Speed Screw Air Compressor | 3 Month Warranty
Couldn't load pickup availability
Accepted Payments
Ask The Experts!

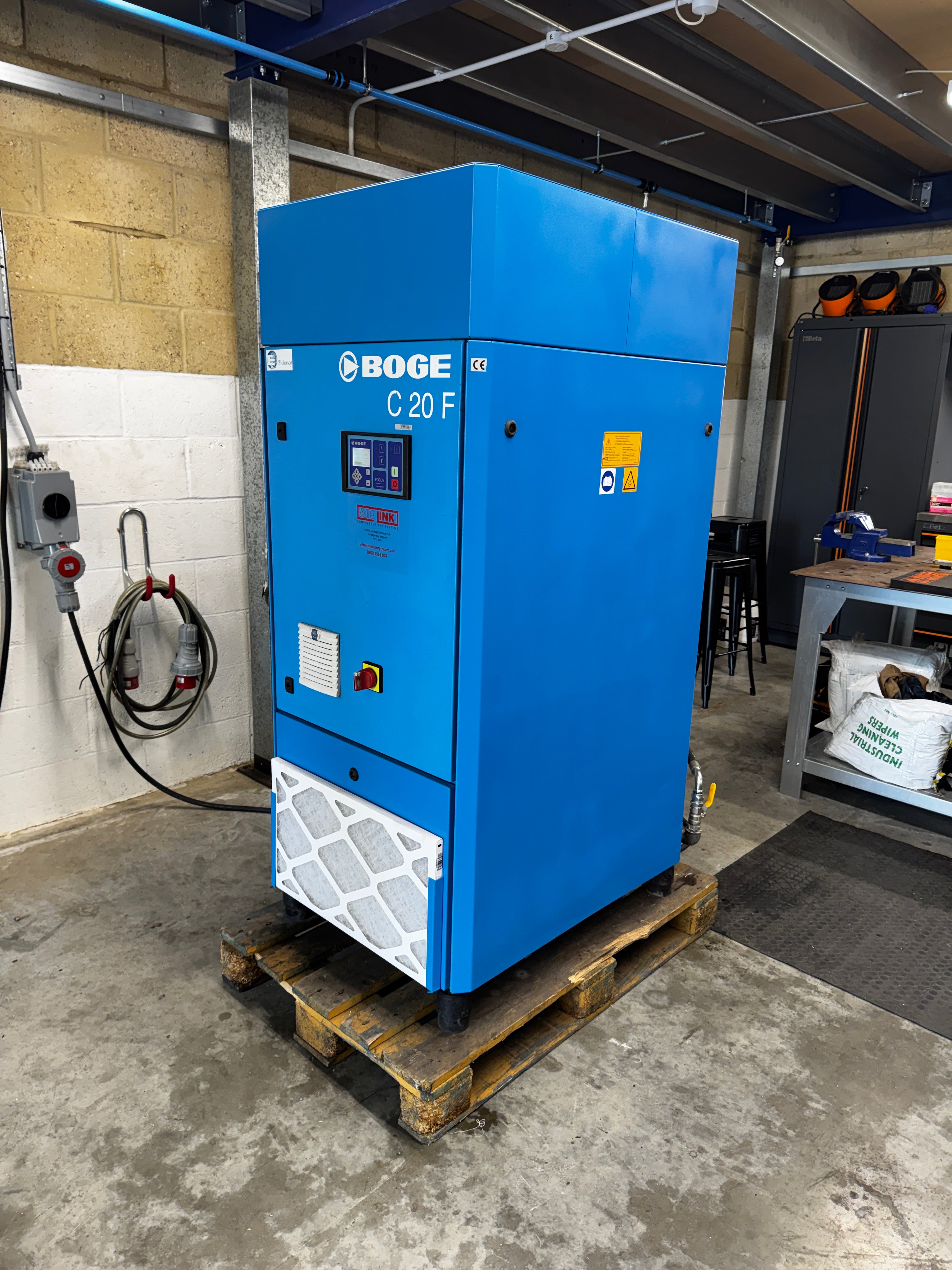

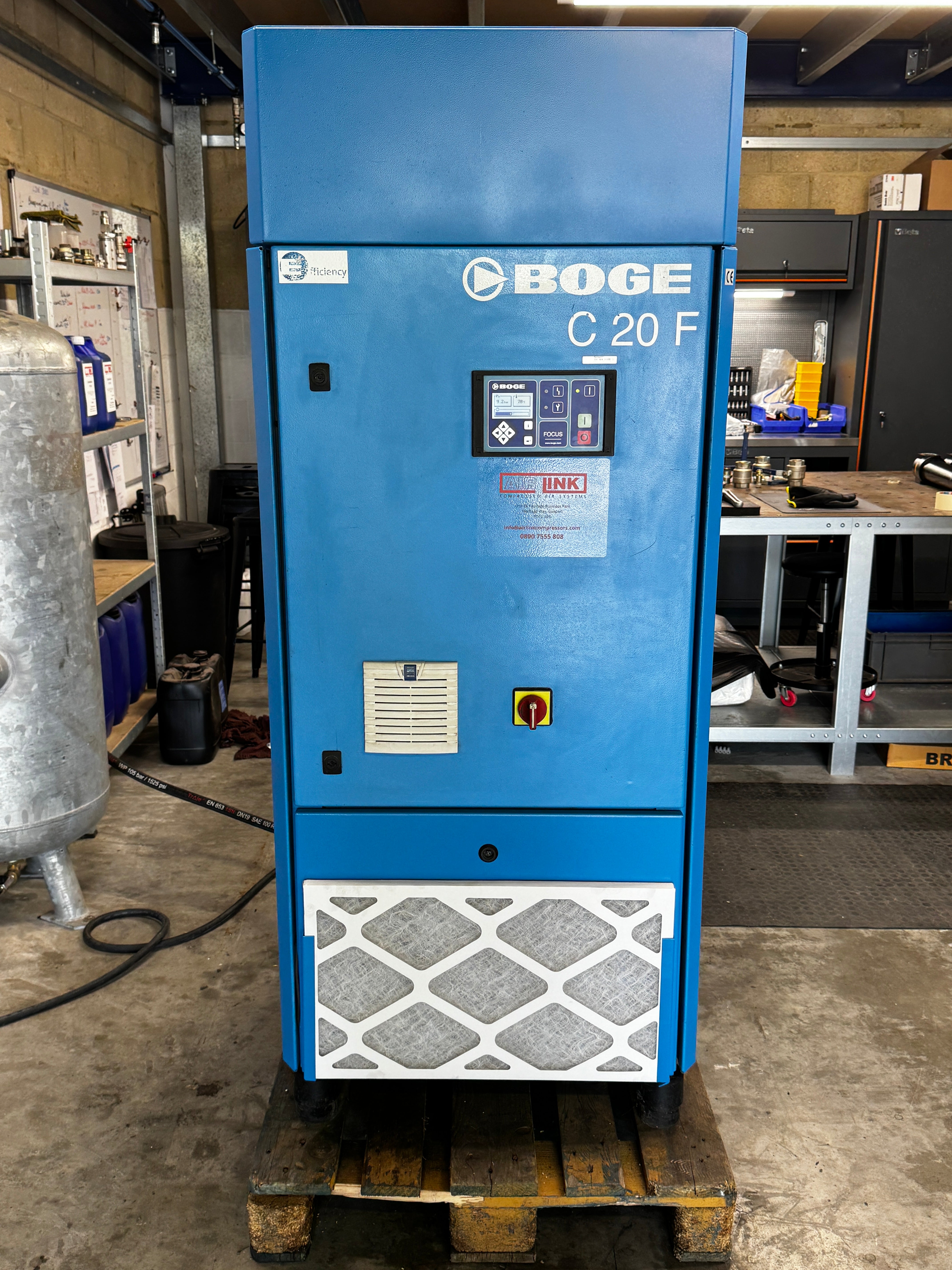

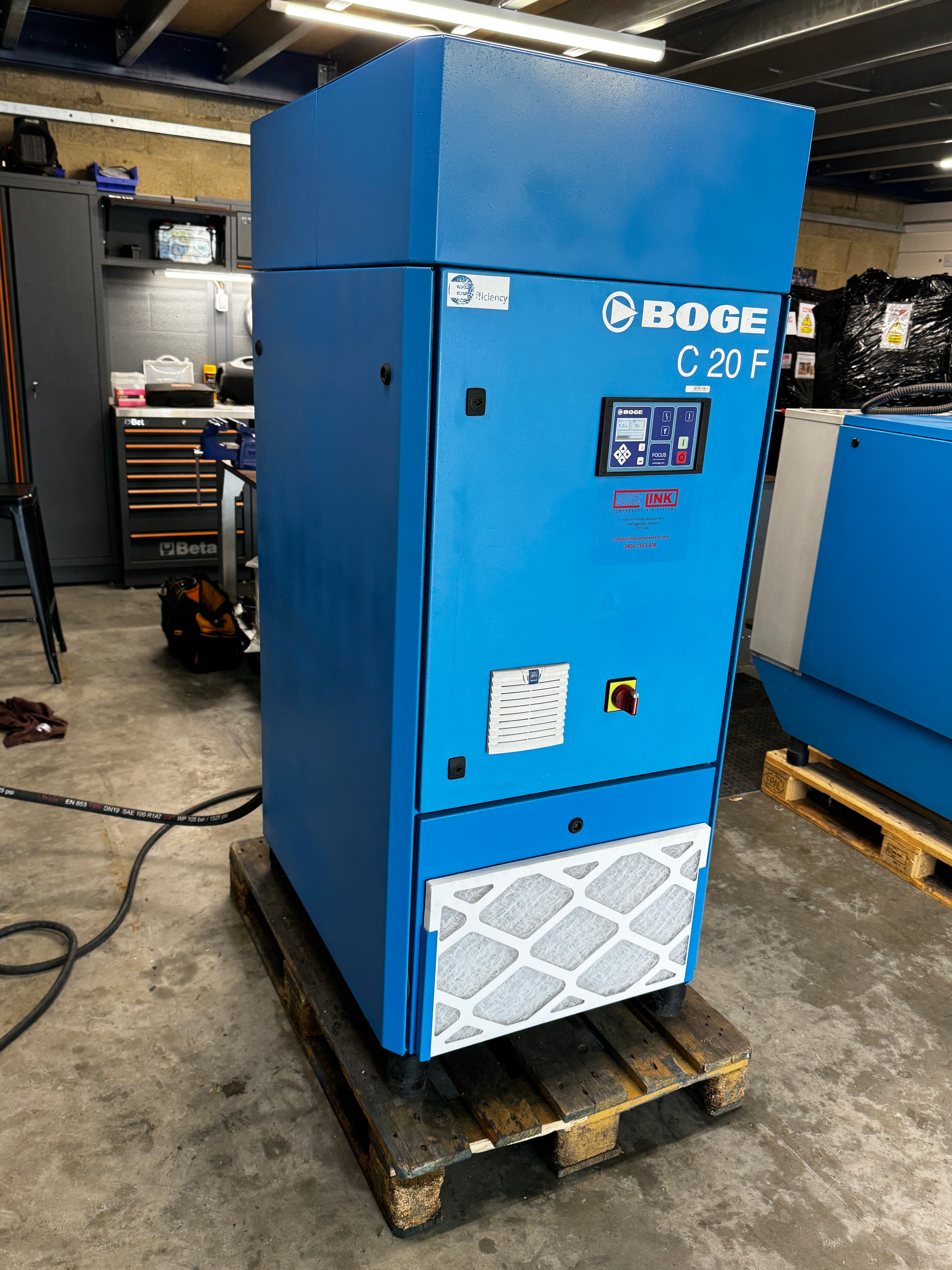

Professionally reconditioned Boge C20F 10 bar variable speed rotary screw air compressor, for sale from Airlink Compressors with a 3 month warranty.
The C20F is the frequency-controlled 15 kW model in the Boge C-series. The inverter matches motor speed to air demand, so power use drops when the workshop is quiet, off-load running is cut and line pressure stays steadier than on a fixed-speed machine. Soft starts also reduce belt and airend shock. This unit is the 10 bar version and has been professionally reconditioned and tested in-house by trained Airlink engineers.
It suits garages, fabrication shops, packaging lines and small manufacturing plants with uneven demand, where a fixed-speed 15 kW compressor would spend too long unloaded.
3 month warranty Sold with a 3 month warranty from Airlink Compressors, covering the machine as reconditioned and tested in our workshop. Warranty terms are confirmed on the order. Keep to the stated service intervals and oil grade so the cover stays valid.
How to buy
- UK mainland delivery, or collection
- Installation and commissioning available — technical@airlinkcompressors.com
- Call 0800 7555 808 or email info@airlinkcompressors.com
In-house reconditioning and test Prepared in the Airlink workshop before sale. Work typically includes:

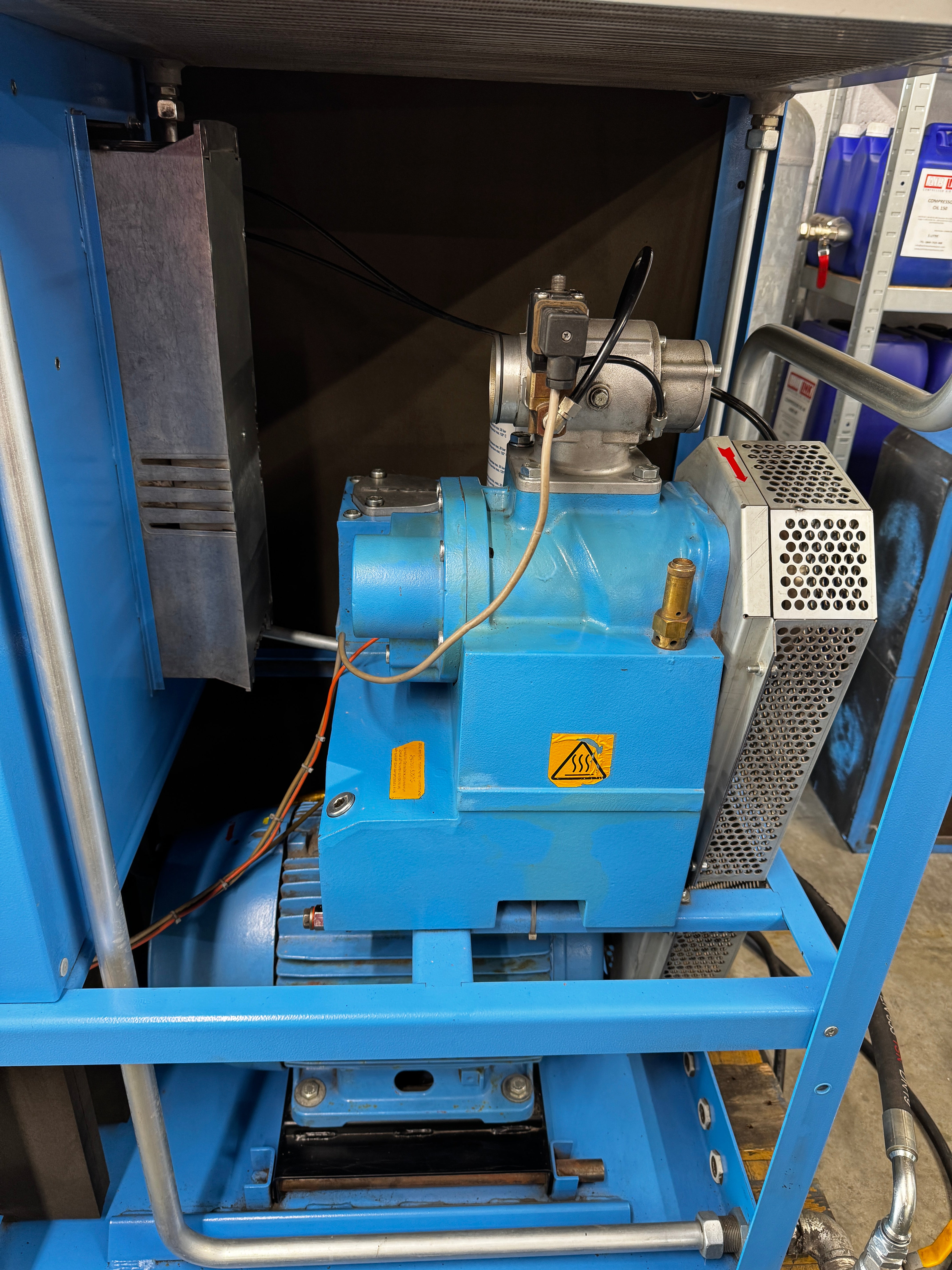

- Inspection of the airend, belt drive, motor, frequency inverter and safety devices
- Service of the intake filter, oil filter and separator, with fresh compressor fluid
- Check of the Focus controller, cooling circuit and condensate drain
- Clean-down of the canopy, cooler and intake path

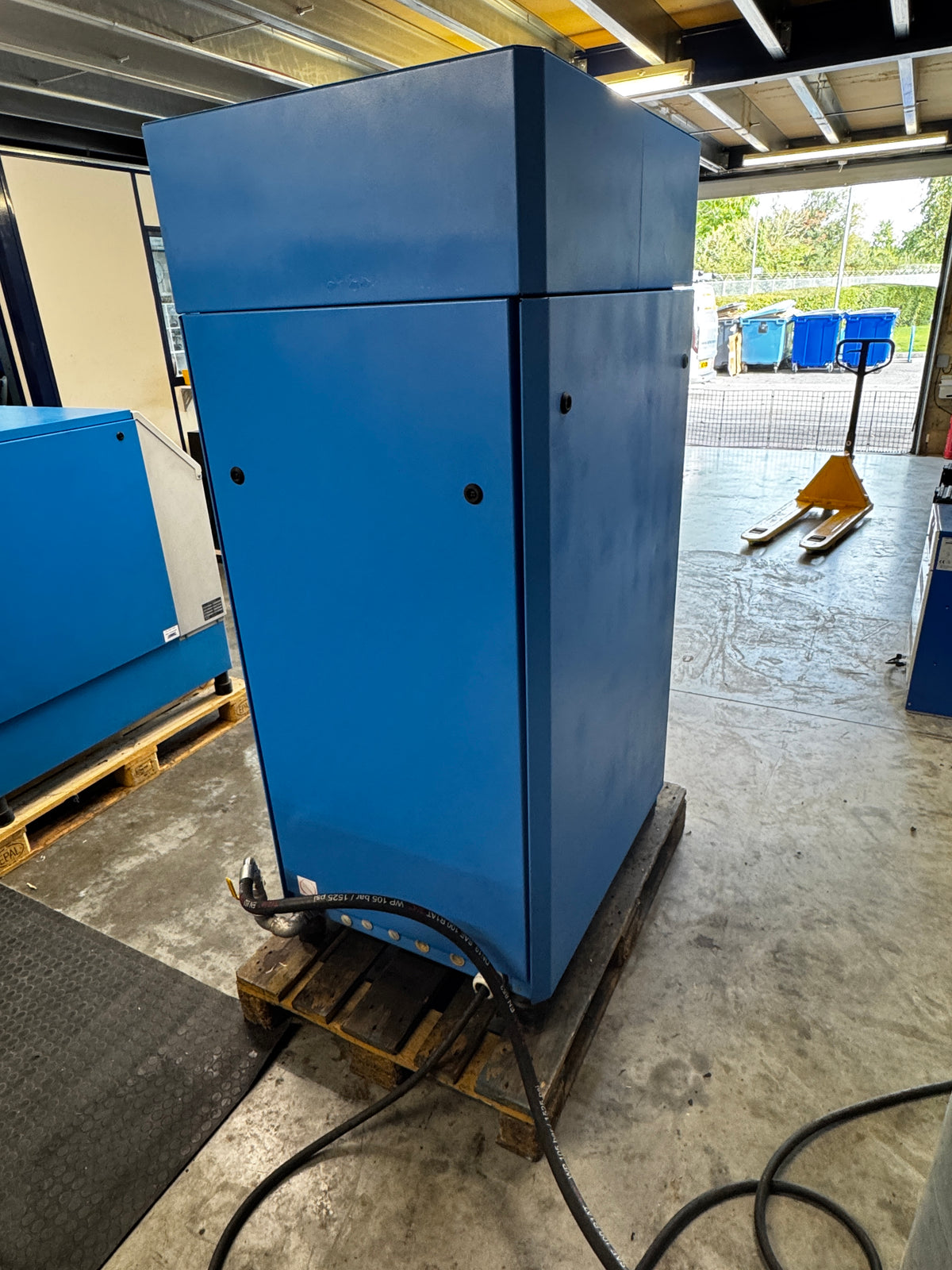

- Run and load test through the speed range to 10 bar, with leak, temperature and pressure checks
Loaded hours, year of manufacture and the test sheet are confirmed with the machine. Ask for the latest figures before you order.
Why the C20F

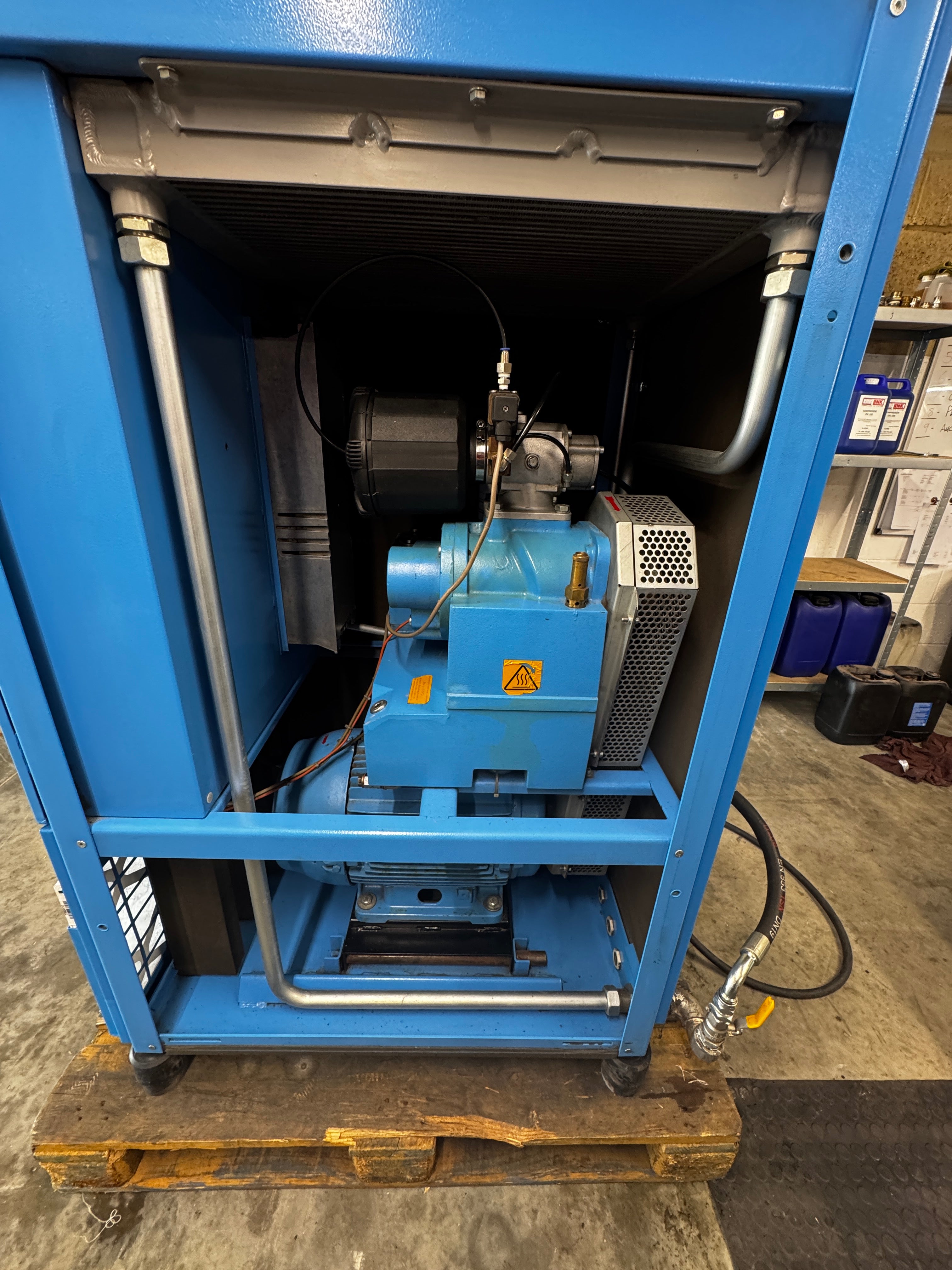

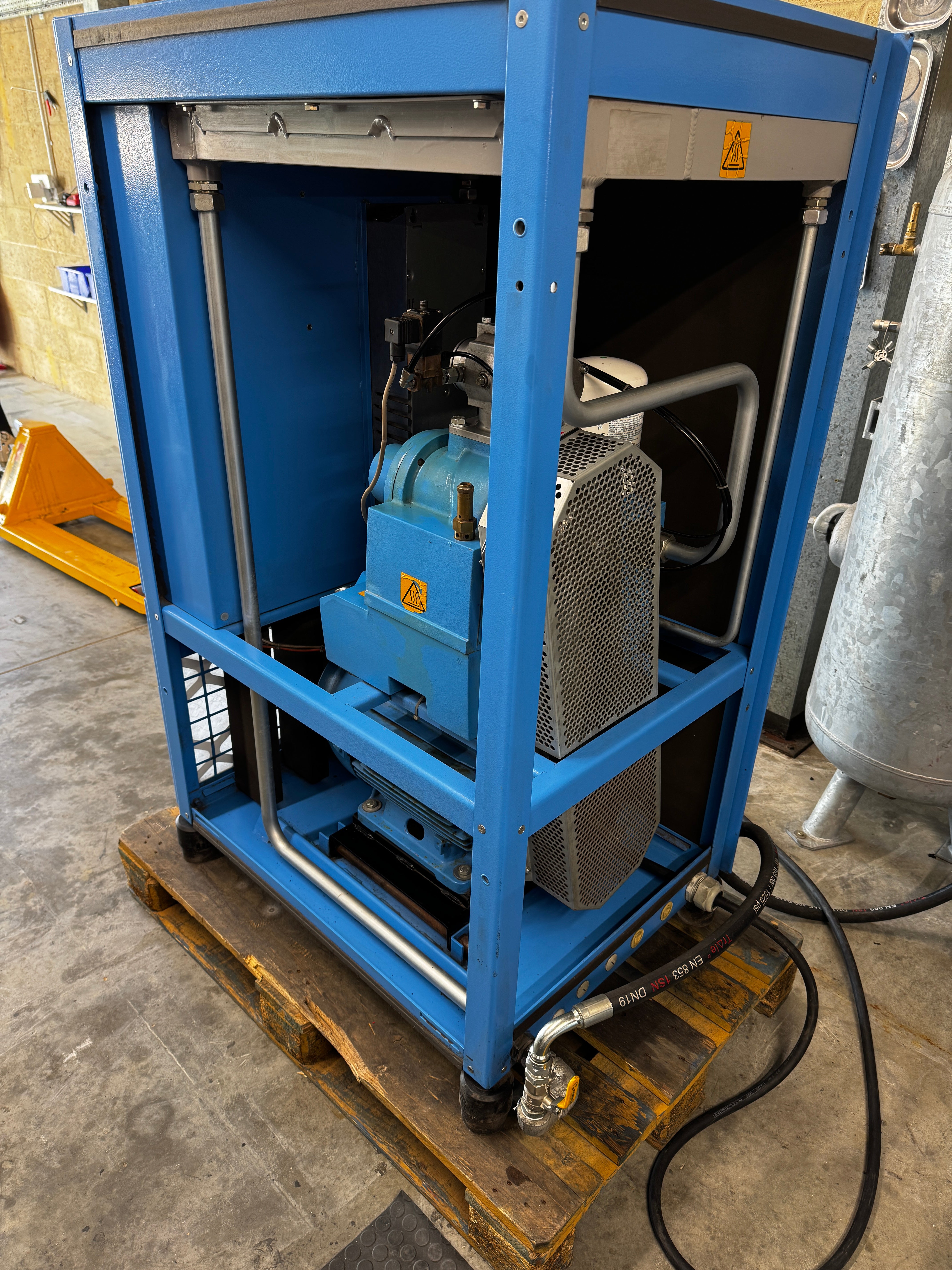

- Genuine Boge oil-injected rotary screw airend, belt drive
- 15 kW (20 hp) motor with integrated frequency inverter
- 10 bar maximum working pressure (145 psi)
- Output from 0.45 to 2.25 m³/min (20–79 cfm) as demand changes
- Super-silenced cabinet, from about 63 dB(A) to DIN EN ISO 2151

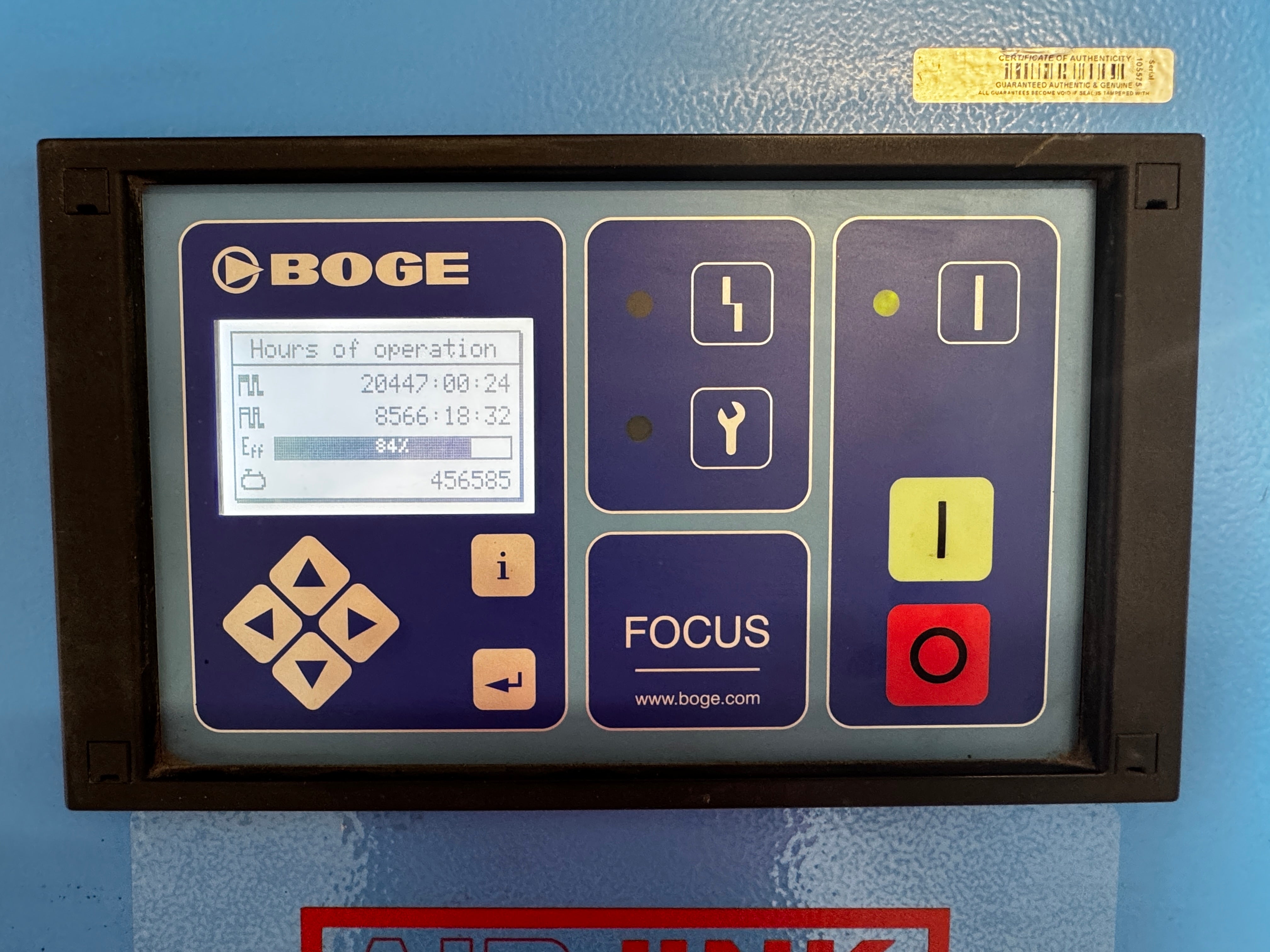

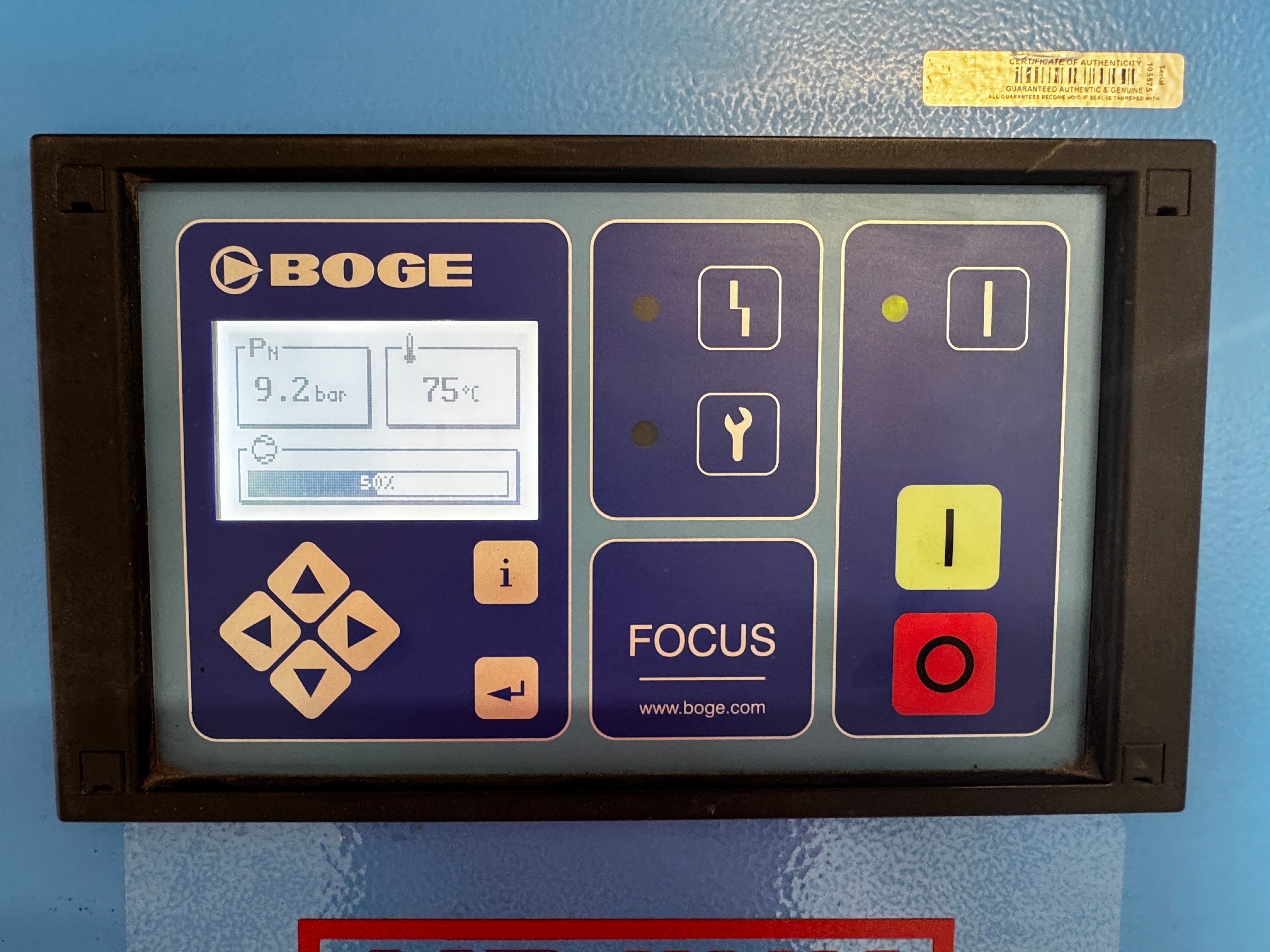

- Boge Focus control — pressure setting, fault history and service prompts
- Compact footprint, air outlet G 1
- The FD variant adds an integrated refrigerant dryer on the same footprint — confirm on the data plate if this unit is an FD
- Backed by a 3 month Airlink warranty
Performance (complete unit, ISO 1217 Appendix E, 50 Hz, 20 °C ambient)
| Specification | Value |
|---|---|
| Model | Boge C 20 F |
| Type | Oil-injected rotary screw, belt drive, frequency controlled |
| Working pressure | 10 bar (145 psi) |
| Free air delivery | 0.45–2.25 m³/min · 27–135 m³/h · 20–79 cfm |
| Motor | 15 kW / 20 hp |
| Supply | 400 V, 3-phase, 50 Hz |
| Noise | From 63 dB(A) |
| Dimensions (W × D × H) | 772 × 1,056 × 1,735 mm |
| Weight | Approx. 448 kg |
| Air outlet | G 1 |
| Warranty | 3 months |
Flow is the published figure for the 10 bar C20F. Site delivery depends on intake conditions, pipework, leaks and the set pressure. A later cabinet is listed at 722 × 1,080 × 1,740 mm and about 519 kg — use the plate on this machine. The 8 bar C20F is rated up to 2.55 m³/min (90 cfm); this listing is the 10 bar machine.
Typical uses
- Workshops and garages with uneven air demand
- Fabrication, assembly and packaging
- Spray and blow-off work once filtration is matched to the process
- Replacement for a fixed-speed machine that spends too long off-load
What to plan for on site
- Level floor able to take about 450–520 kg, with clearance for cooling air
- 400 V three-phase supply sized for a 15 kW inverter drive — confirm cable and protection with your electrician
- Condensate piped to an oil-water separator, not straight to drain
- A receiver is not built into the base C20F. We can supply a receiver and downstream filters. Breathing air and direct food contact need a separate specification
Delivery and support Airlink Compressors supplies this machine for sale across the UK, with workshop back-up from Gosport, Silverstone, Yorkshire and Cheshire, and a 3 month warranty. C20F service parts are available.
Call 0800 7555 808, email info@airlinkcompressors.com, or use the enquiry form to buy.
