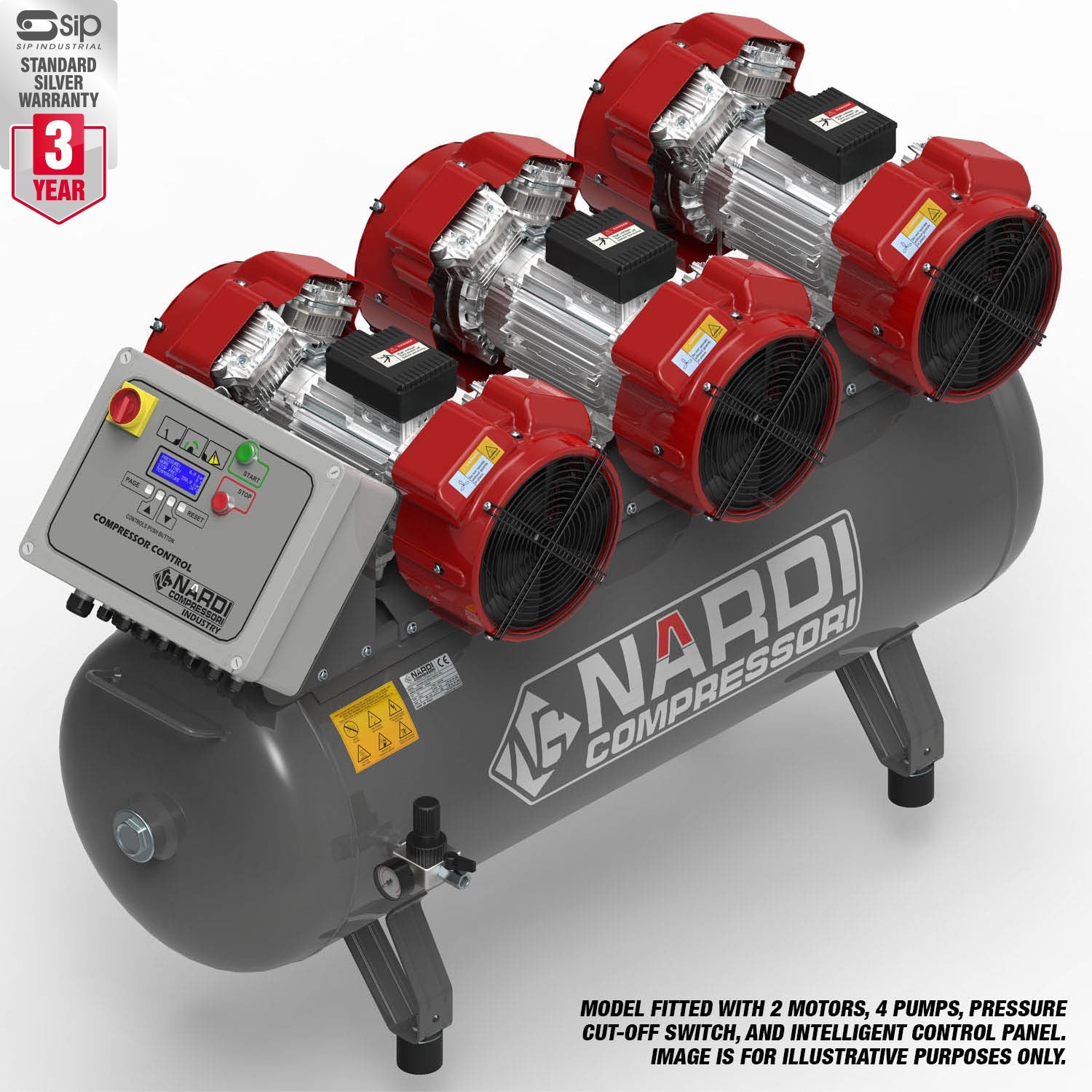

The NARDI EXTREME MP 6HP 270ltr 21BAR Compressor with Panel offers heavy-duty performance perfect for high volume and low pressure applications, delivering powerful air via 3-phase slow-running motors and high-quality oil-free pump.
The integrated control panel provides bespoke multi-pump support, delivering even power distribution on up to 3 motor/pump configurations, operating them continually dependant on air requirements and optimising usage.
Elsewhere, the panel features a service internal indicator for maintaining optimum performance and reliability and individual meters and timers to measure pump hours via a microprocessor-controller pump selection.
Ideal for a variety of industrial-grade applications.
- 305psi (21bar) max. air pressure
- Twin 3-phase slow-running 4-pole motors for high performance
- Intelligent control panel; motor control and system monitoring
- V-Twin cylinder; direct drive crankshaft via motor shaft
- High-quality pump designed with robust technopolymer piston rings providing oil-free operation for long life and low maintenance performance
- Concentric big end bearings for reduced vibration and increased pump life
- Unique crankcase air intake particle diffusion reduces air contamination, ensuring longer life of the valve plate
- Fan-shaped stainless steel valves provide long life and durability
- Forced air cooling for an extended runtime and performance
- Low noise; perfect for noise critical situations
- Built with an adjustable air pressure regulator
- SIP 3-Year Standard Silver Warranty
- Manufactured in Italy
Technical Specification
- ITEM NO. EXTMP2706021CP
- Input Supply: 400v 3-PHASE
- Motor Power: 2x 2.20kW (3.00hp)
- 4-POLE 1400rpm
- Receiver Size: 270ltr
- Piston Displacement: 18.40CFM (520ltr/min)
- Free Air Delivery (FAD): 12.88CFM (368ltr/min)
- Max. Air Pressure: 305psi (21bar)
- No. of Cylinders: 8 cylinders
- Noise Level: 74dB(A)
