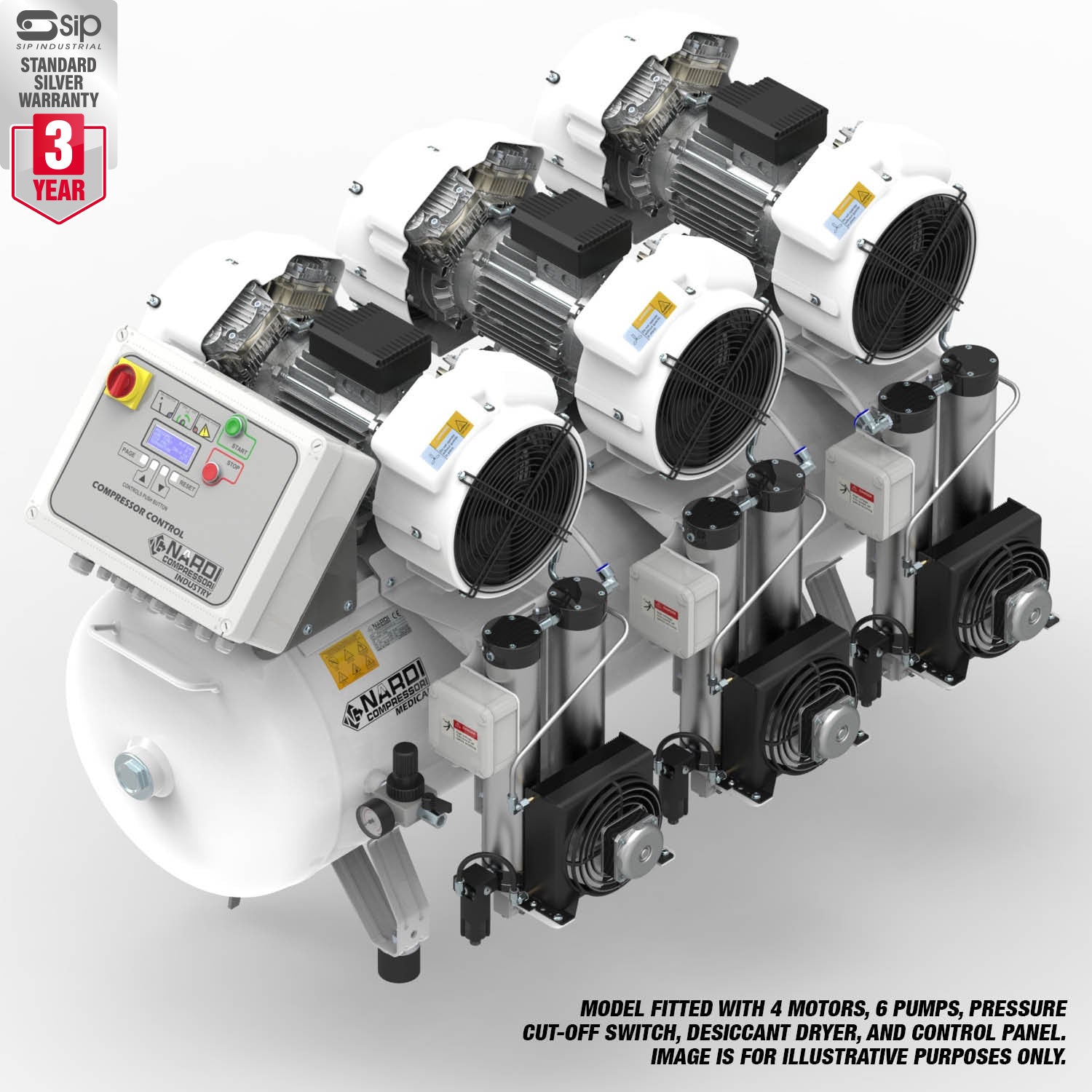

NARDI EXTREME 9.00HP MPD CP 270ltr Dental Compressor

CALL FREE ON 0800 7555 808

NARDI EXTREME 9.00HP MPD CP 270ltr Dental Compressor

NARDI EXTREME 9.00HP MPD CP 270ltr Dental Compressor

Regular price

The NARDI EXTREME MPD 9.00HP 270ltr Direct Drive Dental Compressor with Panel offers heavy-duty performance perfect for demanding applications, delivering powerful piston displacement via a slow-running motor and high-quality oil-free pump.

The integrated control panel provides bespoke multi-pump support, delivering even power distribution on up to 3 motor/pump configurations, operating them continually dependant on air requirements and optimising usage.

Elsewhere, the panel features a service interval indicator for maintaining optimum performance and reliability and individual meters and timers to measure pump hours via a microprocessor-controlled pump selection.

Ideal for a variety of industrial-grade applications.

  • Fitted with a desiccant dryer for low humidity air
  • Slow-running 4-pole motor for high performance
  • V-Twin cylinder; direct drive crankshaft via motor shaft
  • Intelligent control panel; motor control and system monitoring
  • Heavy-duty receiver painted internally with a corrosion-inhibiting epoxy electrostatic powder for longer life and reduced wear and tear
  • High-quality pump designed with robust technopolymer piston rings providing oil-free operation for long life and low maintenance performance
  • Concentric big end bearings for reduced vibration and increased pump life
  • Unique crankcase air intake particle diffusion reduces air contamination, ensuring longer life of the valve plate
  • Fan-shaped stainless steel valves provide long life and durability
  • Fan air duct cooling for an extended runtime and performance
  • Low noise compared to other similar industrial compressors
  • Built with an adjustable air pressure regulator
  • SIP 3-Year Standard Silver Warranty
  • Manufactured in Italy

Technical Specification

  • Input Supply: 400v 3-PHASE
  • Motor Power: 3x 2.20kW (3.00hp) 4-POLE
  • Receiver Size: 270ltr
  • Max. Air Intake: 63.60CFM (1800ltr/min)
  • Free Air Delivery (FAD): 5bar; 39.00CFM (1120ltr/min) / 8bar; 36.00CFM (990ltr/min)
  • Max. Air Pressure: 145psi (10bar)
  • No. of Cylinders: 12 cylinders
  • Dryer Type: Desiccant
  • Noise Level: 75dB(A)
