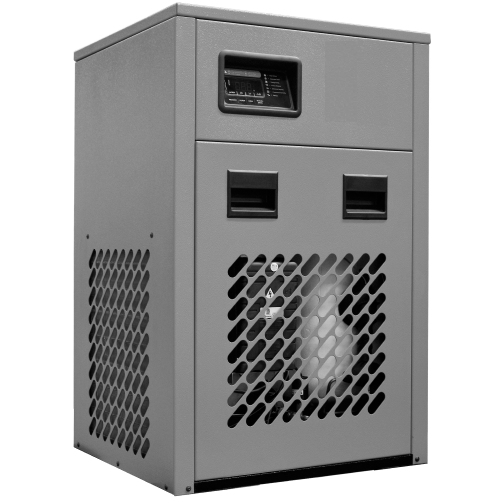

The Mikropor MKE-70 Compressed Air Dryer 41 cfm 230V is a refrigerated compressed air dryer produced by Mikropor. It is designed to remove moisture from compressed air systems with a flow rate of up to 41 cubic feet per minute (cfm) and operates on 230 volts.
Advantages
- Superior energy saving due to static condenser
- Efficient refrigerant compressor with low pressure drop
- No condenser blockage due to wide condenser design
- Standard expansion valve
- 3-in-1 heat exchanger design (air/air - air/refrigerant - water separator in one block)
- Easy to service auto-drain
- High pressure switch
- No loss of compressed air (Zero Loss)
- Less refrigerant gas used than equivalents, environmentally friendly
Some of the key features of the Mikropor MKE 70 include a digital display for easy monitoring and control, automatic condensate drain for efficient moisture removal, and a high-efficiency heat exchanger for energy savings.
Model: Mikropor MKE-70 Compressed Air Dryer 41 cfm 230V
Code: MKE-70
Weight: 35 kg
| Part Number | MKE-70 |
|---|---|
| Product Weight | 35kg |
| Warranty | 2 Year Warranty |
| Brand | MIKROPOR |
| Pre & After Filters | Internal |
| Air Displacement (CFM) | 41 CFM |
| Inlet/Outlet Size | 1/2" BSPP Female |
| Gas | R-134a |
| Voltage | 230V |
| Dimensions L x W x H (mm) | 423 x 393 x 567 |
