Mikropor MKE-23, 38 and 53 Air Dryer Service Kit - MKON-55-KIT

£180.00
£180.00

Filter Service Kit (Annual / 6000 hour) (SERIAL NUMBERS >= P100070791) for Mikropor Dryer models MKE- 23, 38 & 53 and Drytec models SDE- 25, 40 & 55.

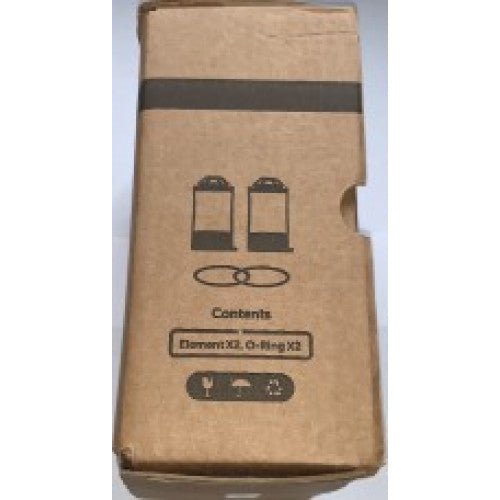

Kit Contents

2 x Filter Elements & O-Rings X Grade (1 micron) and Y Grade (0.01 Micron)

The Mikropor range of dryers have their pre & after filters built internally which is great for convenience and saving time on installation. It's recommended the internal elements are changed every 12 to 18 months to keep the efficiency of the dryer, if this is left the elements can become blocked over time with the flow rate diminishing as a result. The MKE display will usually indicate either "SEr" or "FIL"

This operation is a simple one, see steps below:

  1. Isolate MKE dryer from power supply.
  2. Safely drain down compressed air from system.

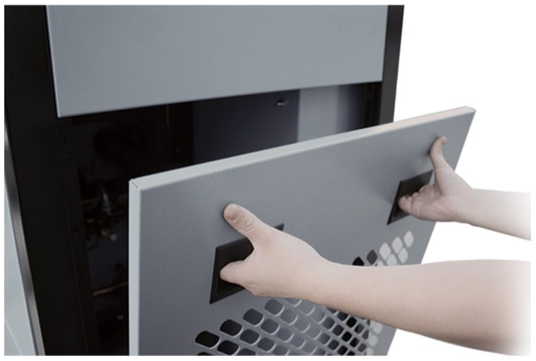

  3. Remove side cover nearest the filters.

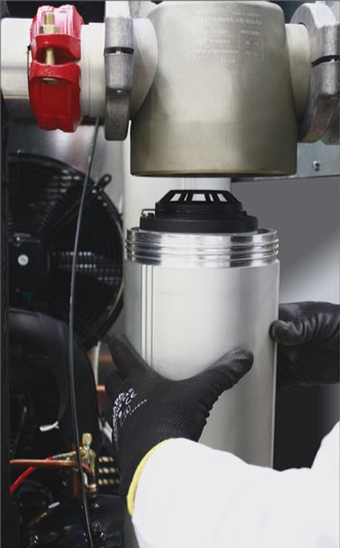

  4. Remove push fit drain tube from bottom of filter housings.
  5. Turn housing clockwise to undo.
  6. Unscrew filter elements & discard housing 'O' Ring.
  7. Fit new 'O" Ring & new element.
  8. Reassemble housings.
  9. Re-fit panels.

We have also included below the Mikrpor DIGI-PRO Controller service manual to reset the service indicators.

WARRANTY NOTICE
Failure to follow the instructions and procedures in this manual or misuse of this equipment will VOID its warranty !

Mikropor DIGI-PRO Controller Service Manual
