Code M-D-GE150-040
Model: 50/10 Genesi S

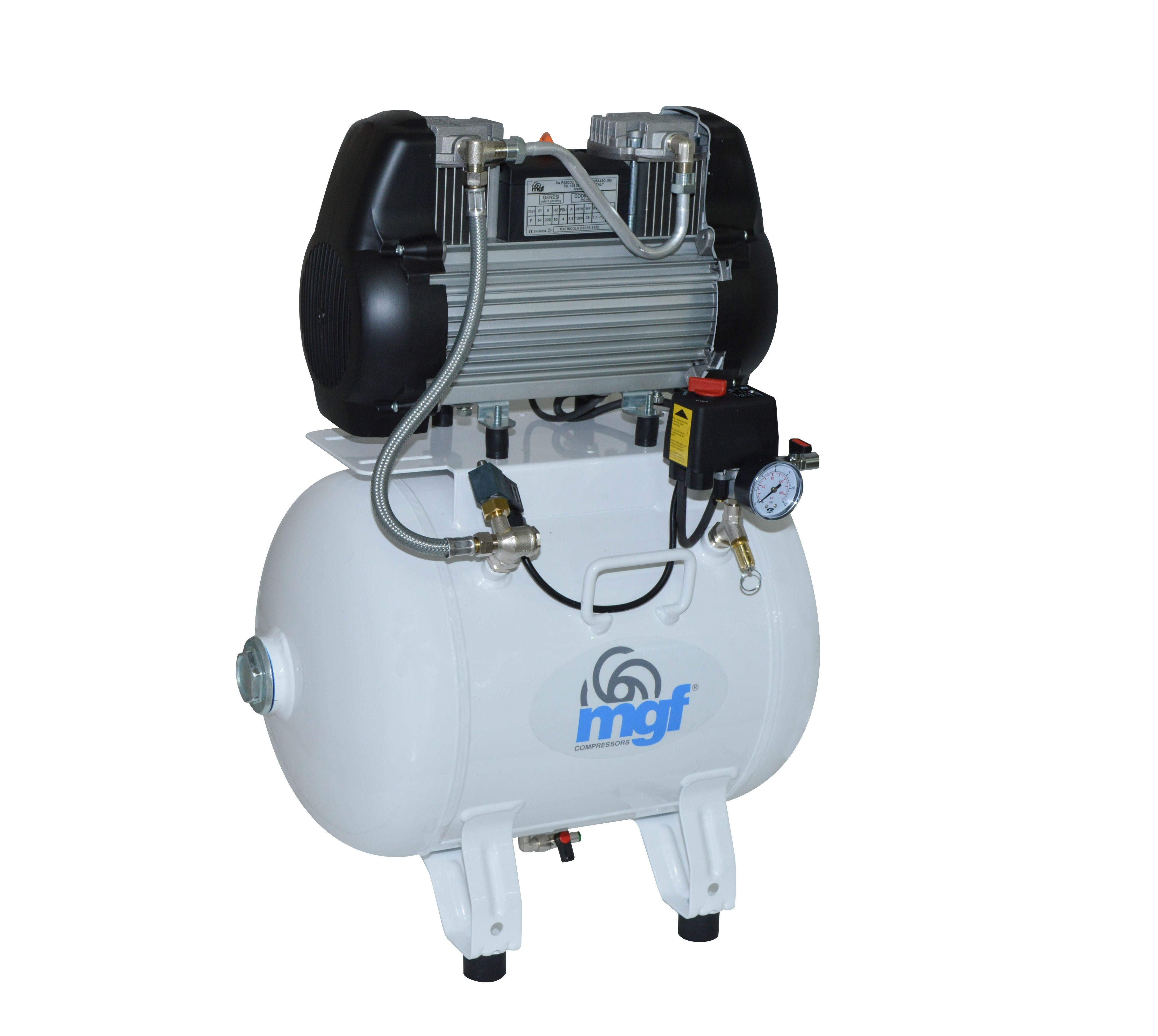

The Med M-D-GE150-040 is a completely oil-less, compact compressor designed for medical and dental applications. This compact unit has a 40 litre air tank which has been internally coated in anti-oxidant epoxy protective paint, and a piston made from approved composite material, allowing this compressor to conform to the most stringent hygiene standards.
With a working pressure of 8 bar / 116 PSI and a receiver size of 40 litres (5 CFM) this open frame compressor is designed for a single dentist's chair.
The Medic+Air Series of compressors are insulated by multiple damping layers, including under the motor, tank and base-plate, reducing the noise and vibration output. This allows for vibration-free operation and decreased stress on component parts, thereby extending the life of your compressor.
Medic+Air compressors have an extremely low space requirement at 600 x 410 x 770mm. The electric motor features thermal cut-out control with a manual reset for enhanced safety. The advanced cooling fan has thermostatic controls for optimal cooling.
The air-output of a MedicAir compressor is:
- Free of oily residues, due to the oil-less compression
- Free of condensation, thanks to the adsorption dryer with high drying power (when paired with a drying unit)
- Free of any smell, thanks to the high-thickness inner coating of the tank, made with anti-oxidant epoxy paint
Single phase 230V/1/50hz operation
This product is normally delivered next working day, but please contact us to check availability.
Part Number | M-D-GE150-040 |
---|---|
Product Weight | 38 |
Warranty | 1 Year Warranty |
Brand | Fini |
Tank Size | 40 Litres |
Air Displacement (CFM) | 5 CFM |
Sound Level @ 7m | 65 dB |
Motor Power | 1.1 kW |
Engine HP | 1.5 HP |
Power Source | Electric |
Voltage | 230V |
Discharge Pressure | 145 PSI / 8 bar |
Dimensions | 600 x 410 x 770 |
