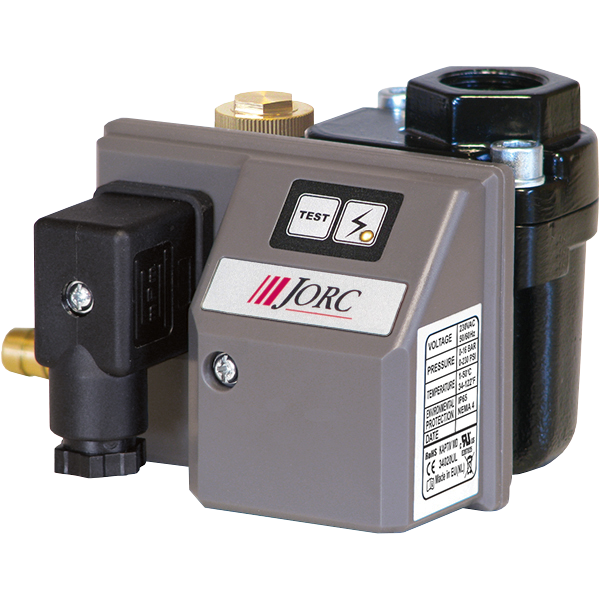

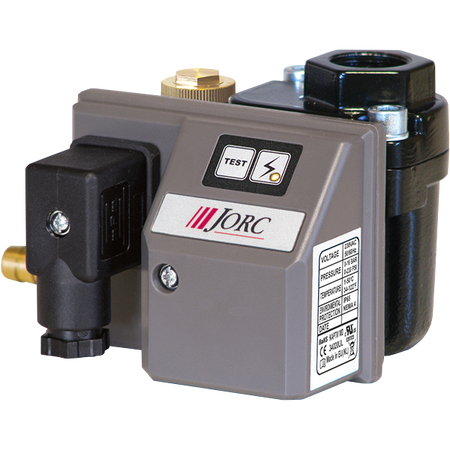

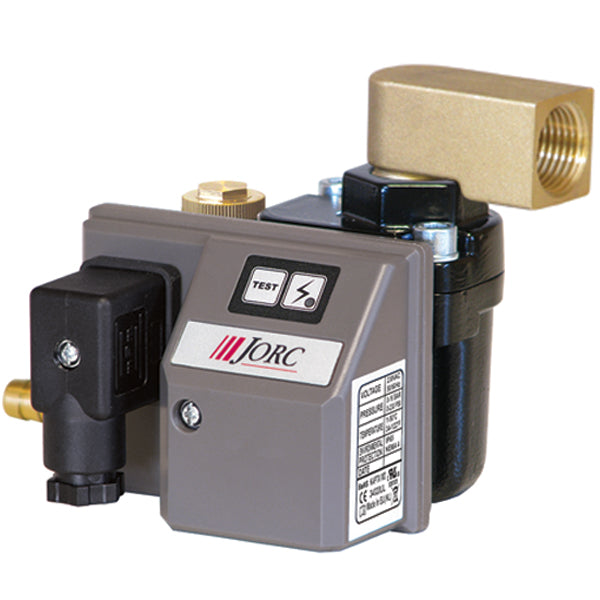

The Jorc SMART-GUARD-MINI is an intelligent condensate drain that offers zero loss of condensate due to its electronic closed-loop design.
It accurately measures and detects when condensate is present, then opens the drain valve only when necessary, saving energy and reducing maintenance costs.
Specification:
|
350 CFM |
|
12 gallon per hour at 230 psi (16 bar) 47 liters per hour at 230 psi (16 bar) |
|
0 - 230 psi (0 - 16 bar) |
|
2/2 way, direct acting |
|
2 mm |
|
FPM |
|
1/2″ NPT |
|
2.9" |
|
1/4″ with hose pipe connector |
|
34 - 122 °F |
|
34 - 122 °F |
|
230VAC / 115VAC / 24VAC / 24VDC |
|
DIN 43650-B |
|
Yes |
|
Yes |
|
NEMA4 (IP65) |
|
Yes |
|
Corrosion resistant aluminum, EP coating |
|
See manual |
