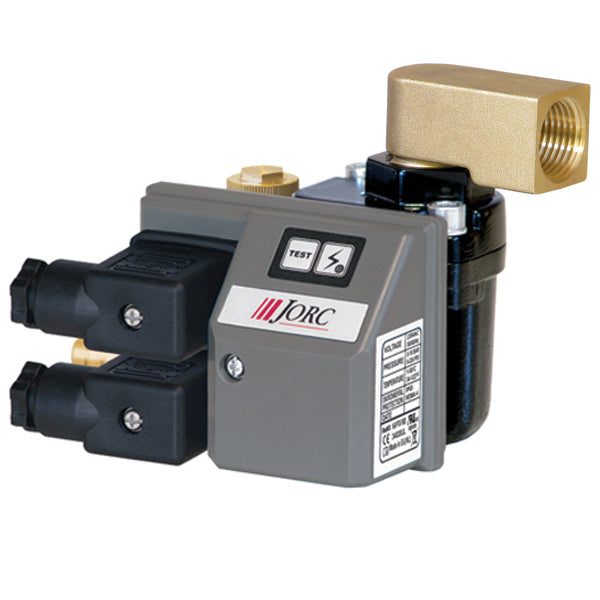

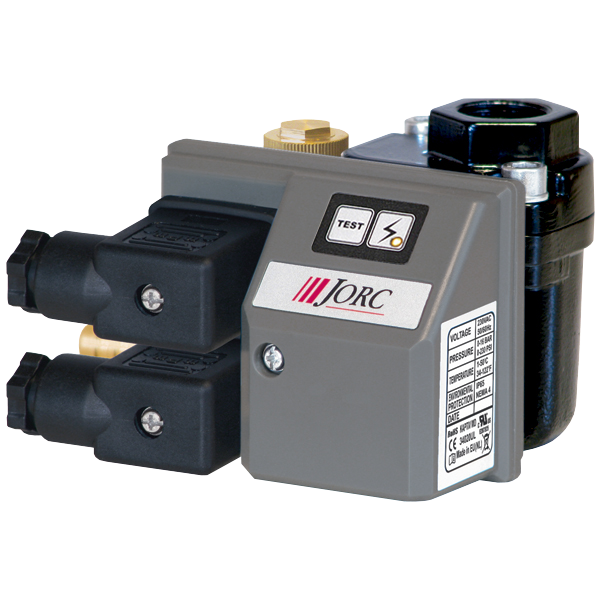

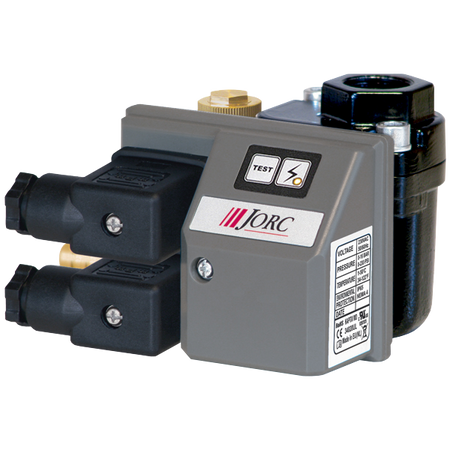

Jorc KAPTIV-MD-AL Electronic Condensate Drain & Alarm

£ Contact Sales

The Jorc KAPTIV-MD-AL is an advanced electronic condensate drain & alarm. Ideal for industrial and commercial use, the device is equipped with a reliable, low-maintenance control system and has an extremely low failure rate.

The alarm will detect any issue with the condensate system and alert you, giving you peace of mind.

Specification:

MAX. COMPRESSOR CAPACITY	10 m³/min. (350 CFM)
MAX. DRAINAGE CAPACITY A1/A2 VERSION	45 liters condensate per hour at 16 bar
MIN./MAX. SYSTEM PRESSURE	0 - 16 bar (0 - 230 psi)
MIN./MAX. MEDIUM TEMPERATURE	1 - 50 °C (34 - 122 °F)
MIN./MAX. AMBIENT TEMPERATURE	1 - 50 °C (34 - 122 °F)
SUPPLY VOLTAGE OPTIONS	230VAC / 115VAC / 24VAC / 24VDC
ENCLOSURE PROTECTION RATING	IP65 (NEMA4)

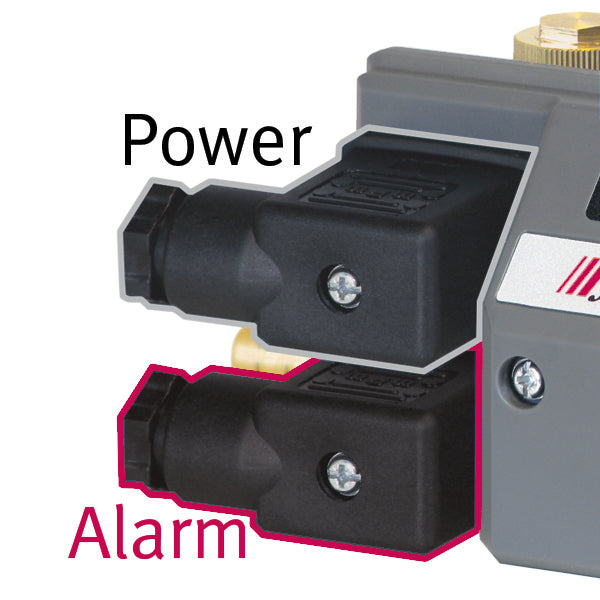

CONNECTOR TYPE (POWER AND ALARM)	DIN 43650-B
INLET CONNECTIONS	1/2″ BSP or NPT
INLET HEIGHT	74 mm
SIDE INLET ADAPTER	Yes, optional
OUTLET CONNECTION	1/4″ BSP, with brass hose barb adapter
VALVE TYPE	2/2 way, direct acting
VALVE ORIFICE	2 mm
VALVE SEALS	FPM

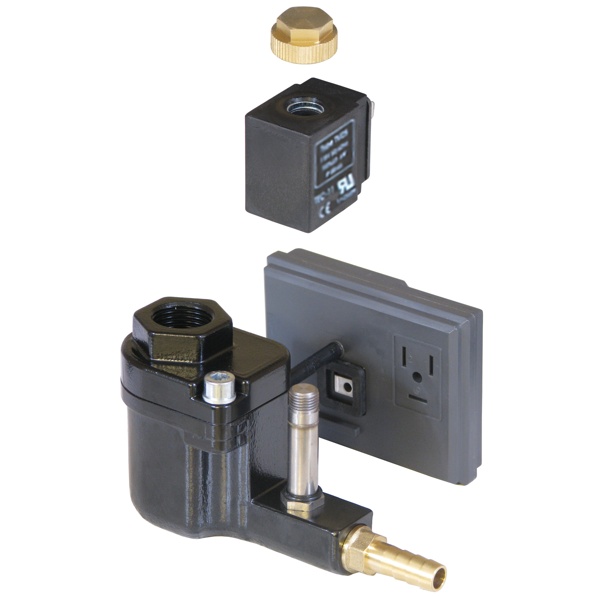

SERVICEABLE VALVE	Yes

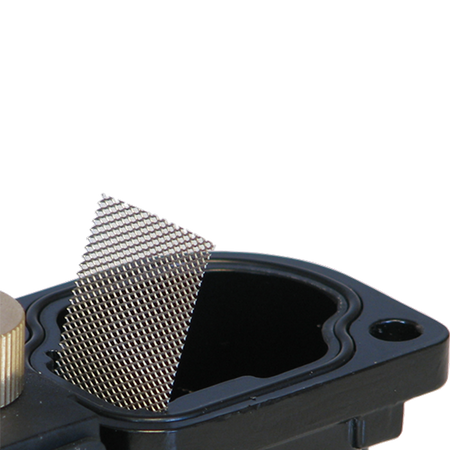

INTEGRATED MESH STRAINER	Yes
HOUSING MATERIAL	Corrosion resistant aluminium, EP coating
TEST FEATURE	Yes
VISUAL ALARM	Yes, LED indication
ALARM FEATURE A1 (N/O)	Normally Open alarm output contact (potential free relay)
ALARM FEATURE A2 (N/C)	Normally Closed alarm output contact (potential free relay)
