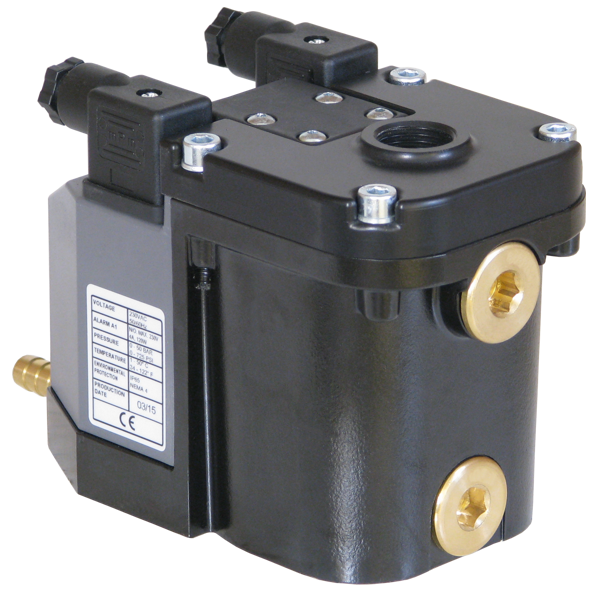

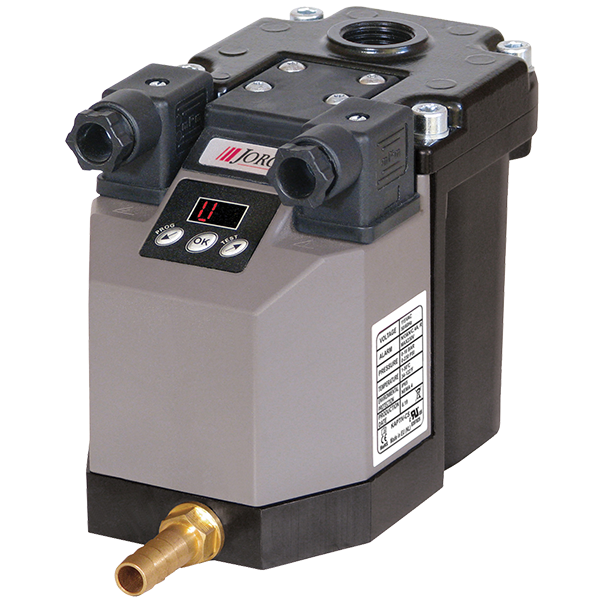

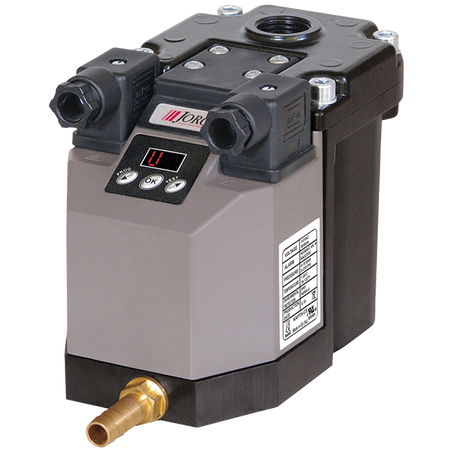

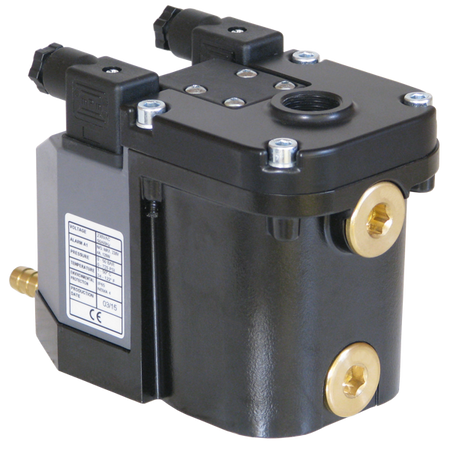

The Jorc KAPTIV-MD Electronic Zero Loss Condensate Drain offers a reliable solution for preventing wasted energy from compressed air systems.
This device automatically drains water, oil or rust particles from the condensate system with 99.5% efficiency, so you can save up to 30% on energy costs.
Specification:
|
10 m³/min. (350 CFM) |
|
45 liters condensate per hour at 16 bar |
|
0 - 16 bar (0 - 230 psi) |
|
1 - 50 °C (34 - 122 °F) |
|
1 - 50 °C (34 - 122 °F) |
|
230VAC / 115VAC / 24VAC / 24VDC |
|
IP65 (NEMA4) |
|
DIN 43650-B |
|
1/2″ BSP or NPT |
|
74 mm |
|
Yes, optional |
|
1/4″ BSP, with brass hose barb adapter |
|
2/2 way, direct acting |
|
2 mm |
|
FPM |
|
Yes |
|
Yes |
|
Corrosion resistant aluminium, EP coating |
|
Yes |
|
Yes, LED indication |
