Hertz HSC-D 132 kW Fixed-Speed Rotary Screw Air Compressor - 826 CFM
Couldn't load pickup availability
Accepted Payments
Ask The Experts!

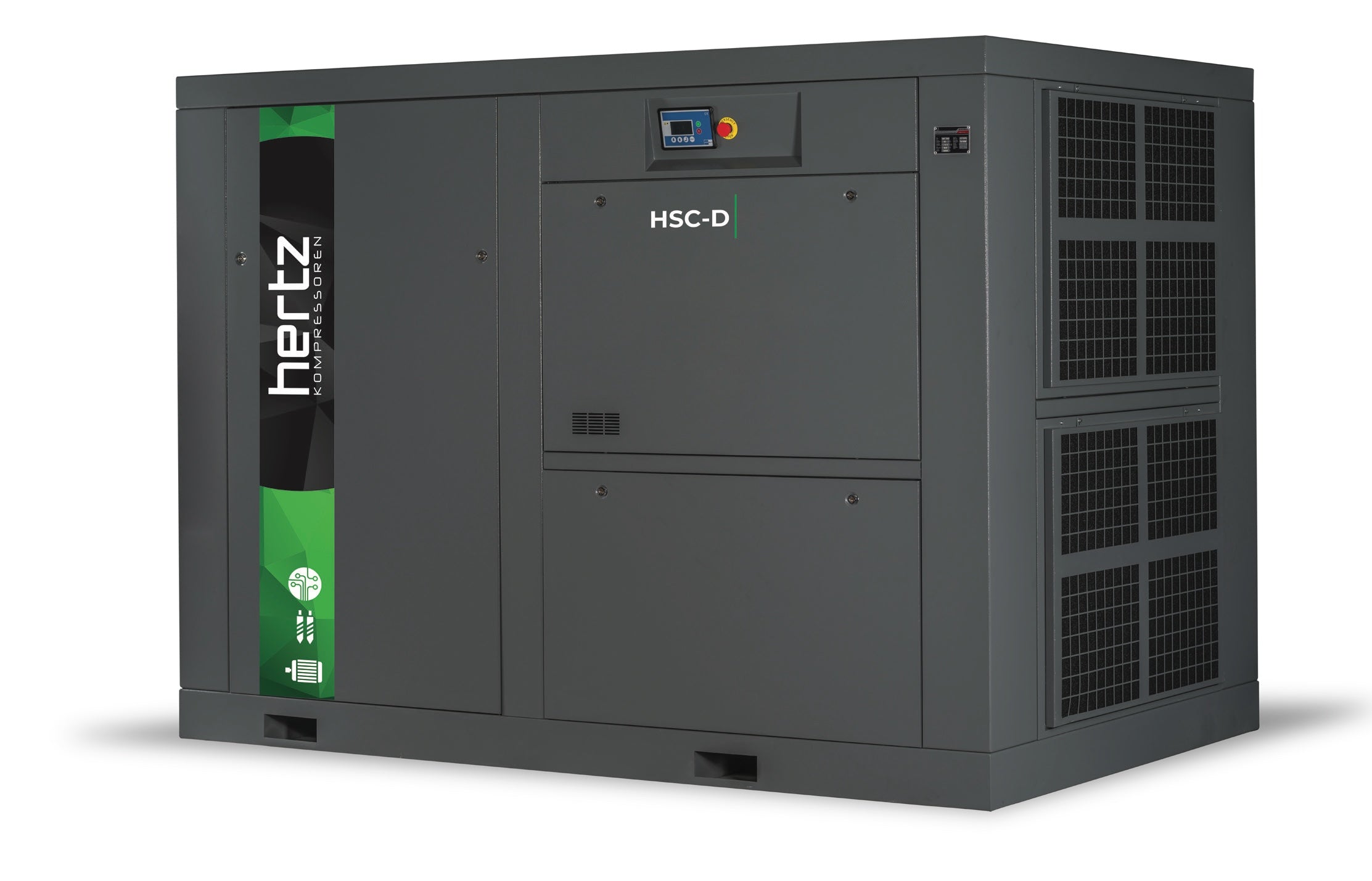

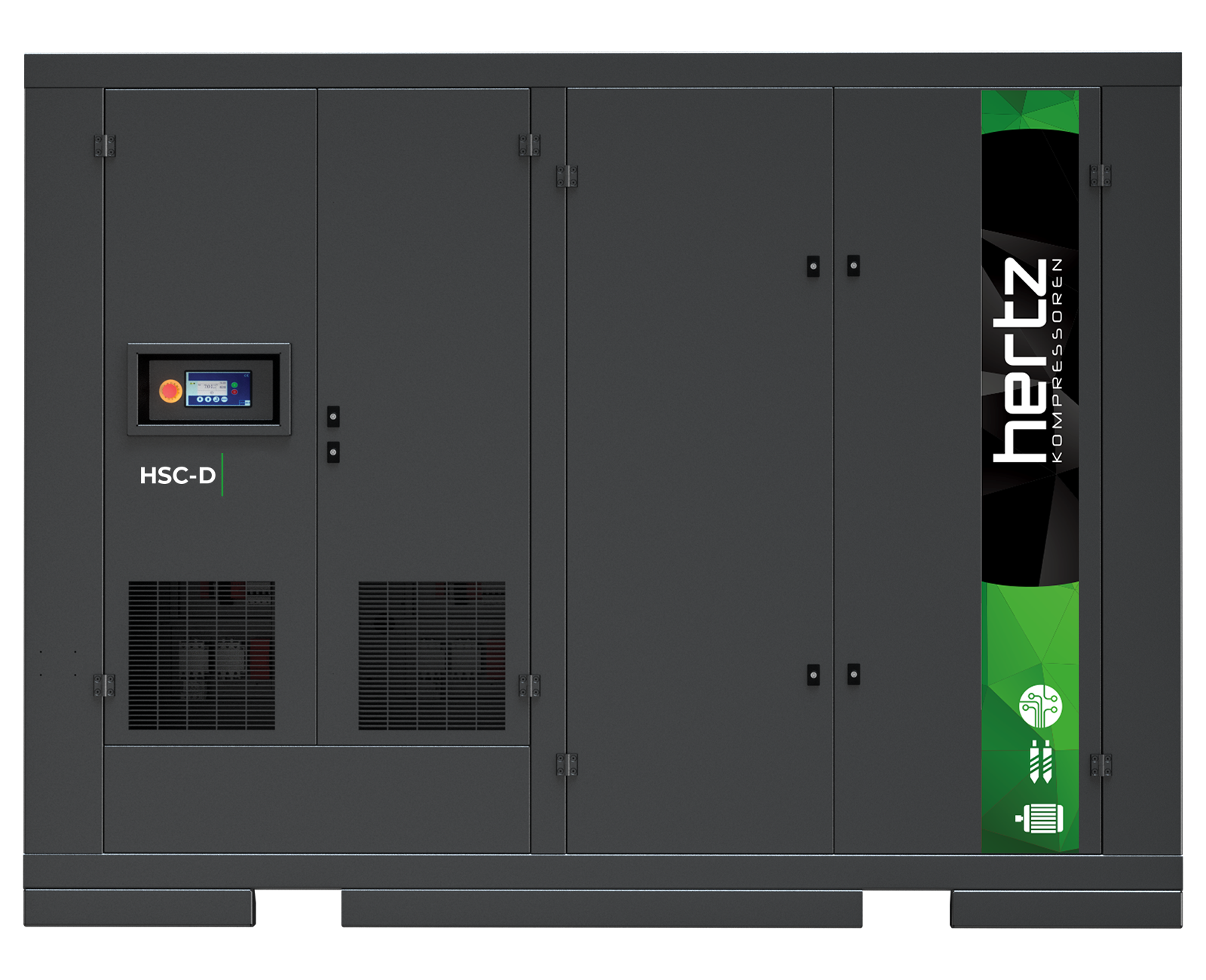

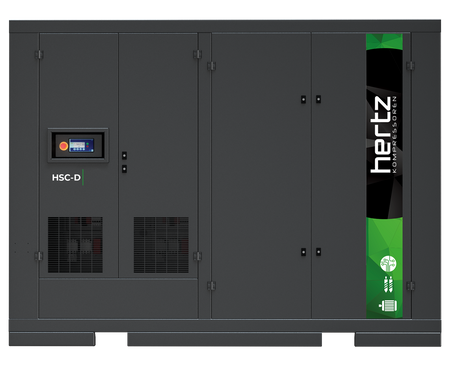

Power your industrial operations with the Hertz HSC-D 132 kW Fixed-Speed Rotary Screw Air Compressor, a high-performance oil-injected compressor designed for exceptional efficiency and reliability. Part of the HSC-D series, this 132 kW (180 hp) model features a direct-coupled drive system, making it ideal for demanding applications in manufacturing, automotive, food processing, and pharmaceutical industries. Its robust design ensures consistent air flow, low maintenance, and high efficiency, making it a cost-effective solution for your business.
Key Features & Benefits
- High-Efficiency IE4 Motor: Ultra Premium IE4 efficiency-class motor reduces power consumption, lowering operating costs while delivering top performance.
- Direct-Coupled Drive System: Eliminates power transfer losses for maximum efficiency, with high flow rates and minimal wear for long-term durability.
- Quiet Operation: Operates at only 79 dB(A), ideal for noise-sensitive environments without sacrificing power.

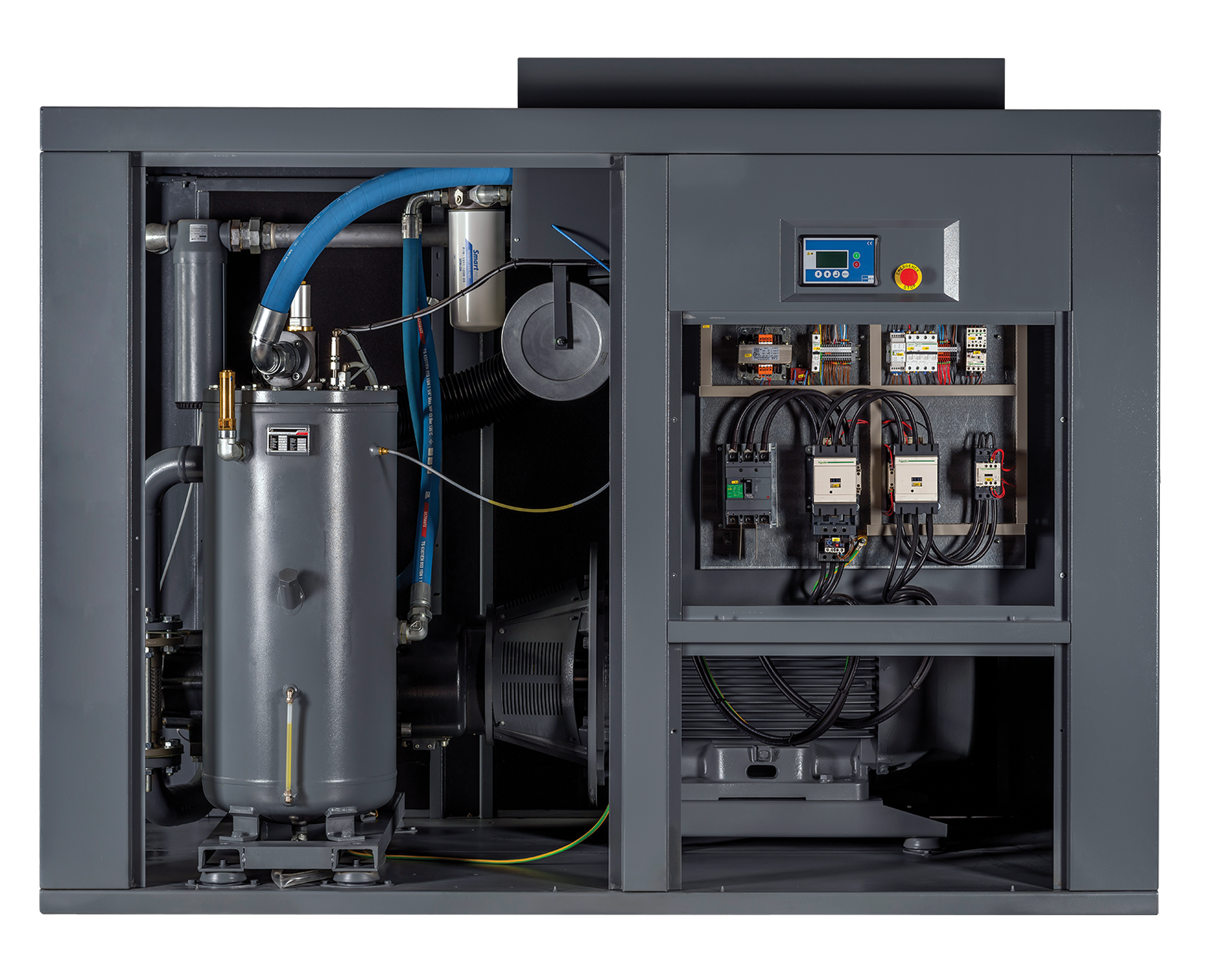

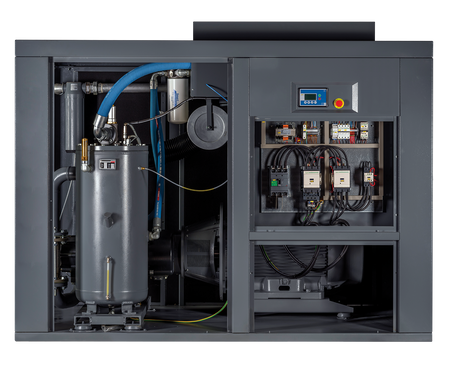

- Robust Design: Direct-coupled system with a rigid base plate and removable acoustic canopy (108" x 71" x 79") ensures easy installation and maintenance.
- Advanced Cooling & Filtration: Aluminum combi-cooler with bar/plate system, four-way thermostatic valve, and two-stage air intake filter ensure reliable operation up to 45°C, with low oil carryover (≤ 3 ppm).
- Easy Maintenance: Features electropneumatic suction valve, high-performance three-stage air/oil separator, and a PLC control unit with LCD panel, ModBus communication, weekly scheduler, and alarm log.
- Flexible Pressure Options: Available in 110, 145, or 190 psi settings, with free air delivery from 583-826 cfm depending on pressure.
At Airlink Compressors, the UK’s trusted supplier of premium compressed air equipment, we offer the Hertz HSC-D series to meet your industrial needs. This fixed-speed compressor is built for longevity, with durable components and proven reliability, backed by tens of thousands of units in use. Optional water cooling, heat recovery, and food-grade lubricant available. Invest in high-performance technology with fast UK shipping and expert support.
Technical Specifications
| Specification | Details |
|---|---|
| Model | HSC-D 132 |
| Motor Power | 132 kW / 180 hp |
| Pressure Options | 110 psi (7.5 bar), 145 psi (10 bar), 190 psi (13 bar) |
| Capacity (FAD) at 110 psi | 826 cfm (23.4 m³/min) |
| Capacity (FAD) at 145 psi | 706 cfm (20.0 m³/min) |
| Capacity (FAD) at 190 psi | 583 cfm (16.5 m³/min) |
| Connection | G 2 1/2” (BSP) |
| Dimensions (L x W x H) | 108 in x 71 in x 79 in (2750 mm x 1805 mm x 2000 mm) |
| Weight | 6548 lbs (2970 kg) |
| Noise Level | 79 dB(A) |
| Cooling System | Air-cooled (water cooling optional) |
| Electric Motor | IE4, IP55, F-class insulation |
| Controller | PLC control unit with LCD panel, ModBus communication, weekly scheduler, alarm log |
| Drive System | Direct-coupled with elastic coupling |
Keywords: 132 kW rotary screw compressor, fixed-speed air compressor, energy efficient industrial compressor, Hertz HSC-D, quiet compressor UK, industrial air compressor, oil-injected air compressor.
Contact Airlink Compressors for expert advice, servicing, or custom configurations. Fast shipping across the UK!
