Hertz HSC 75 kW Fixed-Speed Rotary Screw Air Compressor - Energy Efficient & Reliable for Industrial Use
Couldn't load pickup availability
Accepted Payments
Ask The Experts!
Enhance your industrial operations with the Hertz HSC 75 kW Fixed-Speed Rotary Screw Air Compressor, a high-performance oil-injected compressor designed for reliability and efficiency. Part of the HSC series, this 75 kW (100 hp) model is ideal for large industrial applications in manufacturing, automotive, food processing, and pharmaceutical industries. With its robust design and high-efficiency components, it ensures consistent air flow and low maintenance, making it a cost-effective solution for your business.
Key Features & Benefits
- High-Efficiency IE3 Motor: Energy-efficient IE3 motor reduces power consumption, lowering operating costs while maintaining reliable performance.
- Robust Screw Block: Provides high flow rates with minimal wear, ensuring long-term durability and performance.
- Quiet Operation: Operates at only 71 dB(A), suitable for noise-sensitive environments without sacrificing power.
- Robust Design: Direct-coupled system eliminates belts, offering a durable footprint (75" x 43" x 65") for efficient installation.

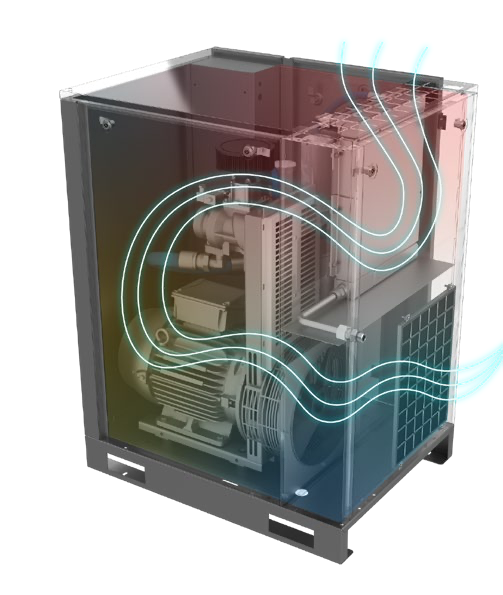

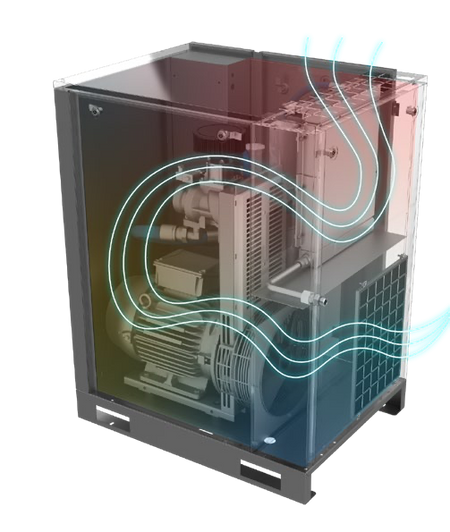

- Advanced Cooling & Filtration: Aluminum combi-cooler with four-way thermostatic valve and two-stage air intake filter ensure reliable operation up to 45°C, with low oil carryover (≤ 3 ppm).

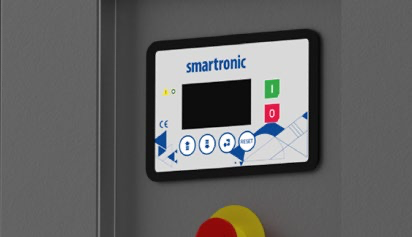

- Easy Maintenance: Features electropneumatic suction valve, spin-on type separator, and a PLC control unit with LCD panel for user-friendly operation.
- Flexible Pressure Options: Available in 110, 125, 145, or 190 psi settings, with free air delivery from 353-477 cfm depending on pressure.
At Airlink Compressors, the UK’s trusted supplier of premium compressed air equipment, we offer the Hertz HSC series to meet your industrial needs. This fixed-speed compressor is built for longevity, with durable components and proven reliability, backed by tens of thousands of units in use. Optional water cooling and heat recovery systems available. Invest in high-performance technology with fast UK shipping and expert support.
Technical Specifications
| Specification | Details |
|---|---|
| Model | HSC 75 |
| Motor Power | 75 kW / 100 hp |
| Pressure Options | 110 psi (7.5 bar), 125 psi (8.6 bar), 145 psi (10 bar), 190 psi (13 bar) |
| Capacity (FAD) at 110 psi | 477 cfm (13.5 m³/min) |
| Capacity (FAD) at 125 psi | 441 cfm (12.5 m³/min) |
| Capacity (FAD) at 145 psi | 406 cfm (11.5 m³/min) |
| Capacity (FAD) at 190 psi | 353 cfm (10.0 m³/min) |
| Connection | G 2” (BSP) |
| Dimensions (L x W x H) | 75 in x 43 in x 65 in (1900 mm x 1090 mm x 1650 mm) |
| Weight | 3086 lbs (1400 kg) |
| Noise Level | 71 dB(A) |
| Cooling System | Air-cooled (water cooling optional) |
| Electric Motor | IE3, IP55, F-class insulation |
| Controller | PLC control unit with LCD panel |
| Power Cable | 4 x 50 mm² (max 25m), 125 A fuse |
Keywords: 75 kW rotary screw compressor, fixed-speed air compressor, energy efficient industrial compressor, Hertz HSC, quiet compressor UK, industrial air compressor, oil-injected air compressor.
Contact Airlink Compressors for expert advice, servicing, or custom configurations. Fast shipping across the UK!
