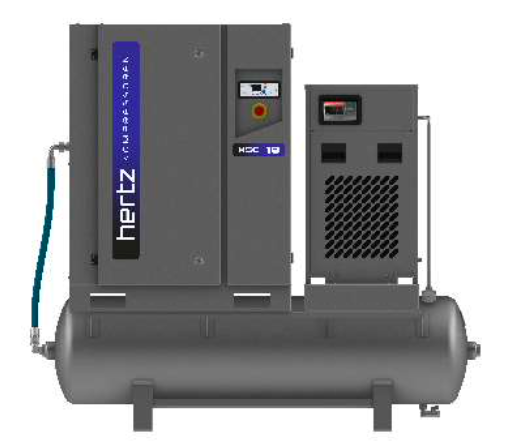

Hertz HSC 18.5 kW Fixed-Speed Rotary Screw Air Compressor - Efficient & Reliable for Industrial Use
Couldn't load pickup availability
Accepted Payments
Ask The Experts!
Enhance your industrial operations with the Hertz HSC 18.5 kW Fixed-Speed Rotary Screw Air Compressor, a high-performance oil-injected compressor designed for reliability and efficiency. Part of the HSC series, this 18.5 kW (25 hp) model is ideal for medium-sized industrial applications in manufacturing, automotive, and light industrial settings. With its robust design and high-efficiency components, it ensures consistent air flow and low maintenance, making it a cost-effective solution for your business.
Key Features & Benefits
- High-Efficiency IE3 Motor: Energy-efficient IE3 motor reduces power consumption, lowering operating costs while maintaining reliable performance.
- Robust Screw Block: Provides high flow rates with minimal wear, ensuring long-term durability and performance.
- Quiet Operation: Operates at only 70 dB(A), suitable for noise-sensitive environments without sacrificing power.
- Compact & Durable Design: Belt-driven system with a rigid base plate and removable acoustic canopy (51" x 34" x 55") allows easy installation and maintenance.
- Advanced Cooling & Filtration: Aluminum combi-cooler and two-stage air intake filter ensure reliable operation up to 45°C, with low oil carryover (≤ 3 ppm).
- Easy Maintenance: Features electropneumatic suction valve, spin-on type separator, and a PLC control unit with LCD panel for user-friendly operation.
- Flexible Pressure Options: Available in 110, 125, 145, or 190 psi settings, with free air delivery from 71-95 cfm depending on pressure.
At Airlink Compressors, the UK’s trusted supplier of premium compressed air equipment, we offer the Hertz HSC series to meet your industrial needs. This fixed-speed compressor is built for longevity, with durable components and proven reliability, backed by tens of thousands of units in use. Invest in high-performance technology with fast UK shipping and expert support.
Technical Specifications
| Specification | Details |
|---|---|
| Model | HSC 18.5 |
| Motor Power | 18.5 kW / 25 hp |
| Pressure Options | 110 psi (7.5 bar), 125 psi (8.6 bar), 145 psi (10 bar), 190 psi (13 bar) |
| Capacity (FAD) at 110 psi | 103 cfm (2.7 m³/min) |
| Capacity (FAD) at 125 psi | 98.2 cfm (2.5 m³/min) |
| Capacity (FAD) at 145 psi | 87.9 cfm (2.3 m³/min) |
| Capacity (FAD) at 190 psi | 73.1 cfm (2.0 m³/min) |
| Connection | G 3/4” (BSP) |
| Dimensions (L x W x H) | 51 in x 34 in x 55 in (1300 mm x 860 mm x 1400 mm) |
| Weight | 1102 lbs (500 kg, estimated) |
| Noise Level | 70 dB(A) |
| Cooling System | Air-cooled |
| Electric Motor | IE3, IP55, F-class insulation |
| Controller | PLC control unit with LCD panel |
| Power Cable | 4 x 10 mm² (max 25m), 40 A fuse |
Keywords: 18.5 kW rotary screw compressor, fixed-speed air compressor, energy efficient compressor, Hertz HSC, quiet compressor UK, industrial air compressor, oil-injected air compressor.
Contact Airlink Compressors for expert advice, servicing, or custom configurations. Fast shipping across the UK!
