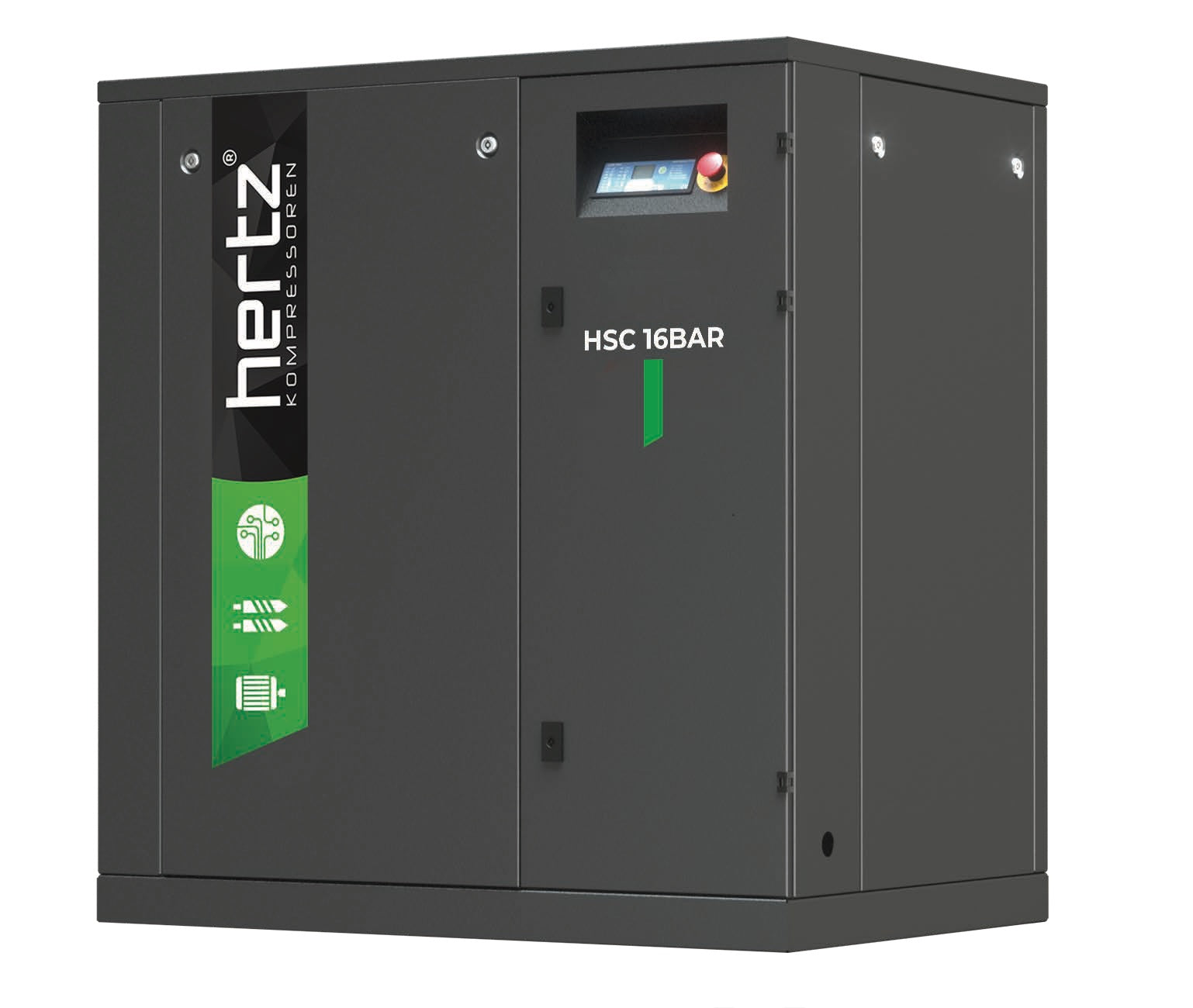

Hertz HSC 16BAR 15 kW Fixed-Speed Rotary Screw Air Compressor - 44.9 CFM - 230psi
Couldn't load pickup availability
Accepted Payments
Ask The Experts!
Power your high-pressure industrial applications with the Hertz HSC 16BAR 15 kW Fixed-Speed Rotary Screw Air Compressor, a specialized oil-injected compressor designed for exceptional performance and reliability. Part of the HSC 16BAR series, this 15 kW (20 hp) model delivers high-pressure air flow (232 psi/16 bar) for demanding applications such as laser cutting and mining. Its robust design and high-efficiency components ensure consistent performance and low maintenance, making it a cost-effective solution for specialized industrial needs.
Key Features & Benefits
- High-Efficiency IE3 Motor: Energy-efficient IE3 motor reduces power consumption, lowering operating costs while maintaining reliable performance.
- High-Pressure Screw Block: Optimized for 16 bar operation, providing high flow rates with minimal wear for long-term durability.
- Quiet Operation: Operates at only 69 dB(A), ideal for noise-sensitive environments without compromising power.
- Compact & Durable Design: Belt-driven system with a rigid base plate and removable acoustic canopy (43" x 26" x 40") allows easy installation and maintenance.
- Advanced Cooling & Filtration: Aluminum combi-cooler and two-stage air intake filter ensure reliable operation up to 45°C, with low oil carryover (≤ 3 ppm).

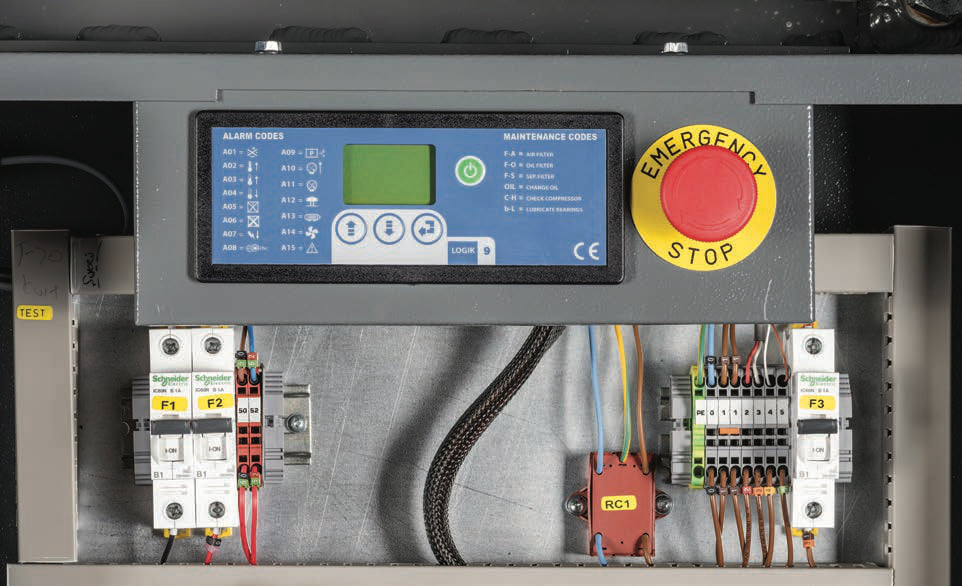

- Easy Maintenance: Features electropneumatic suction valve, full-flow oil filter, and a PLC control unit with basic status indicators for user-friendly operation.
- High-Pressure Performance: Delivers free air delivery of 42.4 cfm at 232 psi (16 bar), ideal for high-pressure applications like laser cutting and mining.
At Airlink Compressors, the UK’s trusted supplier of premium compressed air equipment, we offer the Hertz HSC 16BAR series to meet your high-pressure industrial needs. This fixed-speed compressor is built for longevity, with durable components and a service-friendly design that minimizes downtime. Invest in reliable, high-performance technology backed by fast UK shipping and expert support.
Technical Specifications
| Specification | Details |
|---|---|
| Model | HSC 16BAR 15 |
| Motor Power | 15 kW / 20 hp |
| Pressure | 232 psi (16 bar) |
| Capacity (FAD) at 232 psi | 42.4 cfm (1.2 m³/min) |
| Connection | G 3/4” (BSP) |
| Dimensions (L x W x H) | 43 in x 26 in x 40 in (1090 mm x 660 mm x 1015 mm) |
| Weight | 904 lbs (410 kg) |
| Noise Level | 69 dB(A) |
| Cooling System | Air-cooled |
| Electric Motor | IE3, F-class insulation |
| Controller | PLC control unit with basic status indicators |
| Power Cable | 4 x 10 mm² (max 25m), 40 A fuse |
Keywords: 15 kW high-pressure compressor, 16BAR compressor, fixed-speed air compressor, rotary screw compressor, Hertz HSC, industrial air compressor, quiet compressor UK, laser cutting compressor, mining compressor.
Contact Airlink Compressors for expert advice, servicing, or custom configurations. Fast shipping across the UK!
