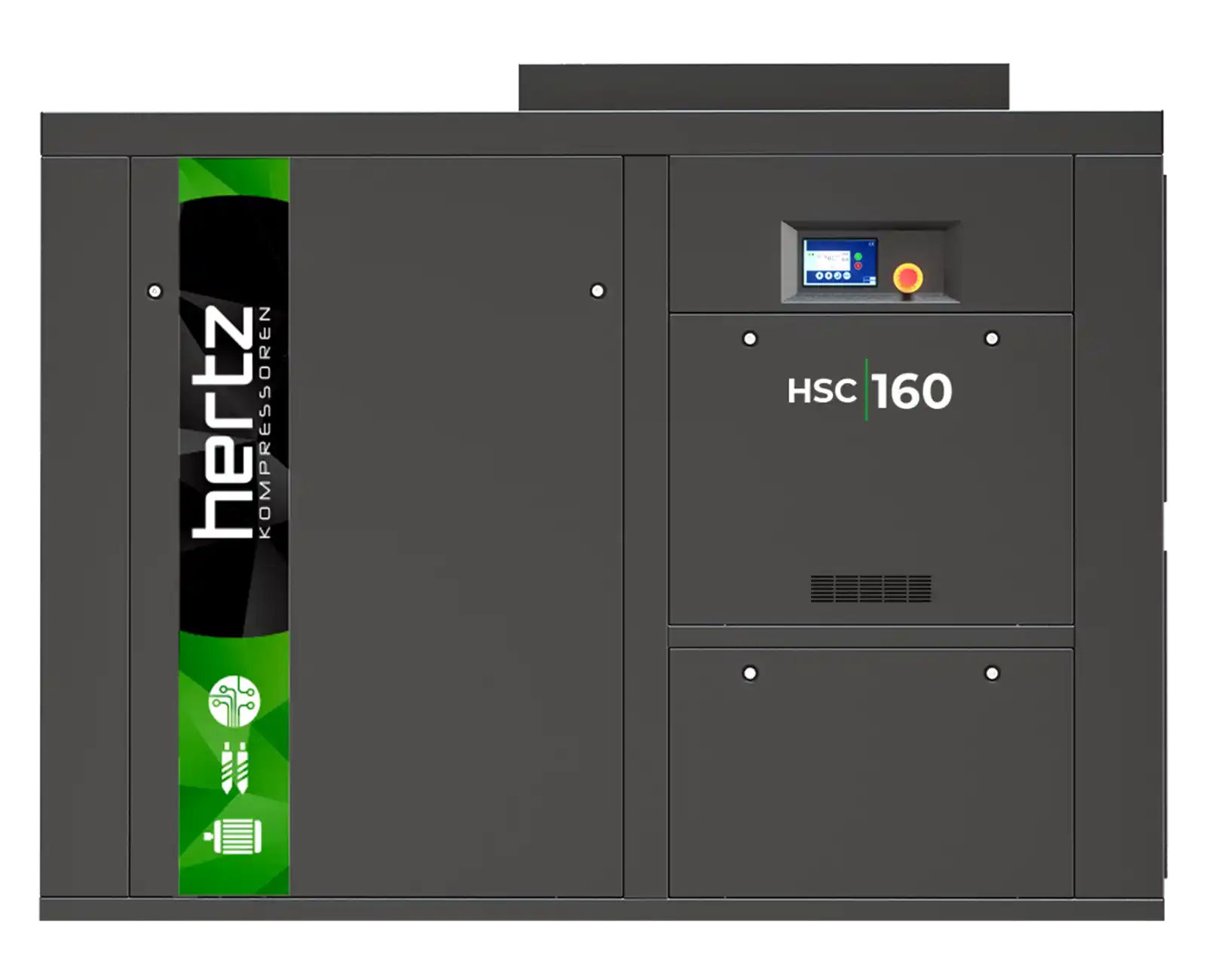

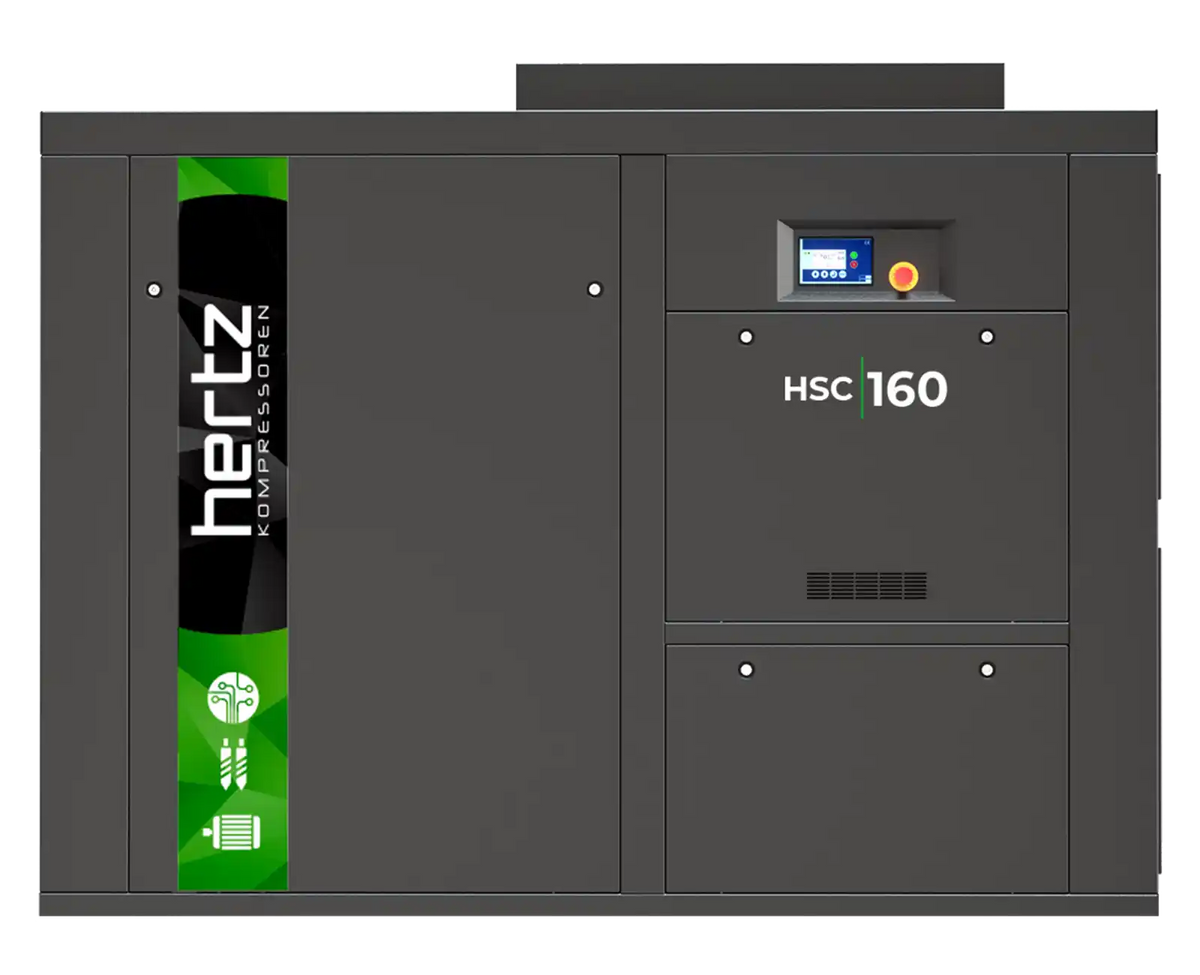

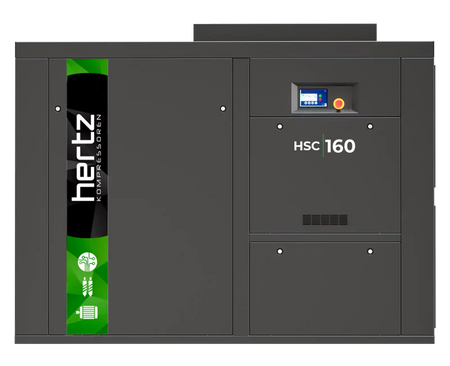

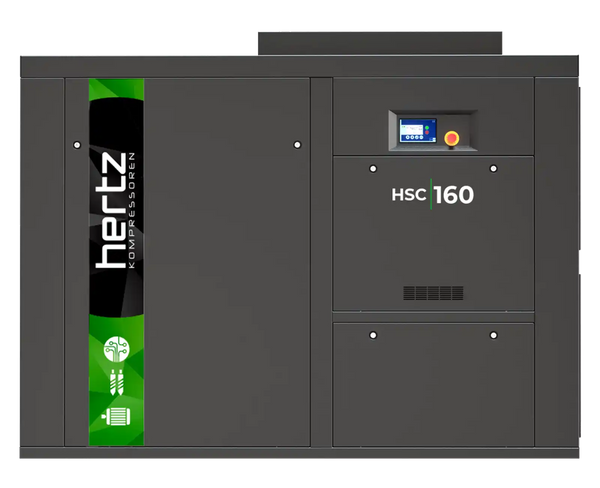

Hertz HSC 160 kW Fixed-Speed Rotary Screw Air Compressor - 968 CFM - 76dba
Couldn't load pickup availability
Accepted Payments
Ask The Experts!
Enhance your industrial operations with the Hertz HSC 160 kW Fixed-Speed Rotary Screw Air Compressor, a high-performance oil-injected compressor designed for reliability and efficiency. Part of the HSC D series, this 160 kW (220 hp) model is ideal for large industrial applications in manufacturing, automotive, food processing, and pharmaceutical industries. With its robust design and high-efficiency components, it ensures consistent air flow and low maintenance, making it a cost-effective solution for your business.
Key Features & Benefits
- High-Efficiency IE3 Motor: Energy-efficient IE3 motor reduces power consumption, lowering operating costs while maintaining reliable performance.
- Robust Screw Block: Patented and durable, high-capacity air production with new rotor profiles for high volumetric efficiency and lower torque requirements.
- Quiet Operation: Operates at only 79 dB(A), suitable for noise-sensitive environments without sacrificing power.

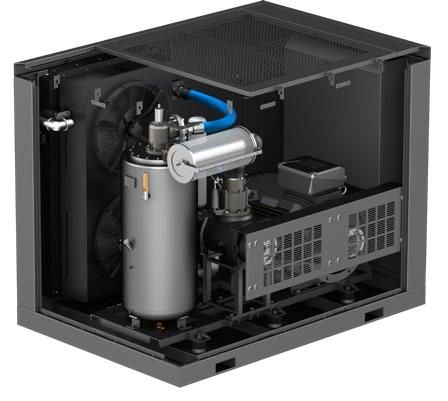

- Robust Design: Direct-coupled system with elastic coupling for maintenance-free power transfer, offering a durable footprint (108" x 71" x 79") for efficient installation.
- Advanced Cooling & Filtration: Quiet and efficient axial fan with temperature-controlled fan motor, two-stage air intake filter ensure reliable operation up to 45°C, with low oil carryover (≤ 3 ppm).
- Easy Maintenance: Features electropneumatic suction valve, high performance three-stage air/oil separator, and a PLC control unit with LCD panel for user-friendly operation.
- Flexible Pressure Options: Available in 110, 145, or 190 psi settings, with free air delivery from 706-989 cfm depending on pressure.
At Airlink Compressors, the UK’s trusted supplier of premium compressed air equipment, we offer the Hertz HSC series to meet your industrial needs. This fixed-speed compressor is built for longevity, with durable components and proven reliability. Optional integrated dryer and full food grade oil for food production. Invest in high-performance technology with fast UK shipping and expert support.
Technical Specifications
| Specification | Details |
|---|---|
| Model | HSC 160 D |
| Motor Power | 160 kW / 220 hp |
| Pressure Options | 110 psi (7.5 bar), 145 psi (10 bar), 190 psi (13 bar) |
| Capacity (FAD) at 110 psi | 989 cfm (28.0 m³/min) |
| Capacity (FAD) at 145 psi | 830 cfm (23.5 m³/min) |
| Capacity (FAD) at 190 psi | 706 cfm (20.0 m³/min) |
| Connection | G 2 1/2” (BSP) |
| Dimensions (L x W x H) | 108 in x 71 in x 79 in (2750 mm x 1805 mm x 2000 mm) |
| Weight | 6790 lbs (3080 kg) |
| Noise Level | 79 dB(A) |
| Cooling System | Air-cooled |
| Electric Motor | IE3 TEFC, premium efficiency, 400V/3 phase/50Hz, IP55, |
