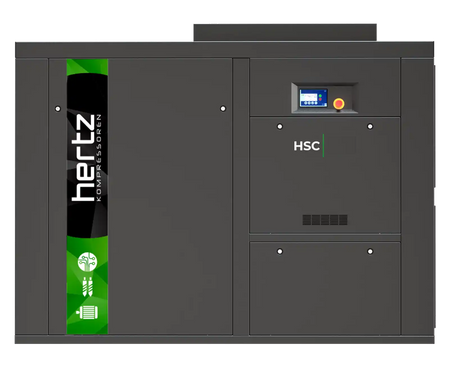

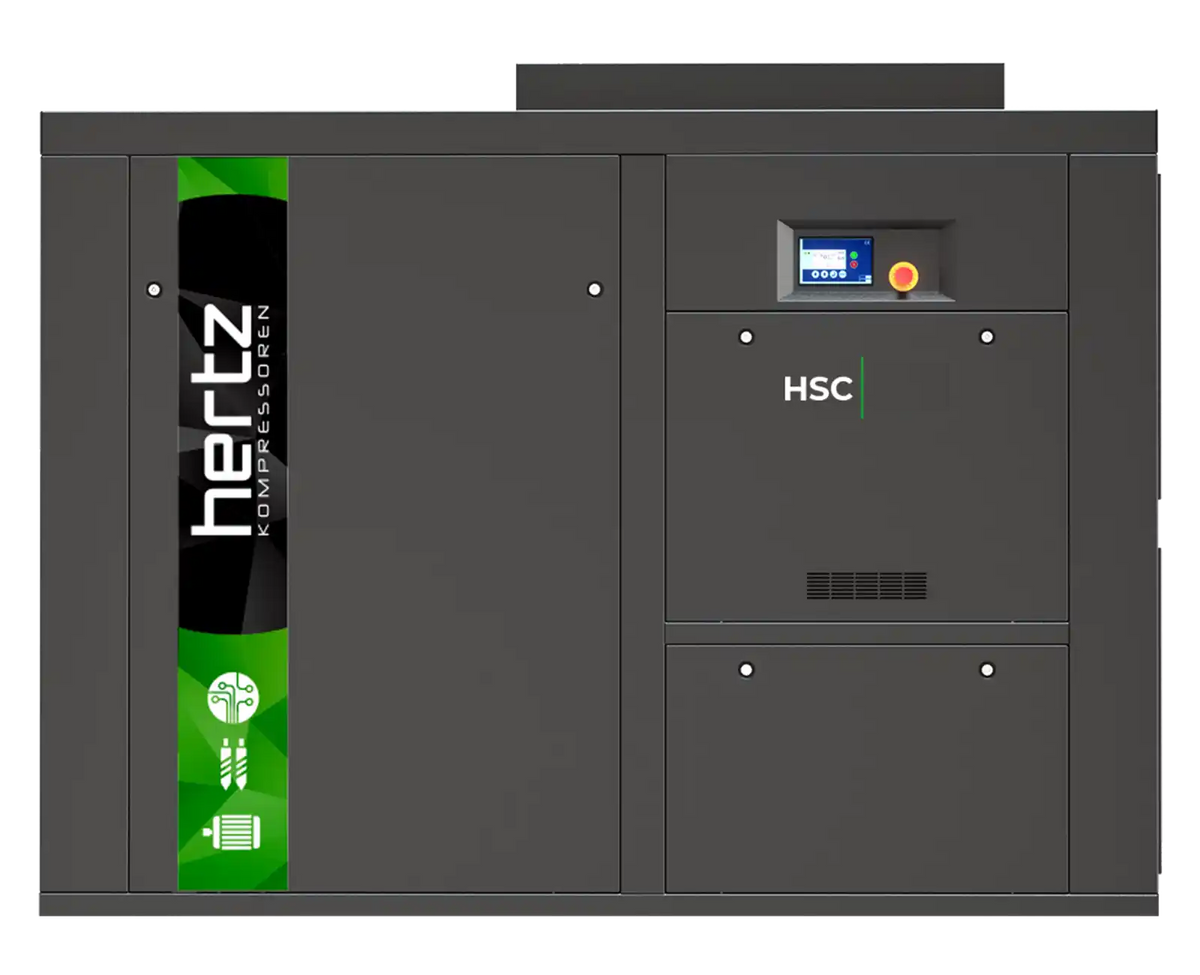

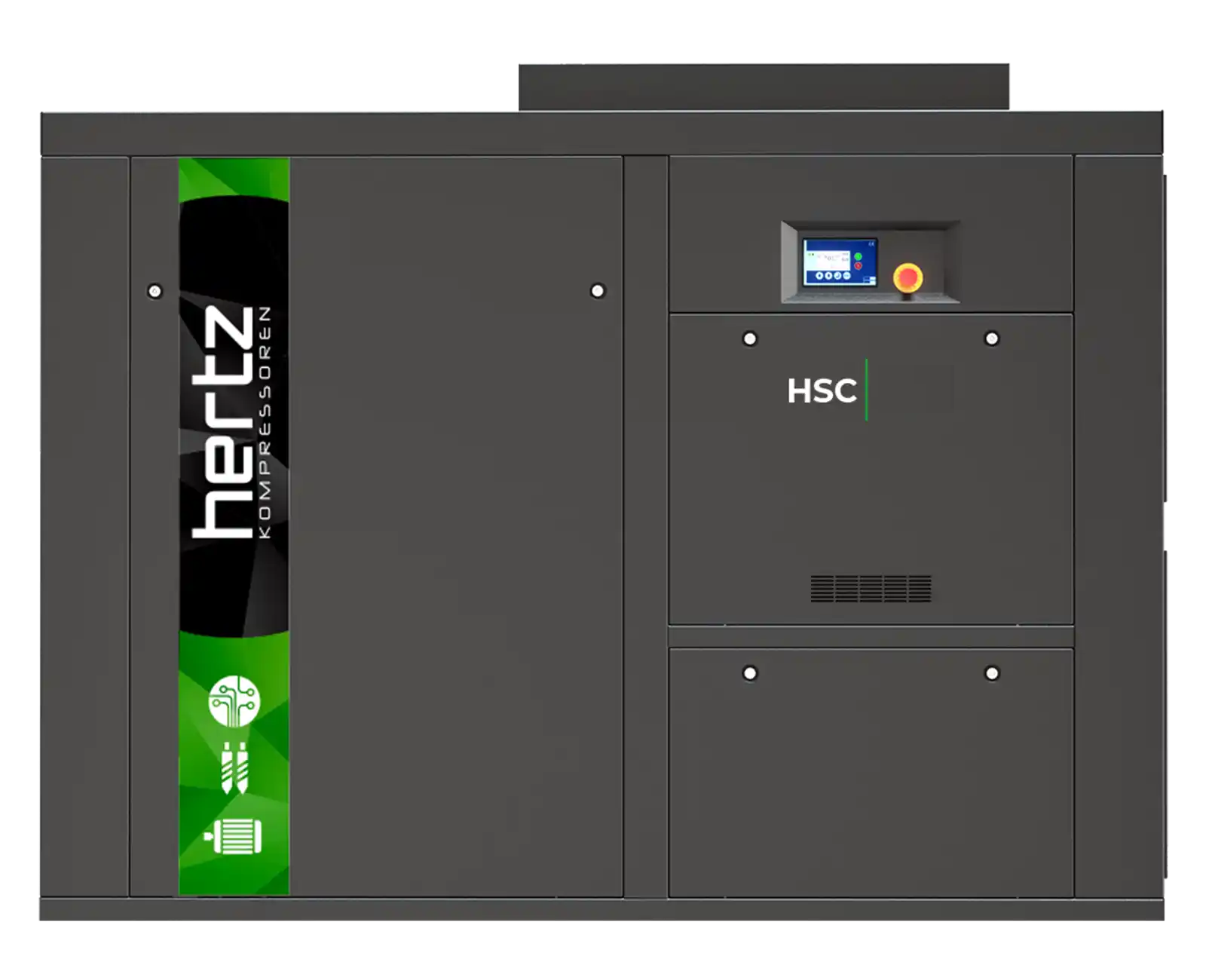

Hertz HSC 110 kW Fixed-Speed Rotary Screw Air Compressor -664 CFM - 74dba
Couldn't load pickup availability
Accepted Payments
Ask The Experts!
Enhance your industrial operations with the Hertz HSC 110 kW Fixed-Speed Rotary Screw Air Compressor, a high-performance oil-injected compressor designed for reliability and efficiency. Part of the HSC-D series, this 110 kW (150 hp) model is ideal for large industrial applications in manufacturing, automotive, food processing, and pharmaceutical industries. With its robust design and high-efficiency components, it ensures consistent air flow and low maintenance, making it a cost-effective solution for your business.
Key Features & Benefits
- High-Efficiency IE3 Motor: Energy-efficient IE3 motor reduces power consumption, lowering operating costs while maintaining reliable performance.
- Robust Screw Block: Provides high flow rates with minimal wear, ensuring long-term durability and performance.
- Quiet Operation: Operates at a low noise level, suitable for noise-sensitive environments without sacrificing power.
- Robust Design: Direct-coupled system with elastic coupling for maintenance-free power transmission, offering a durable footprint (99" x 57" x 80") for efficient installation.
- Advanced Cooling & Filtration: Aluminum combi-cooler and two-stage air intake filter ensure reliable operation up to 45°C, with low oil carryover (≤ 3 ppm).
- Easy Maintenance: Features electropneumatic suction valve, spin-on type separator, and a user-friendly PLC controller with LCD panel, alarm log, weekly scheduler, and ModBus communication.
- Flexible Pressure Options: Available in 110, 145, or 190 psi settings, with free air delivery from 494-688 cfm depending on pressure.
At Airlink Compressors, the UK’s trusted supplier of premium compressed air equipment, we offer the Hertz HSC series to meet your industrial needs. This fixed-speed compressor is built for longevity, with durable components and proven reliability. Optional integrated dryer and full food grade oil for food production. Invest in high-performance technology with fast UK shipping and expert support.
Technical Specifications
| Specification | Details |
|---|---|
| Model | HSC-D 110 |
| Motor Power | 110 kW / 150 hp |
| Pressure Options | 110 psi (7.5 bar), 145 psi (10 bar), 190 psi (13 bar) |
| Capacity (FAD) at 110 psi | 688 cfm (19.5 m³/min) |
| Capacity (FAD) at 145 psi | 632 cfm (17.9 m³/min) |
| Capacity (FAD) at 190 psi | 494 cfm (14 m³/min) |
| Connection | G 2” (BSP) |
| Dimensions (L x W x H) | 99 in x 57 in x 80 in (2525 mm x 1440 mm x 2040 mm) |
| Weight | 5820 lbs (2640 kg) |
| Noise Level | 73 dB(A) |
| Cooling System | Water-cooled (heat recovery optional) |
| Electric Motor | IE3, direct coupled, elastic coupling, star/delta starter, soft start optional |
| Controller | PLC with LCD panel, internal ModBus, alarm log (last 20 alarms), weekly scheduler, maintenance warnings, Master/Slave for two compressors |
Keywords: 110 kW rotary screw compressor, fixed-speed air compressor, energy efficient industrial compressor, Hertz HSC-D, quiet screw compressor UK, oil-injected air compressor.
Contact Airlink Compressors for expert advice, servicing, or custom configurations. Fast shipping across the UK!
Yes, airlinkcompressors.com offer an installation & commissioning service, please contact support for further information on technical@airlinkcompressors.com
If you purchase any equipment from airlinkcompressors.com you are entitled to free full technical support from experts in the trade, supporting with installation, repairs & servicing. We also offer onging maintenance packages inhouse, please contact technical@airlinkcompressors.com for further information.
Yes, airlinkcompressors.com deliveries can be sent to different adresses across the UK.
Yes, we do deliver to NI (Northern Ireland) for larger items please ask for a carrige costing - sales@airlinkcompressors.com
Yes, a VAT invoice is sent automatically once the order has been dispatched to the email address supplied when originally ordered.
Yes, airlinkcompressors.com offer an installment option through Klarna, Please click here for further information.
