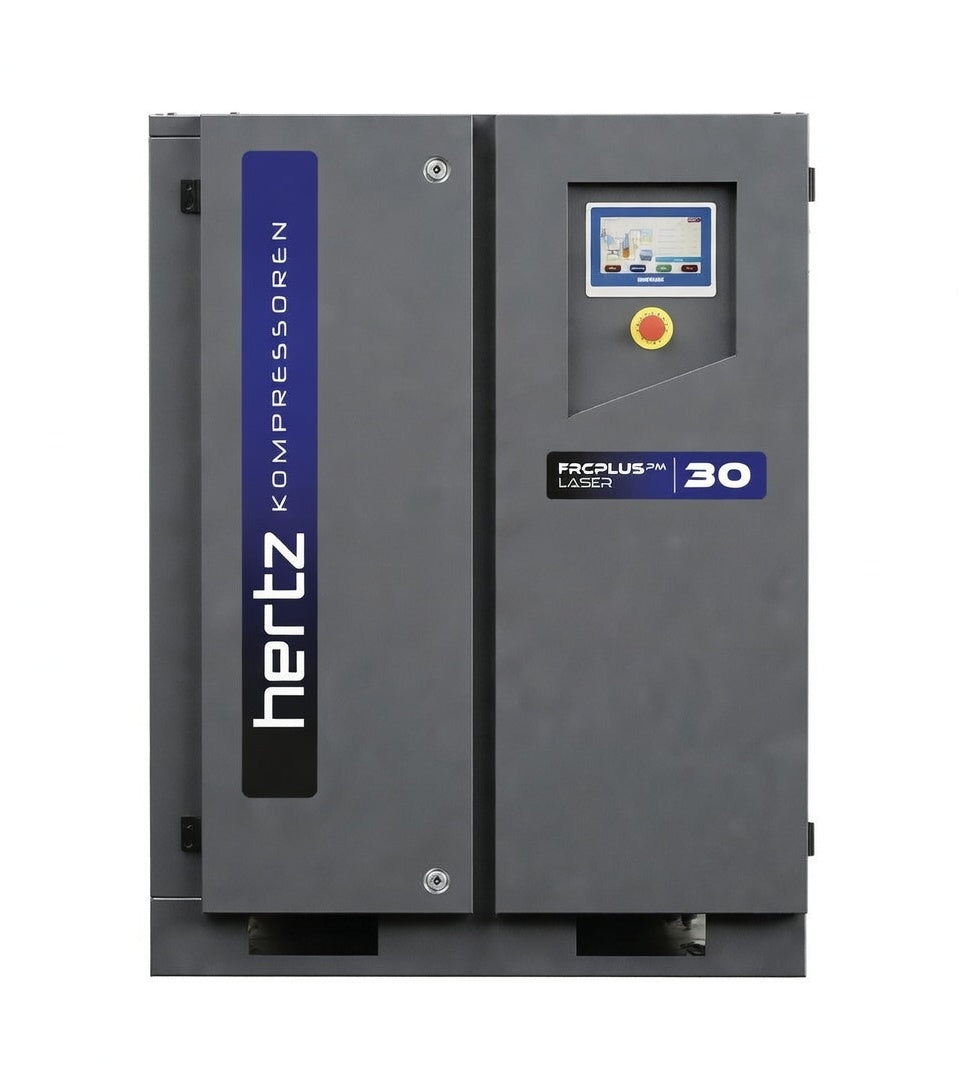

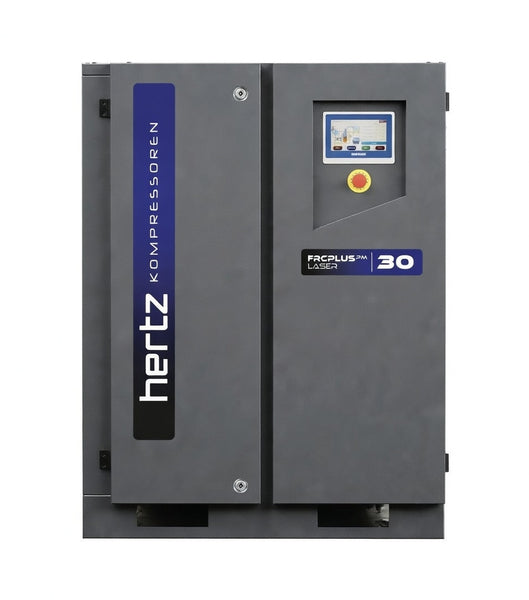

Hertz FRECON PLUS PM LASER 30 – 30 kW Variable Speed High-Pressure Base-Mounted Screw Compressor for Laser Cutting

Engineered for high-demand laser cutting (fiber & CO₂), the Hertz FRECON PLUS PM LASER 30 delivers reliable, oil-injected compressed air at 16 bar (232 psi) or 20 bar (290 psi) with constant pressure stability—no booster needed. The IE5 ultra-premium efficiency IPM (Internal Permanent Magnet) motor and advanced VSD technology ensure up to 55% energy savings vs. fixed-speed models, providing clean, dry air for superior cut quality, minimal dross, and precise edge finishing in demanding applications.

Key Features & Benefits

• Motor Power: 30 kW / 40 HP – IE5 high-efficiency IPM motor, F-class insulation, grease-free bearings, soft start for longevity and reduced peak currents.
• Pressure Options: 16 bar standard; 20 bar variant (requires high-pressure-rated dryer for optimal performance).
• Capacity (FAD – Free Air Delivery):
  • At 16 bar: Min 0.70 m³/min (25 cfm) – Max 3.18 m³/min (112 cfm)
  • At 20 bar: Min 0.90 m³/min (32 cfm) – Max 2.54 m³/min (90 cfm)
• Energy Efficiency: Up to 55% savings via VSD + PM motor; constant pressure under fluctuating laser loads.
• Compact & Low-Noise: Small footprint for industrial spaces; noise level ~74 dB(A).
• Configuration: Base-mounted (no integrated tank or dryer—perfect for custom installations, existing receivers, or separate dryer addition); tank + dryer options available separately.
• Clean Air Quality: Advanced filtration and high-efficiency oil separation for precision laser use.

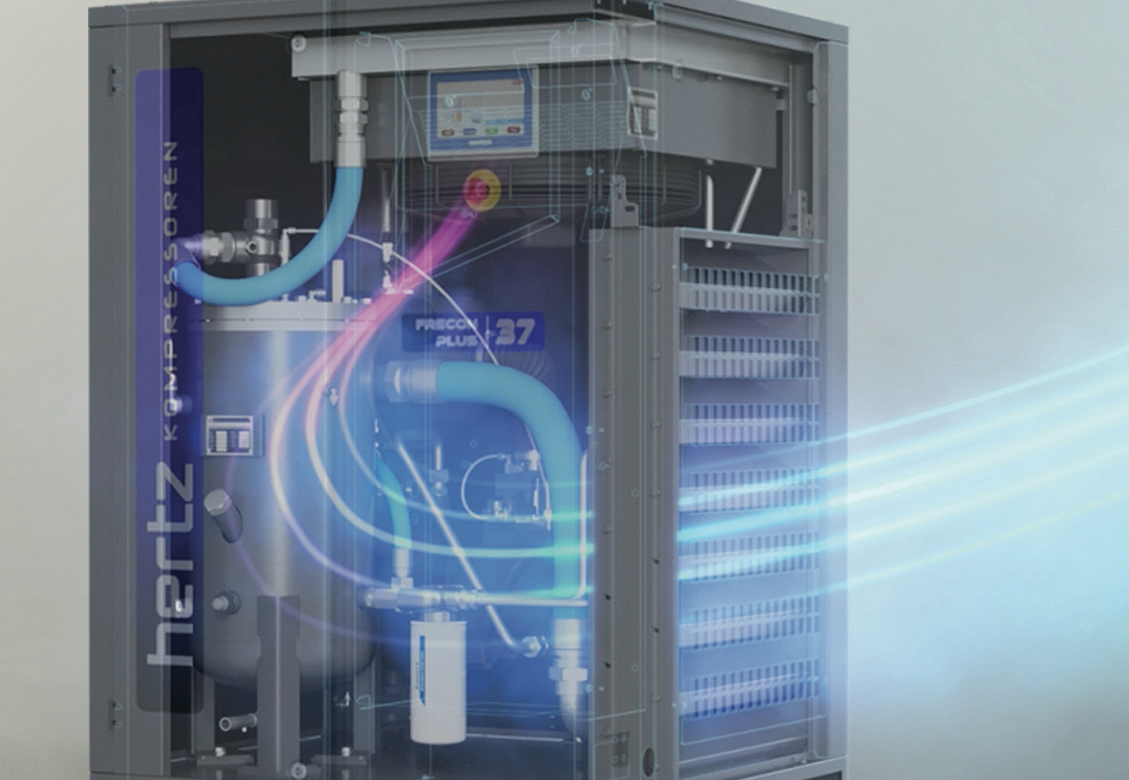

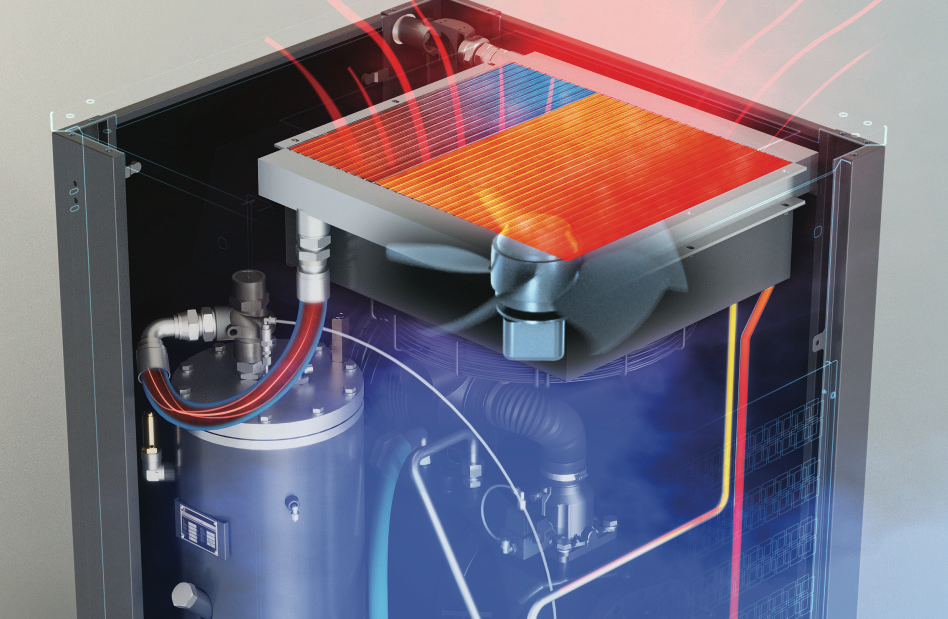

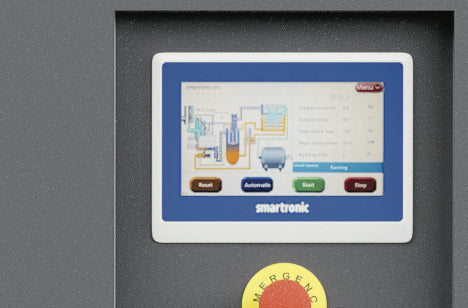

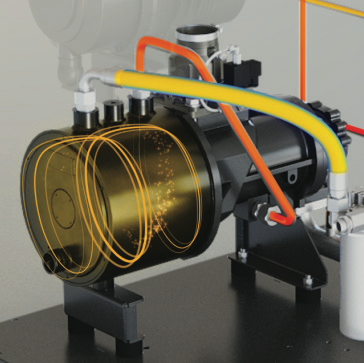

• Durability: High-pressure-resistant cooling system, new-generation screw block, spin-on separator, intuitive controller.
• Connection: G1 1/2” air outlet.
• Dimensions & Weight (Base-mounted approx.): 1030 × 935 × 1400 mm; ~468 kg (similar for both pressures; minor adjustments for 20 bar components).
• Ideal For: High-power fiber laser cutters, CO₂ laser systems, heavy sheet metal fabrication needing consistent high-pressure air.

*Performances per ISO 1217:2009 Annex C. Energy savings vs. non-inverter models in variable-demand scenarios.

Why Hertz LASER Series? Booster-free high pressure → simplified setup, reduced costs. Exceptional stability for flawless laser performance. VSD + PM tech cuts energy expenses significantly. Base-mounted design offers flexibility for tailored systems.
