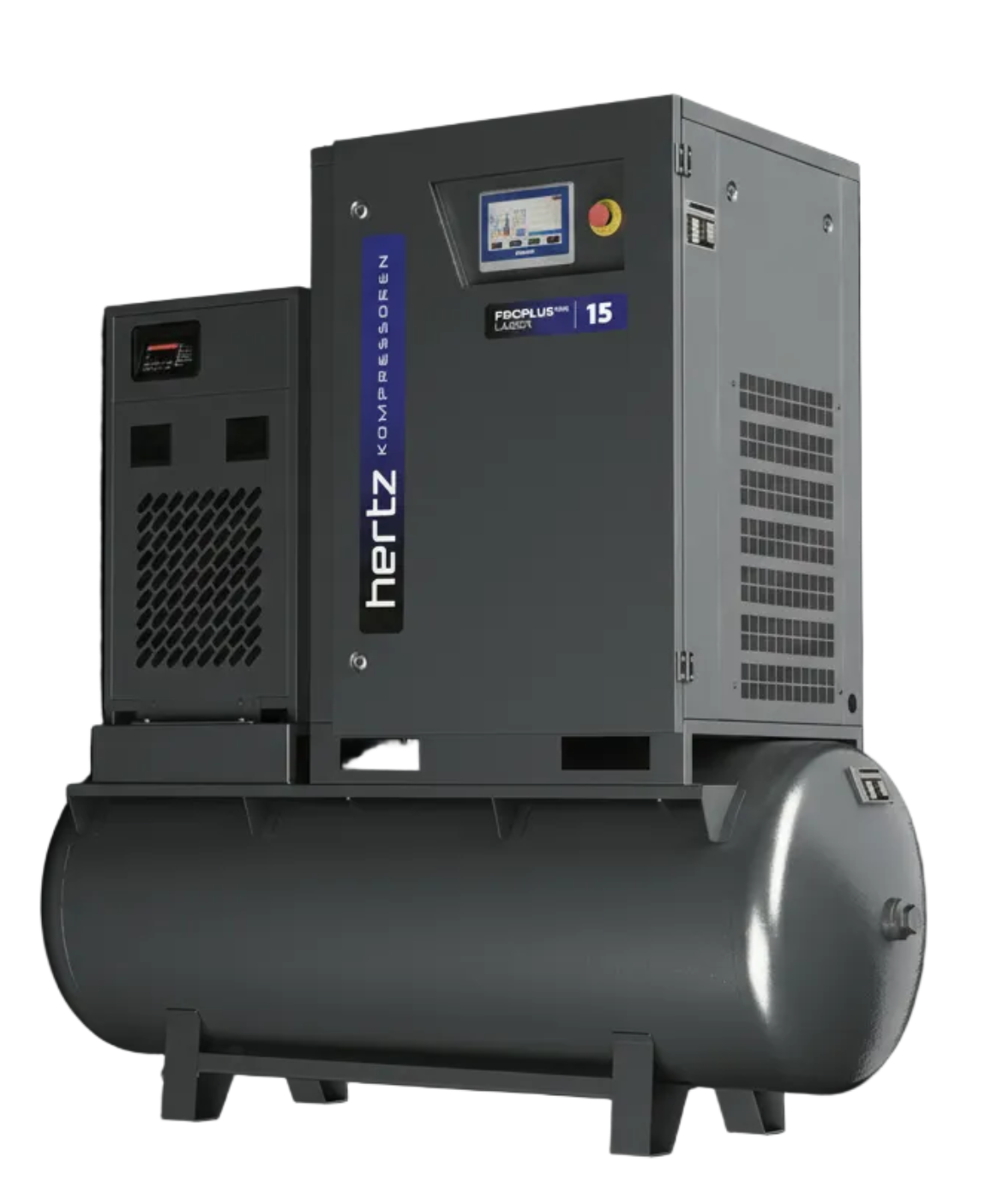

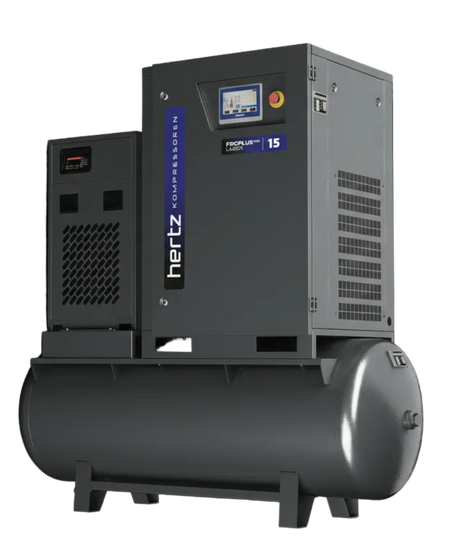

Hertz FRECON PLUS PM LASER 15 – 15 kW Variable Speed High-Pressure Screw Compressor for Laser Cutting

Designed exclusively for precision laser cutting (fiber & CO₂), the Hertz FRECON PLUS PM LASER 15 provides reliable, oil-injected compressed air at 16 bar (232 psi) or 20 bar (290 psi) with constant pressure stability—no booster required. Its IE5 ultra-premium efficiency IPM (Internal Permanent Magnet) motor and advanced VSD technology deliver up to 55% energy savings vs. fixed-speed units, while ensuring clean (1-3 mg/m³ residual oil), dry air for superior cut quality and edge performance.

Key Features & Benefits

• Motor Power: 15 kW / 20 HP – IE5 high-efficiency IPM motor, F-class insulation, grease-free bearings, soft start for longevity and reduced peak currents.
• Pressure Options: 16 bar or 20 bar (high-pressure dryer integrated for 20 bar variant).
• Capacity (FAD – Free Air Delivery):
  • At 16 bar: Min 0.28 m³/min (10 cfm) – Max 1.38 m³/min (49 cfm)
  • At 20 bar: Min 0.48 m³/min (17 cfm) – Max 1.31 m³/min (46 cfm)
• Energy Efficiency: Up to 55% savings via VSD + PM motor; maintains constant pressure under varying demand.
• Compact & Low-Noise: One of the smallest footprints in class; noise level ~75 dB(A).
• Configuration: Tank-mounted with 500L receiver + integrated dryer (ideal for laser to remove moisture); base-mounted available.
• Clean Air Quality: Advanced filtration, high-efficiency oil separation for precision laser applications.
• Durability: High-pressure cooling system, new-generation screw block, spin-on separator, user-friendly controller.
• Connection: G3/4” air outlet.
• Dimensions & Weight (Tank + Dryer version approx.):
  • 16 bar: 2010 × 700 × 2066 mm; ~618 kg
  • 20 bar: 2000 × 1000 × 1950 mm; ~657 kg
• Ideal For: Fiber laser cutters, CO₂ laser machines, sheet metal fabrication needing stable high-pressure air.

*Performances per ISO 1217:2009 Annex C. Energy savings vs. non-inverter models in variable-demand scenarios.

Why Hertz LASER Series? Booster-free high pressure → simpler install, lower costs. Exceptional stability for flawless laser cuts. Energy-efficient VSD + PM tech slashes running expenses.
