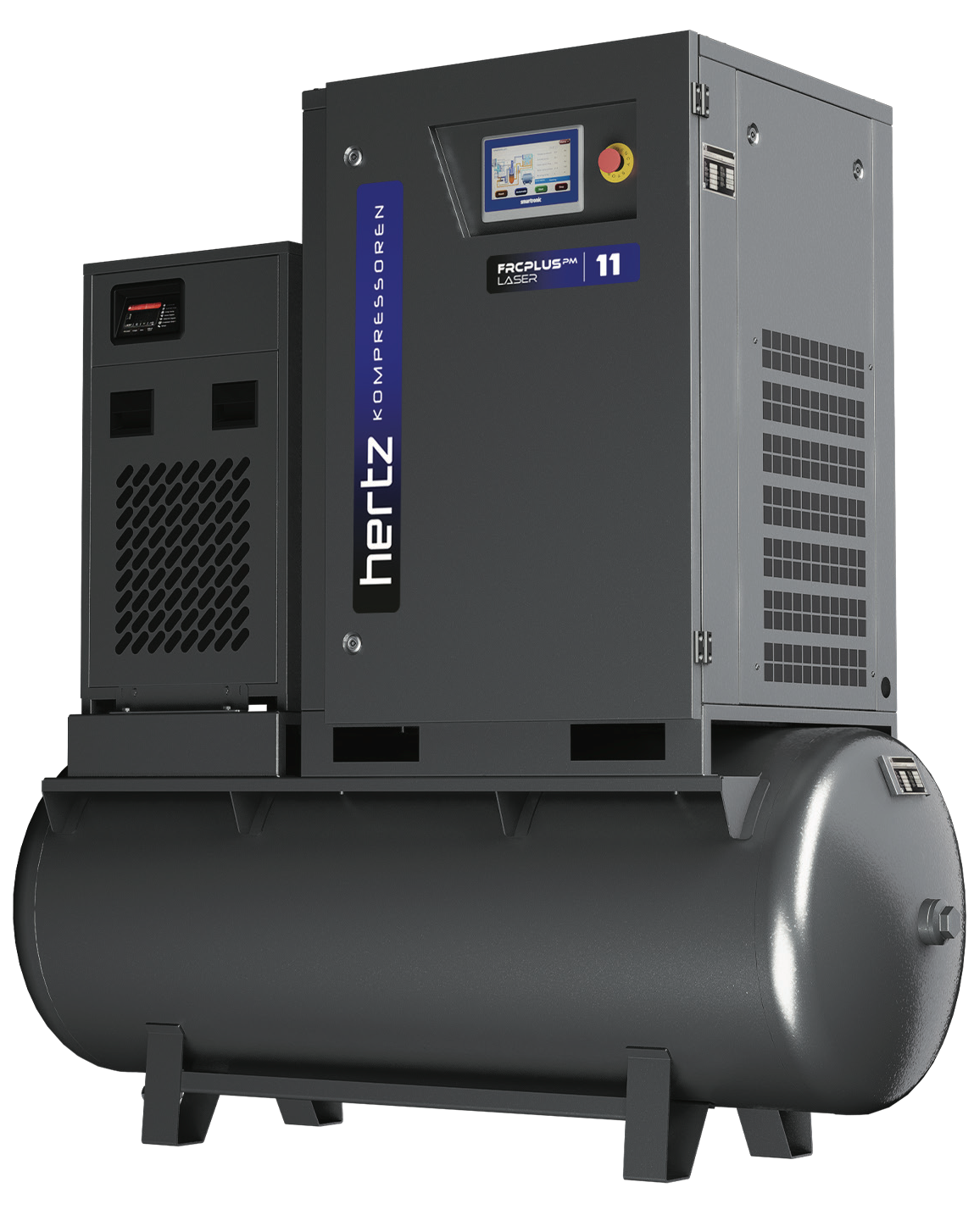

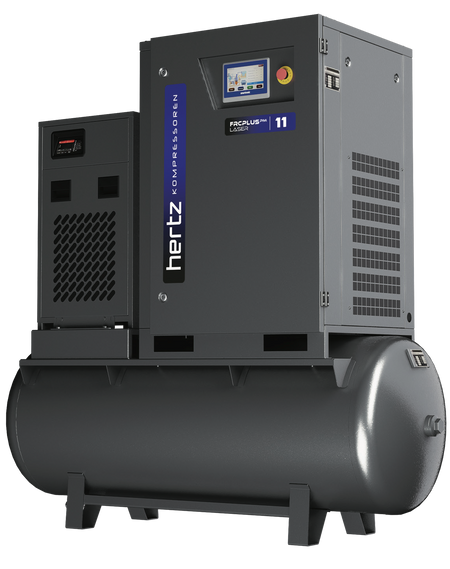

Hertz FRECON PLUS PM LASER 11 – Premium Variable Speed Drive (VSD) High-Pressure Screw Compressor for Laser Cutting
Engineered specifically for demanding laser cutting processes, the Hertz FRECON PLUS PM LASER 11 delivers reliable, clean, dry, and stable compressed air at up to 16 bar (232 psi), eliminating the need for an external booster. Featuring IE5 ultra-premium efficiency IPM (Internal Permanent Magnet) motor and advanced VSD technology, it achieves up to 55% energy savings compared to fixed-speed models, while maintaining constant output pressure for consistent cut quality.
Key Features & Benefits
- Motor Power: 11 kW / 15 HP – IE5 high-efficiency IPM electric motor with F-class insulation, grease-free bearings, and soft start for extended life and low peak currents.
- Pressure Range: Optimized for 16 bar (up to 20 bar variant available with high-pressure dryer).
- Capacity (FAD – Free Air Delivery at 16 bar): Min 0.16 m³/min (6 cfm) – Max 0.87 m³/min (31 cfm).
- Energy Efficiency: Up to 55% savings* via variable speed drive; constant pressure operation even with fluctuating demand.
- Compact & Quiet Design: One of the smallest footprints in its class; low noise level ~74 dB(A).
- Configuration Options: Tank-mounted with 500L receiver + integrated dryer (recommended for laser applications to ensure dry air); base-mounted also available.
- Clean Air Output: Advanced filtration and high-efficiency oil separation (1-3 mg/m³ residual oil) for high-quality, oil-free compressed air suitable for precision laser cutting.
- Durability & Maintenance: High-pressure-resistant cooling system, new-generation screw block, spin-on separator, user-friendly control panel.
- Connection: G3/4” air outlet.
- Dimensions & Weight (Tank + Dryer version): Approx. 1890 × 730 × 1700 mm; ~376 kg (16 bar model).
- Ideal For: Fiber laser cutters, CO₂ laser machines, sheet metal fabrication requiring stable high-pressure air.
*Compared to non-inverter compressors in variable-demand applications. Performances per ISO 1217:2009 Annex C.
Why Choose Hertz LASER Series? No booster required → Lower installation costs and simpler setup. Superior cut quality with stable pressure. Energy-efficient VSD + PM motor reduces operating expenses significantly.
