Hertz FRECON PLUS pm 7.5kw VSD Direct Drive Tank Mounted Screw Air Compressor
Couldn't load pickup availability
Accepted Payments
Ask The Experts!

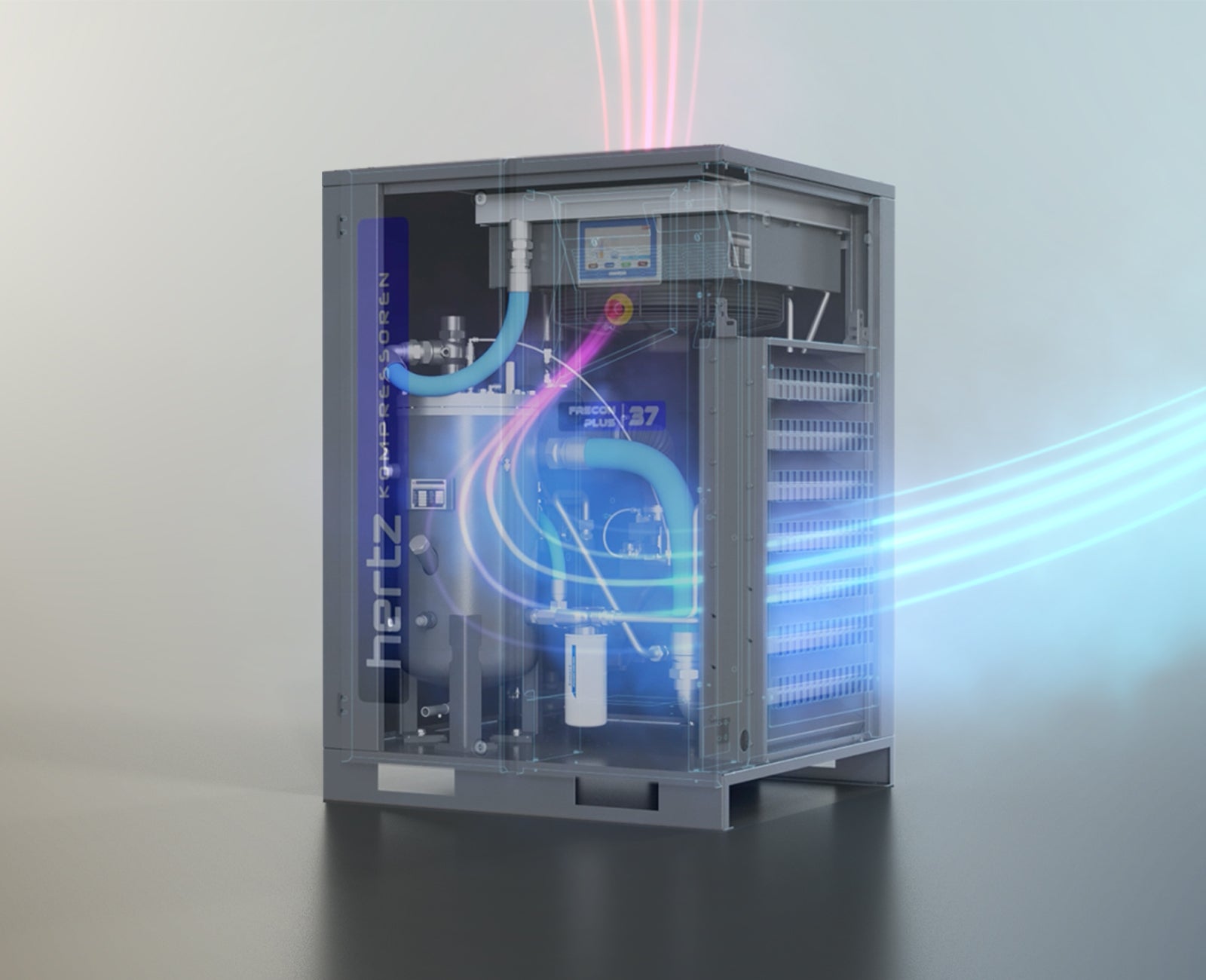

Enhance your industrial efficiency with the Hertz FRECON PLUS PM 7.5kW VSD Direct Drive Tank Mounted Screw Air Compressor, a high-performance, energy-efficient solution tailored for small to medium-sized workshops. This oil-injected rotary screw compressor features Variable Speed Drive (VSD) technology and an IE5 Ultra Premium Internal Permanent Magnet (IPM) motor, delivering up to 55% energy savings by dynamically adjusting to air demand. Its compact, tank-mounted design, low noise operation, and advanced control system make it ideal for manufacturing, automotive, and woodworking industries, ensuring reliable, high-quality compressed air with minimal maintenance.
Why Choose the Hertz FRECON PLUS PM 7.5kW?
-
Energy Efficiency: Save up to 55% on energy costs with VSD and IE5 IPM motor technology, perfect for variable air demand.
-

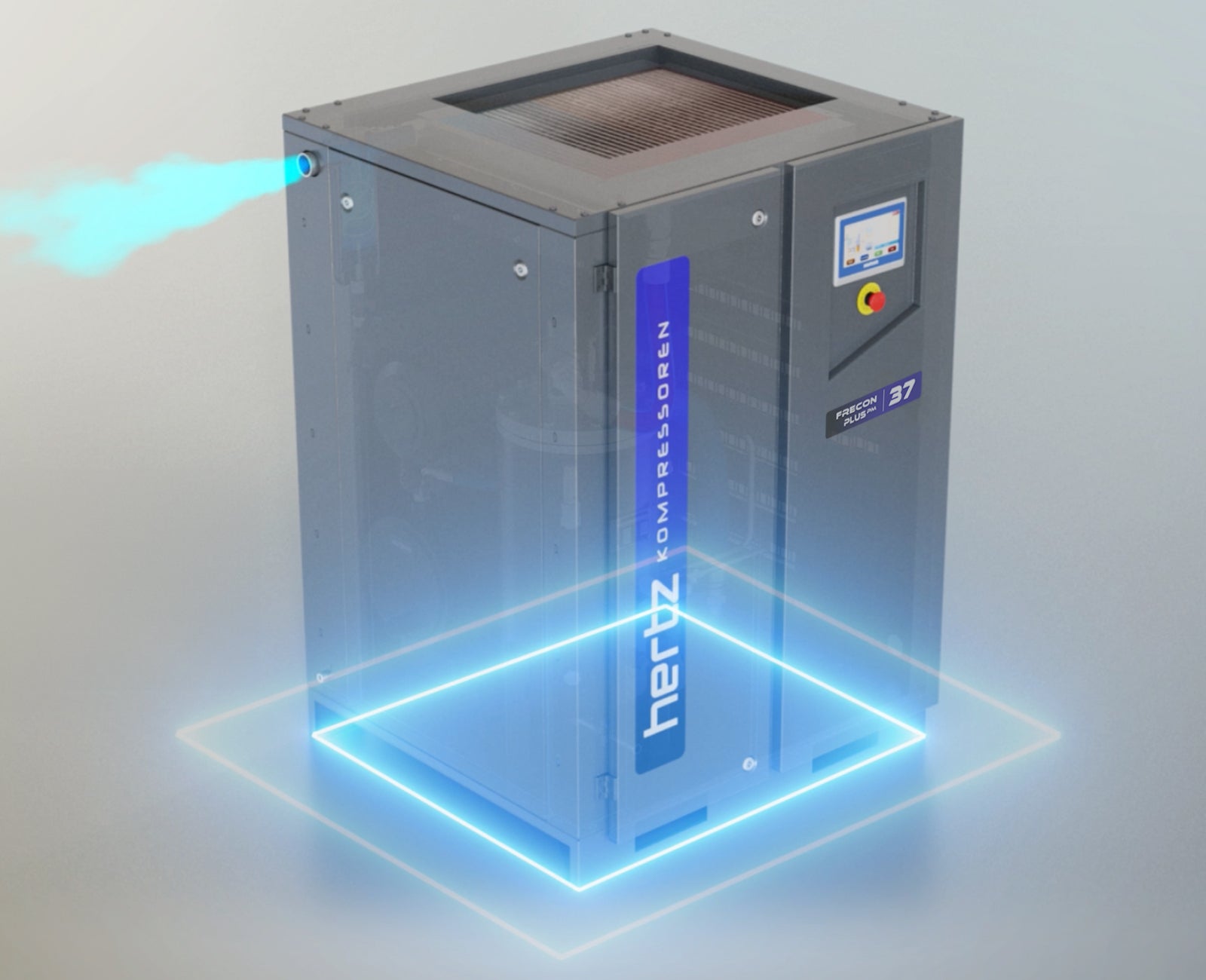

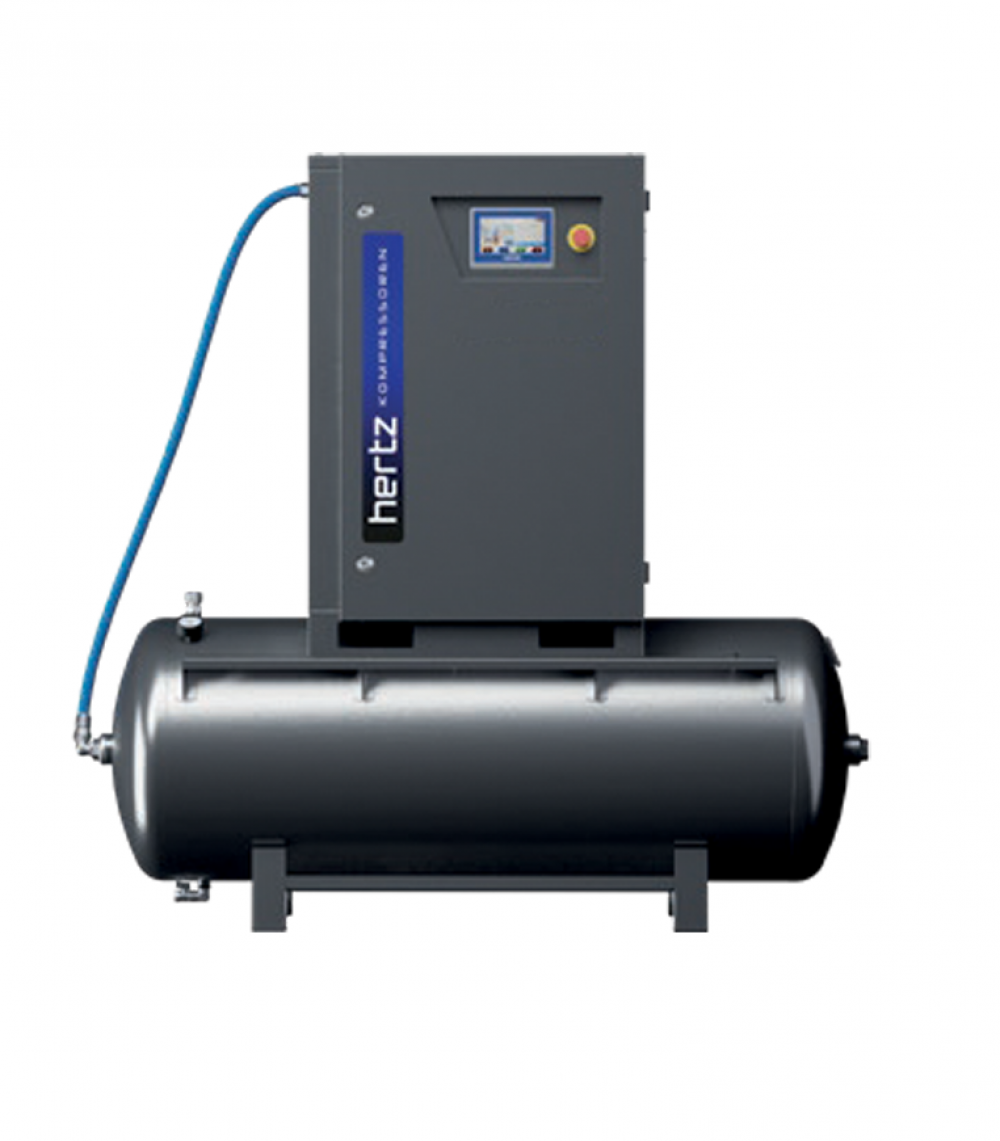

Compact Tank-Mounted Design: Integrated 250L air receiver minimizes footprint, ideal for space-constrained environments.
-
Low Noise Operation: Operates at 64 dB(A), ensuring a quiet working environment.
-

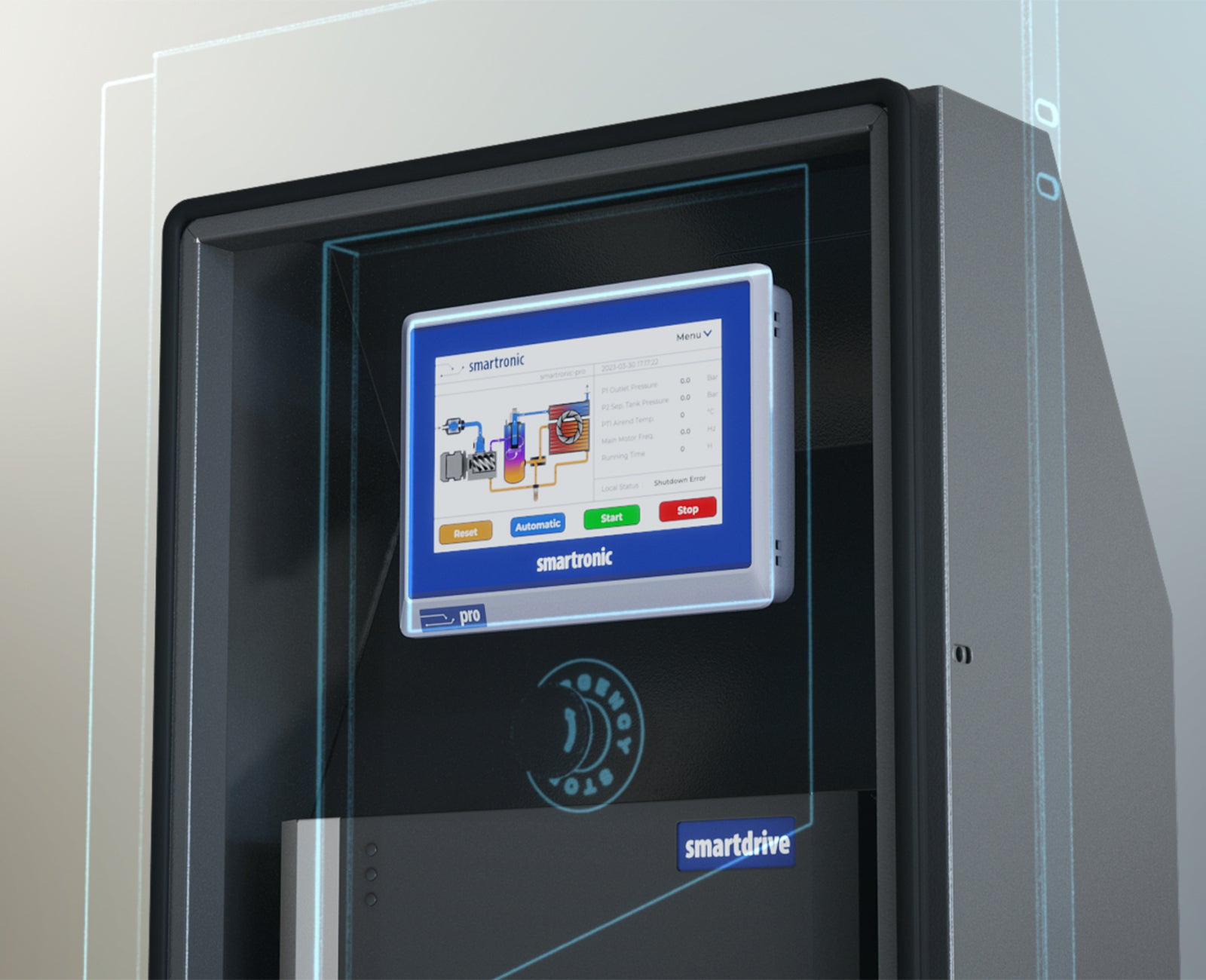

Advanced Control: 7” LED display with user-friendly interface, ModbusTCP connectivity, and support for group operation of up to 4 compressors.
-
Clean Air Output: Low oil carryover (1-3 mg/m³) ensures high-quality compressed air for sensitive applications.
-

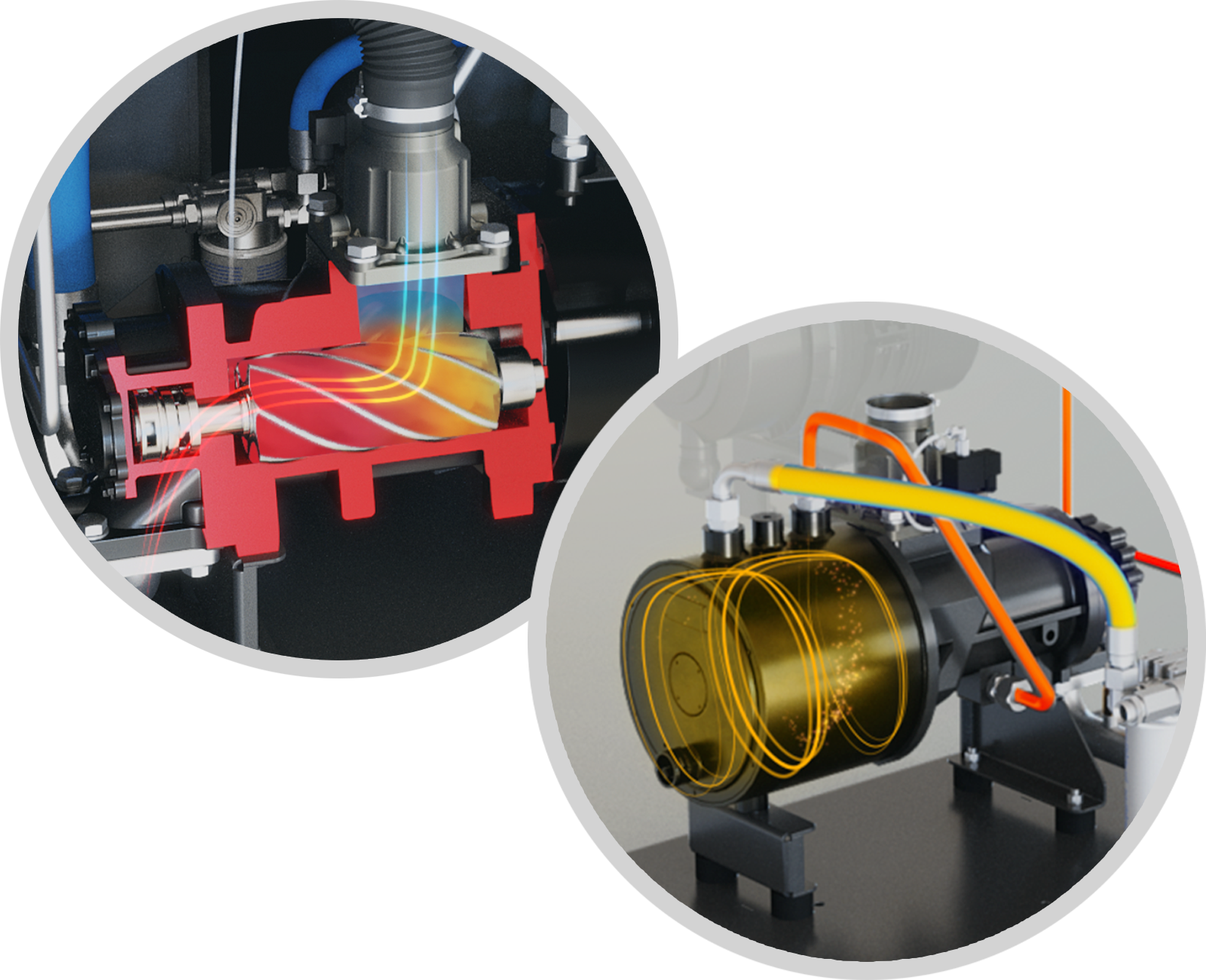

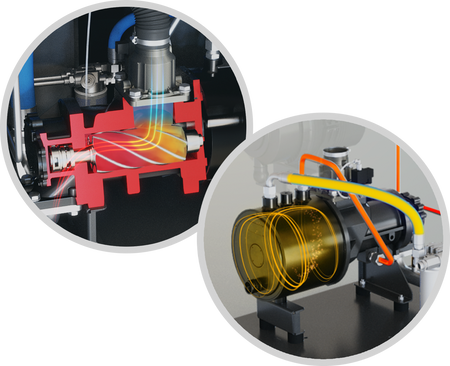

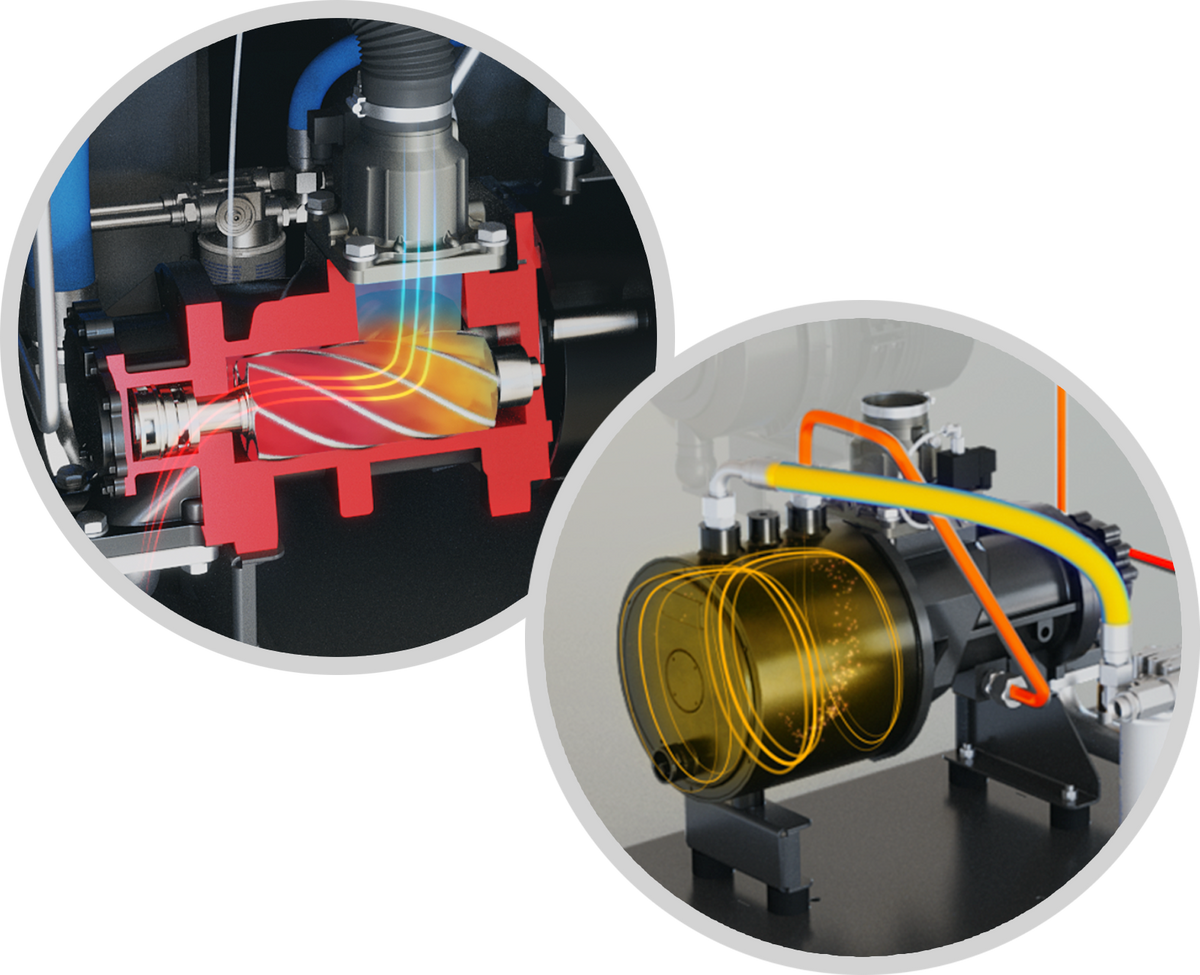

Durable Design: Direct-coupled drive and next-generation screw block enhance reliability and longevity.
Applications
The Hertz FRECON PLUS PM 7.5kW is perfect for powering pneumatic tools, CNC machines, spray painting systems, and small-scale production lines in industries such as:
-
Manufacturing
-
Automotive repair
-
Woodworking
-
Small to medium workshops
Technical Specifications
|
Specification |
Details |
|---|---|
|
Model |
FRECON PLUS PM 7 |
|
Pressure (bar/psi) |
7.5 / 110, 8.5 / 125, 10 / 145, 13 / 190 |
|
Capacity (Min, m³/min - cfm) |
7.5 bar: 0.32 / 11.3, 8.5 bar: 0.31 / 10.9, 10 bar: 0.27 / 9.5, 13 bar: 0.42 / 14.8 |
|
Capacity (Max, m³/min - cfm) |
7.5 bar: 1.24 / 43.9, 8.5 bar: 1.13 / 39.8, 10 bar: 1.00 / 35.3, 13 bar: 0.74 / 26.2 |
|
Motor Power (kW/HP) |
7.5 / 10 |
|
Connection Size |
G 1/2” |
|
Dimensions (LxWxH, mm) |
1830 x 680 x 1600 |
|
Weight (kg) |
270 |
|
Air Receiver |
250L |
|
Noise (dB(A)) |
64 |
Note: Performance measured per ISO 1217:2009, Annex E (1 bar absolute, 0% humidity, 20°C inlet air, 71°C thermostatic valve). Specifications may change without notice
