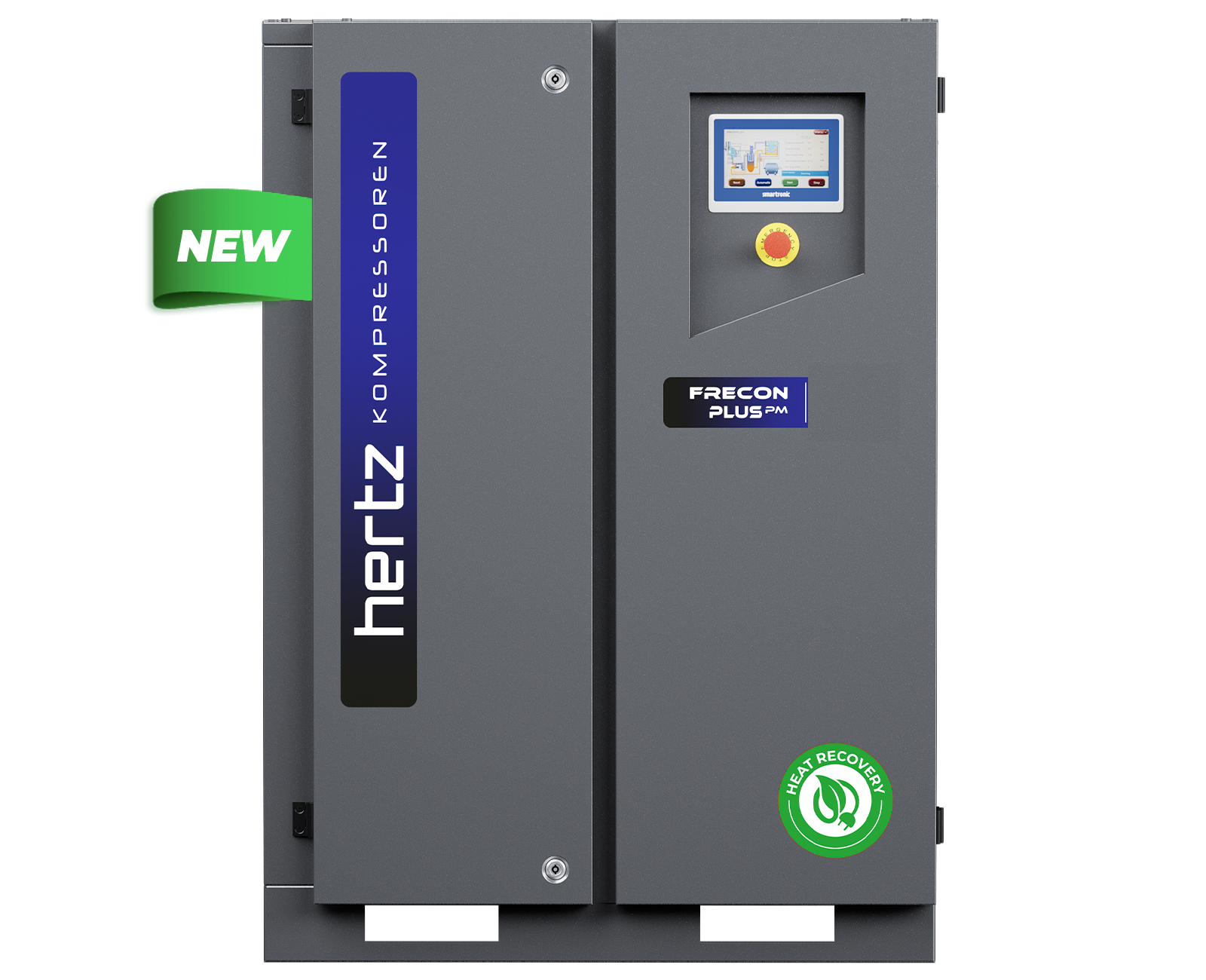

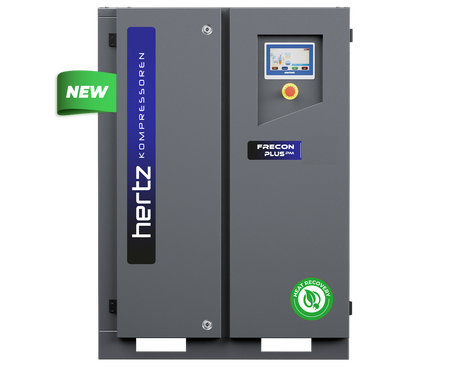

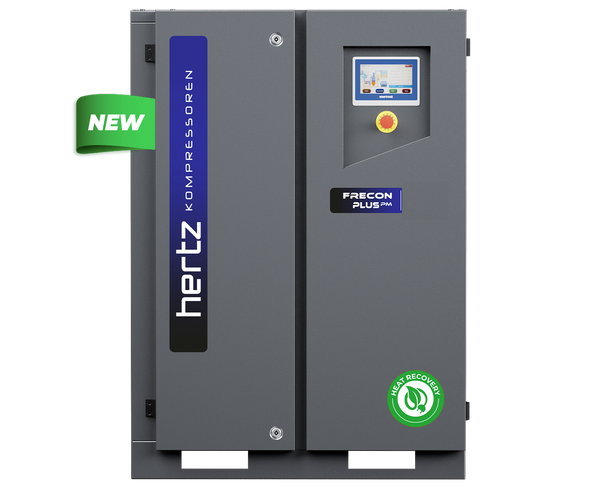

Hertz FRECON PLUS pm 55kw VSD Direct Drive Base Mounted Screw Air Compressor
Couldn't load pickup availability
Accepted Payments
Ask The Experts!
Elevate your industrial operations with the Hertz FRECON PLUS PM 55kW VSD Direct Drive Base Mounted Screw Air Compressor, a high-performance, energy-efficient solution designed for large-scale industrial applications. This oil-injected rotary screw compressor features Variable Speed Drive (VSD) technology and an IE5 Ultra Premium Internal Permanent Magnet (IPM) motor, delivering up to 55% energy savings by dynamically adjusting to air demand. Its robust design, low noise operation, and advanced control system make it ideal for manufacturing, automotive, and woodworking industries, ensuring reliable, high-quality compressed air with minimal maintenance.
Why Choose the Hertz FRECON PLUS PM 55kW?
-
Energy Efficiency: Achieve up to 55% energy savings with VSD and IE5 IPM motor technology, ideal for variable air demand applications.
-
Quiet Operation: Operates at 71 dB(A), suitable for noise-sensitive environments.
-
Advanced Control: 7” LED display with user-friendly interface, ModbusTCP connectivity, and support for group operation of up to 4 compressors.
-
Clean Air Output: Low oil carryover (1-3 mg/m³) ensures high-quality compressed air for sensitive applications.
-
Durable Design: Direct-coupled drive and next-generation screw block enhance reliability and longevity.
Technical Specifications
|
Specification |
Details |
|---|---|
|
Model |
FRECON PLUS PM 55 |
|
Pressure (bar/psi) |
7.5 / 110, 8.5 / 125, 10 / 145 |
|
Capacity (Min, m³/min - cfm) |
7.5 bar: 1.45 / 51.2, 8.5 bar: 1.45 / 51.2, 10 bar: 1.45 / 51.2 |
|
Capacity (Max, m³/min - cfm) |
7.5 bar: 9.60 / 339.0, 8.5 bar: 8.90 / 314.3, 10 bar: 8.20 / 289.6 |
|
Motor Power (kW/HP) |
55 / 75 |
|
Connection Size |
G 1 1/2” |
|
Dimensions (LxWxH, mm) |
1095 x 1300 x 1600 |
|
Weight (kg) |
860 |
|
Air Receiver |
N/A |
|
Noise (dB(A)) |
71 |
Note: Performance measured per ISO 1217:2009, Annex E (1 bar absolute, 0% humidity, 20°C inlet air, 71°C thermostatic valve). Specifications may change without notice. Capacity data for 10 bar sourced from Hertz FRECON55-10 specifications.
