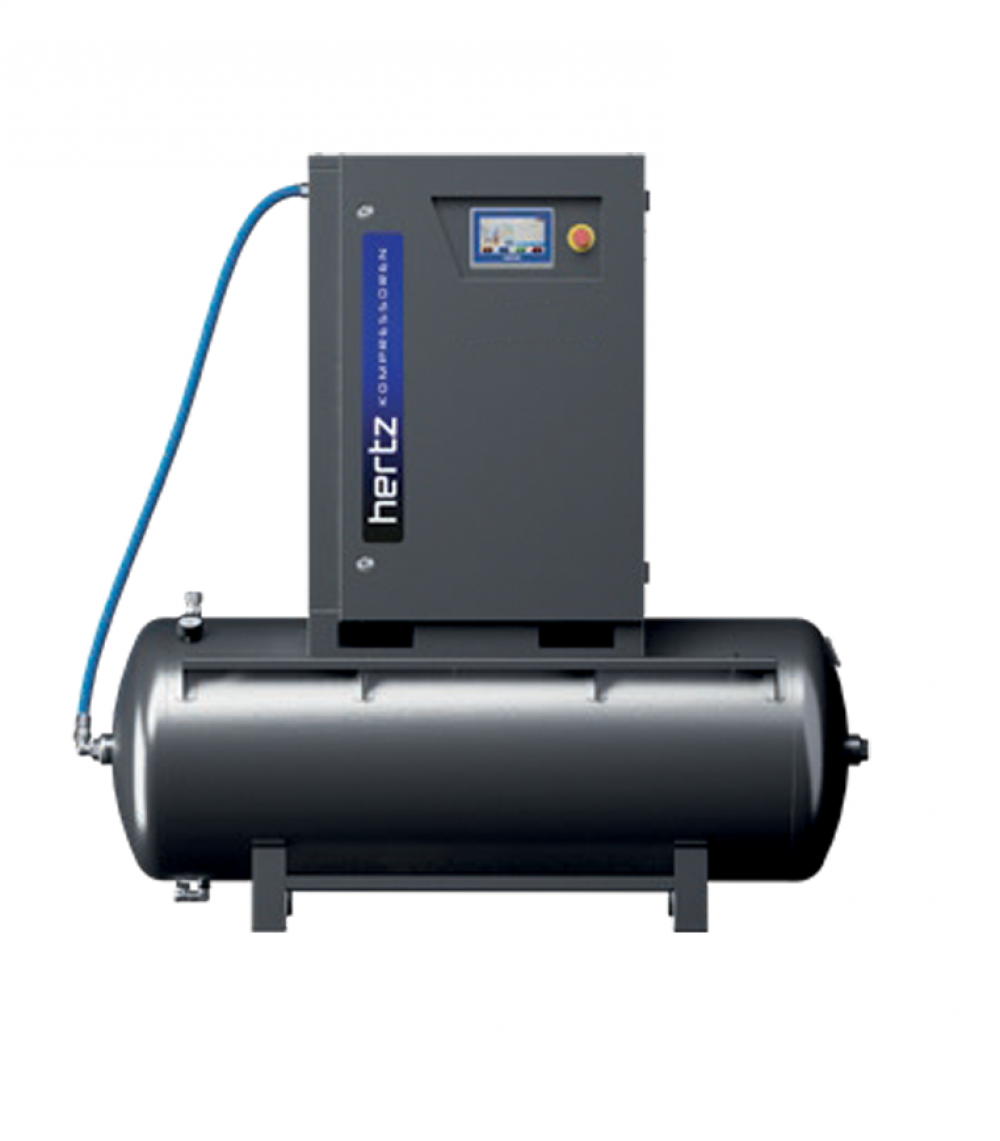

Hertz FRECON PLUS pm 15kw VSD Direct Drive Tank Mounted Screw Air Compressor
Couldn't load pickup availability
Accepted Payments
Ask The Experts!
Maximize your industrial efficiency with the Hertz FRECON PLUS PM 15kW VSD Direct Drive Tank Mounted Screw Air Compressor, a high-performance, energy-efficient solution designed for medium-sized industrial applications. This oil-injected rotary screw compressor integrates Variable Speed Drive (VSD) technology and an IE5 Ultra Premium Internal Permanent Magnet (IPM) motor, delivering up to 55% energy savings by dynamically adjusting to air demand. Its compact, tank-mounted design, low noise operation, and advanced control system make it ideal for manufacturing, automotive, and woodworking industries, ensuring reliable, high-quality compressed air with minimal maintenance.
Why Choose the Hertz FRECON PLUS PM 15kW?
-
Energy Efficiency: Achieve up to 55% energy savings with VSD and IE5 IPM motor technology, perfect for variable air demand applications.
-
Compact Tank-Mounted Design: Integrated 250L air receiver minimizes footprint, ideal for space-constrained environments.
-
Low Noise Operation: Operates at 69 dB(A), ensuring a quiet working environment.
-
Advanced Control: 7” LED display with user-friendly interface, ModbusTCP connectivity, and support for group operation of up to 4 compressors.
-
Clean Air Output: Low oil carryover (1-3 mg/m³) ensures high-quality compressed air for sensitive applications.
-
Durable Design: Direct-coupled drive and next-generation screw block enhance reliability and longevity.
Applications
The Hertz FRECON PLUS PM 15kW is ideal for powering pneumatic tools, CNC machines, spray painting systems, and medium-scale production lines in industries such as:
-
Manufacturing
-
Automotive repair
-
Woodworking
-
Medium-sized workshops
Technical Specifications
|
Specification |
Details |
|---|---|
|
Model |
FRECON PLUS PM 15 |
|
Pressure (bar/psi) |
7.5 / 110, 8.5 / 125, 10 / 145, 13 / 190 |
|
Capacity (Min, m³/min - cfm) |
7.5 bar: 0.75 / 26.5, 8.5 bar: 0.73 / 25.8, 10 bar: 0.6 / 21.2, 13 bar: 0.59 / 20.8 |
|
Capacity (Max, m³/min - cfm) |
7.5 bar: 2.5 / 88.3, 8.5 bar: 2.3 / 81.3, 10 bar: 1.94 / 68.4, 13 bar: 1.36 / 48 |
|
Motor Power (kW/HP) |
15 / 20 |
|
Connection Size |
G 3/4” |
|
Dimensions (LxWxH, mm) |
1870 x 730 x 1700 |
|
Weight (kg) |
423 |
|
Air Receiver |
250L |
|
Noise (dB(A)) |
69 |
Note: Performance measured per ISO 1217:2009, Annex E (1 bar absolute, 0% humidity, 20°C inlet air, 71°C thermostatic valve). Specifications may change without notice.
