Boost Your Compressed Air System with the ABAC 270L Galvanised Receiver Tank

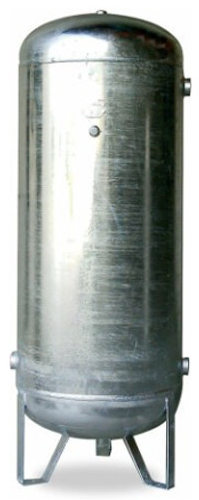

Upgrade your industrial setup with the ABAC Galvanised 270L Vertical Compressed Air Receiver Tank (Part Number: 4101000906). Engineered for durability and efficiency, this robust tank stores compressed air, stabilizes pressure peaks, and ensures a consistent air flow for demanding applications. Its galvanised finish offers superior corrosion resistance, making it perfect for harsh environments, both indoors and outdoors.

Manufactured by ABAC, a leader in compressed air solutions, this 270-litre tank is ideal for workshops, manufacturing plants, and industrial facilities needing reliable air storage. The included fittings kit simplifies installation, ensuring seamless integration into your compressed air system.

Key Features

• 270-Litre Capacity: Increased storage for high air consumption, reducing compressor workload.

• 11 Bar Pressure Rating: Designed for high-pressure applications, ensuring reliable performance.

• Galvanised Steel Construction: Zinc-coated for corrosion resistance, ideal for outdoor or humid conditions.

• Pressure Stabilization: Minimizes fluctuations for smoother operation and reduced compressor wear.

• Condensate Management: Performs preliminary separation to reduce moisture and protect equipment.

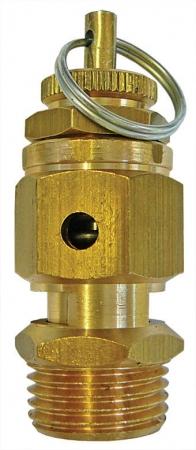

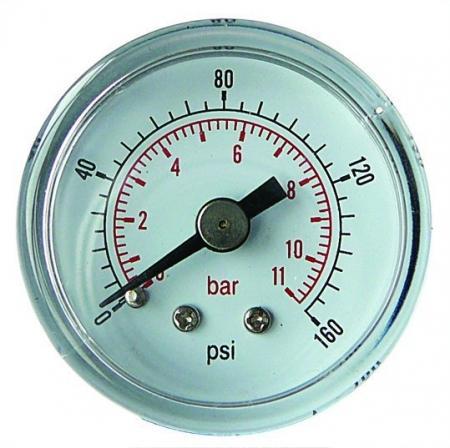

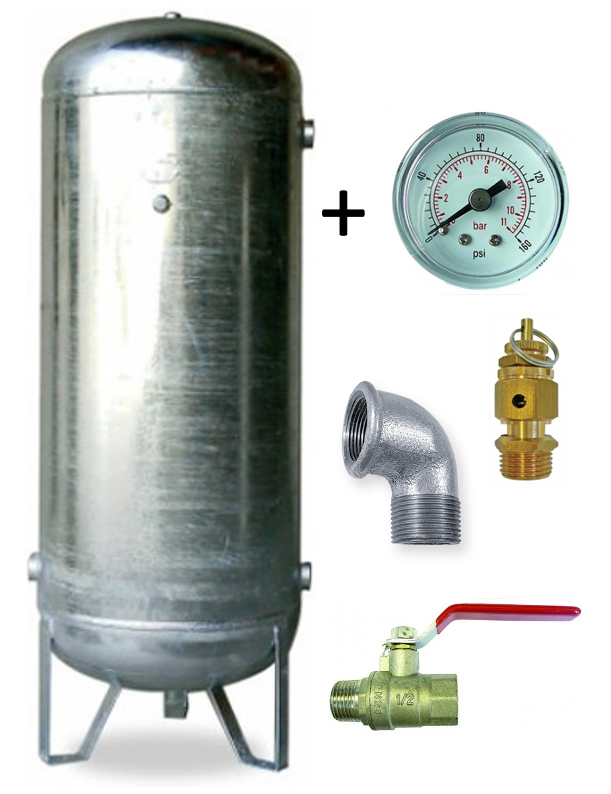

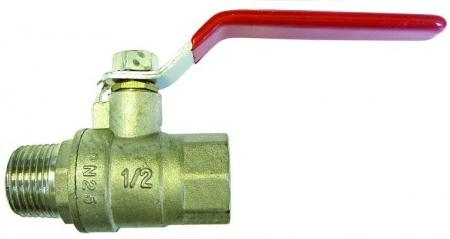

• Fittings Kit Included: Comes with safety valve, pressure gauge, elbow, and ball valve drain for easy setup.

• CE Certified: Complies with 2009/105/EC Directive for safety and quality.

Benefits

• Improved Compressor Longevity: Reduces frequent start/stop cycles, extending equipment life.

• Versatile Use: Suitable for a wide range of compressed air systems, from small shops to large factories.

• Low Maintenance: Galvanised coating minimizes upkeep, saving time and costs.

• Reliable Operation: Prevents pressure drops, ensuring consistent performance for tools and machinery.

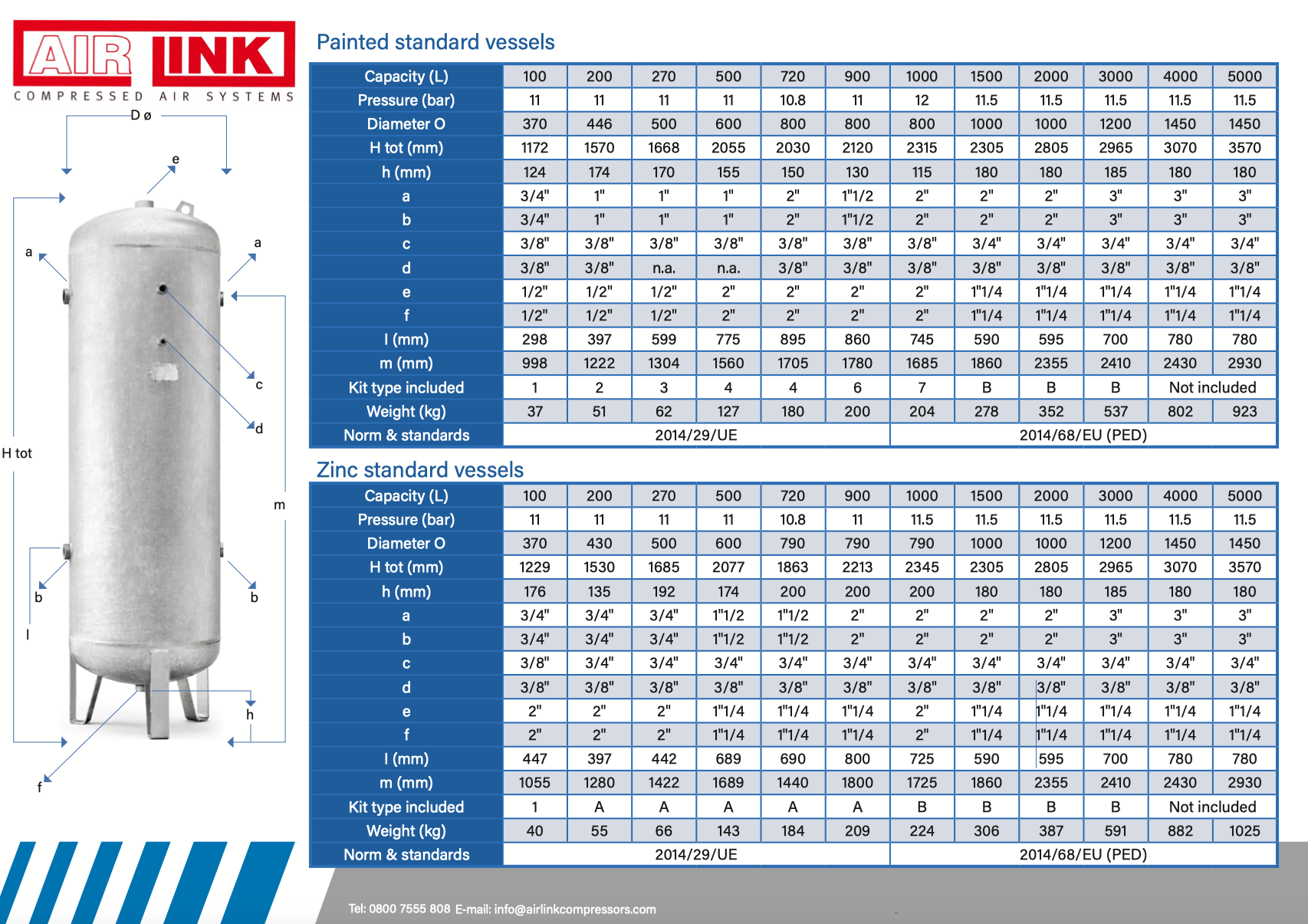

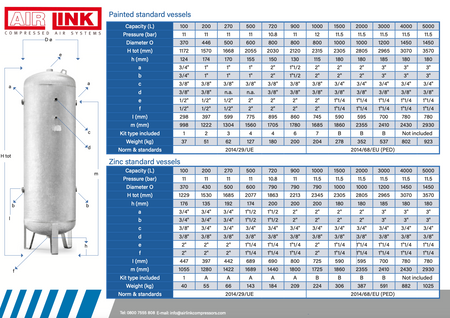

Technical Specifications

• Part Number: 4101000906

• Capacity: 270 Litres

• Max Working Pressure: 11 Bar

• Treatment: Galvanised (Zinc-Coated)

• Height x Diameter: Approx. 1600 mm x 450 mm (estimated based on industry standards for 270L tanks)

• Port Connection: BSP F 1" (based on similar models)

• Weight: Approx. 65 kg (estimated, scaled from 200L model’s 55 kg)

• Fittings Kit: Kit A (Safety Valve, Pressure Gauge, Elbow, Ball Valve Drain)

• Certification: CE Marked (2009/105/EC)
