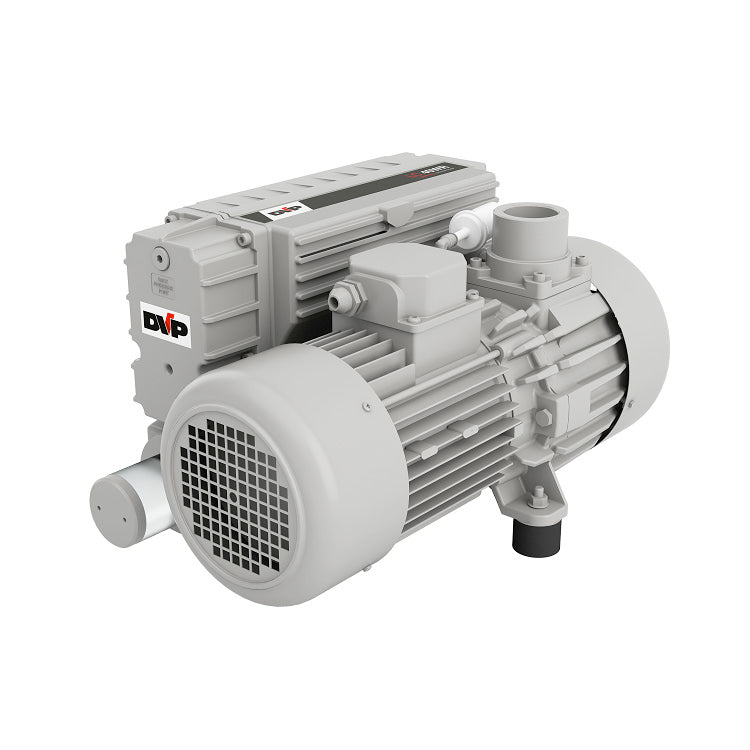

The DVP LC40WR Oil Lubricated Rotary Vane Vacuum Pump is a powerful 1.1 Kw pump designed for optimal oil lubrication. With smooth and efficient operation, this pump is perfect for high-performance industrial applications. Trust in its reliable performance and superior quality for all your vacuum pumping needs.
• Oil check valve
• Exhaust mist eliminator
• Automatic floating oil recovery valve
• Gas ballast continuously working
• Shock mounts
• Oil level switch
• Pack of SW60 oil
LC 40WR and LC 60WR lubricated rotary vane pumps are equipped with a device which splits oil and water condensate, being the latter expelled when the pump is stopped. As a result of this construction it is possible to use LC 40WR and LC 60WR in applications where very high concentrations of water vapour might be present, and where standard pumps could not be used.
Nominal capacity: 40 – 72 m3/h 28.3 – 42.4 CFM
|
LC.40WR |
LC.60WR |
|||
|
50Hz |
60Hz |
50Hz |
60Hz |
|
|
Catalogue code |
9690036 |
9690037 |
||
|
Nominal capacity m³/h |
40 |
48 |
60 |
72 |
|
Total final pressure (Abs) mbar - hPa |
4 |
|||
|
Max inlet pressure for water vapour mbar - hPa |
40 |
50 |
||
|
Max water vapour pumping rate kg/h |
1,3 |
2,4 |
||
|
Motor power (3~) kW |
1,1 |
1,35 |
1,5 |
1,8 |
|
iNominal r.p.m. n/min |
1400 |
1700 |
1400 |
1700 |
|
Noise level (UNI EN ISO 2151 - K 3dB) dB(A) |
64 |
66 |
66 |
68 |
|
Weight (3~) kg [N] |
42 [378] |
44 [396] |
||
|
Type of oil cod. DVP |
SW60 (BV68) |
|||
|
Oil quantity min ÷ max dm3 |
1,1 ÷ 1,7 |
|||
|
Pump intake / outlet |
1-1/2”G / 1-1/4”G |
|||
|
Continuous-duty working range (Abs) mbar - hPa |
400 ÷ 4 |
|||
|
Operating temperature @ 20°C °C |
75 ÷ 80 |
80 ÷ 85 |
80 ÷ 85 |
85 ÷ 90 |
|
Required room temp. for place of installation °C |
12 ÷ 40 |
|||
|
Ambient temperature for storage/transport °C |
-20 ÷ 50 |
|||
|
Max humidity / altitude |
80% / 1000m s.l.m. * |
|||
