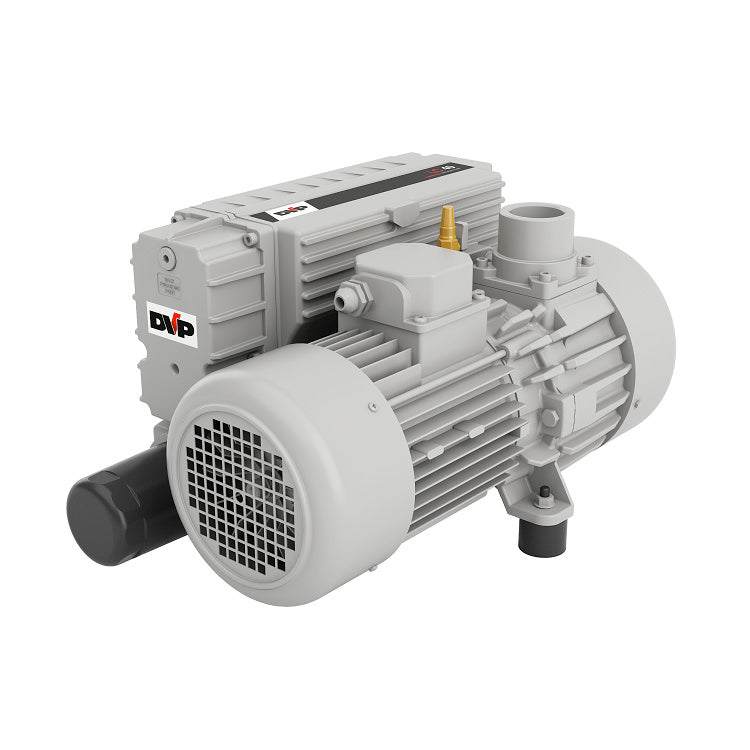

This DVP LC40 Oil Lubricated Rotary Vane Vacuum Pump is designed for efficient and reliable operation, with a 1.1 Kw motor for powerful performance. The oil lubrication helps to reduce maintenance and increase longevity, making it a cost-effective choice. Perfect for industrial and scientific uses.
• Oil check valve
• Exhaust mist eliminator
• Automatic floating oil recovery valve
• Gas ballast with manual cut-off valve
• Shock mounts
• Oil filter with by-pass
• Pack of BV68 oil
Compact design, low noise level, ease of oil check and refill and simplified maintenance operation, are the main features of LC 40 and LC 60 lubricated rotary vane vacuum pumps. The damping and recovery system, equipped with a by-pass, together with the new float type oil recovery valve, ensures the absence of oil vapors at the outlet. Moreover, a sealing device prevents the oil from being sucked back should the pump stops under vacuum. Only hazardous parts have been housed in order to improve both the cooling and the appearance of the pumps.
Nominal capacity: 40 – 72 m3/h 28.3 – 42.4 CFM
|
LC.40 |
LC.60 |
|||
|
50 Hz |
60 Hz |
50 Hz |
60 Hz |
|
|
Catalogue code |
9601067 |
9601068 |
||
|
Nominal capacity m³/h |
40 |
48 |
60 |
72 |
|
Total final pressure (Abs) with gas ballast closed mbar - hPa |
0,1 |
|||
|
Max inlet pressure for water vapour mbar - hPa |
14 * |
|||
|
Max water vapour pumping rate kg/h |
0,5 * |
0,7 * |
||
|
Motor power (1~/3 ~) kW |
1,1 / 1,1 |
1,35 / 1,35 |
1,5 / 1,5 |
1,8 / 1,8 |
|
Nominal r.p.m. n/min |
1400 |
1700 |
1400 |
1700 |
|
Noise level (UNI EN ISO 2151 - K 3dB) dB(A) |
64 |
66 |
66 |
68 |
|
Weight (1~/3~) kg [N] |
46,5 [418] / 42 [378] |
46 [414] / 44 [396] |
||
|
Type of oil cod. DVP |
BV68 (SW60) |
|||
|
Oil quantity min ÷ max dm3 |
1 ÷ 1,5 |
|||
|
Pump intake / outlet |
1-1/2”G / 1-1/4”G |
|||
|
Operating temperature @ 20°C °C |
65 ÷ 70 |
70 ÷ 75 |
70 ÷ 75 |
75 ÷ 80 |
|
Continuous-duty working range (Abs) mbar - hPa |
400 ÷ 0,1 |
|||
|
Required room temp. for place of installation °C |
12 ÷ 40 |
|||
|
Ambient temperature for storage/transport °C |
-20 ÷ 50 |
|||
|
Max humidity / altitude |
80% / 1000m s.l.m. ** |
|||
