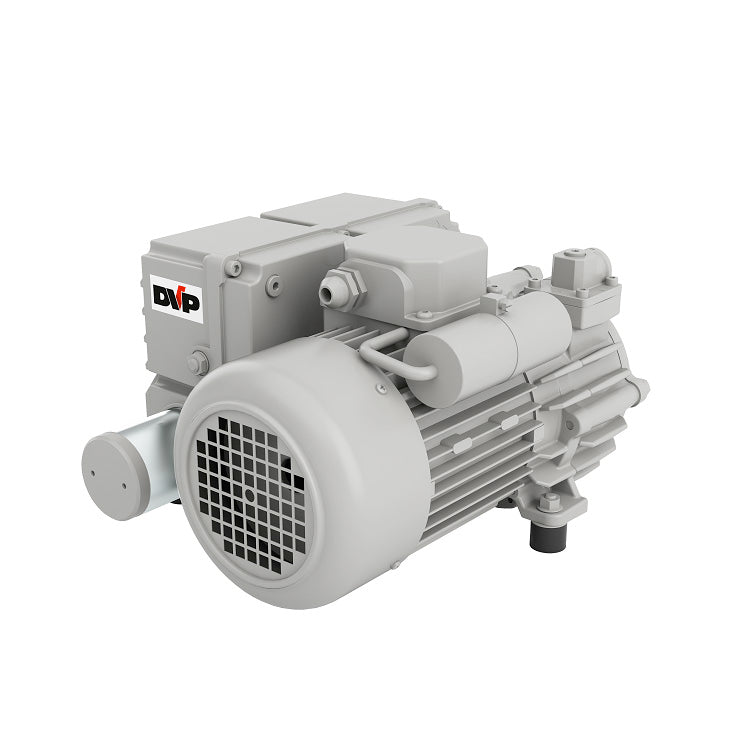

The DVP LC25WR Oil Lubricated Rotary Vane Vacuum Pump offers powerful and efficient performance with its 0.75 Kw motor. Its oil lubricated design ensures smooth operation and long-lasting durability. Perfect for industrial applications, this vacuum pump is a reliable and valuable addition to any work environment.
- Oil check valve
- Exhaust mist eliminator
- Automatic floating oil recovery valve
- Gas ballast continuously working
- Oil level switch
- Shock mounts
- Thermal protector (1~ only)
- Pack of SW60 oil
LC 25WR lubricated rotary vane vacuum pump has the same features as LC 25WR, but it is equipped with a device which splits oil and water condensate, being the latter expelled when the pump is stopped. As a result of this construction it is possible to use LC 25WR in applications where very high concentrations of water vapour might be present, and where standard pumps could not be used. The LC 25WR is suitable for continuous suction within a pressure range from 400 to 4 mbar (Abs.).
Nominal capacity: 25 – 29 m3/h 17.1 CFM
|
LC.25WR |
||
|
50Hz |
60Hz |
|
|
Catalogue code |
9690035 |
|
|
Nominal capacity m³/h |
25 |
29 |
|
Total final pressure (Abs) mbar - hPa |
4 |
|
|
Max inlet pressure for water vapour mbar - hPa |
60 |
|
|
Max water vapour pumping rate kg/h |
1,1 |
|
|
Motor power (1~/3~) kW |
0,75 |
0,90 |
|
Nominal r.p.m. n/min |
1400 |
1700 |
|
Noise level (UNI EN ISO 2151 - K 3dB) dB(A) |
57 |
59 |
|
Weight (1~/3~) kg [N] |
26,5 [260] / 25,5 [250] |
|
|
Type of oil cod. DVP |
SW60 (BV68) |
|
|
Oil quantity min ÷ max dm3 |
0,8 ÷ 1,1 |
|
|
Pump intake / outlet |
1/2”G / 1/2”G |
|
|
Continuous-duty working range (Abs) mbar - hPa |
400 ÷ 4 |
|
|
Operating temperature @ 20°C °C |
80 ÷ 85 |
85 ÷ 90 |
|
Required room temp. for place of installation °C |
12 ÷ 40 |
|
|
Ambient temperature for storage/transport °C |
-20 ÷ 50 |
|
|
Max humidity / altitude |
80% / 1000m s.l.m. * |
|
