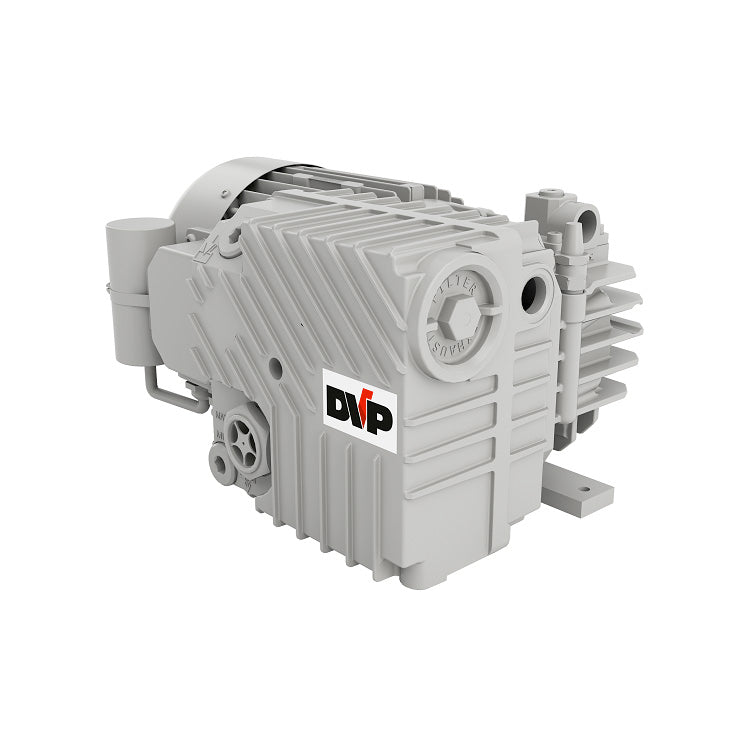

DVP LC25 Oil Lubricated Rotary Vane Vacuum Pump - 0.75 Kw
Couldn't load pickup availability
Accepted Payments
Ask The Experts!
The DVP LC25 Oil Lubricated Rotary Vane Vacuum Pump is a powerful tool with a 0.75 Kw motor. With its efficient rotary vane design, it provides reliable and consistent vacuum pressure, making it ideal for a variety of industrial applications. Its oil lubricated mechanism ensures long-lasting performance and a longer lifespan. Increase productivity and efficiency with this expertly engineered vacuum pump.
- Oil check valve
- Exhaust mist eliminator
- Automatic floating oil recovery valve
- Adjustable inlet fitting
- Continuously working gas ballast
- Shock mounts
- Thermal protector (1~ only)
- Pack of BV32 oil (LC 20)
- Pack of BV68 oil (LC 25)
Compact design, low noise level, simple oil check and refill and ease of maintenance are the the main features of LC 20 and LC 25 vacuum pumps. The damping and recovery system, equipped with a by-pass, together with the new float type oil recovery valve, ensures the absence of oil vapours at the outlet. Moreover, a sealing device prevents the oil from being sucked back should the pump stop under vacuum. Being oil lubricated rotary vane vacuum pumps, the LC 20 is suitable for continuous operation within a pressure range from 400 to 2 mbar (Abs.) and LC 25 from 400 to 0,5 mbar (Abs.).
|
LC.25 |
||
|
50 Hz |
60 Hz |
|
|
Catalog code |
9601065 |
|
|
Nominal capacity m³/h |
25 |
29 |
|
Total final pressure (Abs) mbar - hPa |
0,5 |
|
|
Max inlet pressure for water vapour mbar - hPa |
40 |
|
|
Max water vapour pumping rate kg/h |
0,7 |
|
|
Motor power (1~/3~) KW |
0,75 / 0,75 |
0,90 / 0,90 |
|
Nominal r.p.m. n/min |
1400 |
1700 |
|
Noise level (UNI EN ISO 2151 - K 3dB) dB(A) |
57 |
59 |
|
Weight (1~/3~) kg [N] |
26 [255,0] / 25 [245,3] |
|
|
Type of oil cod. DVP |
BV68 (SW60) |
|
|
Oil quantity min ÷ max dm3 |
0,7 ÷ 1,0 |
|
|
Pump intake / outlet |
1/2”G / 1/2”G |
|
|
Continuous-duty working range (Abs) mbar - hPa |
400 ÷ 0,5 |
|
|
Operating temperature @ 20°C °C |
80 ÷ 85 |
85 ÷ 90 |
|
Required room temp. for place of installation °C |
12 ÷ 40 |
|
|
Ambient temperature for storage/transport °C |
-20 ÷ 50 |
|
|
Max humidity / altitude |
80% / 1000m s.l.m * |
|
