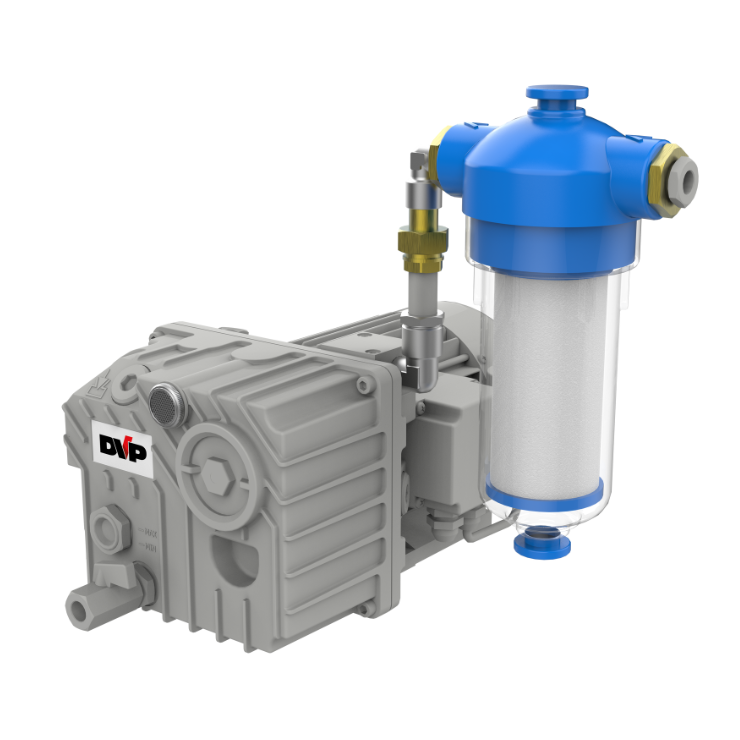

This DVP LC12WR Oil Lubricated Rotary Vane Vacuum Pump is a powerful and efficient solution for industrial vacuum needs. With a 0.45 Kw power output, it can quickly and effectively remove air from various systems and equipment. Its oil lubrication system ensures longevity and reliability, making it a valuable investment for any business.
- Oil check valve • Exhaust mist eliminator
- Gravity oil recovery valve
- Rotor and pump body NPO treated
- Thermal protector (1~ only)
- Pack of SW40 oil
LC 12WR lubricated rotary vane vacuum pump has the same features as LC 12 pump, but it is equipped with a device which splits oil and water condensate, being the latter expelled when the pump is stopped. As a result of this construction it is possible to use LC 12WR in applications where very high concentrations of water vapour might be present, and where standard pumps could not be used. The LC 12WR is suitable for continuous suction within a pressure range from 400 to 50 mbar (Abs.).
|
LC 12WR |
||
|
50 Hz |
60 Hz |
|
|
Catalogue code |
9690042 |
|
|
Nominal capacity m³/h |
12 |
14 |
|
Total final pressure (Abs) mbar - hPa |
50 |
|
|
Max inlet pressure for water vapour mbar - hPa |
35 |
|
|
Max water vapour pumping rate Kg/h |
0,30 |
|
|
Motor power (1~/3~) KW |
0,45 / 0,37 |
0,54 / 0,45 |
|
Nominal r.p.m. n/min |
2800 |
3300 |
|
Noise level (UNI EN ISO 2151 - K 3dB) dB(A) |
62 |
64 |
|
Weight (1~/3~) kg [N] |
17,5 [171,7] / 15 [147,1] |
|
|
Type of oil cod. DVP |
SW40 |
|
|
Oil quantity dm3 |
0,30 ÷ 0,40 |
|
|
Pump intake / outlet |
1/4″G / 1/2″G * |
|
|
Continuous-duty working range (Abs.) mbar - hPa |
400 ÷ 50 |
|
|
Operating temperature @ 20°C °C |
60 ÷ 65 |
65 ÷ 70 |
|
Required room temp. for place of installation °C |
12 ÷ 40 |
|
|
Ambient temperature for storage/transport °C |
-20 ÷ 50 |
|
|
Max humidity / altitude |
80% / 1000m s.l.m. ** |
|
