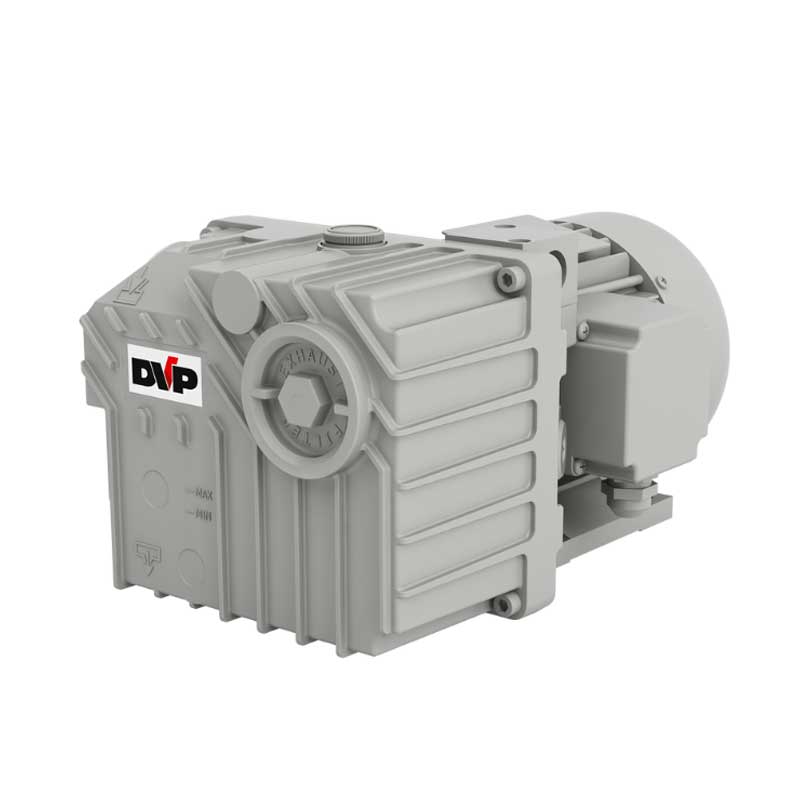

This DVP LC12 Oil Lubricated Rotary Vane Vacuum Pump is a reliable and efficient choice for industrial applications. With a power output of 0.45 Kw, it provides strong suction power while maintaining low noise levels. Its oil lubricated design ensures long-lasting performance, making it a cost-effective investment for your business.
- Oil check valve • Exhaust mist eliminator
- Gravity oil recovery valve
- Rotor and pump body NPO treated
- Thermal protector (1~ only)
The limited dimensions and the low final pressure (Abs.) attainable are the main features of LC 12 lubricated rotary vane vacuum pumps. An effective damping and recovery system in-built in the tank prevents any oil vapors at the exhaust. Moreover, a special sealing device prevents suck-back, should pump be stopped under vacuum. The intake can also be adjusted by the user, thanks to a special fitting. LC 12 pumps are suitable for evacuation of small closed vessels and for a continuous operation within a pressure range from 400 to 2 mbar (Abs).
The DVP LC 12 is available with a single or 3 phase motor.
|
LC.12 |
||
|
50Hz |
60Hz |
|
|
Catalogue code |
9601064 |
|
|
Nominal capacity m³/h |
12 |
14 |
|
Total final pressure (Abs) mbar - hPa |
2 |
|
|
Max inlet pressure for water vapour mbar - hPa |
35 |
|
|
Max water vapour pumping rate kg/h |
0,30 |
|
|
Motor power (1~/3~) KW |
0,45/0,37 |
0,55/0,45 |
|
Nominal r.p.m. n/min |
2800 |
3300 |
|
Noise level (UNI EN ISO 2151 - K 3dB) dB(A) |
62 |
64 |
|
Weight (1~/3~) kg [N] |
14 [137,3] / 12,5 [122,6] |
|
|
Type of oil cod. DVP |
BV32 (SW40) |
|
|
Oil quantity dm³ |
0,30 ÷ 0,40 |
|
|
Pump intake / outlet |
1/2”G / 1/2"G * |
|
|
Continuous-duty working range (Abs) mbar - hPa |
400 ÷ 2 |
|
|
Operating temperature @ 20°C °C |
60 ÷ 65 |
65 ÷ 70 |
|
Required room temp. for place of installation °C |
12 ÷ 40 |
|
|
Ambient temperature for storage/transport °C |
-20 ÷ 50 |
|
|
Max humidity / altitude |
80% / 1000m s.l.m. ** |
|
