Dropout DO300PA 1/2" 11 CFM 99.999% Bulk Water Removal Filter - DO300PA
Couldn't load pickup availability
Accepted Payments
Ask The Experts!

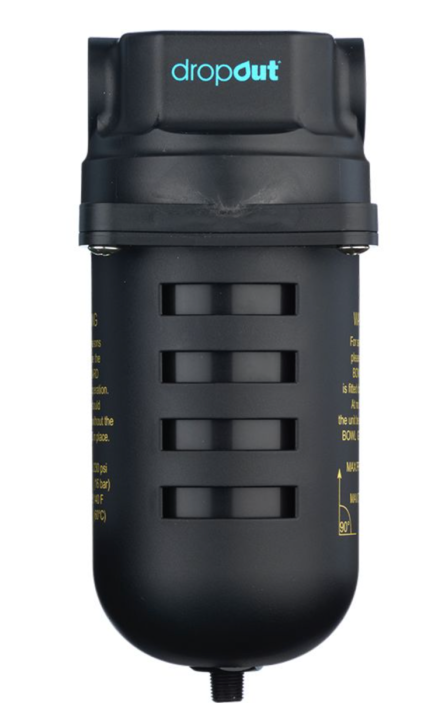

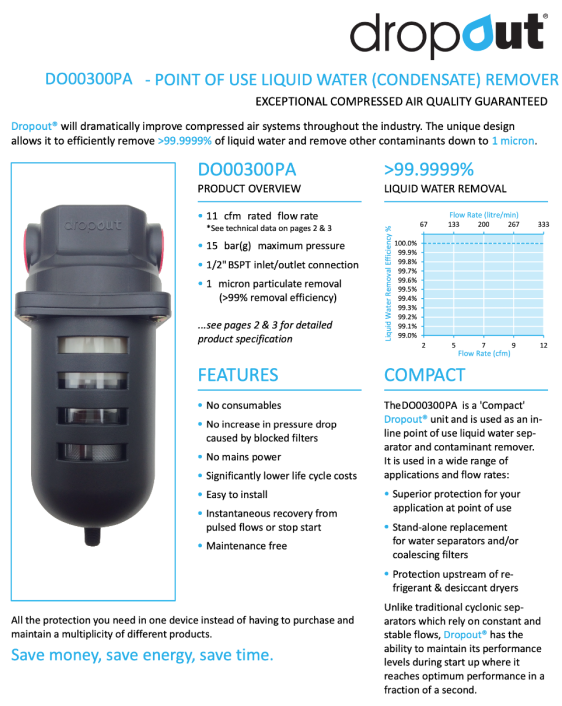

Introducing the Dropout DO300PA – your ultimate solution for eliminating moisture and contaminants from compressed air lines. This innovative 1/2" compact water separator efficiently removes 99.999% of bulk liquid water and oil, plus 99% of solid particulates down to 1 micron, without the hassle of replaceable filter elements or external power. Perfect for workshops, manufacturing, and pneumatic tool applications, it keeps your systems running smoothly and extends equipment life.
Engineered with patented Dropout technology, this filter uses centrifugal force and multi-stage separation to trap and eject water droplets automatically via its built-in auto-drain valve. Say goodbye to corrosion, freezing, and performance dips caused by wet air – and hello to reduced downtime and maintenance costs!
Key Features & Benefits
- Ultra-High Efficiency: Guarantees 99.999% removal of liquid water & oil, plus particulates ≥1 micron – far surpassing standard coalescing filters.
- High Flow Capacity: Handles up to 11 CFM (300 L/min) at 90 PSI, ideal for medium-duty compressed air systems.
- Easy Installation: 1/2" BSP ports for quick inline setup; compact nylon body (185mm height, 0.75kg weight) fits anywhere.
- Low Maintenance: No filter cartridges to replace – just periodic auto-drain checks for years of trouble-free operation.
- Versatile & Durable: Works in temperatures from 32°F to 140°F; protects against rust, tool damage, and inconsistent pressure.

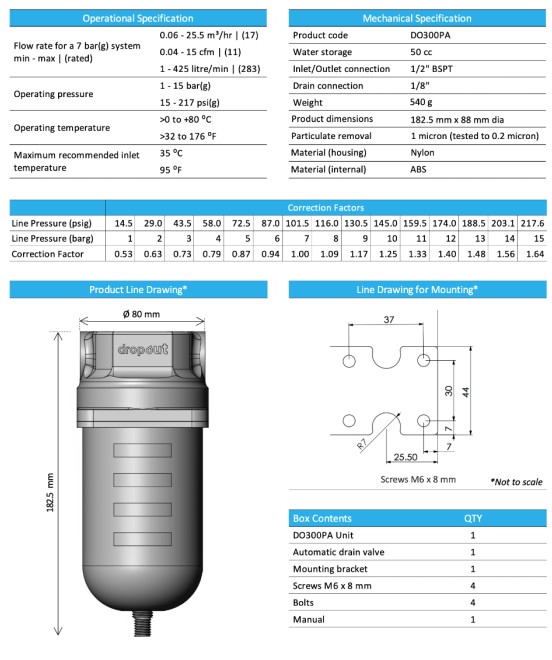

Technical Specifications
| Attribute | Details |
|---|---|
| Model | DO300PA |
| Port Size | 1/2" BSP |
| Flow Rate | 11 CFM (300 L/min) @ 90 PSI |
| Filtration Efficiency | 99.999% liquid removal; 99% solids to 1 micron |
| Drain Type | Automatic |
| Material | Nylon/Plastic Body |
| Pressure Range | Up to 232 PSI |
| Dimensions | 185mm (H) x Compact Design |
| Weight | 0.75 kg |
Why choose Dropout DO300PA? In demanding environments where every drop counts, this filter delivers unmatched reliability. Pair it with downstream carbon filters for total air purity. Order today and experience the difference in your compressed air performance!
