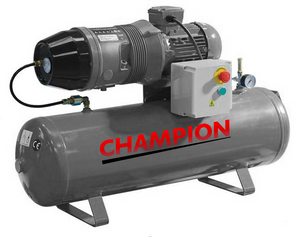

The Champion Vane Air Compressor 75L 230V 8.1 CFM - 502PURS102415D40C is an ideal solution for your heavy-duty air needs. This high-capacity compressor has a 230V motor and 75L tank, delivering 8.1 CFM at a maximum pressure of 8.6 bar. It provides reliable, powerful performance and long-lasting durability.
-
Champion brand: Champion is known for manufacturing high-quality, durable air compressors and air system products.
-
Vane Air Compressor: A vane air compressor, or rotary vane compressor, employs a rotor with several blades inserted in radial slots. This type of compressor is often used in various industries due to its reliability and efficiency.
-
75L: This likely refers to the tank size of the air compressor. A 75-liter tank is quite large, capable of handling a range of applications, from powering pneumatic tools to inflating tires and more.
-
230V: This unit needs to be run from a 230V 16amp 'D' rated supply.
-
8.1 CFM (Cubic Feet per Minute): This is the volume of air that the compressor can deliver per minute at a certain pressure. A CFM of 8.1 suggests a high-output compressor, suitable for heavy-duty tasks.
Technical Info
|
Model |
CMPV02 RM 75 Ltr Tank 230 |
|---|---|
|
Code |
502PURS102415D40C |
|
Dimensions |
1120 × 300 × 730 mm |
| Voltage |
230V/50Hz (16 amp 'D' Rated Supply) |
| Phase |
1 |
| Noise Level dB(A) |
69 |
| Flow Rate (FAD) CFM |
8.1 |
| Max Pressure BAR |
10 |
| Max Pressure PSI |
145 |
| Motor Power (kW) |
2.2 |
| Weight (kg) |
77 |
| db(A) |
69 |
| Air Outlet Size (") |
3/8 |
