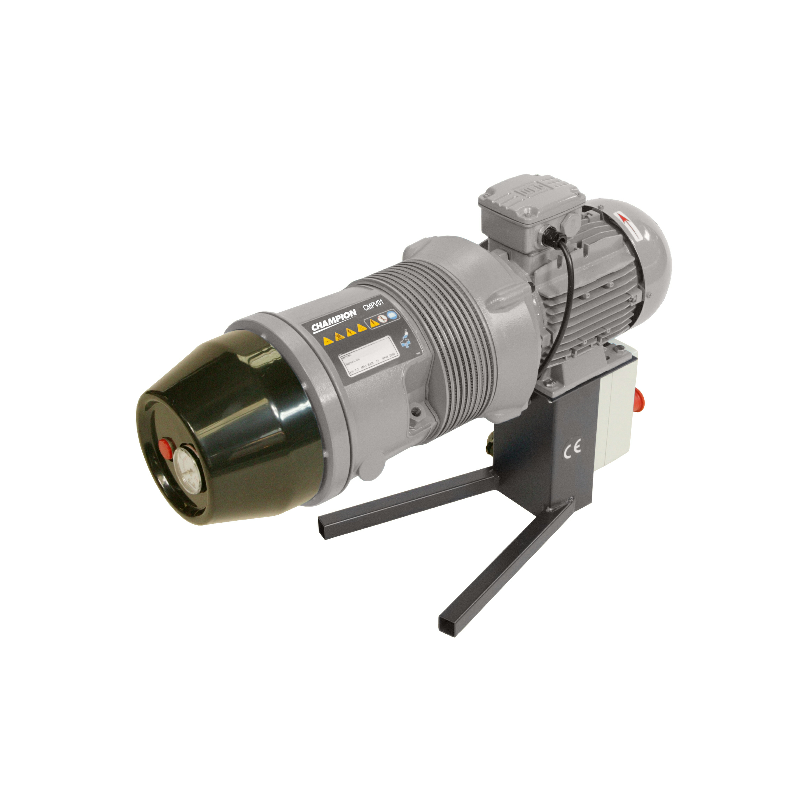

The Champion Tripod Vane Air Compressor 400V 8.1 CFM - 502PUTS104035D40C is an industry-standard piece of equipment ideal for professional applications. It boasts a 400V power supply and 8.1CFM delivery, making it ideal for intensive projects.
-
Champion brand: Champion is a reputable manufacturer known for their high-quality air compressors and air system products.
-
Tripod Vane Air Compressor: A rotary vane compressor uses a rotor with a number of blades inserted in radial slots in order to compress the air. The "tripod" descriptor refers to the design or stability of the compressor.
-
400V: This refers to the voltage at which the compressor operates. A 400V compressor is typically designed for heavy-duty or industrial applications.
-
8.1 CFM (Cubic Feet per Minute): This indicates the volume of air that the compressor can pump in one minute at a given pressure. An 8.1 CFM rating means the compressor can deliver a fair amount of air, making it suitable for a range of applications, including powering pneumatic tools, inflating tires, or various medium-duty tasks.
Technical Info
|
Model |
CMPV02 Tripod 400 |
|---|---|
|
Code |
502PUTS104035D40C |
|
Dimensions |
700 × 270 × 470 mm |
| Voltage |
400V/50Hz |
| Phase |
3 |
| Noise Level dB(A) |
69 |
| Flow Rate (FAD) CFM |
8.1 |
| Max Pressure BAR |
10 |
| Max Pressure PSI |
145 |
| Motor Power (kW) |
2.2 |
| Weight (kg) |
41 |
| db(A) |
69 |
| Air Outlet Size (") |
3/8 |
