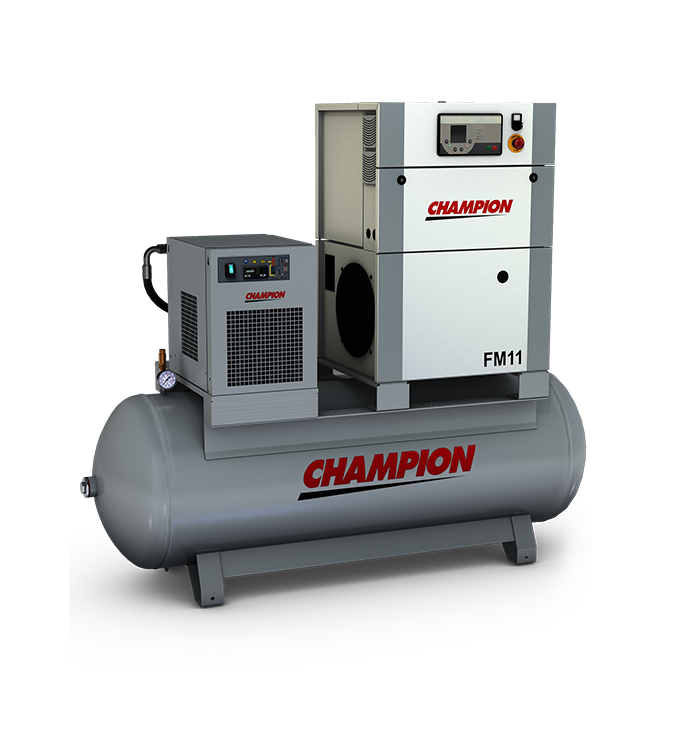

The Champion FM11/CT/270 10Bar 11kw 49cfm Full Feature Compressor - RSCCP1127V4 is a reliable and powerful solution for small or large businesses.
This compressor is designed to produce up to 49 cfm at 10 bar mounted on a 270L receiver along with a refrigerant dryer to remove moisture from the compressed air, providing optimal power density with minimal energy usage. This efficient compressor also features a belt drive design for great performance.
The generously sized ventilation system ensures optimum cooling, low outlet air temperatures best performance and reliability under harshest conditions. The air ends are designed with a focus on reliability and efficiency, a key feature is a flat specific power consumption curve, which enables efficient use of the air end in a wide rpm range.
FM & FM RS package compressors
Based up on the individual customer requirements the compressors can be combined with different options to provide choices from a stand alone compressor to the complete package.
Air station features include:
- Compressor base mounted
- Tank mounted compressor
- Complete package including compressor, dryer and tank
- Optional filter pack with by-pass available
New advanced controller C-PRO 2.0 ensures reliable operation and protects your investment by continuously monitoring the operational parameters.
| Part Number | RSCCP1127V4 |
|---|---|
| Display Weight | 354 Kg |
| Dimensions L x W x H (mm) | 1600 x 700 x 1600 |
| Warranty | 2 Year Warranty |
| Brand | Champion |
| Lubrication Type | Oil-Lubricated |
| Tank Size | 270L Tank Mounted |
| Air Displacement (CFM) | 49.09 CFM |
| Portable or Stationary | Stationary |
| Sound Level | 70 dB |
| Drive Motor Power | 11 kW |
| Motor HP | 15 HP |
| Power Source | Electric |
| Voltage | 400V (Three Phase) |
| Air Outlet | 3/4" Female BSPP |
| Discharge Pressure | 116 PSI / 8 bar |
| Colour | White/Grey |
