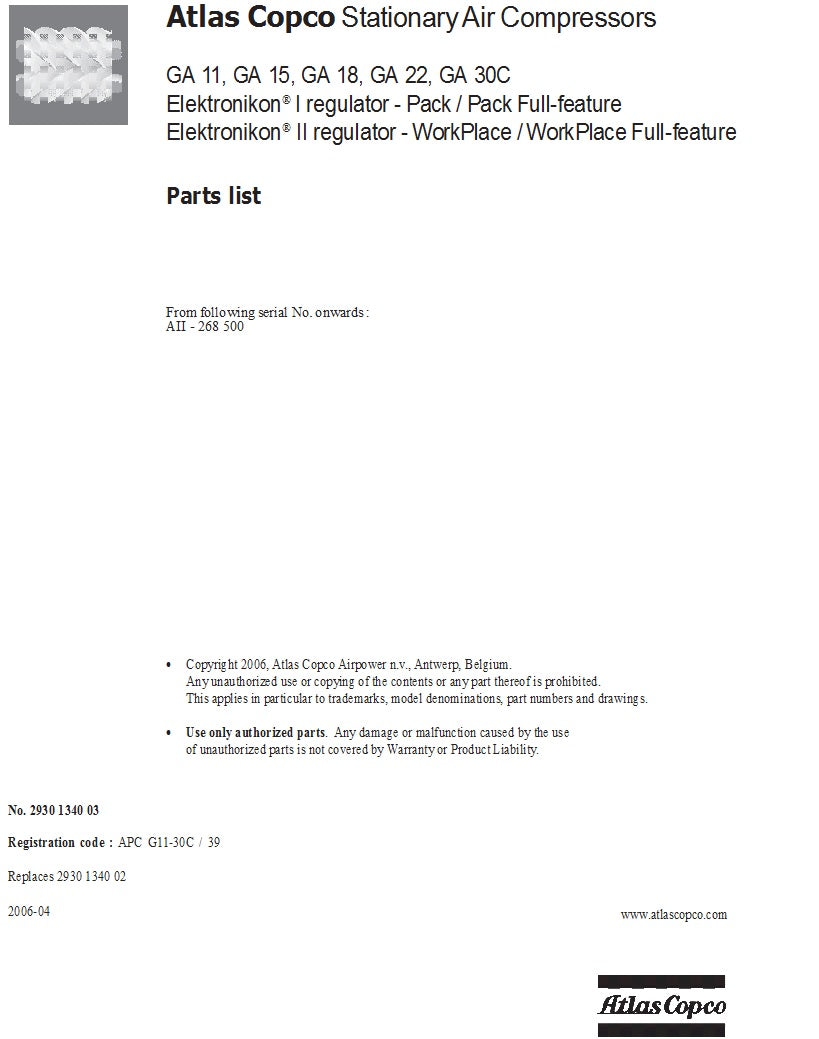

ATLAS COPCO GA PARTS MANUAL

GA 11, GA 15, GA 18, GA 22, GA 30C

Elektronikon I regulator - Pack / Pack Full-feature

Elektronikon II regulator - WorkPlace / WorkPlace Full-feature

PARTS LISTS ARE FOR THE FOLLOWING SERIAL NUMBER ONWARDS: AII – 268 500

The manual includes parts lists and exploded diagrams for the following parts:

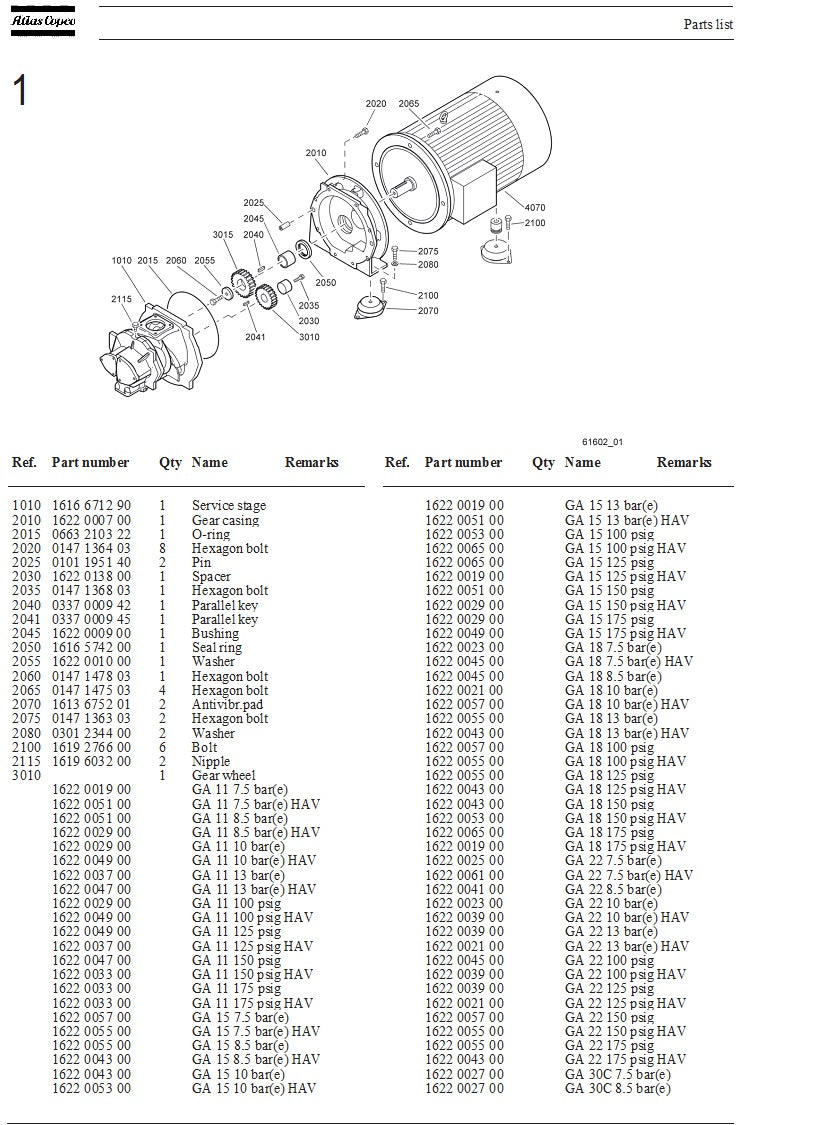

• Drive Arrangement
• Air Flow
• Oil System
• Air Receiver; with bolted minimum pressure valve & screwed minimum pressure valve
• Unloading Valve
• Regulating System
• Air Outlet
• Air Dyer
• By-Pass Dryer
• Bodywork
• Start Cubicle
• Star/delta - Elektronikon I - IEC - 1
• Star/delta - Elektronikon I - IEC – 2
• Star/delta - Elektronikon II - IEC – 1
• Star/delta - Elektronikon II - IEC – 2
• DOL - Elektronikon I - CSA/UL – 1
• DOL - Elektronikon I - CSA/UL – 2
• DOL - Elektronikon II - CSA/UL – 1
• DOL - Elektronikon II - CSA/UL – 2
• Energy Recovery System
• Drain System
• Full Feature Filter Kit
• Modulating Control
• Main Switch
• Rain Protection
• Lifting Device
• Heavy Duty Filters
• Service Kits

The manual is in the following languages:

• English
• Dutch
• Portuguese
• Danish
• Finnish
• French
• German
• Italian
• Spanish
• Swedish
