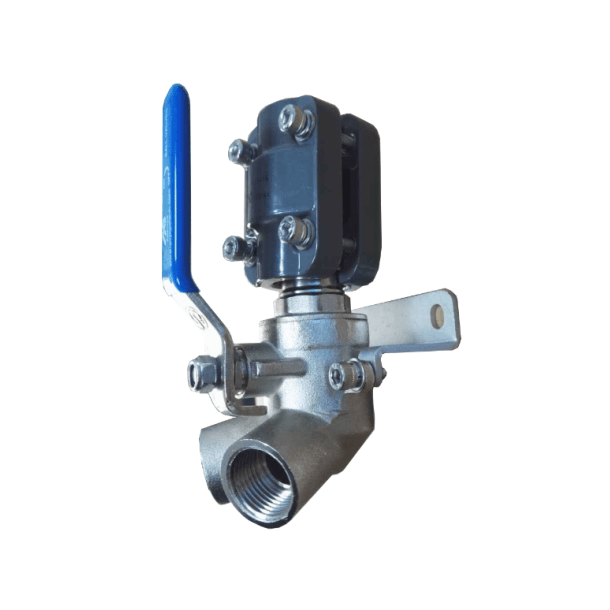

AIRpipe Two Port Female Wall Bracket 75° DN20 to DN25
Couldn't load pickup availability
Accepted Payments
Ask The Experts!
Product Description
Elevate your compressed air distribution system with the AIRpipe Two Port Female Wall Bracket 75° Angled DN20 to DN25 (BSP Threads), a premium aluminum piping accessory designed for seamless wall mounting and efficient, angled outlet connections. Engineered for industrial and commercial applications, this 75° angled bracket combines robust construction with innovative quick-connect technology to ensure a leak-free, high-flow setup that minimizes energy loss, downtime, and provides ergonomic access to air outlets.
Key Features:
- Dual Female Ports at 75° Angle: Two 1/2" BSP female threaded ports angled at 75° for comfortable, user-friendly connections to hoses, tools, regulators, or drops—ideal for multi-point air delivery in tight spaces.
- Locking Ball Valve: Integrated brass ball valve with secure locking handle prevents accidental shut-off and allows precise flow control.
- Corrosion-Resistant Aluminum Body: Lightweight yet durable construction withstands harsh environments, ensuring long-term reliability without rust or degradation.
- Easy Installation: Includes mounting plate, drill tail screws, self-tapping screws, and washers for quick, tool-free attachment to any wall surface.
- High-Pressure Performance: Rated up to 300 PSI (model-specific: 232 PSI for DN20, 188 PSI for DN25), suitable for demanding pneumatic systems.
- Wide Temperature Range: Operates reliably from -4°F to +176°F (-20°C to +80°C), adapting to diverse workshop conditions.
Technical Specifications:
| Specification | Details |
|---|---|
| Pipe Compatibility | DN20 (20mm / 3/4") or DN25 (25mm / 1") aluminum pipe |
| Port Size | Two 1/2" Female BSP (75° angled) |
| Material | Aluminum body with brass valve |
| Pressure Rating | Up to 300 PSI (ISO 8573-1 certified) |
| Temperature Range | -4°F to +176°F (-20°C to +80°C) |
| Weight | Approx. 0.5-0.7 lbs (variant-dependent) |
| Certifications | ISO 8573-1 (compressed air quality) |
This wall bracket is part of the revolutionary AIRpipe system, known for its push-to-connect fittings that install up to 5x faster than traditional methods. The 75° angle enhances accessibility in workshops, manufacturing facilities, or automotive garages, supporting modular piping expansions while maintaining optimal air quality and efficiency. The BSP threading option ensures compatibility with international standards and seamless integration in global setups.
Variants Available:
- DN20 (20mm / 3/4" pipe) to 1/2" Two-Port Female BSP (75° angled)
- DN25 (25mm / 1" pipe) to 1/2" Two-Port Female BSP (75° angled)
Upgrade your air lines today for safer, more efficient operations. Questions? Contact our experts for custom configurations!
