AIRpipe Installation Marking Tool DN20 to DN100
Couldn't load pickup availability
Accepted Payments
Ask The Experts!
Product Description

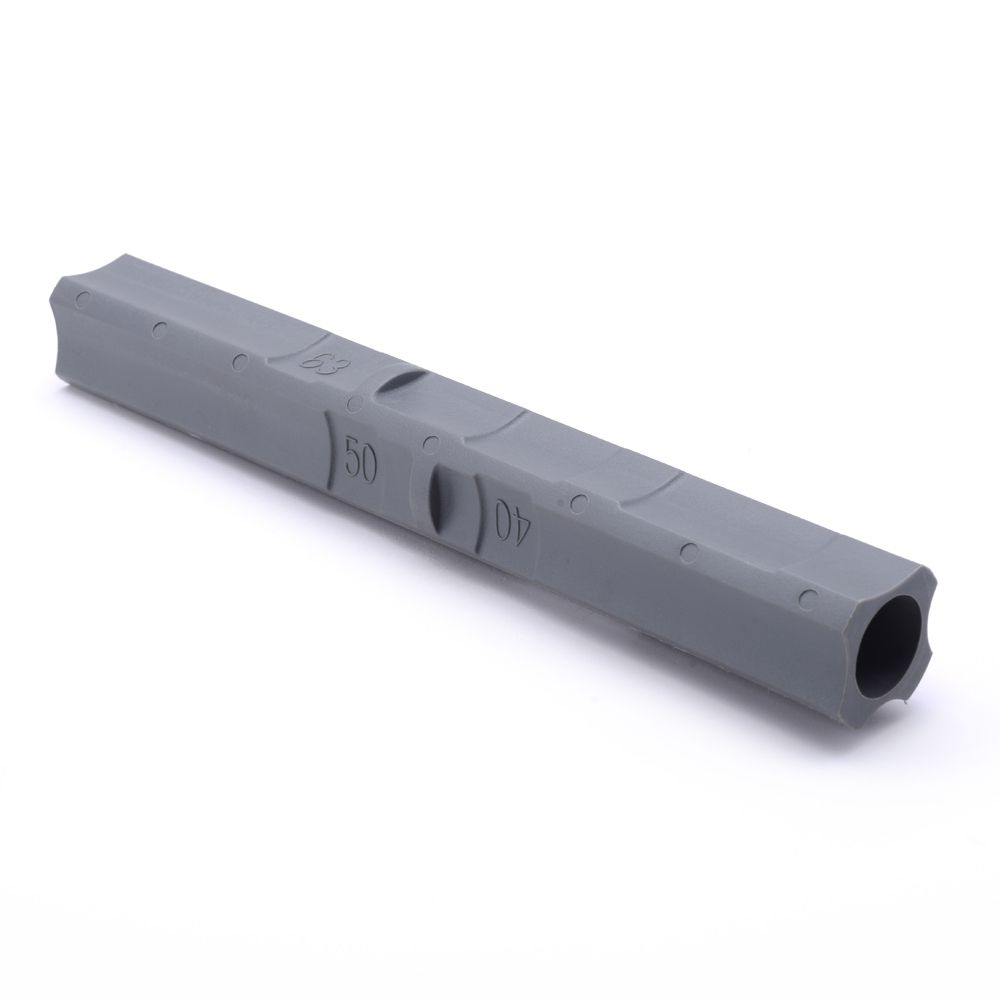

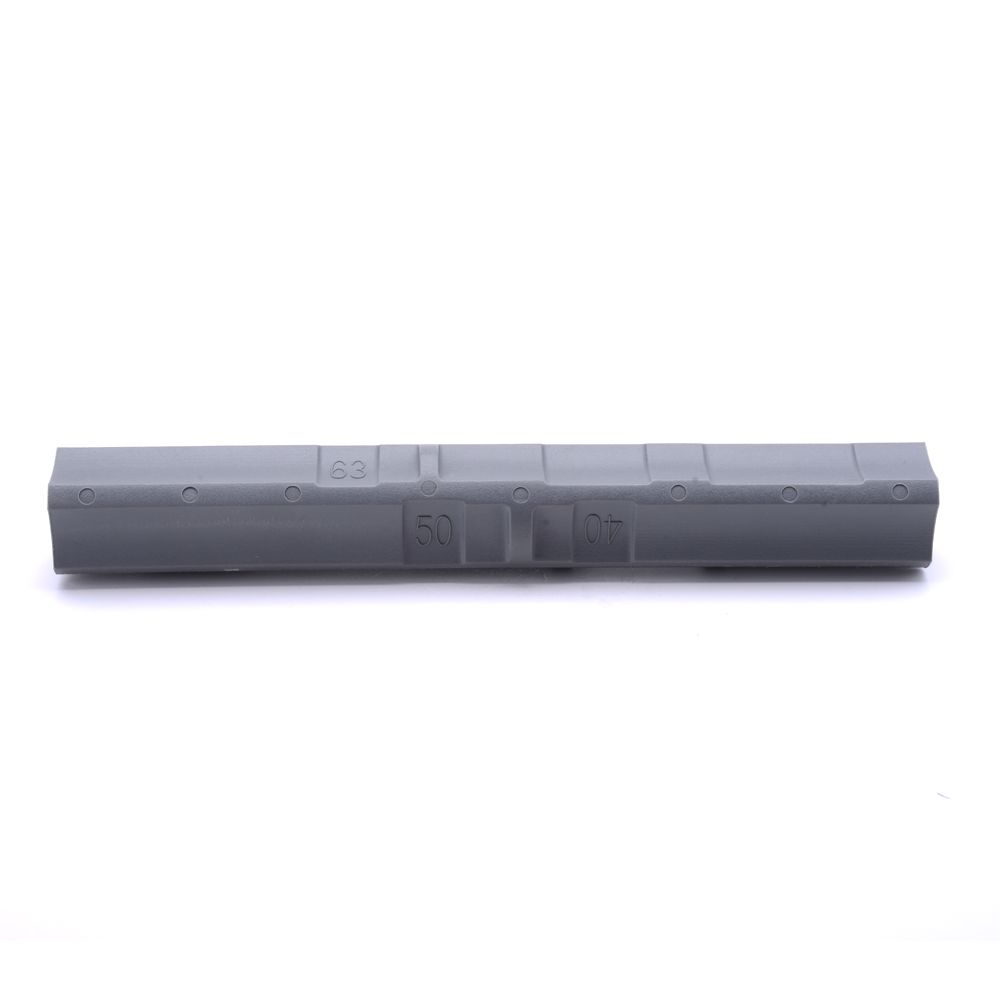

Facilitate precise preparation in your compressed air distribution system with the AIRpipe Installation Marking Tool DN20 to DN100, a specialized gauge designed for quick and accurate marking on modular aluminum piping. Engineered for professional installers in industrial and commercial settings, this tool helps mark cut lines, insertion depths, and alignment points—guaranteeing perfect push-to-connect assemblies that are up to 5x faster than conventional methods. Essential for maintaining system integrity in workshops, factories, and service environments handling pipes from DN20 (3/4") to DN100 (4").
Key Features:
- Adjustable Sizing Range: Scalable caliper-style design fits DN20 to DN100 pipes, with clear depth markings for consistent O.D. (outer diameter) measurements and chamfer guides.
- Durable Construction: Anodized aluminum body with etched stainless steel rulers resists corrosion and wear, ensuring longevity in dusty or oily shop conditions.
- Easy-to-Read Markings: Laser-etched metric and imperial scales (mm/inch) for insertion depth (up to 50mm) and cut positioning, compatible with AIRpipe fittings and elbows.
- Versatile Functionality: Doubles as a deburr reference and alignment tool for elbows, tees, and valves, reducing errors and rework during layout.
- Ergonomic and Portable: Lightweight (under 1 lb) with non-slip grips and a clip-on storage case for easy transport and on-the-go use.
- Safety-Compliant: Promotes precise prep to avoid over-insertion or leaks, supporting 300 PSI system pressures.
Technical Specifications:
| Specification | Details |
|---|---|
| Pipe Compatibility | DN20 (20mm / 3/4") to DN100 (100mm / 4") aluminum pipe |
| Measurement Range | 20-100mm O.D.; Depth marks 0-50mm |
| Material | Anodized aluminum body, stainless steel scales |
| Accuracy | ±0.1mm tolerance for professional cuts |
| Weight | Approx. 0.8 lbs |
| Dimensions | 8" L x 3" W x 1" H (folded) |
| Certifications | Compatible with ISO 8573-1 compressed air systems |
This marking tool is a must-have accessory for the AIRpipe system, streamlining the marking phase to achieve optimal airflow, energy efficiency, and air quality. Pair it with AIRpipe cutters and deburrers for a complete prep workflow.
