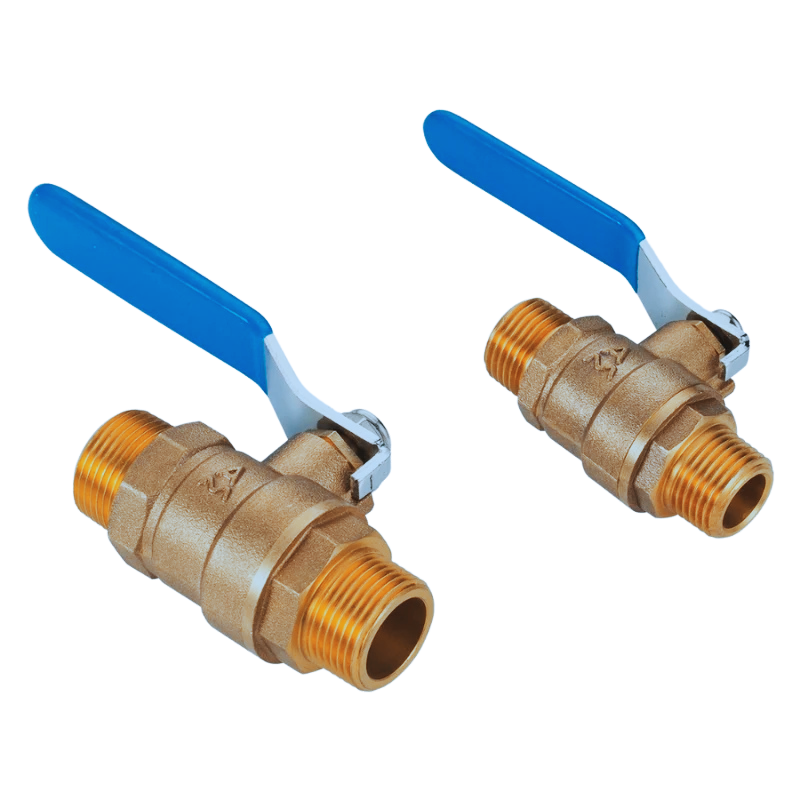

AIRpipe Brass Ball Vave Male/Male BSP 1/2" to 3/4"
Couldn't load pickup availability
Accepted Payments
Ask The Experts!
Product Description
Master inline flow regulation in your compressed air distribution system with the AIRpipe Brass Ball Valve Male/Male BSP Threaded 1/2" to 3/4", a high-performance valve optimized for straightforward integration into modular aluminum piping networks. Developed for industrial and commercial precision, this lockable brass valve ensures quarter-turn shut-off for immediate isolation, featuring double male threading for plug-and-play compatibility in straight-through configurations.
Key Features:
- Double Male BSP Threads: Identical male ends (1/2" or 3/4" BSP sizing) for simple, direct connections to female-threaded pipes, hoses, or components—perfect for extending or linking pneumatic lines without adapters.
- Lockable Brass Handle: Built-in locking system with intuitive handle safeguards against unintended operation, delivering reliable full-open or closed control.
- Corrosion-Resistant Brass Construction: Premium, lead-free brass alloy defies environmental stressors, delivering unwavering durability in greasy, damp, or corrosive settings.
- High-Flow Design: Bore-matched full-port architecture curbs flow resistance and pressure attenuation, boosting system throughput and operational economy.
- High-Pressure Performance: Rated up to 300 PSI, engineered to handle intensive pneumatic loads with confidence.
- Wide Temperature Range: Functions flawlessly from -4°F to +176°F (-20°C to +80°C), adaptable to fluctuating site conditions.
Technical Specifications:
| Specification | Details |
|---|---|
| Pipe Compatibility | 1/2" BSP (DN15 equiv.), 3/4" BSP (DN20) aluminum pipe equivalents |
| Thread Size | Double Male BSP (1/2" or 3/4") |
| Material | Brass body and lockable handle |
| Pressure Rating | Up to 300 PSI (ISO 8573-1 certified) |
| Temperature Range | -4°F to +176°F (-20°C to +80°C) |
| Weight | Approx. 0.3-0.5 lbs (size-dependent) |
| Certifications | ISO 8573-1 (compressed air quality) |
Embedded in the forward-thinking AIRpipe framework, this double-male brass ball valve harnesses push-to-connect innovation for setups 5x quicker than outdated approaches. Tailored for fabrication shops, utility rooms, and assembly operations, it promotes hassle-free segmental management and diagnostics, sustaining peak air standards and infrastructure vitality. BSP male threads facilitate universal interfacing.
Variants Available:
- 1/2" Double Male BSP Threaded
- 3/4" Double Male BSP Threaded
Bolster your air infrastructure with this steadfast, double-male valve. Questions? Our advisors await your inquiry for optimal setups!
